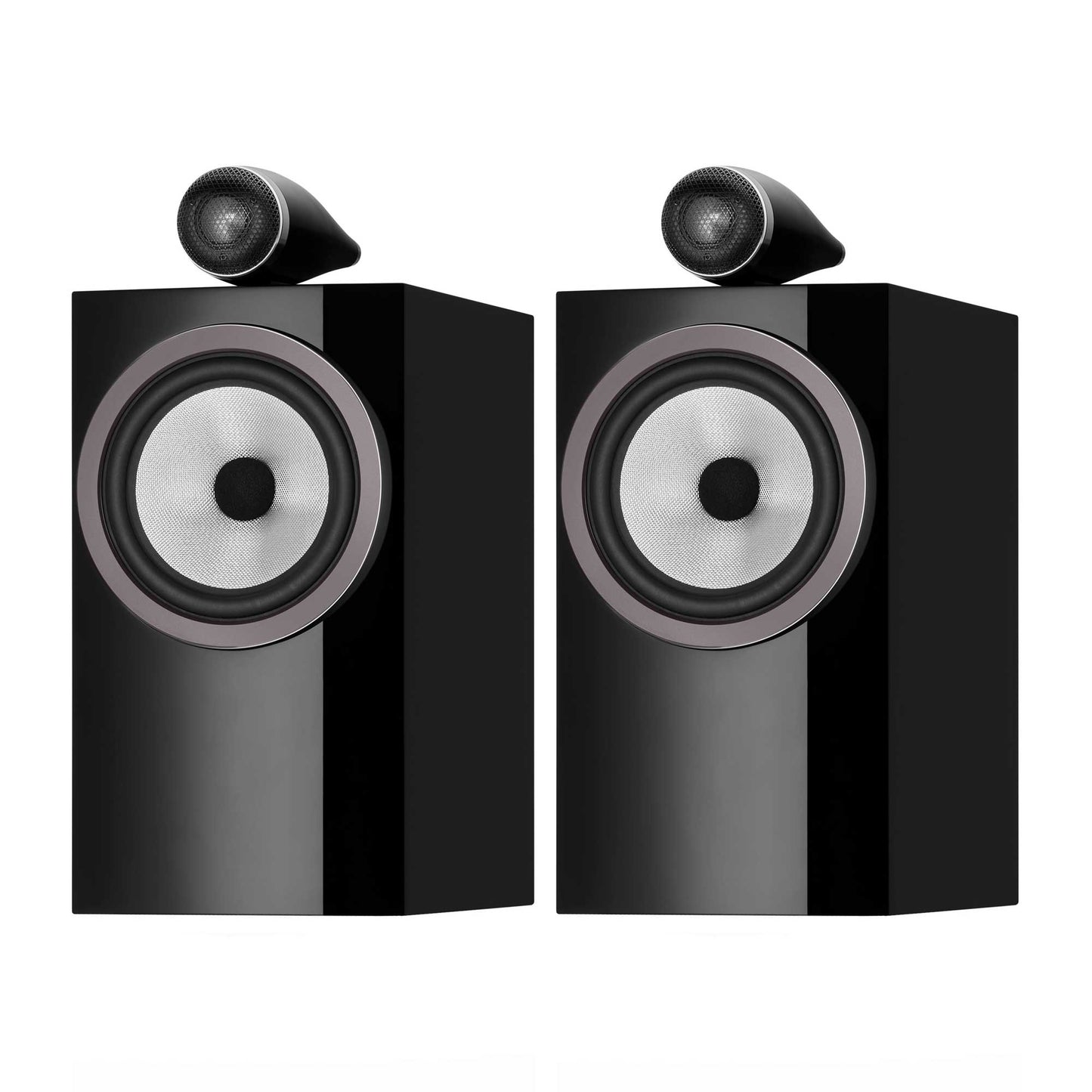

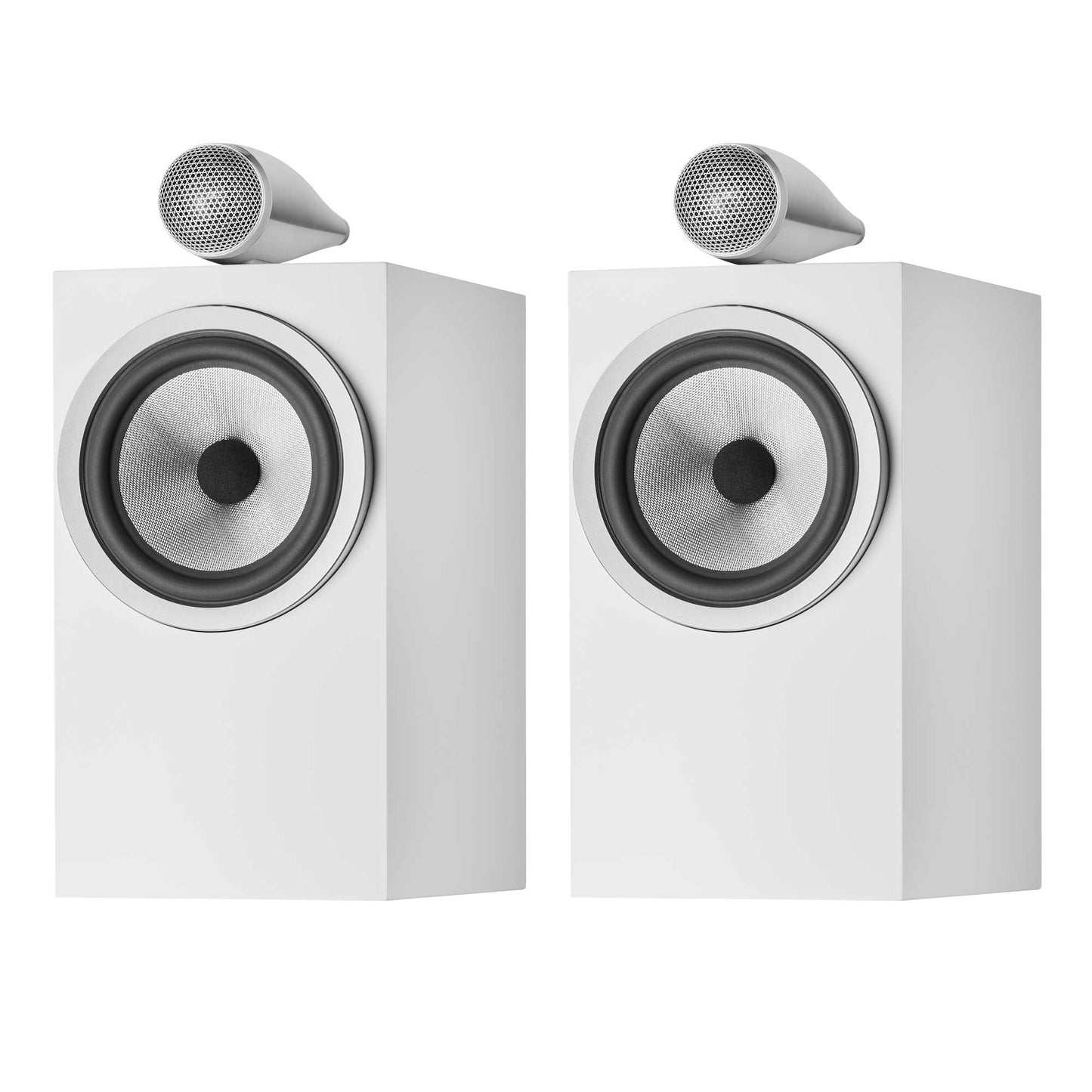

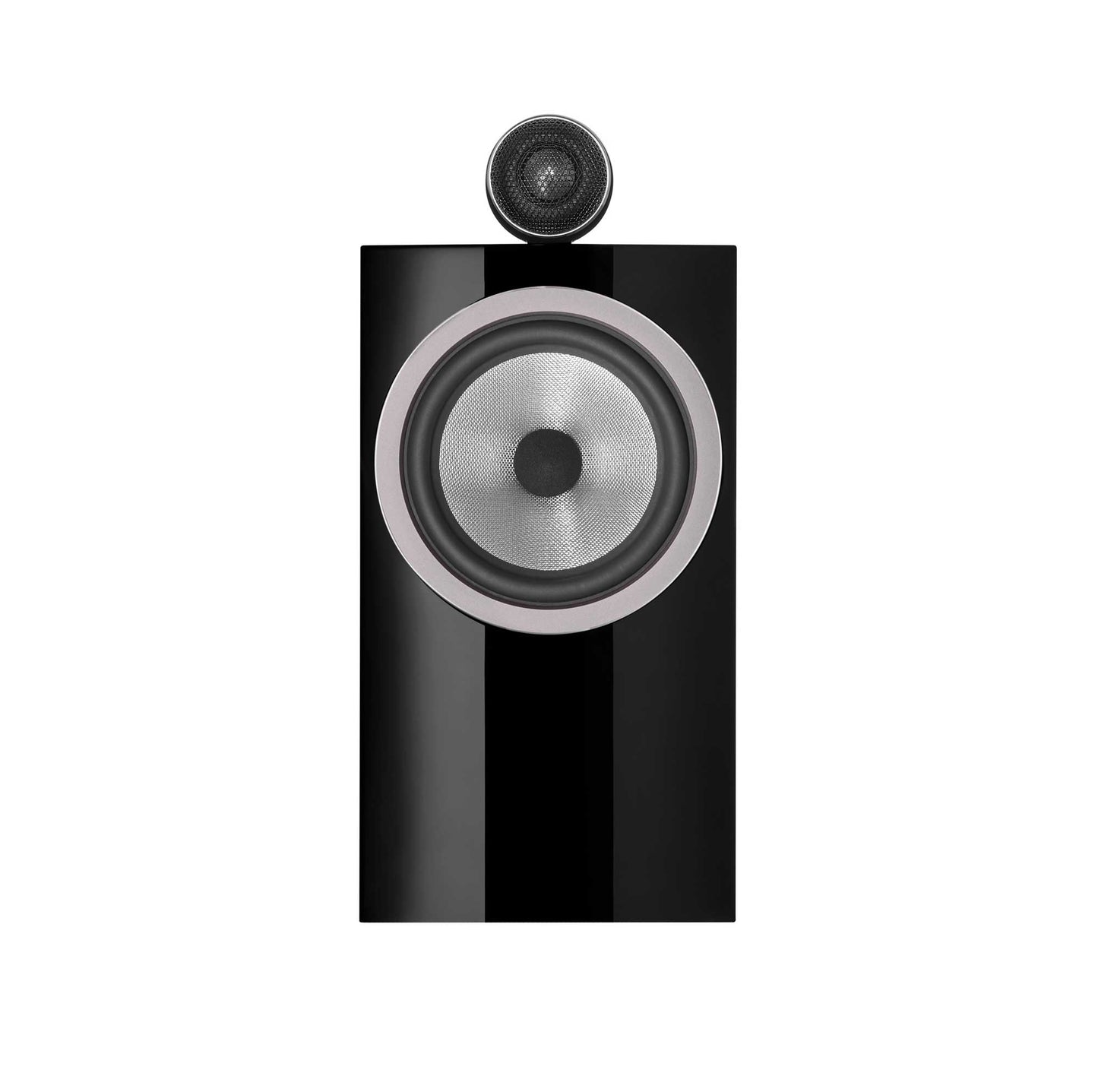

Bowers & Wilkins 705 S3 – 2-way Stand-Mount Speakers
The 705 S3 is the flagship stand-mount speaker in Bowers & Wilkins' revamped 700 Series line-up. This uncompromising two-way speaker reveals subtle nuances in music that others miss. Its high-performance features include a solid body Tweeter-on-Top design borrowed from the legendary 800 Series Diamond range. With a combination of advanced driver design, superior components and exquisite build quality the 705 S3’s deliver a performance that belies its relatively small footprint.
Proprietary drivers

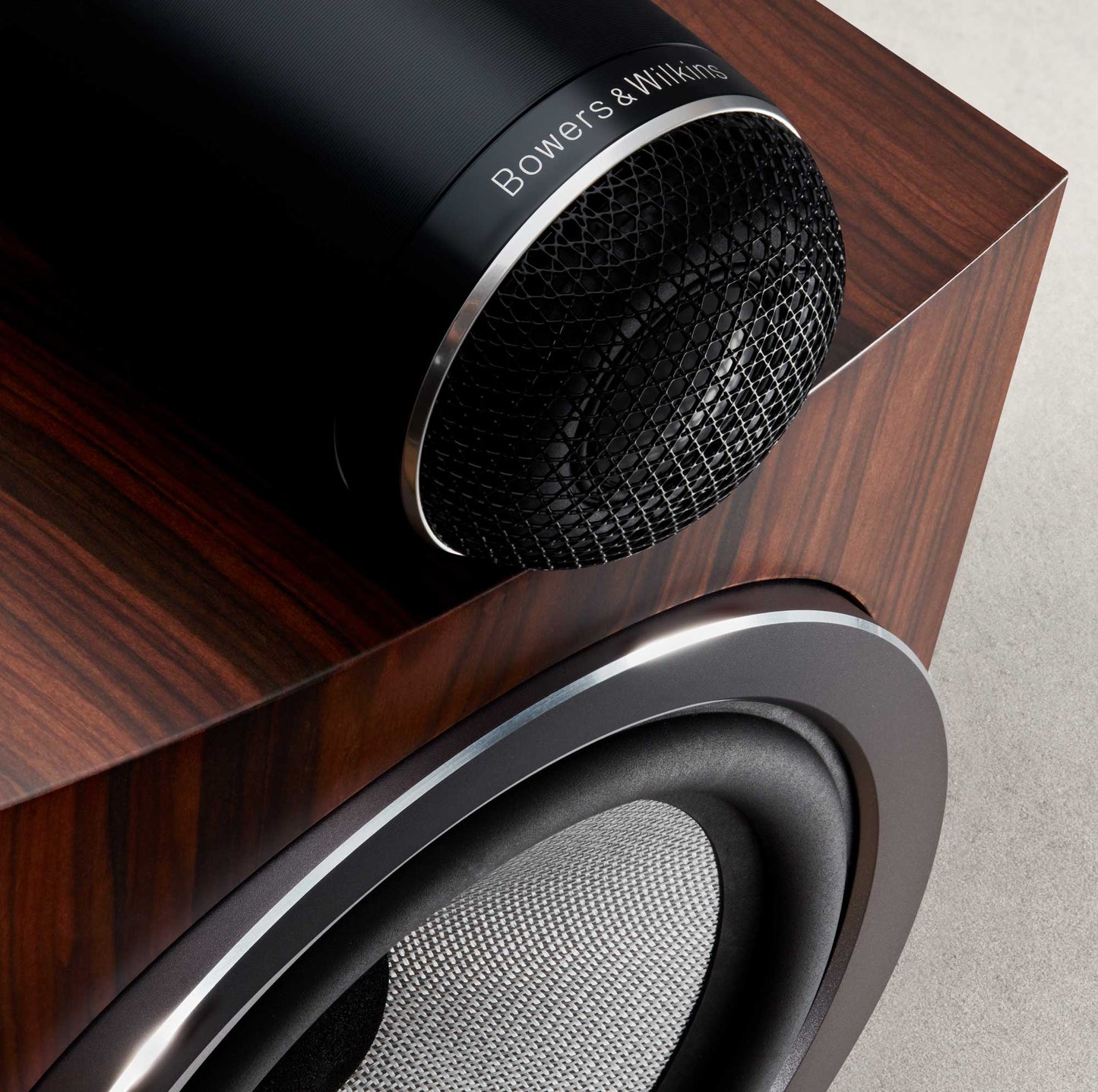

The 705 S3’s Carbon Dome tweeter is housed in an all-new Solid Body Tweeter assembly, derived from the flagship Bowers & Wilkins 800 Series Diamond range. The carefully decoupled housing is milled from a single solid block of aluminium to better resist resonance thus ensuring the most accurate, lifelike treble, while the 6.5” Continuum™ cone mid-bass driver provides outstanding depth, detail and precision.
Product Highlights:
1" Decoupled Carbon Dome™ tweeter in top-mounted solid-body housing
6.5" Continuum™ cone midrange/bass driver
Frequency response: 50-28,000 Hz (±3dB)

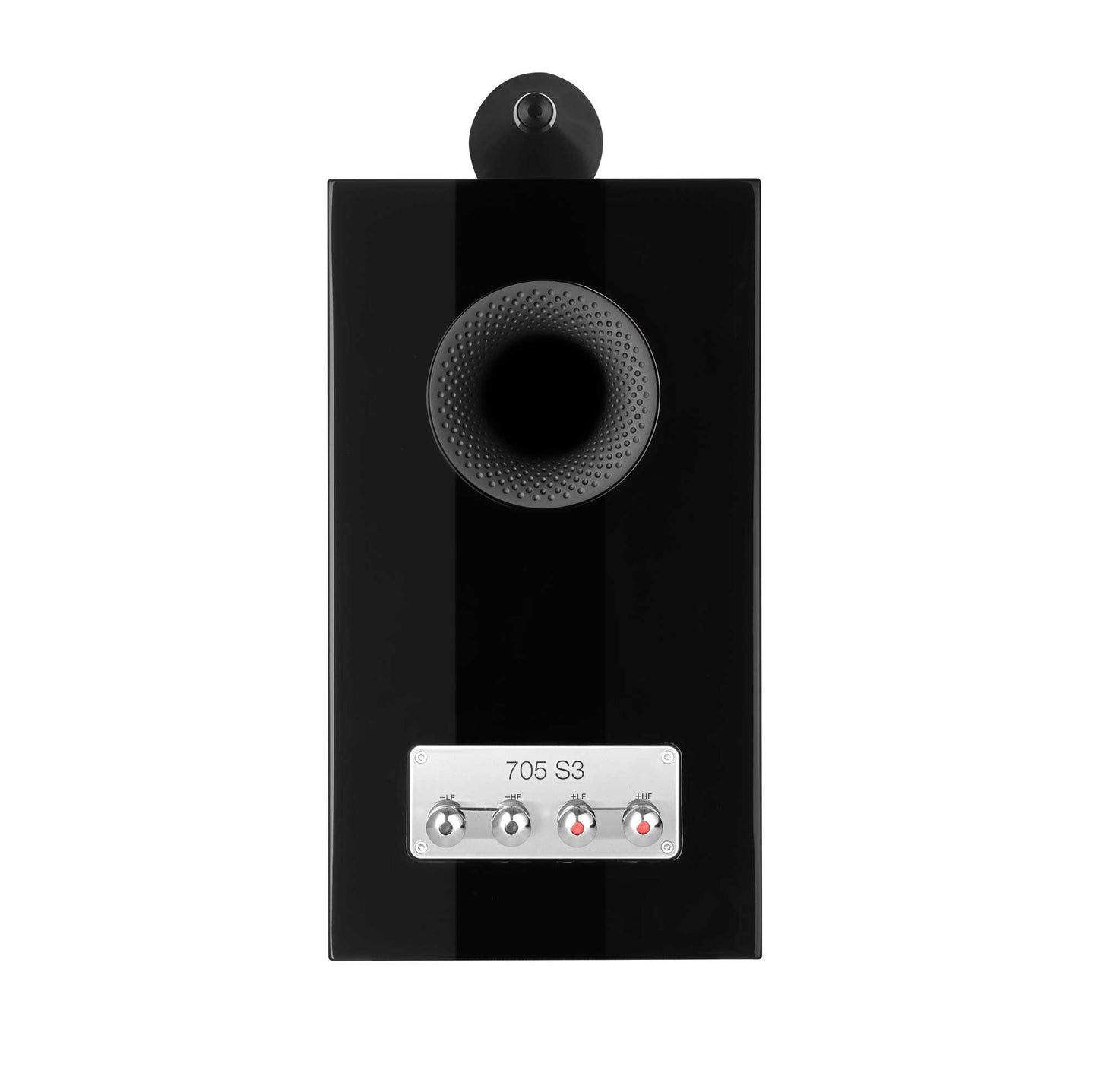

Bass-reflex cabinet with rear-firing Flowport™
Sensitivity: 88 dB
Impedance: 8 ohms
Recommended amplifier power: 30-120 watts
Includes a 2-piece foam port plug for adjusting the speaker's low-frequency performance

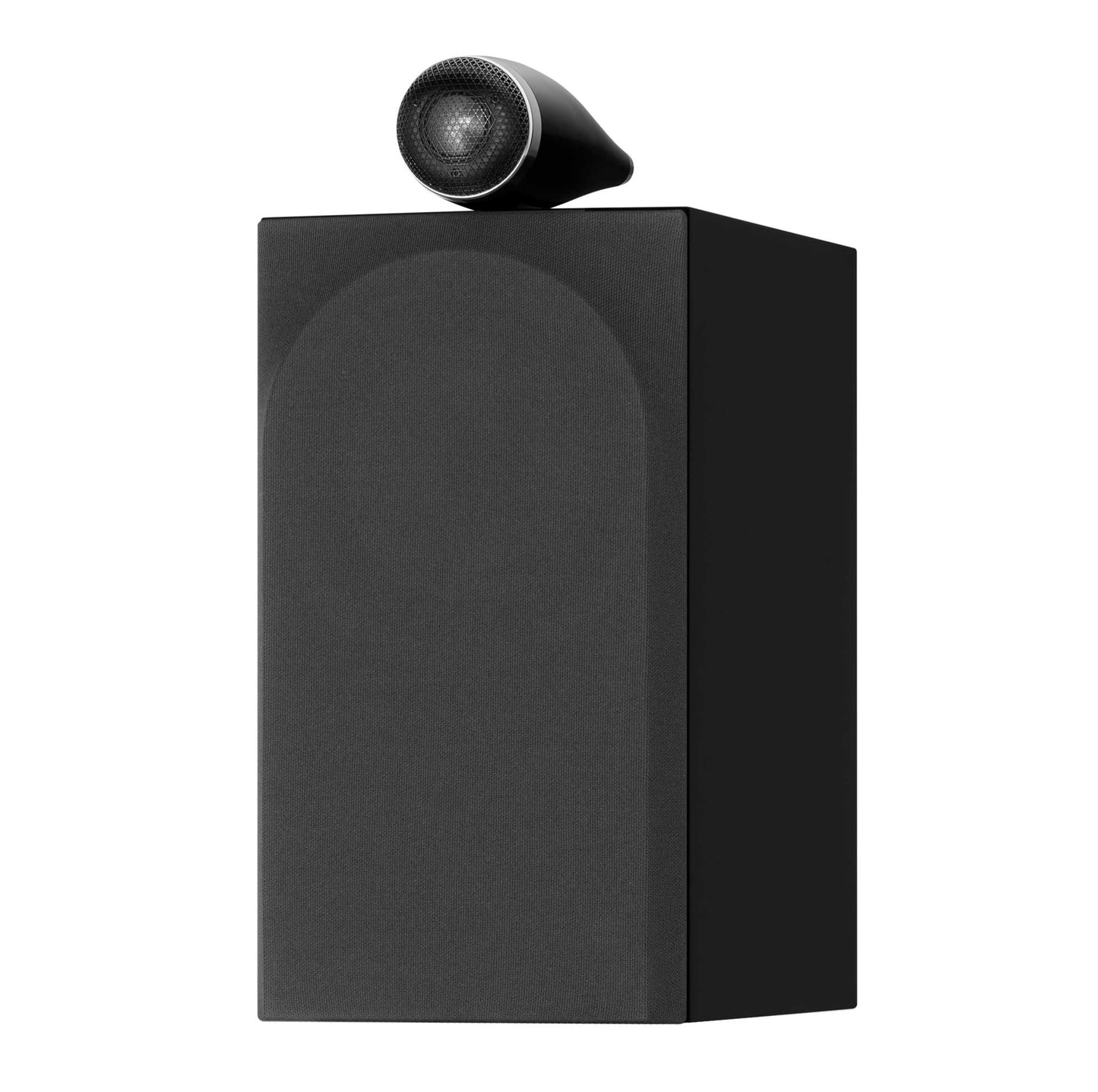

Removable grille is magnetically attached

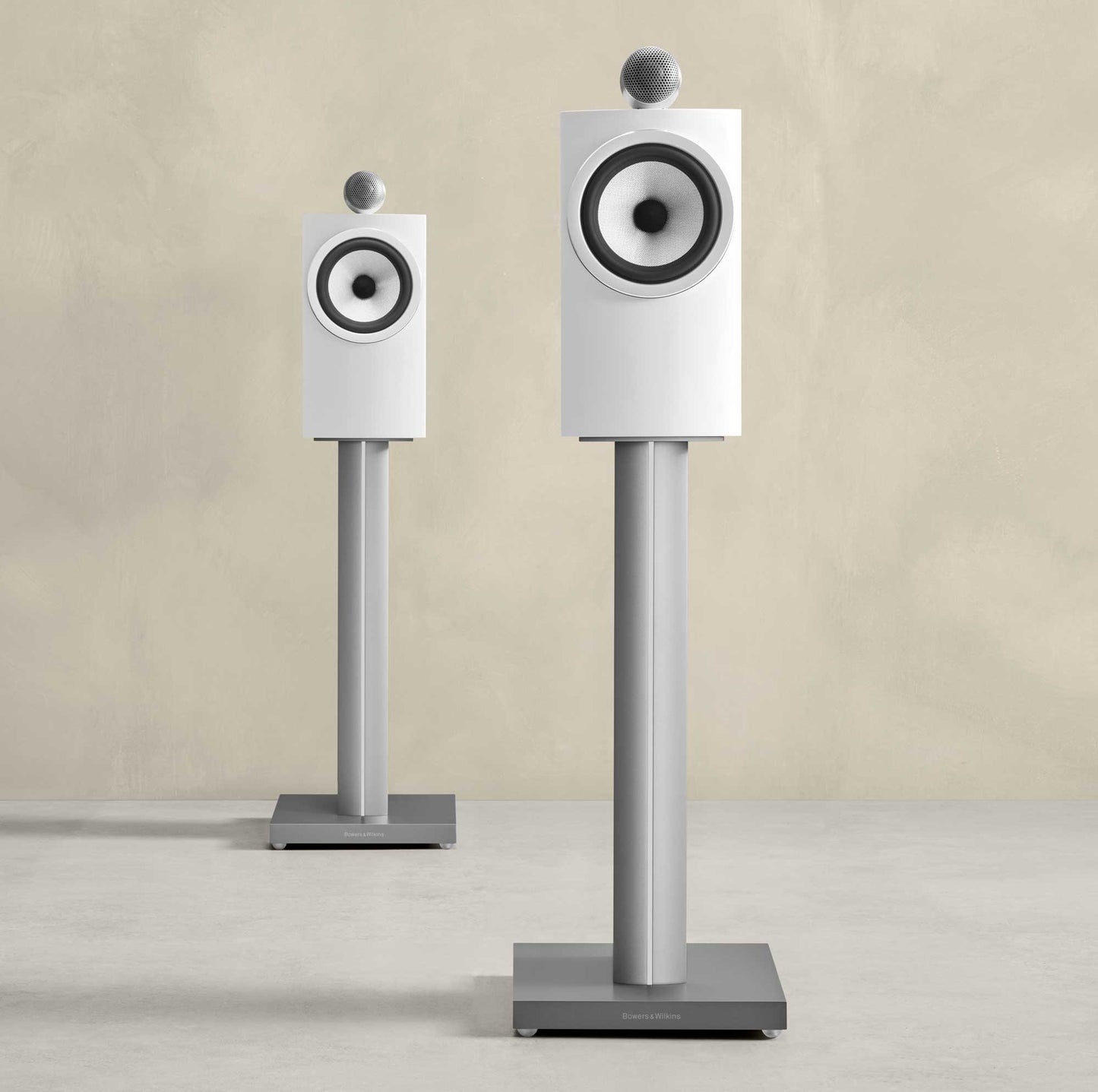

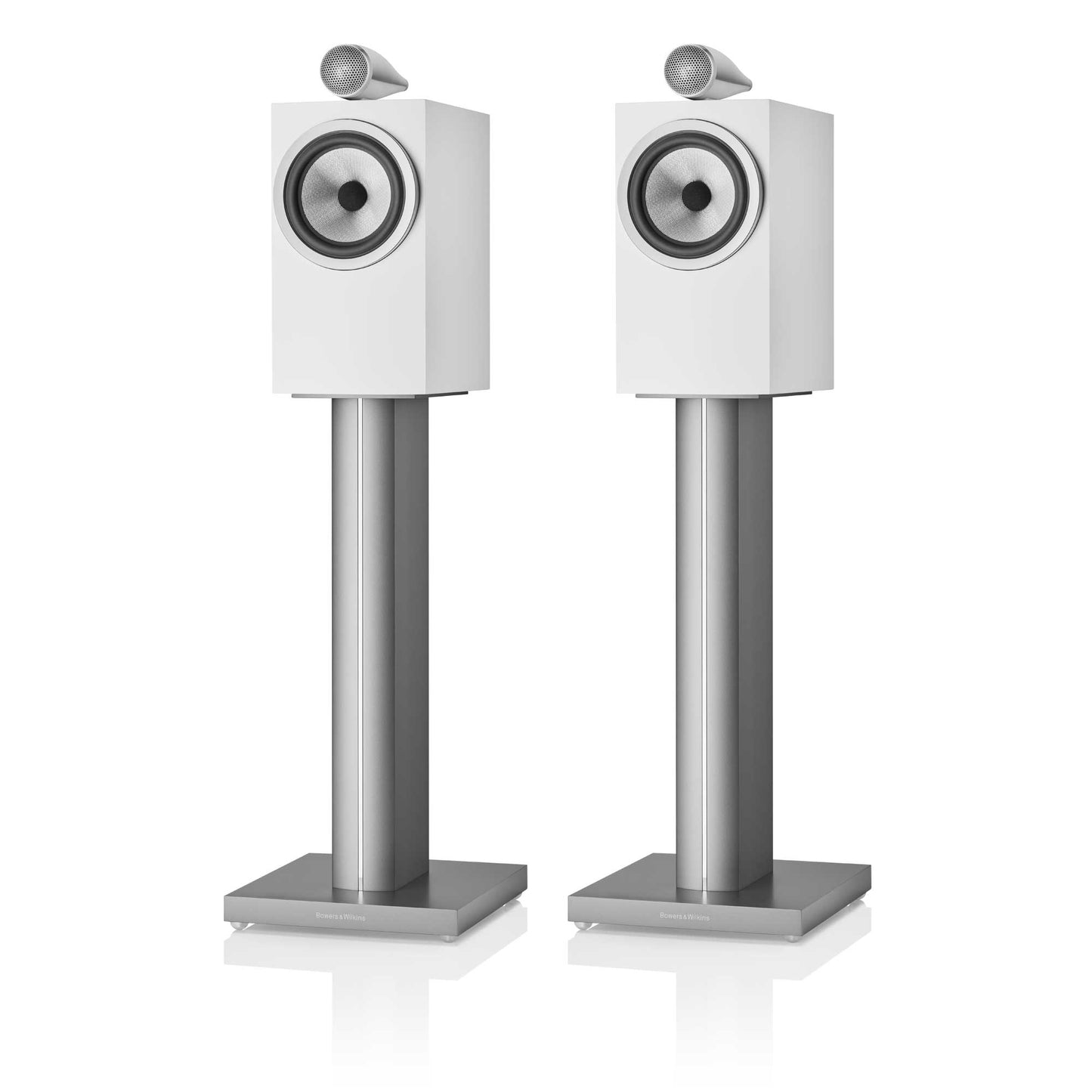

Optional FS700 S3 Floorstands available
Bowers & Wilkins 705 S3 Specifications
Description |
2-way vented-box system |
Technical features |
Decoupled Carbon Dome tweeter |
Continuum™ cone midrange/bass |
|
Flowport™ |
|
Drive units |
1 x ø25mm (1 in) Decoupled Carbon Dome tweeter |
1 x ø165mm (6.5 in) Continuum cone midrange/bass driver |
|
Frequency range (-6dB) |
45Hz - 33kHz |
Frequency Response -3dB |
50Hz - 28kHz ±3dB |
Sensitivity |
88dB spl (2.83VRMS, 1m) |
Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m) |
<1% 100Hz - 22kHz |
|
<0.5% 150Hz - 20kHz |
|
Nominal impedance |
8Ω (minimum 3.1Ω) |
Recommended amplifier power |
30W - 120W into 8V on unclipped programme |
Dimensions |
Height: 345mm |
Height including tweeter: 413mm |
|
Width: 192mm |
|
Depth: 297mm |
|
Depth with grille/terminals: 337mm |
|
Net weight |
9.58kg |
Finishes |
Gloss Black - Black Grille |
Satin White - Grey Grille |
|
Mocha - Black Grille |
