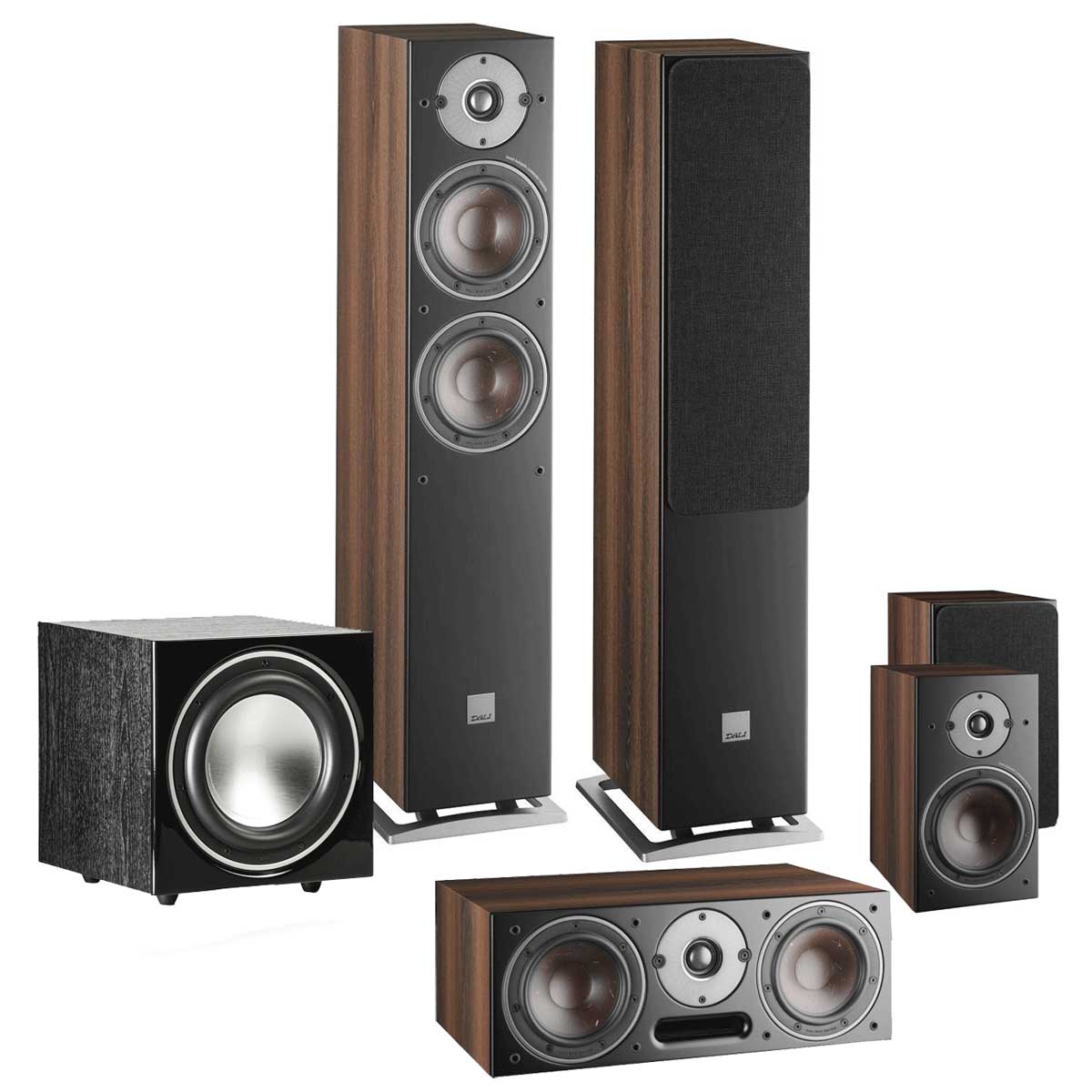

Oberon 5 Front Speakers
The Dali Oberon 5 5.1speaker package offers supreme performance for both home cinema use and regular music playback. Oberon 5 is a compact and elegant floor-standing speaker, housing 2 x 5¼” wood fibre based woofers with SMC and the series’ wide bandwidth 29 mm ultra-lightweight soft dome tweeter. This slim floor-stander will surprise with its ability to deliver a deep firm bass together with a clear and well defined mid-range and airy high frequencies. The Oberon 5 will impress with its natural and lifelike reproduction of any music or movie sound track.
Dali Oberon Vokal Centre Speaker
The Oberon Vokal Speaker delivers a precise, clear and detailed sound performance for both your movie as well concert sound tracks. It is designed to be the perfect match with any of the speakers in the Oberon series for a complete surround system. It houses a 29 mm ultra-lightweight soft dome tweeter and 2 x 5.25" SMC based wood fibre woofers - combining technologies which make it possible to create a speaker that will render audio like a much larger model.
Dali Oberon 1 Rear Surround Speakers
The Oberon 1 is a ultra-compact bookshelf speaker. The cabinet size enables an optimal balance between inner volume for bass performance and a compact appearance for easy integration - suited for smaller rooms, discreet audio setups or wall mounting. It features the same oversized 29 mm ultra-lightweight soft dome tweeter as its floor-standing siblings, and a SMC based 5.25" wood fibre woofer to handle lower midrange and bass. The Oberon 1 is based on the most innovative DALI ideas, traditions and inventions - united in a sleek compact design.
Dali E-9F Subwoofer
The E9-F subwoofer features a 9” woofer, capable of moving lots of air with power and precision. The cone is made from pure aluminium for maximum stiffness, all wrapped up in a stylish exterior.
Fazon Sat Specifications |
|
Speaker Type |
Center |
Frequency Range (+/-3 dB) [Hz] |
86 - 25.000 |
Sensitivity (2,83 V/1 m) [dB] |
86,0 |
Nominal Impedance [Ω] |
6 |
Maximum SPL [dB] |
104 |
Recommended Amplifier Power [W] |
20 - 120 |
Crossover Frequency [Hz] |
1.800 Hz |
High Frequency Driver |
1 x 28 mm Soft Textile Dome |
Low Frequency Driver |
1 x 4.5" Wood Fibre Cone |
Enclosure Type |
Closed Box |
Connection input(s) |
Single Wire |
Magnetic Shielding |
No |
Recommended Placement |
Above/Below TV Screen |
Max. Dimensions Incl. Base And Grille (HxWxD) [mm] |
255,5 x 138 x 87 |
Weight [kg] |
2,4 |
Accessories Included |
Assembly Tools |
Finish |
Black Lacquer |
SUB E-12 F Specifications |
|
Speaker Type |
Subwoofer |
Frequency Range (+/-3 dB) [Hz] |
28 - 190 |
Maximum SPL [dB] |
112 |
Crossover Frequency [Hz] |
40 - 120 Hz |
Low Frequency Driver |
1 x 12" long stroke Polymere Aluminimum |
Enclosure Type |
Bass Reflex |
Bass Reflex Tuning Frequency [Hz] |
36.0 |
Max. Amplifier Power Output [RMS watt] |
220 |
Continous IEC Power Output [RMS watt] |
170 |
Input Impedance [Ω] |
25 |
Connection input(s) |
Mono line level (LFE) |
Magnetic Shielding |
No |
Recommended Placement |
Floor in the corner |
Recommended Distance From Wall [cm] |
5 < |
Functions |
Crossover Frequency |
Maximum Power Consumption [W] |
250 |
Max. Dimensions Incl. Base And Grille (HxWxD) [mm] |
370 x 340 x 380 |
Weight [kg] |
14.7 |
Finish |
Light Walnut Vinyl |
