WiiM Amp Ultra Streaming Amplifier
WiiM Amp Ultra Streaming Amplifier
Couldn't load pickup availability
- Free Delivery
- 2 year Warranty
Share
Details
Description

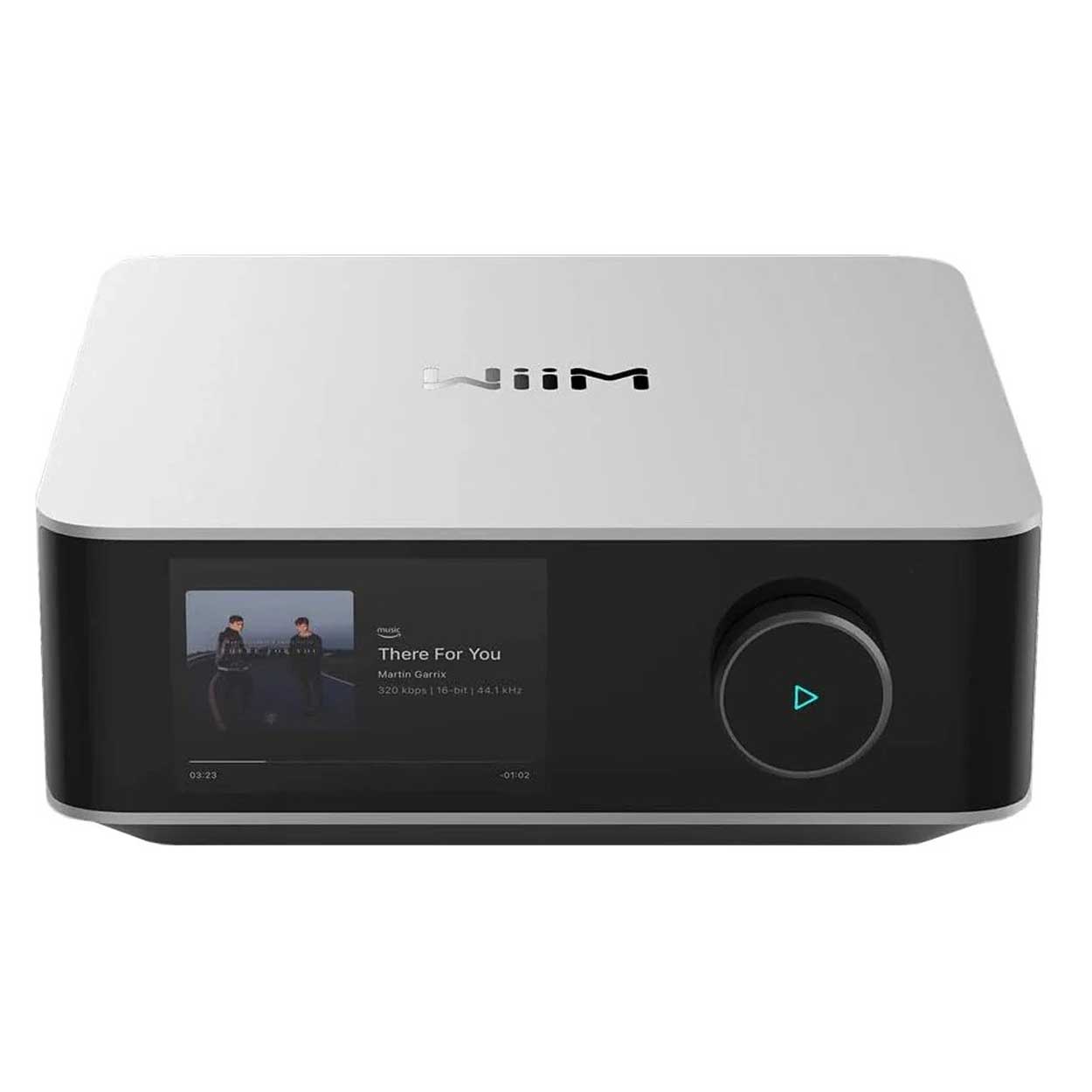

WiiM Amp Ultra – High-Performance Streaming Amplifier

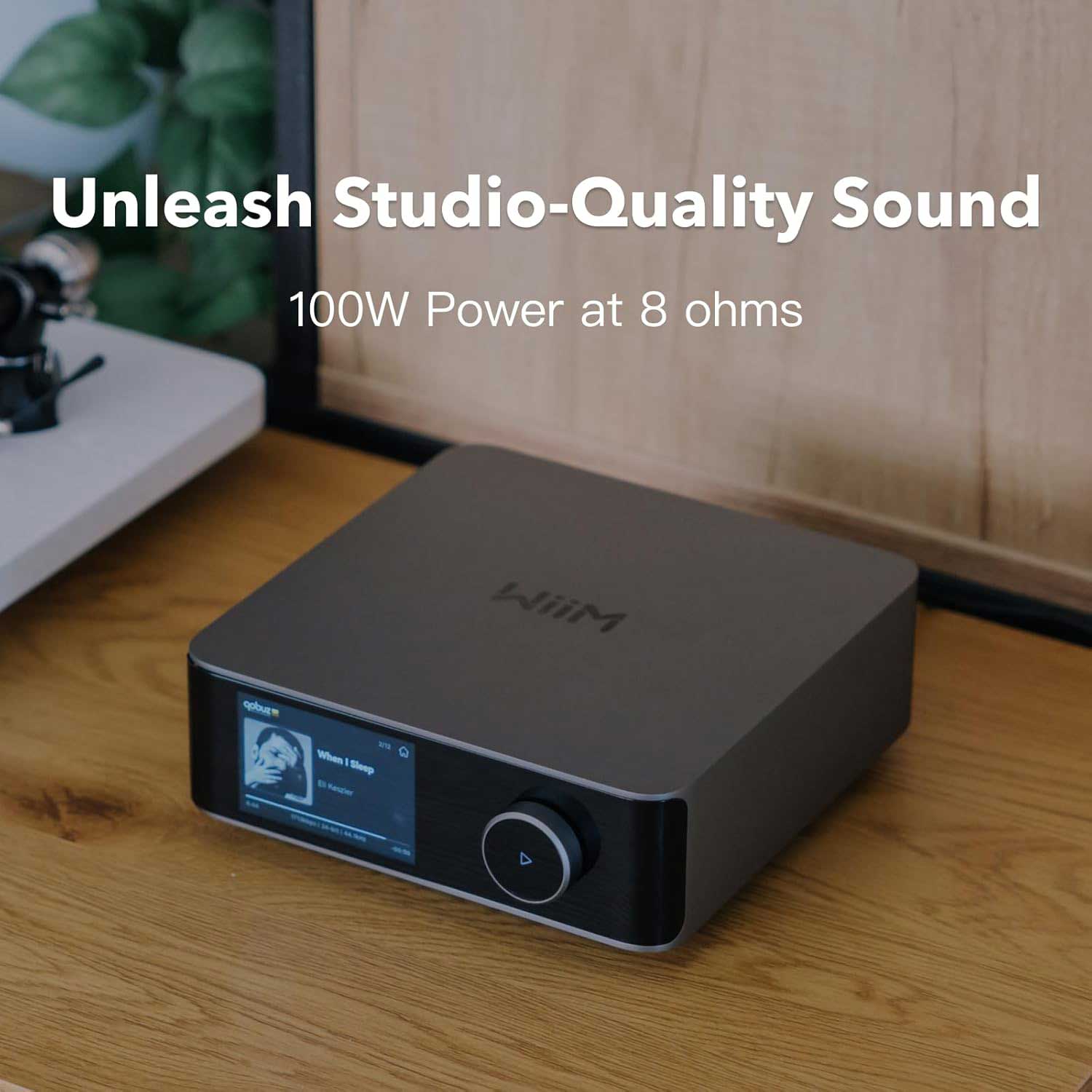

The WiiM Amp Ultra is a powerful all-in-one streaming amplifier that brings together superb audio performance and modern connectivity. Designed to drive up to four passive speakers, it delivers 100 W per channel at 8 Ω or 200 W at 4 Ω, giving you more than enough power for anything from bookshelf to floorstanding loudspeakers.
At the heart of the Amp Ultra is an ESS Sabre DAC combined with dual Texas Instruments Class-D amplifier modules, ensuring clean, detailed playback with vanishingly low distortion. Thanks to its Post-Filter Feedback (PFFB) technology, performance remains consistent even with more demanding speaker loads.
The streaming platform is equally capable: Wi-Fi 6E and Bluetooth 5.3 provide stable, high-resolution playback up to 24-bit/192 kHz, with support for Spotify Connect, TIDAL Connect, AirPlay 2, Chromecast built-in, and DLNA. HDMI ARC makes it simple to integrate with your television, while a built-in phono stage, optical, coaxial, and line inputs ensure versatility with both digital and analogue sources.

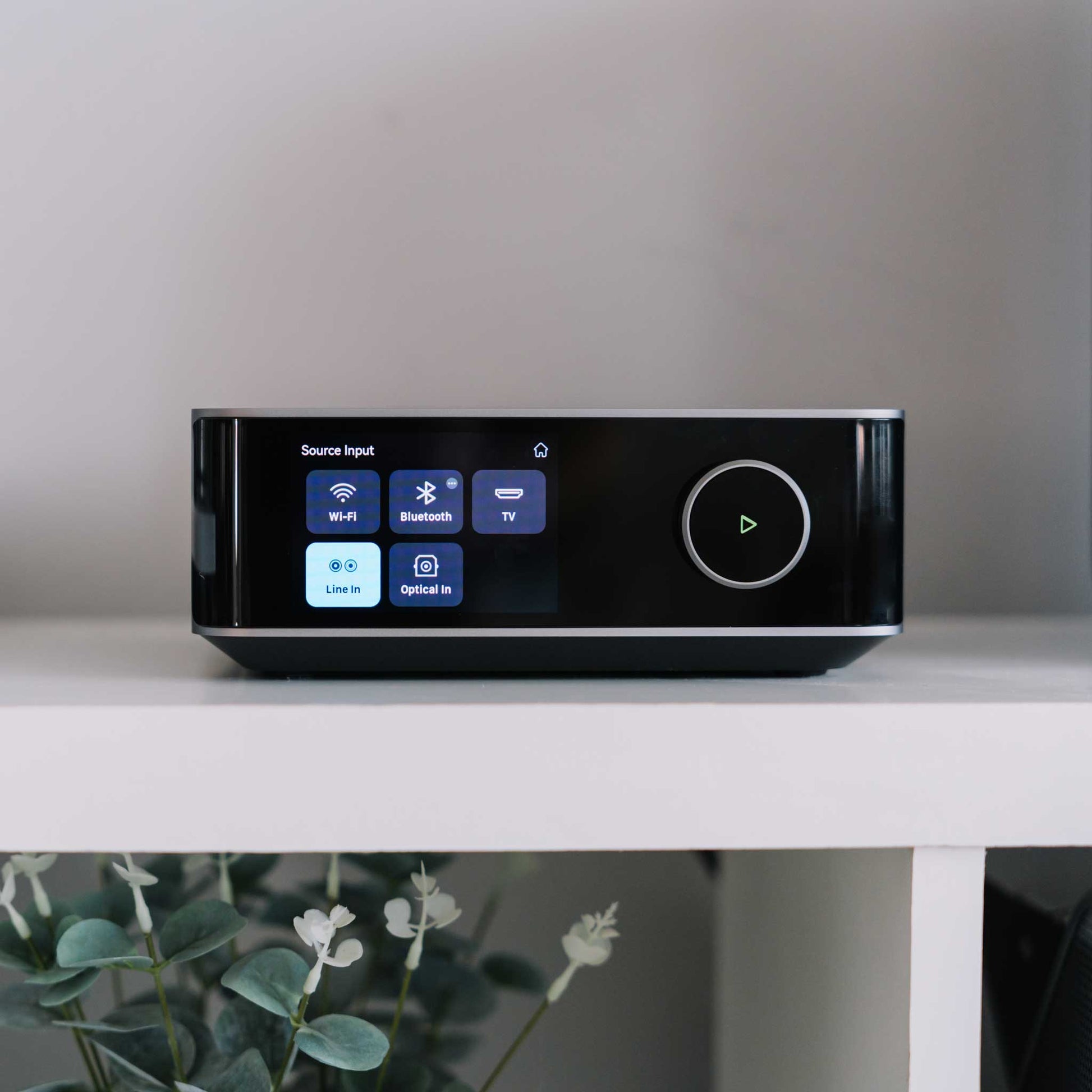

Everyday use is straightforward thanks to the 3.5" colour touchscreen, the included remote control, and voice assistant support. In addition, the built-in RoomFit calibration system automatically adjusts the sound to your room, giving a balanced and natural presentation wherever the amplifier is placed.
Key Features:
- 100 W per channel (8 Ω) / 200 W (4 Ω)
- ESS ES9039Q2M DAC with ultra-low distortion
- Wi-Fi 6E, Bluetooth 5.3, HDMI ARC, Chromecast, AirPlay 2
- Supports 24-bit/192 kHz playback, gapless streaming
- Integrated RoomFit room calibration
- 3.5" touchscreen display and voice-enabled remote
- Compact, elegant design in a premium finish
The WiiM Amp Ultra is a genuine hi-fi solution in a single, discreet unit—ideal for those who want the convenience of modern streaming with the performance of traditional separates.
Specifications
Specifications
|

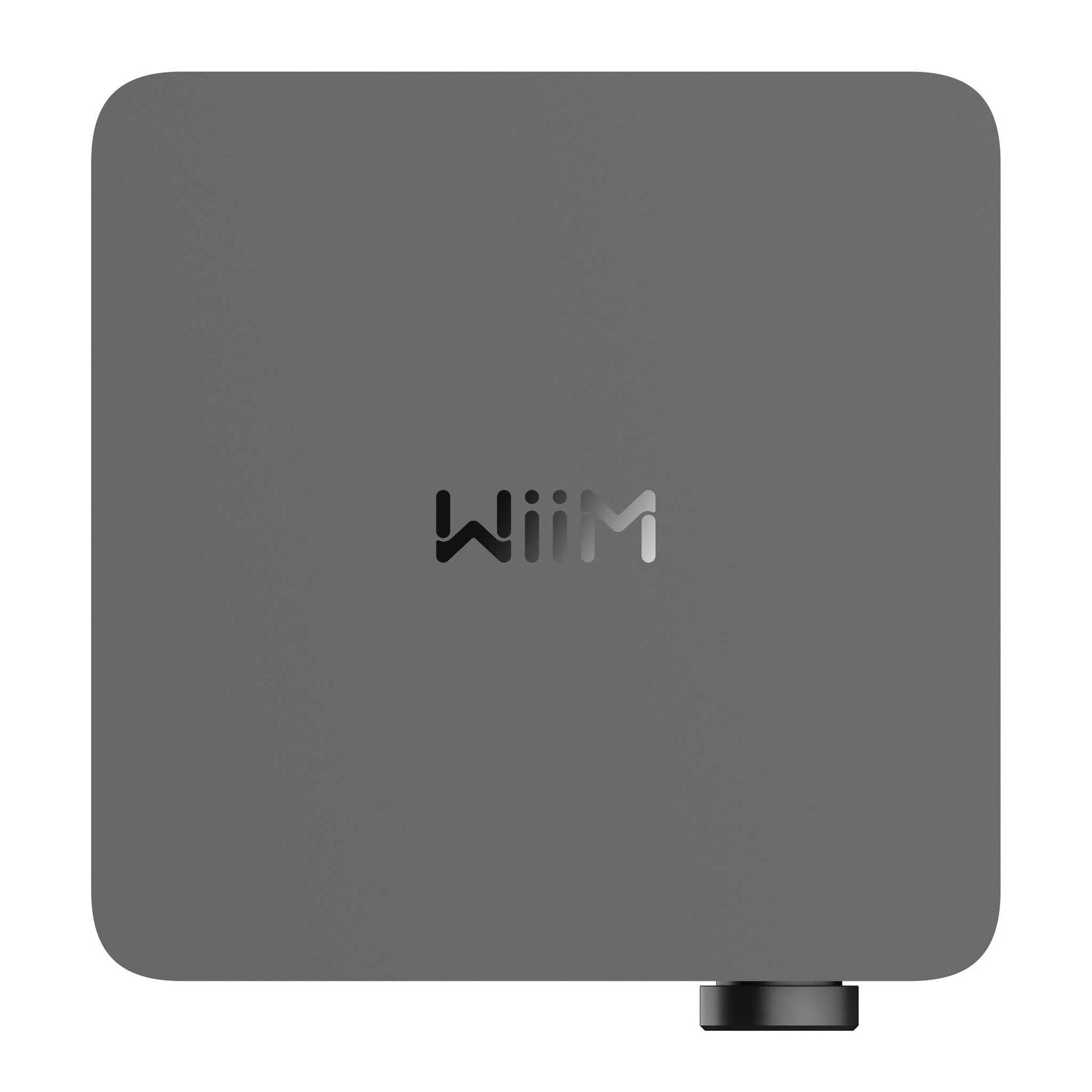

Chassis Design |

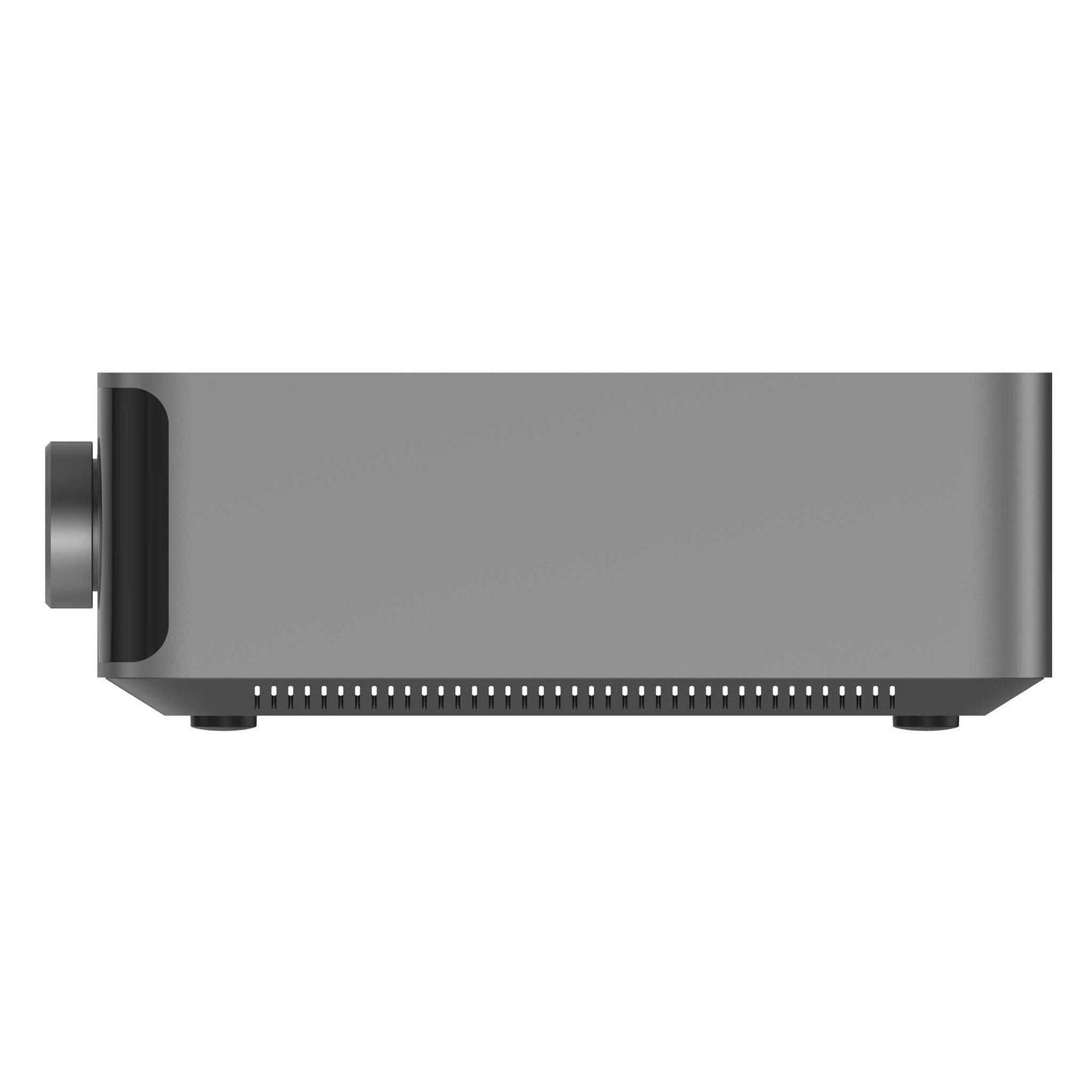

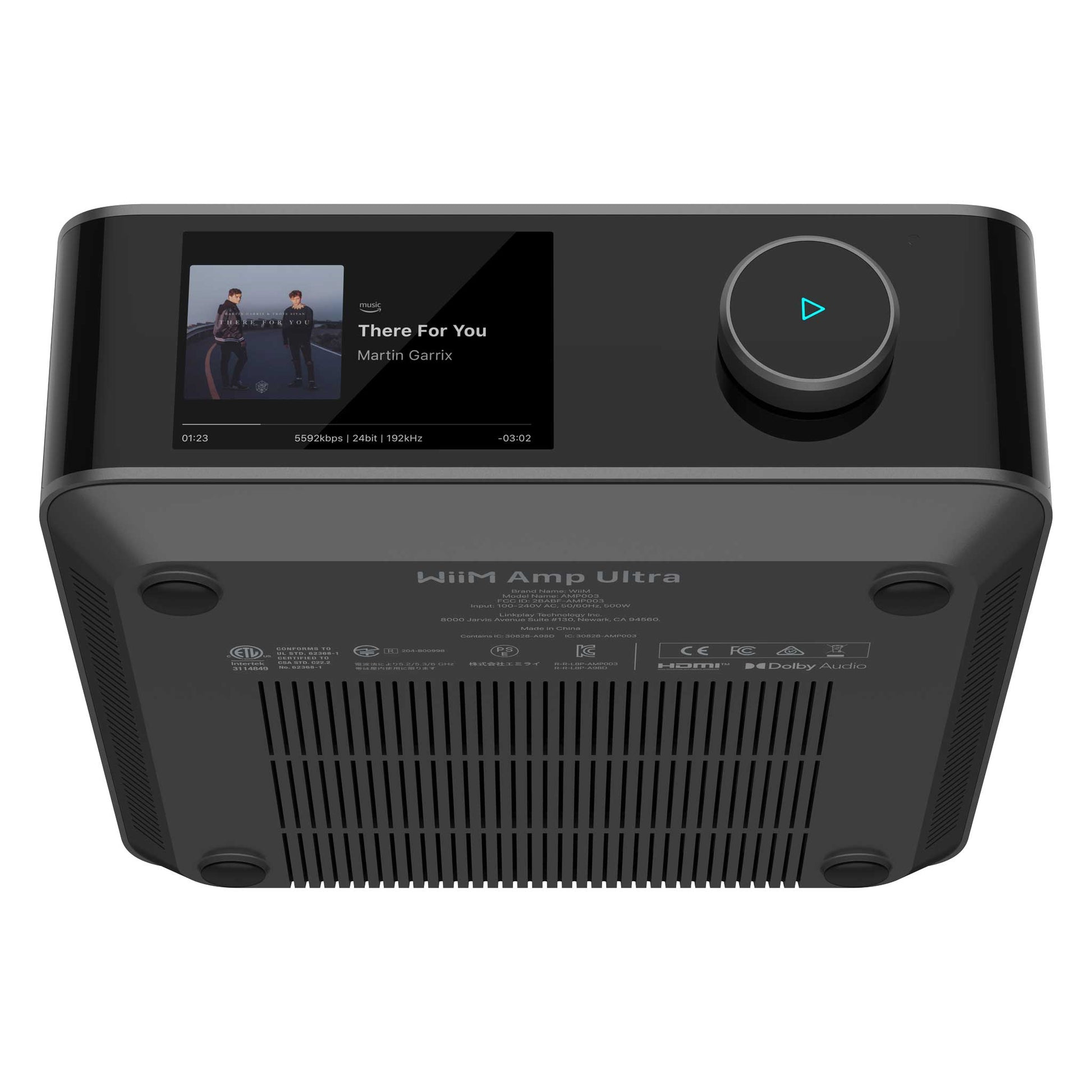

Precision-machined unibody aluminum for durability & heat dissipation |
|

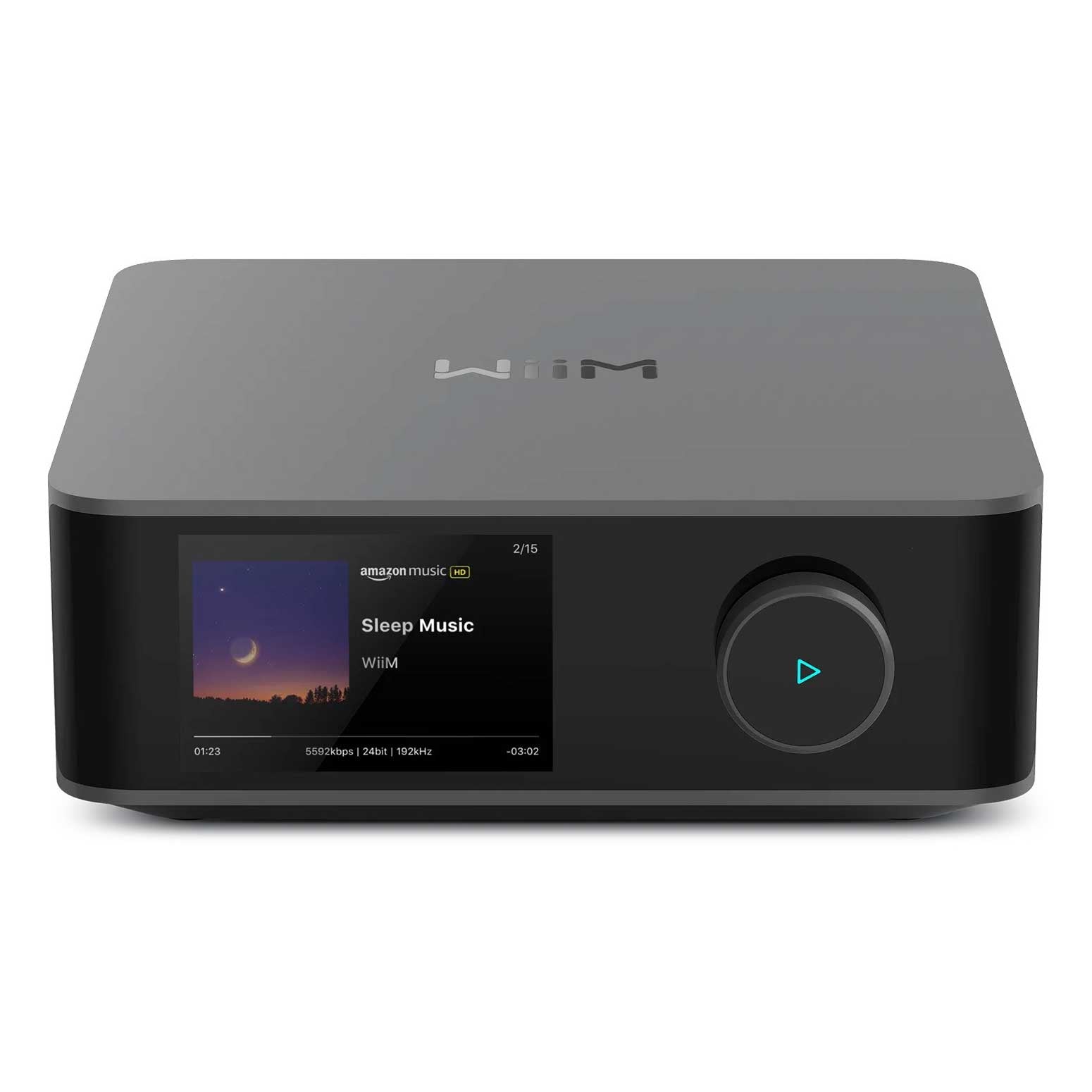

Controls |

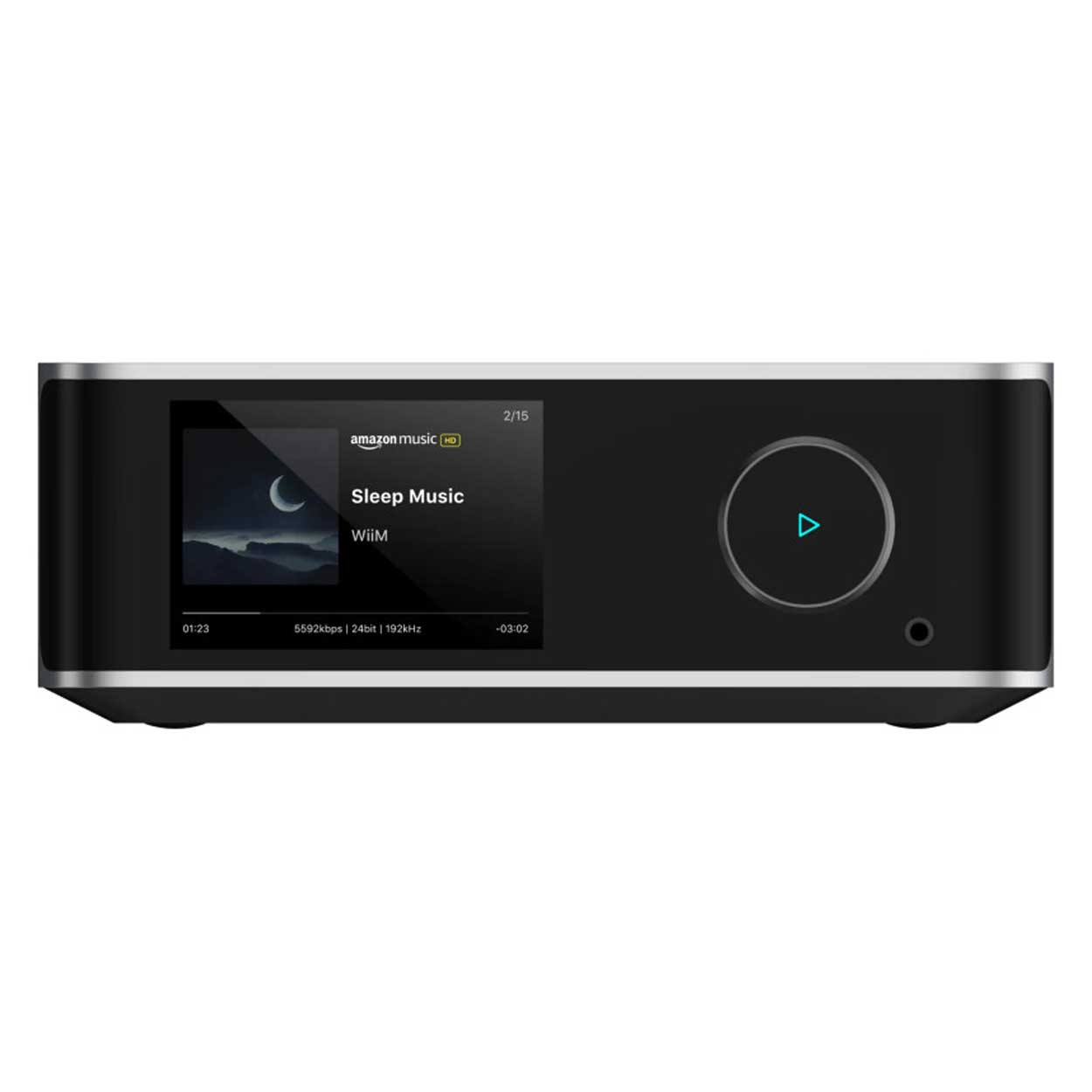

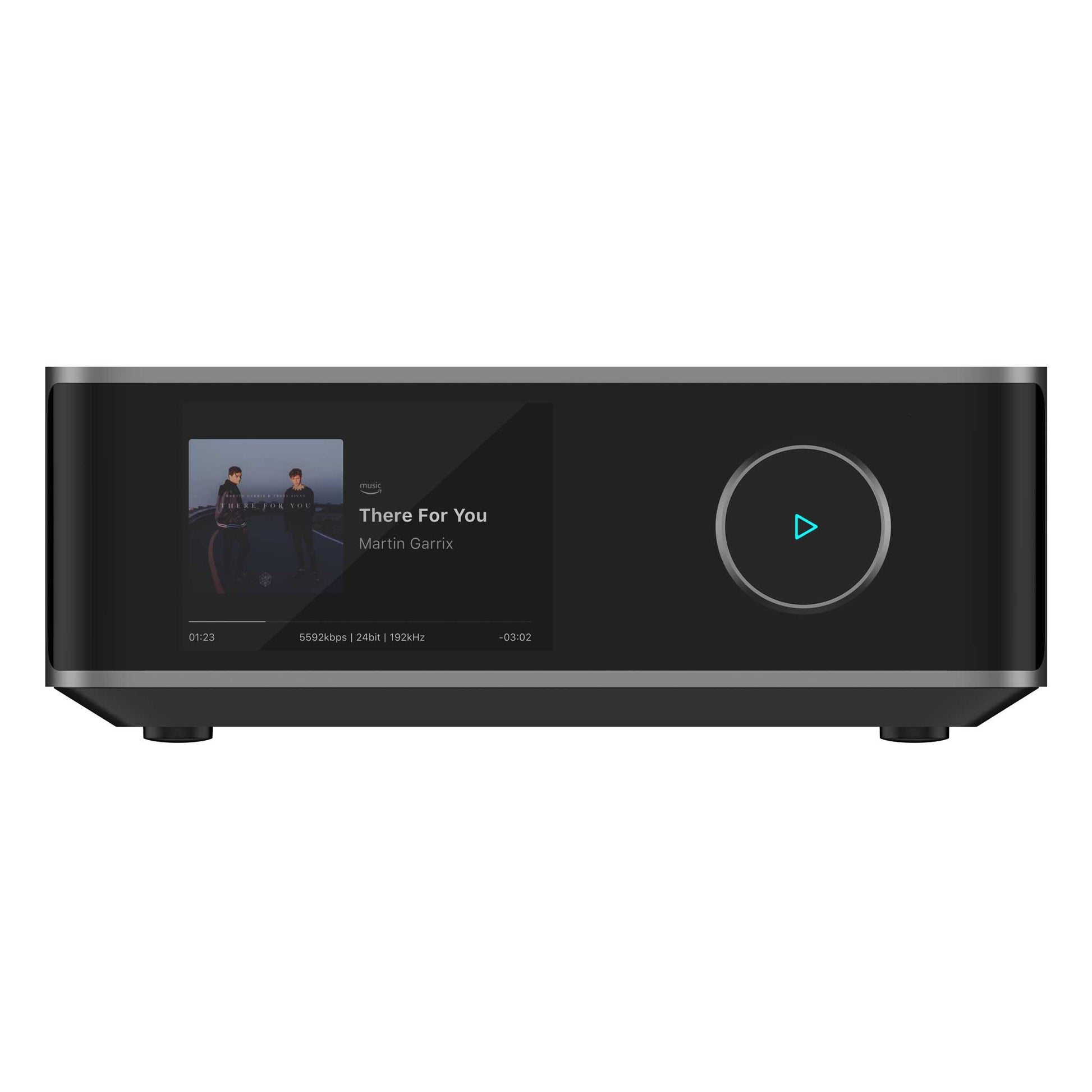

Multifunctional rotary knob (Volume, Play/Pause), 3.5” glass-covered capacitive touchscreen |
|
LED |
Status, Volume |
|
Power Output |
100 W per channel @ 8Ω, 200 W per channel @ 4Ω |
|
Total Harmonic Distortion (THD+N) |
≤0.005%, -106 dB (A-weighted) |
|
Signal-to-Noise Ratio (SNR) |
≥120dB |
|
Damping Factor |
94 |
|
Premium components |
ESS 9039Q2M high-performance DAC, Dual TI TPA3255 Amps, TI OPA1612 op-amps for ultra-low distortion and rich, detailed sound. |
|

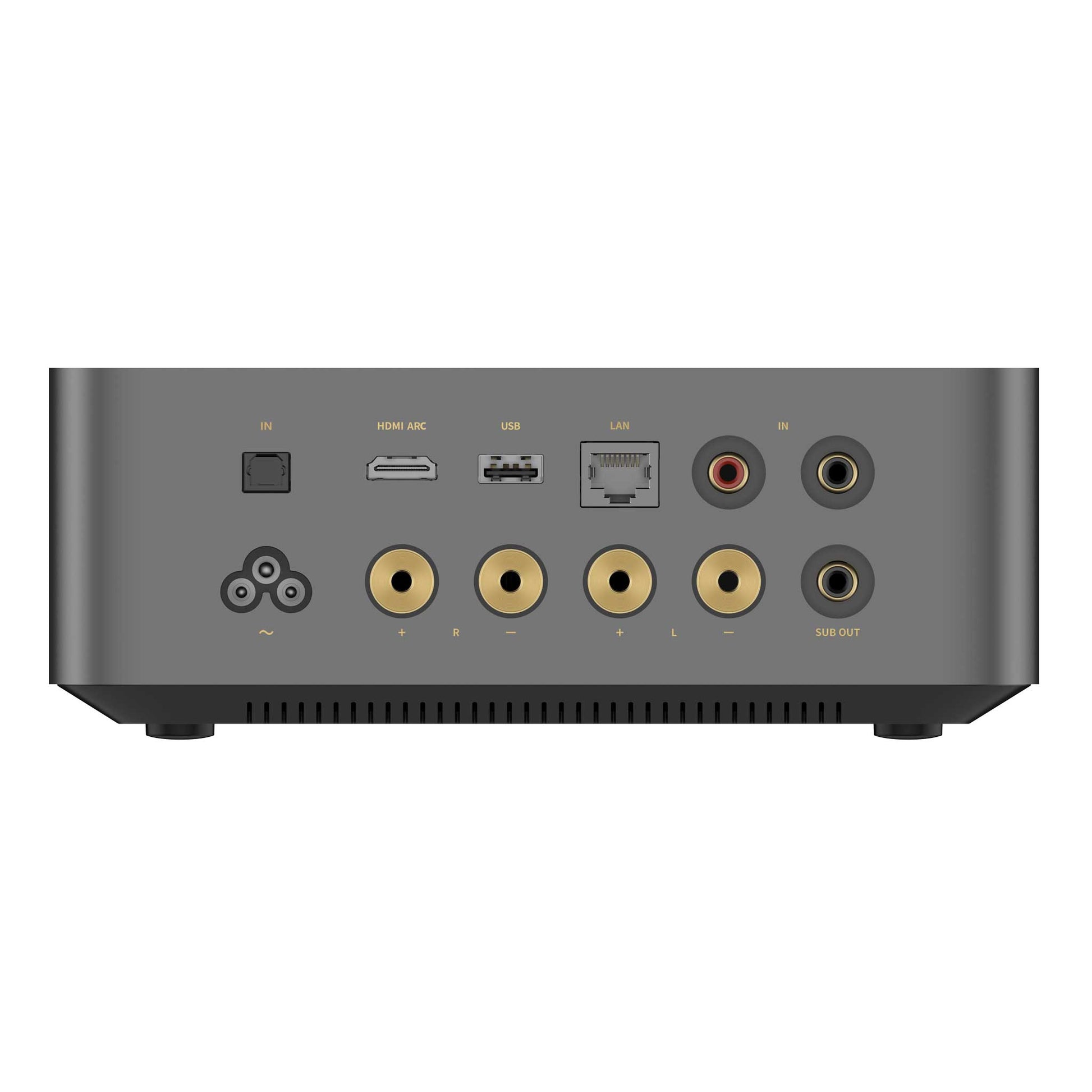

Analogue audio inputs |
1x RCA Stereo: Connects to external audio sources like CD players or PCs |
|
Digital audio inputs |
1x Optical (TOSLINK) – Up to 192kHz/24-bit, HDMI ARC: Receives audio from TVs, PCM up to 192kHz/24-bit, and Dolby Digital 5.1 formats
|
|
Audio Output |

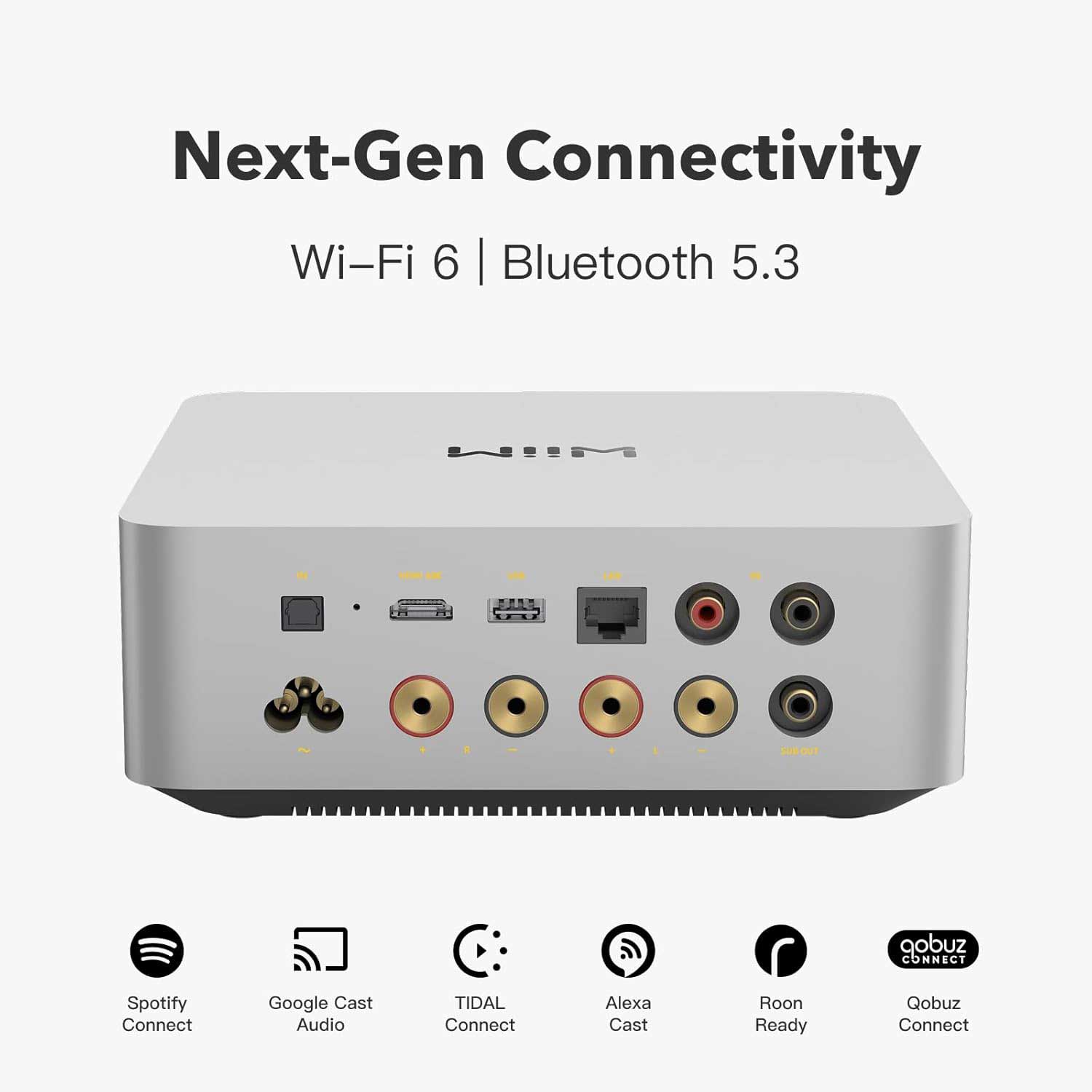

Passive Speaker Terminal, Subwoofer Output, USB Audio Out |
|
Wireless & Network Connectivity |
Bluetooth 5.3: Supports A2DP receiver and transmitter, AVRCP, HID, and works with the WiiM voice remote. Wi-Fi 6 (Upgradeable to Wi-Fi 6E): Ensures stable and high-speed wireless streaming. Ethernet (100Mbps): Standard RJ45 port |
|
Audio Format |
MP3, AAC, ALAC, APE, FLAC, AIFF, WAV, WMA, OGG |
|
EQ & Sound Customisation |
Independent settings for Wi-Fi, HDMI ARC, Optical, Bluetooth, Line-In. 24 Preset EQ Profiles, 10-Band Graphic & Parametric EQ, Built-in Room Correction with mic-guided acoustic tuning
|
|
Streaming & Smart Features |
WiiM Home App, Chromecast Audio, Spotify Connect, TIDAL Connect, DLNA, LMS , Roon Ready (Certification Pending)
|
|
Multi Room Audio |
Compatible with WiiM, Google Home, and Alexa multi-room systems
|
|
Power Supply |
100-240V 50/60Hz AC Power |
|
Dimensions (W x H x D) |
200 x 75 x 200 mm |
|
Weight |
2.45kg |
|
Package Contents |
User Guide, Power Cable, RCA Cable, Optical Cable , HDMI Cable, Remote, Banana Plugs x 4 |
