Arcam A5+ Integrated Amplifier — Modern Musicality, Refined
The Arcam A5+ is the latest evolution of Arcam’s acclaimed Radia Series, designed to bring true hi-fi performance into the modern home. Building on the award-winning A5, this refreshed model combines powerful Class-AB amplification, state-of-the-art wireless streaming, and timeless British design in a package that’s both elegant and approachable.
At its heart, the A5+ delivers 50 watts per channel into 8 ohms (75W into 4 ohms), with impressively low distortion of just 0.003%. That means music is reproduced with clarity, dynamics, and control that far exceed expectations for an amplifier at this level. Vinyl lovers will appreciate the finely tuned moving-magnet phono stage, while digital enthusiasts benefit from the built-in ESS ES9018 DAC, capable of handling high-resolution files up to 24-bit/192kHz.
Connectivity has been enhanced to include the Bluetooth v5.4 with Snapdragon Sound – this introduces support for uncompressed digital audio via Bluetooth as well as aptX Lossless, LE Audio, and Auracast. Whether you’re streaming straight from your smartphone in true lossless quality or broadcasting wirelessly to headphones and other devices, the A5+ makes it seamless. Traditionalists aren’t left behind either, with a generous selection of analogue inputs for CD players, turntables, or legacy sources.

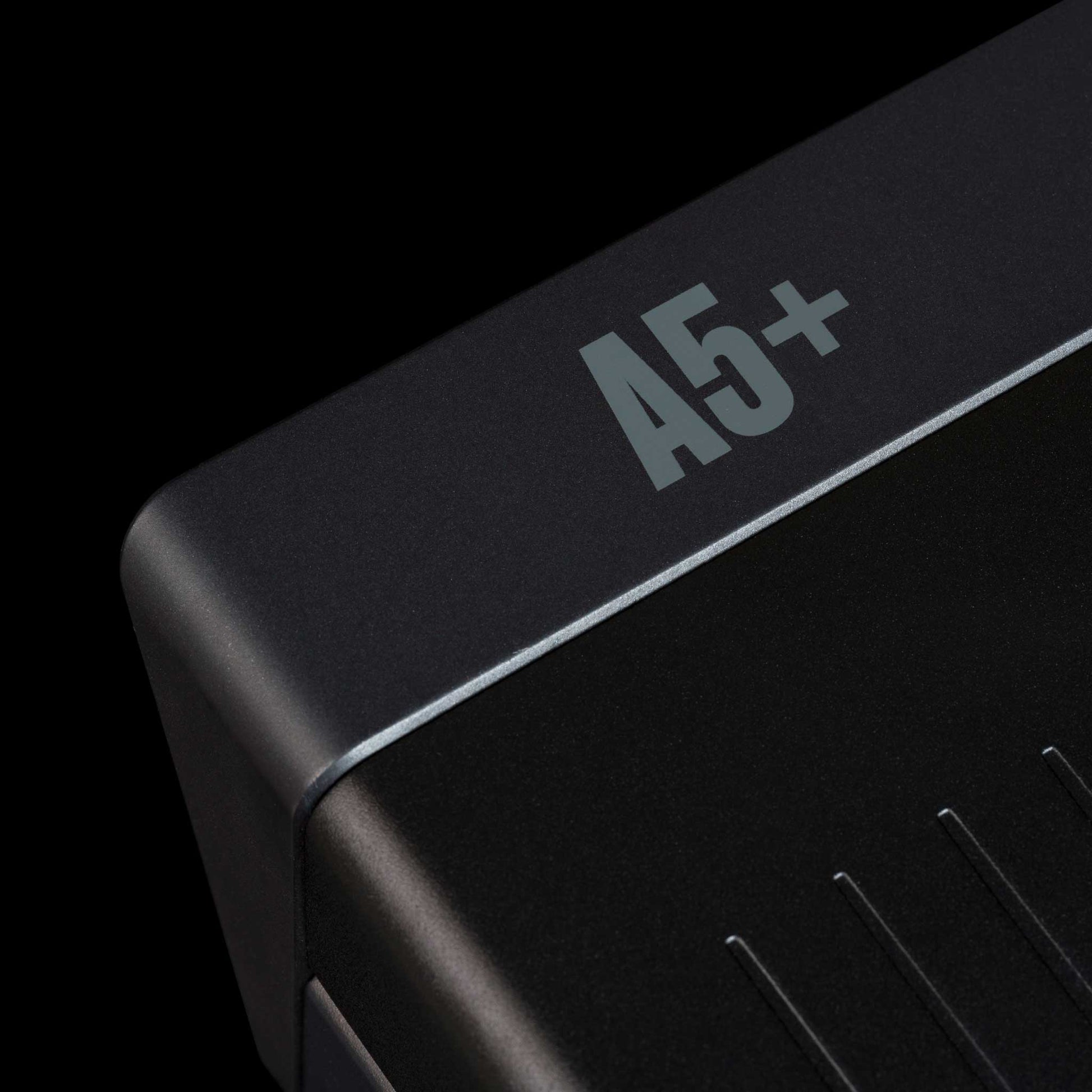

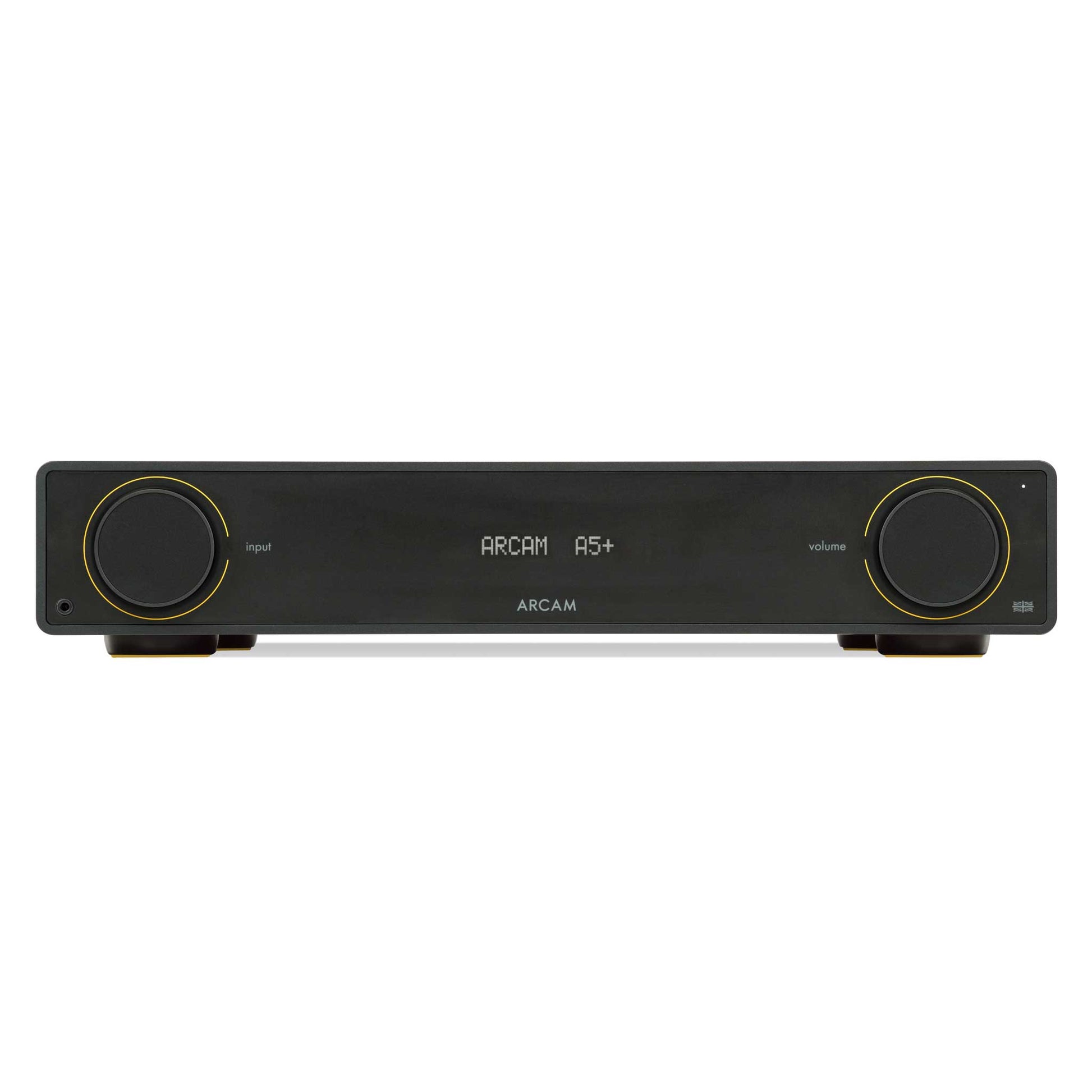

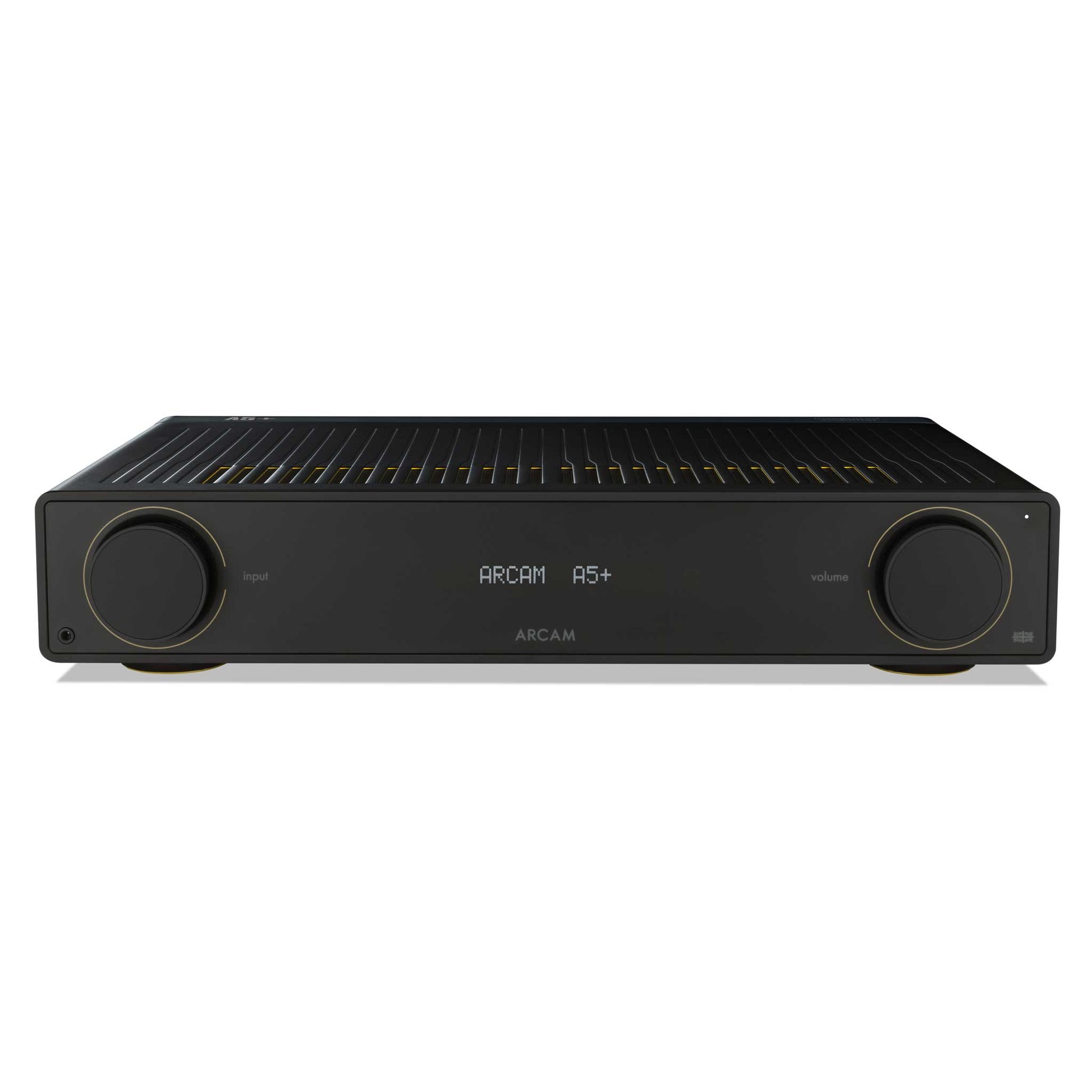

The design is every bit as thoughtful as the engineering. The aluminium chassis feels solid and refined, with tactile dials and a minimalist aesthetic that blends beautifully into any living space. Even the packaging has been updated to be completely plastic-free, making the unboxing experience as sustainable as it is satisfying.
Key Features:
- Powerful Class-AB amplifier: 2 x 50W (8Ω), 75W (4Ω)
- Ultra-low distortion: 0.003% at 80% power
- High-performance DAC: ESS ES9018, 24-bit/192kHz
- Wireless ready: Bluetooth 5.4 with Snapdragon Sound, aptX Lossless, LE Audio, Auracast
- Vinyl friendly: Dedicated MM phono input
The Arcam A5+ is ideal for music lovers who want genuine hi-fi sound with modern convenience. Whether you’re spinning vinyl, streaming wirelessly, or connecting digital sources, it brings music to life with warmth, detail, and authority — all at a price that makes high-end sound more accessible than ever.
Specifications
Specifications
|
Arcam A5+ Specifications |
|
|---|---|
|
Continuous power output (0.5% THD) |
|
|
2 channels driven, 8Ω, 20Hz—20kHz |
50W |
|
2 channels driven, 1kHz, 4Ω |
75W |
|
Harmonic distortion, 80% power, 8Ω at 1kHz |
0.003% |
|
Phono (MM) Input |
|
|
Input impedance |
47kΩ + 100pF |
|
Frequency response (ref. RIAA curve) |
20Hz – 20kHz ± 1dB |
|
Line Inputs |
|
|
Number of inputs |
3 |
|
Signal/Noise ratio (A-wtd) 50W, ref. 1V input |
106dB |
|
Frequency response |
20Hz – 20kHz ± 0.2dB |
|
Digital Inputs |
|
|
DAC |
ESS ES9018 |
|
Frequency response |
20Hz - 20kHz ± 0.2dB |
|
Signal/Noise ratio (A-wtd, ref. 50W, 0dBFS) |
109dB |
|
Supported Sample Rates |
192, 176.4, 96, 88.2, 48, 44.1 |
|
Bit depths |
16-bit – 24-bit |
|
Headphone output |
|
|
Maximum output level (RMS) into 32Ω/300Ω |
2.5/5Vrms |
|
Output impedance |
1Ω |
|
Load range |
16Ω – 2kΩ |
|
Wireless Specification |
|
|
Bluetooth Version |
5.4; A2DP Sink/Source, AVRCP, BLE, Snapdragon Sound, AAC, LE Audio, Auracast |
|
Bluetooth Transmitter Frequency and Power |
2,400 MHz to 2,483.5 MHz: <20dBm |
|
General |
|
|
Mains voltage |
110–120V or 220–240V, 50–60Hz |
|
Maximum power consumption |
350W |
|
Power consumption (standby) |
<0.5w |
|
Dimensions W x H x D (including feet and speaker terminals) |
431 x 83 x 344mm |
|
Weight (net) |
8.14kg |
|
Weight (gross) |
11.36kg |
|
Supplied accessories |

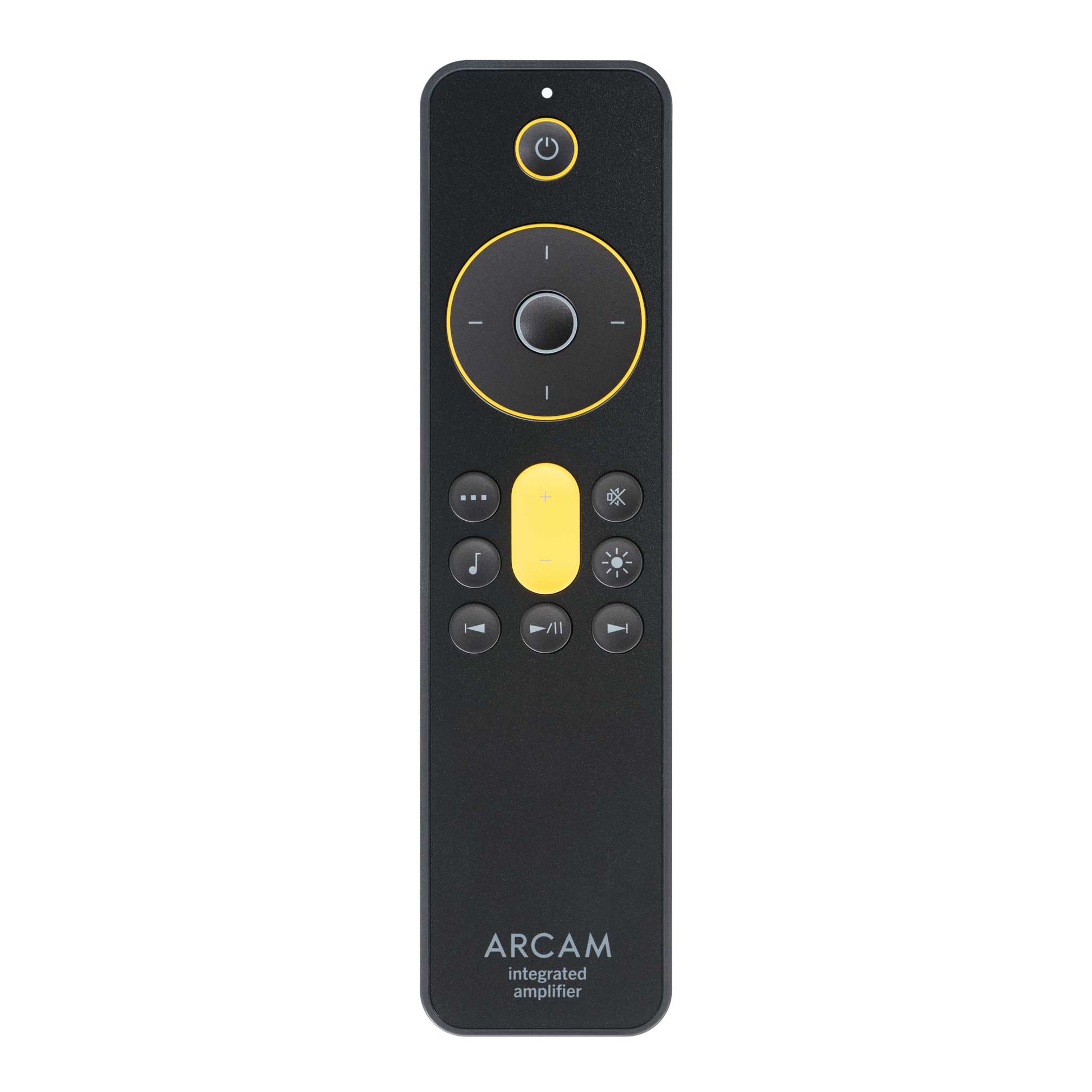

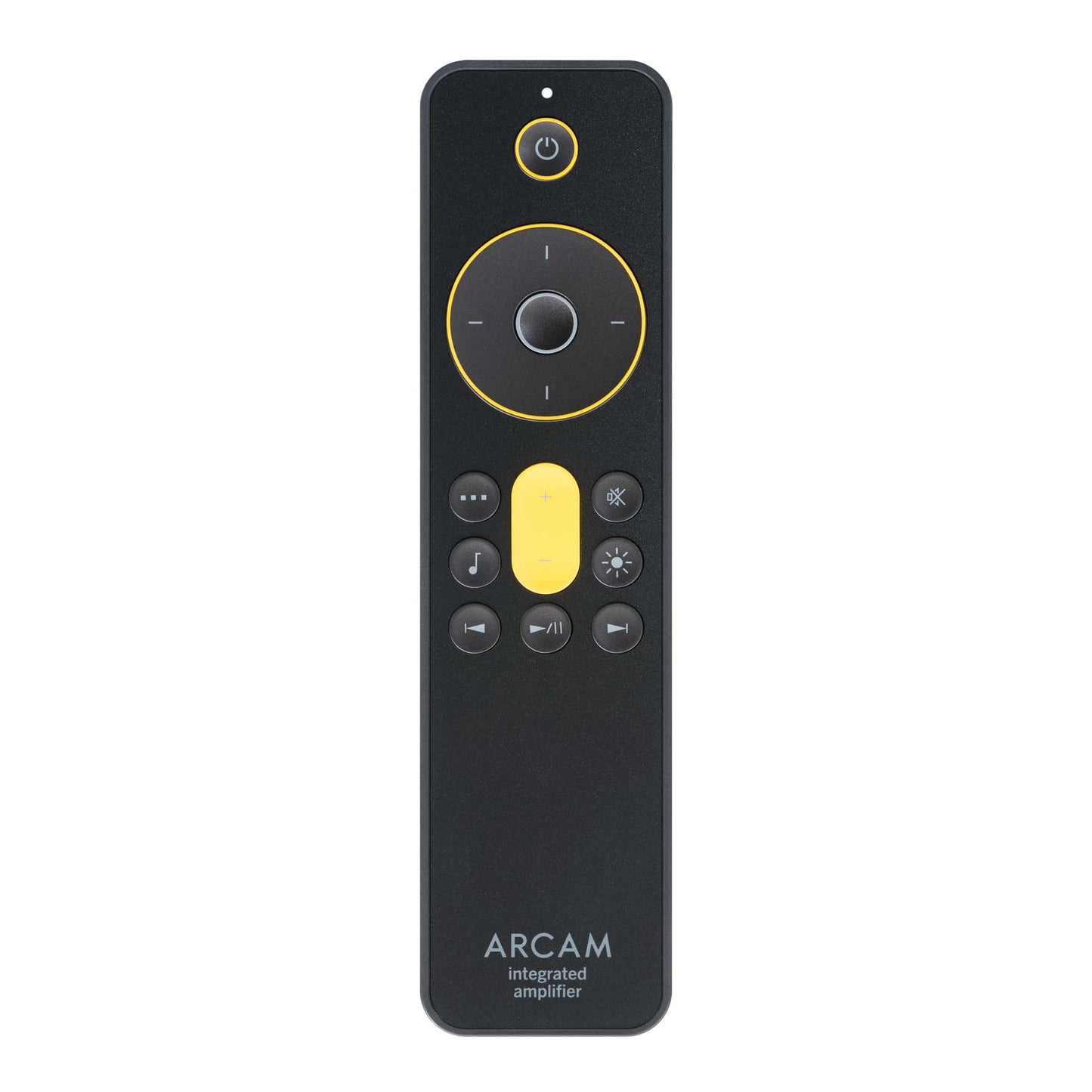

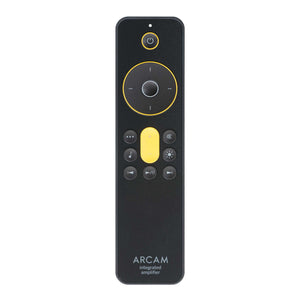

Mains leads, Remote control, 2 x AAA batteries, quick-start guide |
