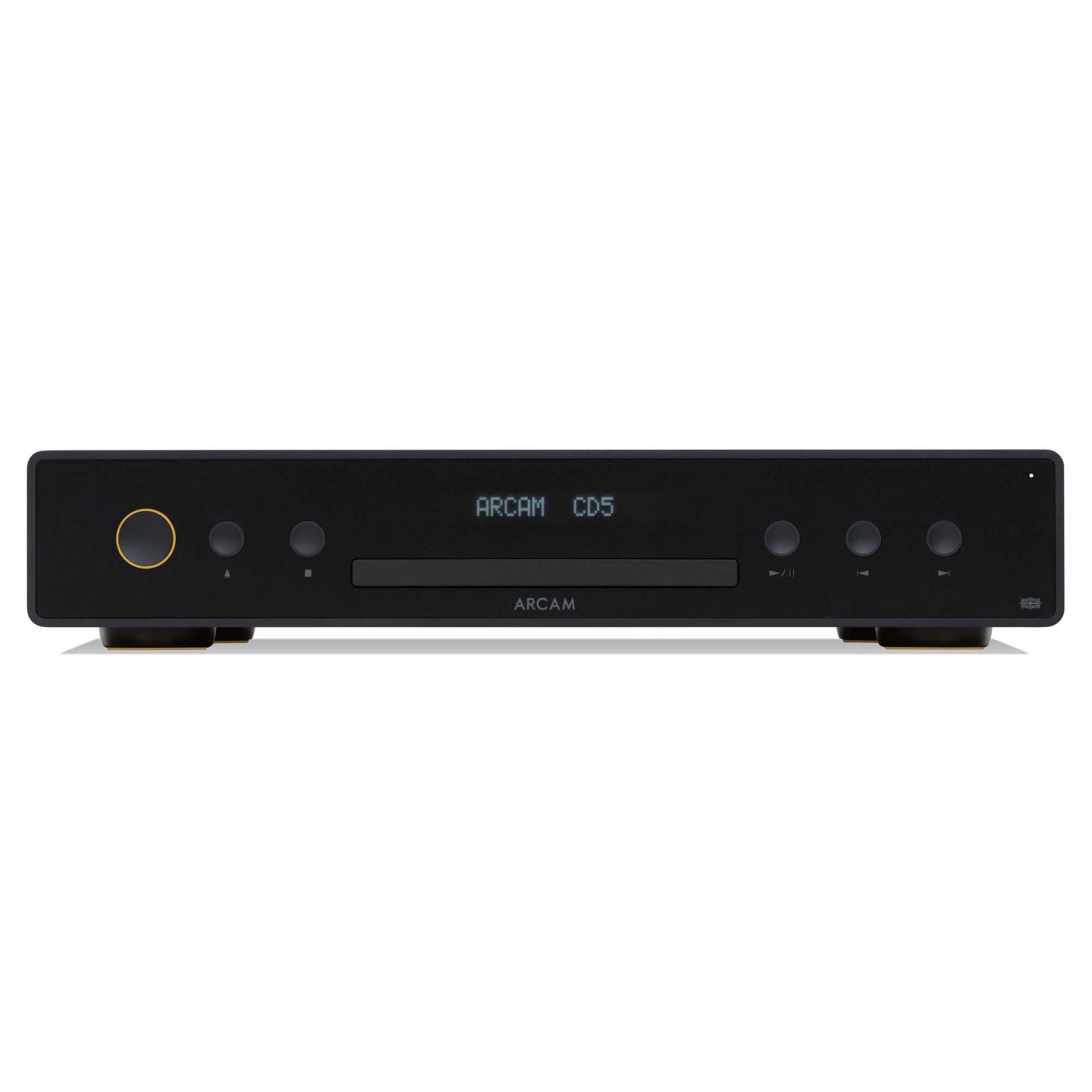

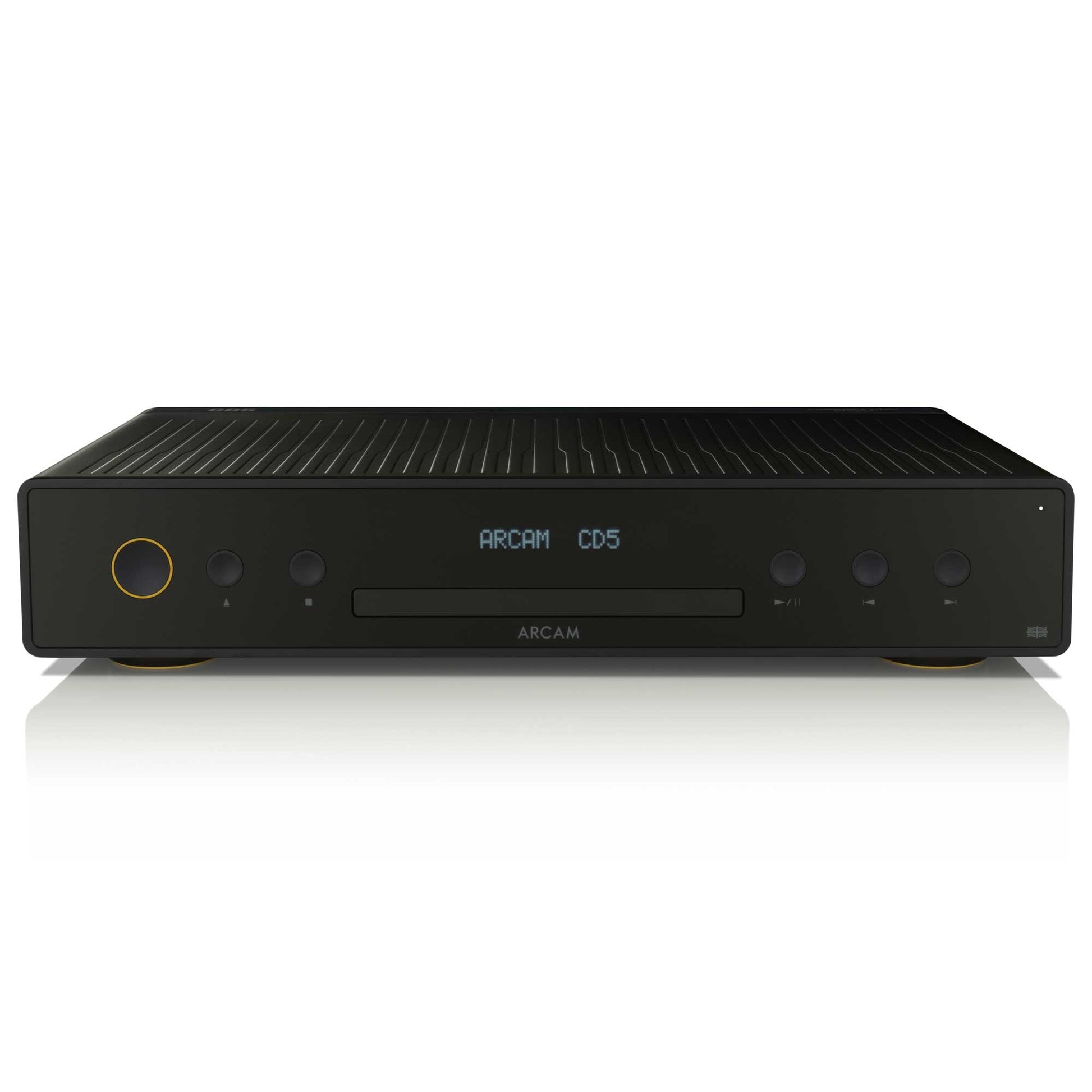

Arcam CD5 CD Player
The ARCAM CD5 is a high-performance CD player designed for music lovers who still value the simplicity, sound quality and enjoyment of a physical music collection. Part of ARCAM's Radia range, it combines decades of digital audio expertise with carefully selected components, a high-quality ESS DAC and elegant contemporary styling.
Whether rediscovering a favourite CD collection or playing high-resolution music files from USB storage, the CD5 delivers a clean, detailed and engaging performance designed to bring you closer to the music.
Dedicated High-Quality CD Playback
ARCAM has been developing CD players since the introduction of its Delta 70 in 1986, and that experience has been applied throughout the CD5.
Rather than treating CD playback as simply another feature, the CD5 has been engineered specifically to extract excellent performance from physical media. It supports standard audio CDs as well as CD-R and CD-RW discs, making it suitable for both commercial releases and compatible recorded music collections.
Carefully selected components and materials throughout the player help minimise unwanted interference and preserve the detail, timing and musical character of each recording.
Premium ESS ES9018 DAC
At the heart of the CD5's analogue output stage is an ESS ES9018K2M digital-to-analogue converter. This high-performance DAC converts the digital information from your discs into a clean and accurate analogue signal, allowing the CD5 to connect directly to virtually any integrated amplifier or pre-amplifier using its stereo RCA outputs.
The result is a detailed yet natural presentation with excellent clarity, precise stereo imaging and the engaging musical character expected from ARCAM.
Hi-Res Music from USB
The CD5 isn't limited to Compact Disc. A front-panel USB-A connection allows music stored on a compatible USB flash drive to be played directly through the CD5.
Supported formats include FLAC, WAV, MP3, AAC and WMA, with FLAC and WAV playback available at resolutions of up to 24-bit/96kHz. This makes the CD5 a convenient way to enjoy a collection of downloaded or ripped digital music without requiring a separate digital source.

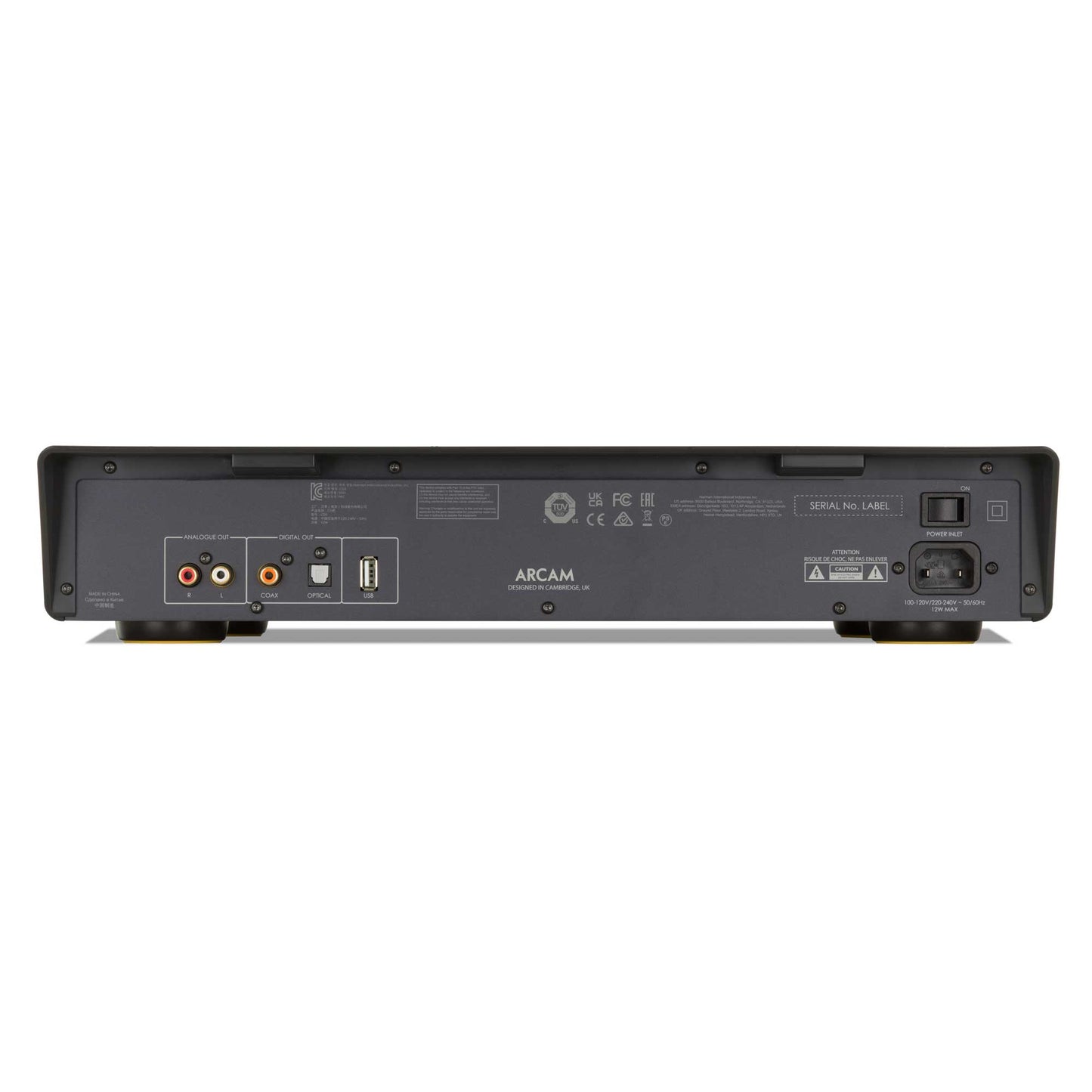

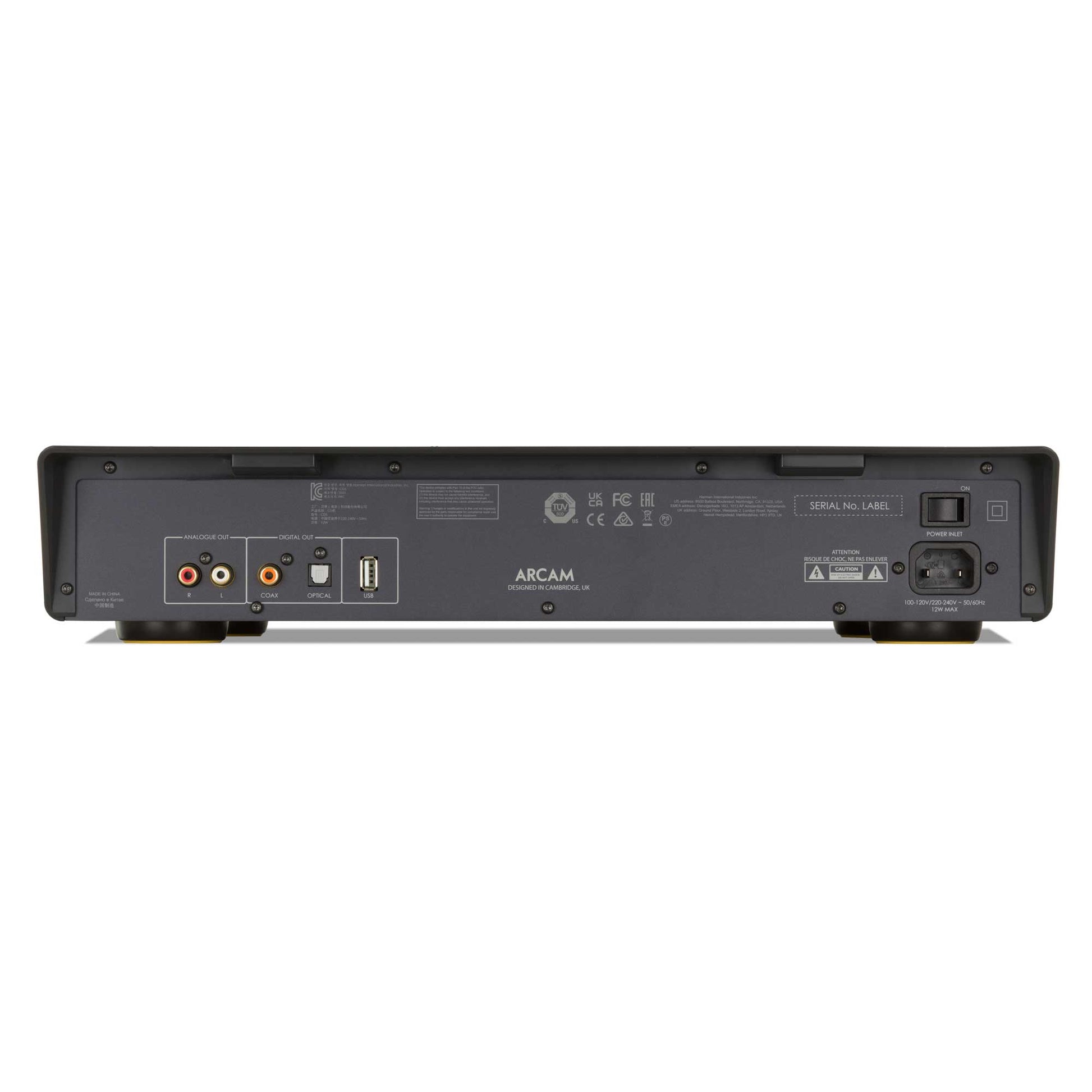

Analogue & Digital Outputs
Flexible connectivity makes it easy to integrate the CD5 into both traditional and more advanced HiFi systems.
A pair of stereo RCA analogue outputs lets you take advantage of the CD5's internal ESS DAC, providing a straightforward connection to an amplifier.
Alternatively, coaxial and optical digital outputs allow the CD5 to be used as a dedicated CD transport with an external DAC or an amplifier equipped with its own digital conversion.
This flexibility means the CD5 can remain useful as your HiFi system evolves.

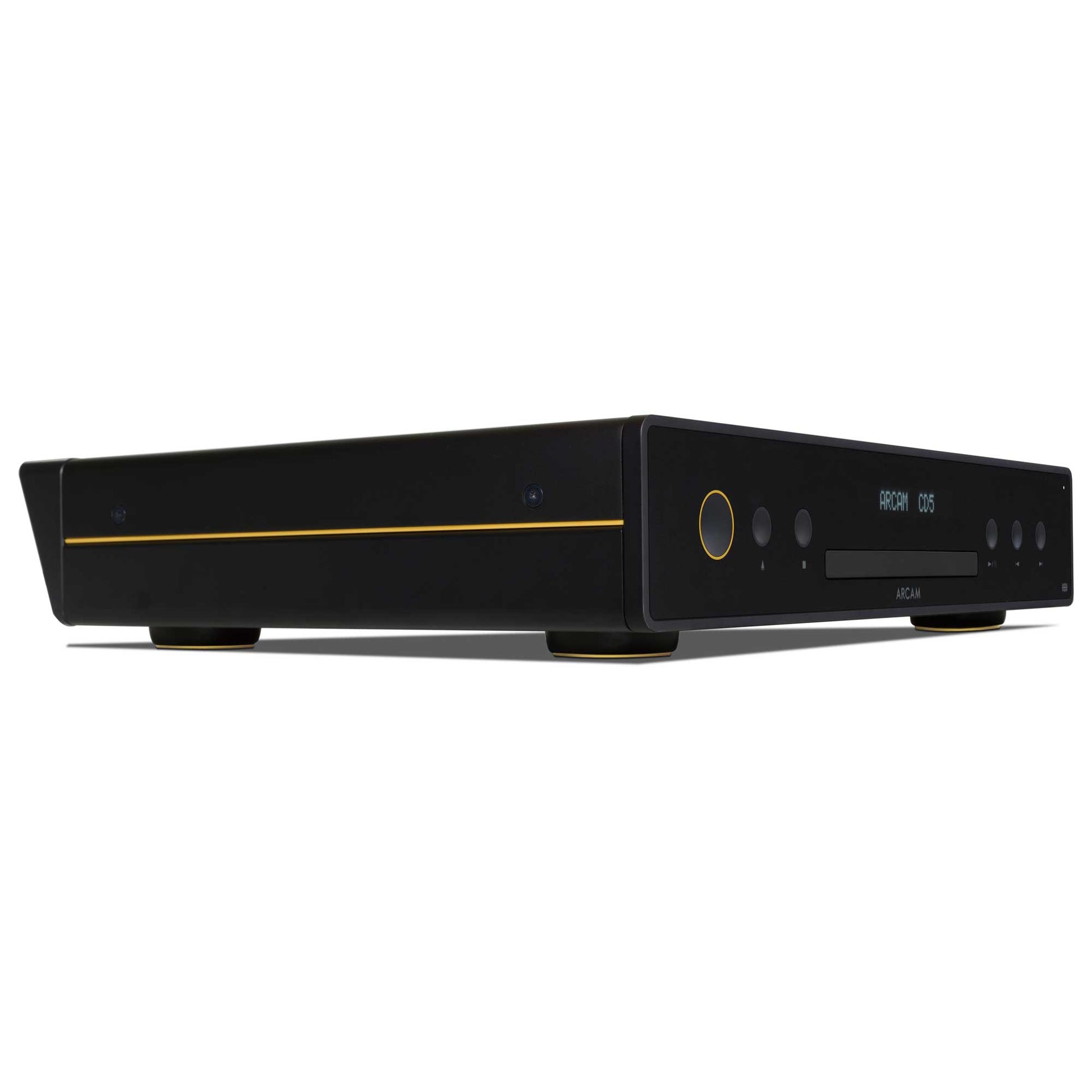

ARCAM Radia Design

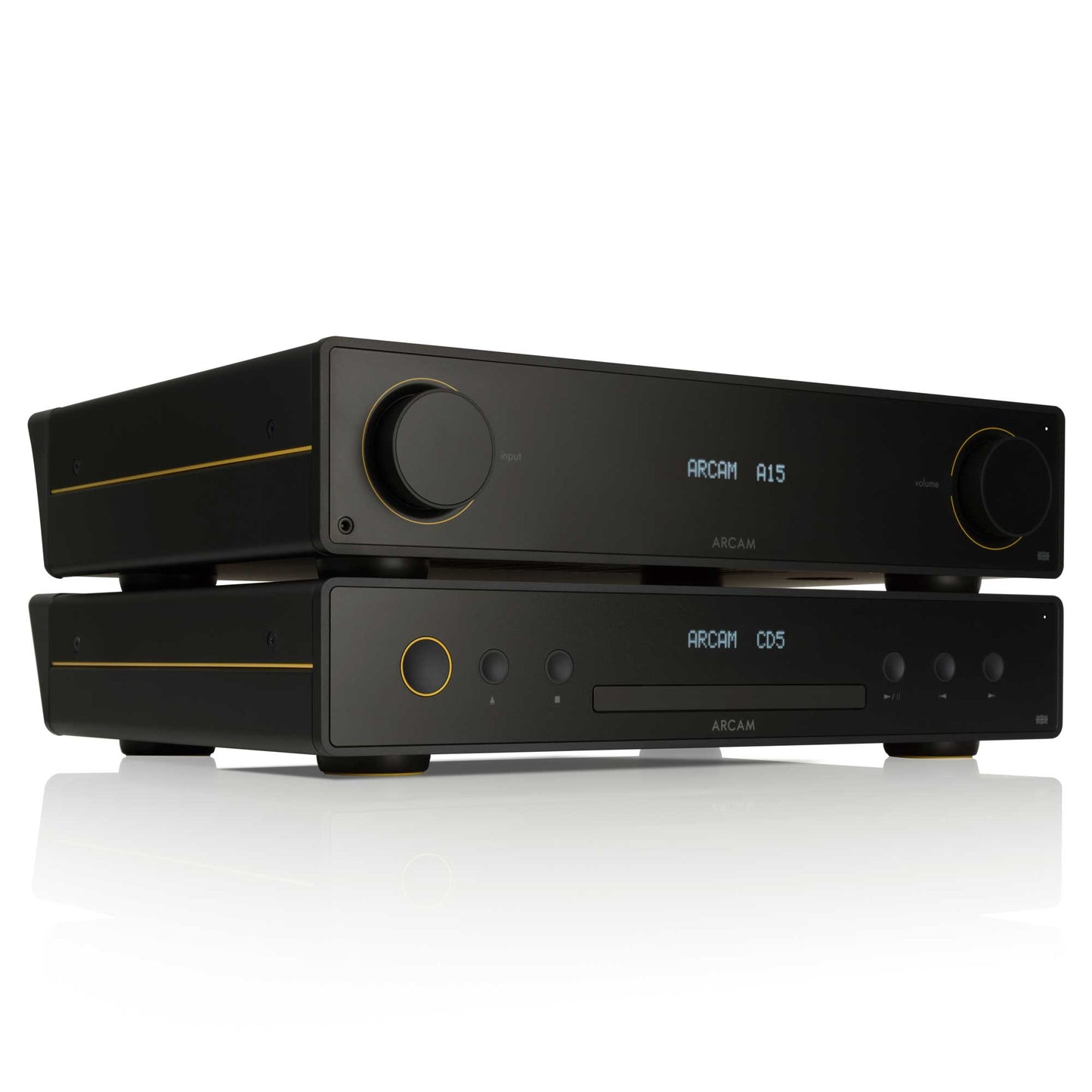

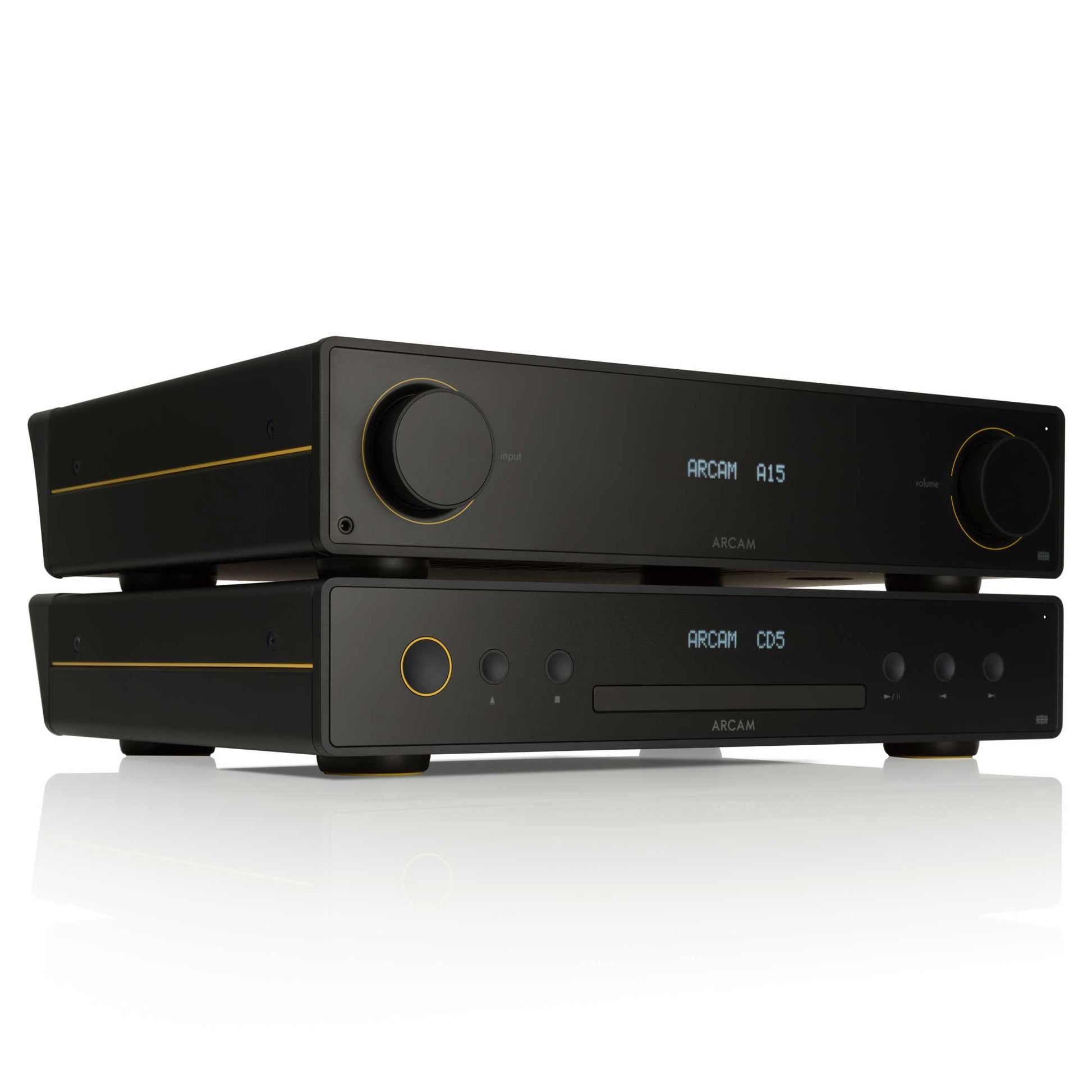

The CD5 shares the clean, contemporary styling of ARCAM's Radia range, making it a natural visual and sonic partner for amplifiers such as the A5, A15 and A25.
Its understated black finish is complemented by subtle yellow detailing and a clean front-panel layout, creating a modern appearance that remains unmistakably ARCAM.
A dedicated remote control is included for convenient operation from your listening position.
Key Features:
ESS ES9018K2M DAC
CD, CD-R and CD-RW playback
FLAC, WAV, MP3, AAC and WMA file support
Up to 24-bit/96kHz FLAC and WAV playback
Remote control included
Ideal partner for ARCAM Radia integrated amplifiers
The ARCAM CD5 is an excellent choice for anyone who wants to continue enjoying their CD collection through a modern, high-quality HiFi system. Combining dedicated disc playback with an ESS DAC, high-resolution USB support and flexible analogue and digital outputs, it delivers the simplicity of a traditional CD player with the performance and versatility expected from modern ARCAM electronics.
Specifications
Specifications
|
Arcam CD5 Specifications |
|
|---|---|
| Supported Media |
CD (Audio), CD-R (Audio / Data), CD-RW (Audio / Data), |
|
Supported fi les (Data) |
WAV (LPCM), FLAC, MP3, AAC, WMA |
|
Supported Bit depth |
16 bit – 24 bit |
| Supported sample rates (kHz) |
32, 44.1, 48, 88.2 (WAV & FLAC only), 96 (WAV & FLAC only) |
|
Outputs |
1x Analgue Stereo (RCA) pair, 1x Digital Coaxial (RCA), 1x Digital Optical (Toslink) |
|
Frequency Response (filter 1) |
20Hz - 20kHz ±0.05dB |
|
Max Analogue Output (0dBFS) |
2.1V rms |
|
SNR (A-wtd, ref. 16-bit/24-bit, 0dBFS) |
93dB/115dB |
|
Mains Voltage & Power Consumption |
AC 100-240V, 50/60 Hz, 12W |
|
Dimensions W x D x H (including feet) |
431 x 344 x 83mm |
|
Supplied Accessories |
Mains lead(s), Remote control with 2 x AAA batteries, Quick Start Guide, Important Safety Instructions |
|
Product Weight |
6kg |
|
Shipping Weight |
9kg |
