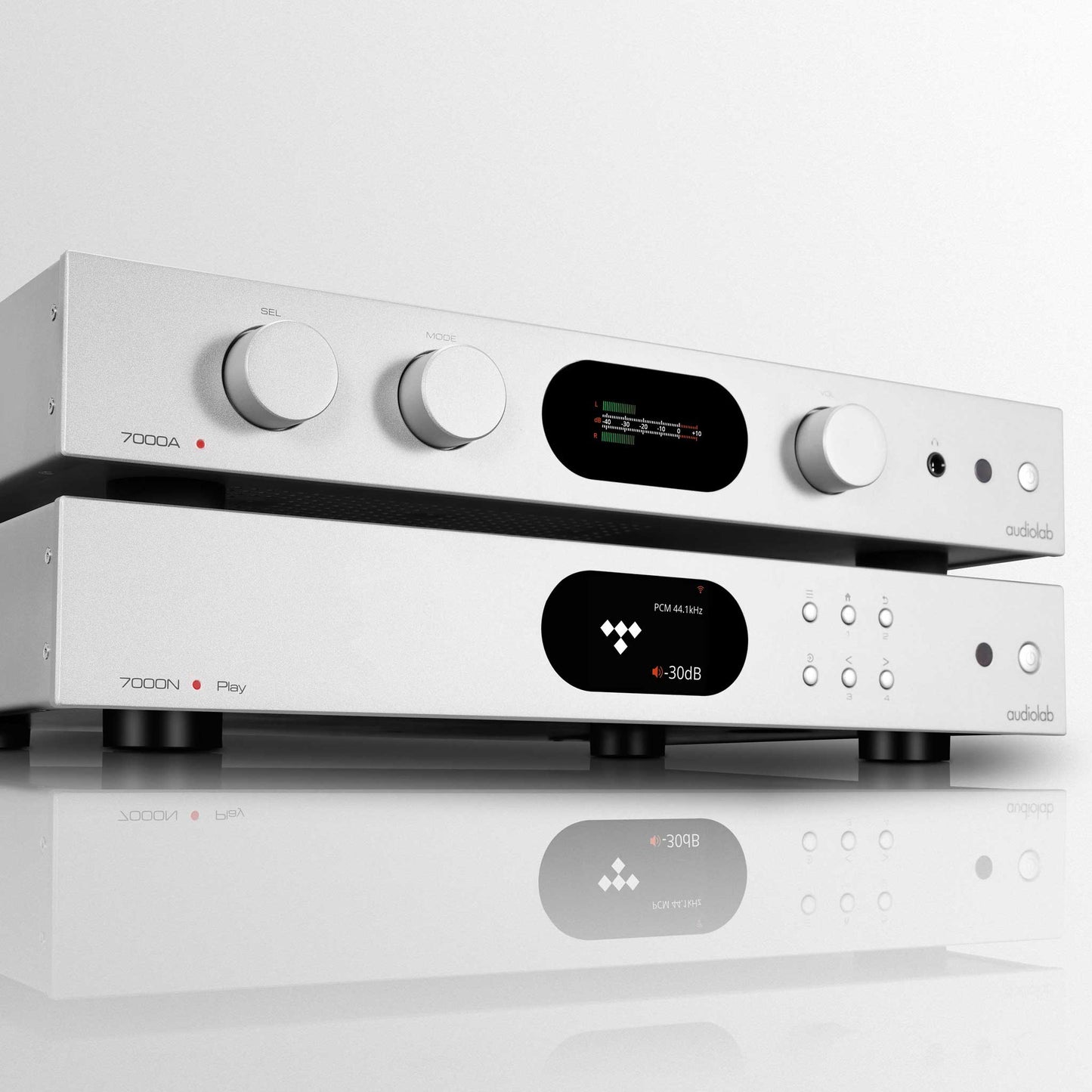

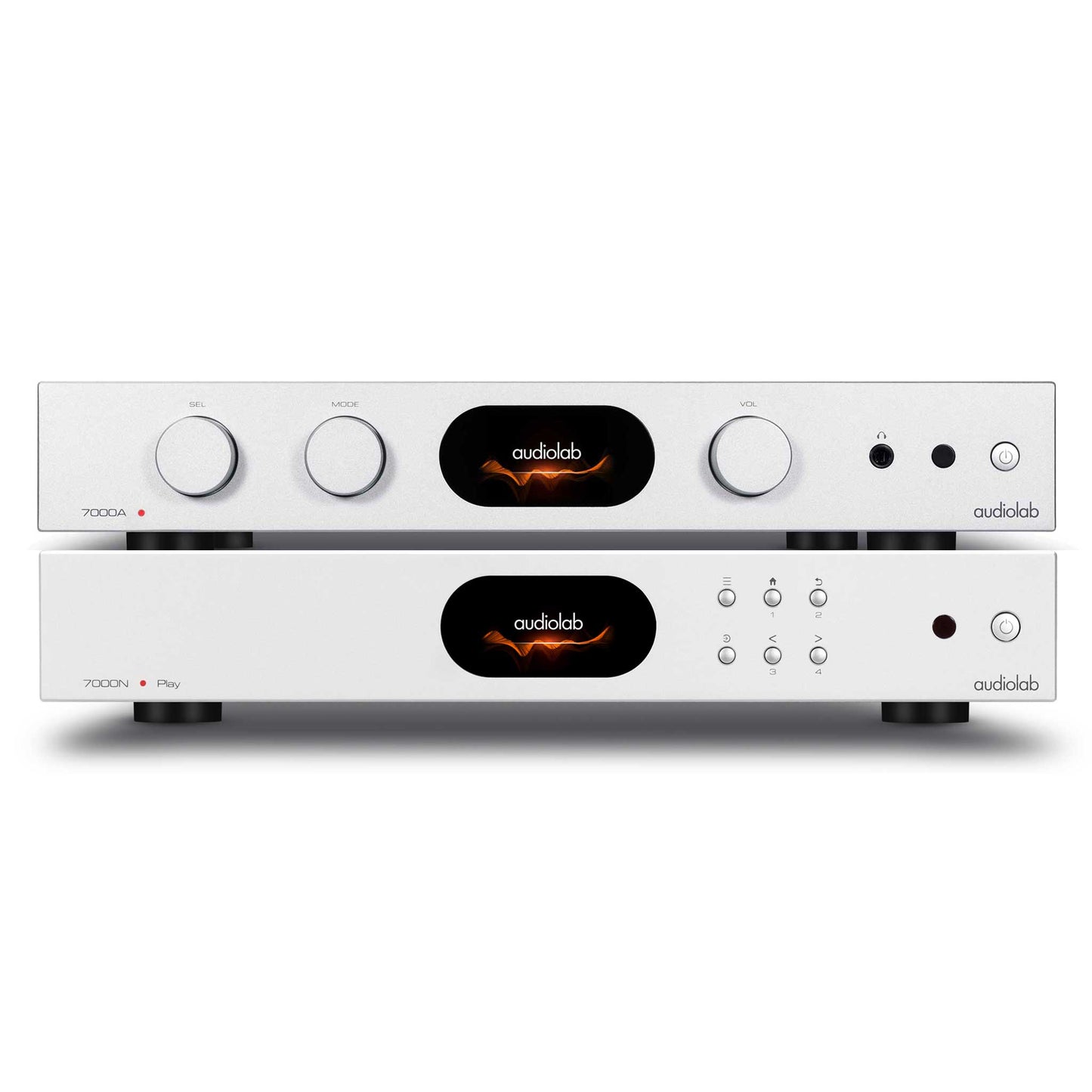

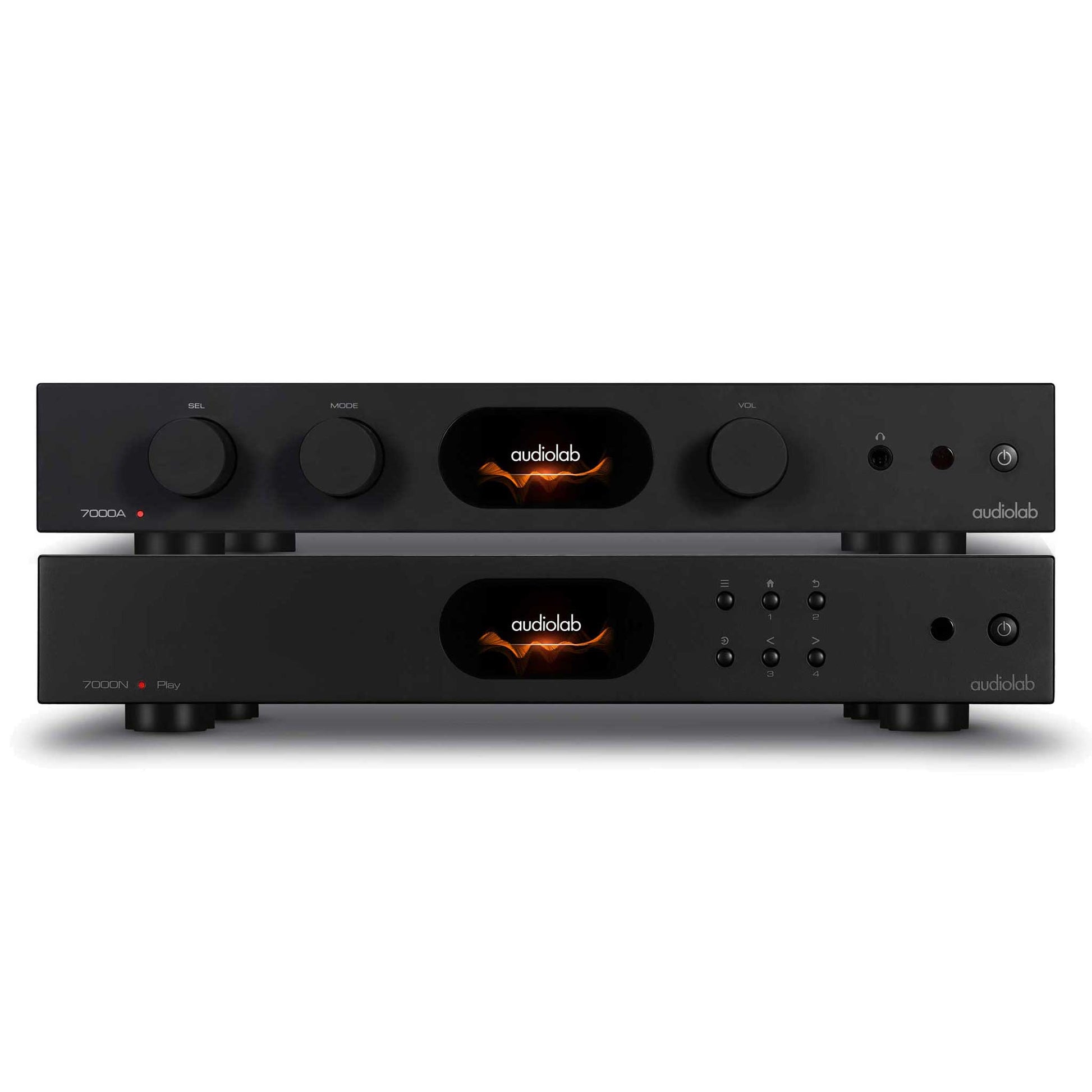

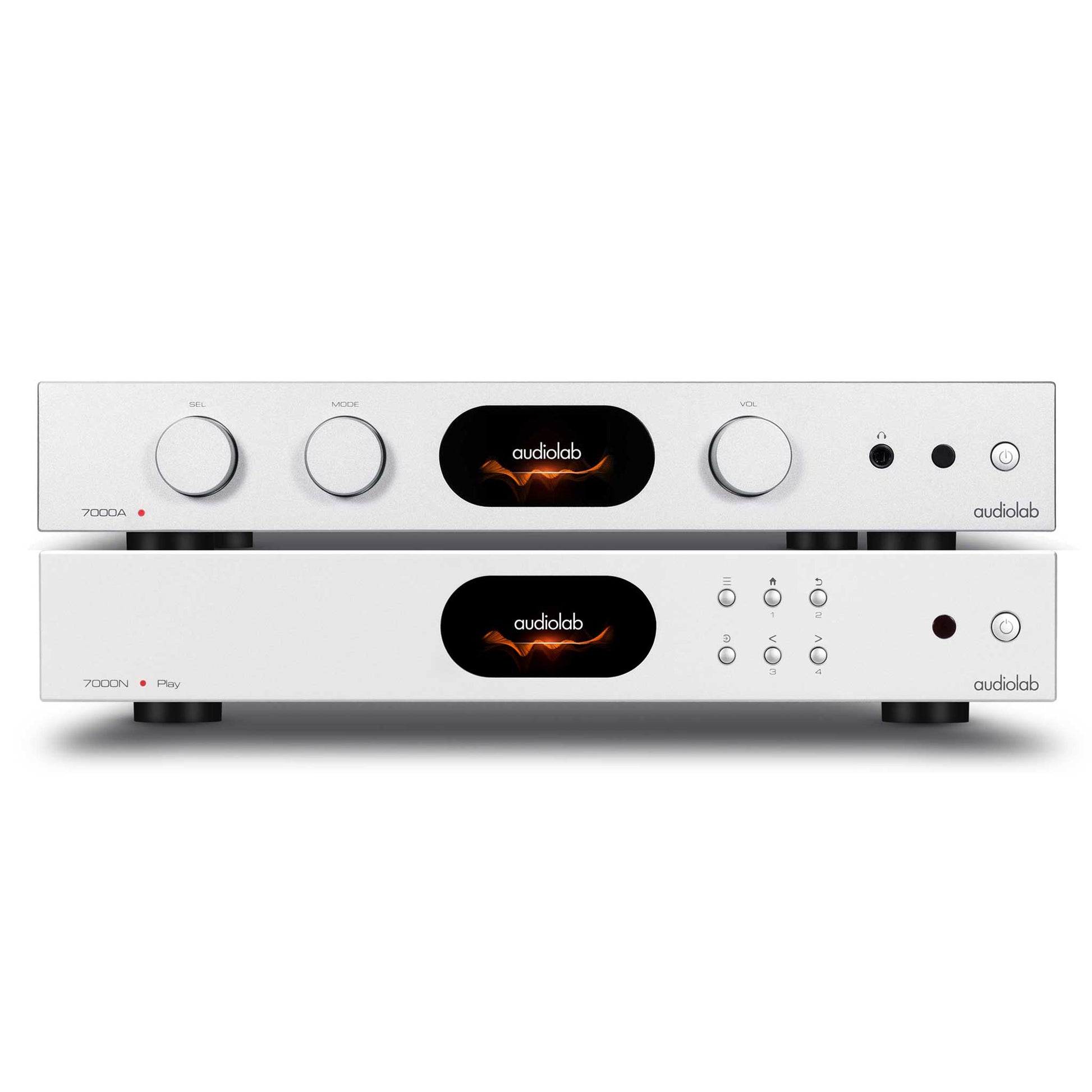

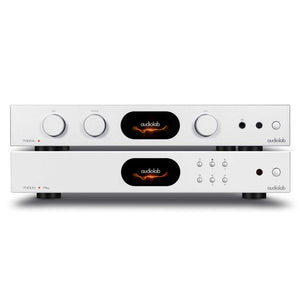

Audio 7000A Integrated Amplifier with 7000N Network Music Streamer

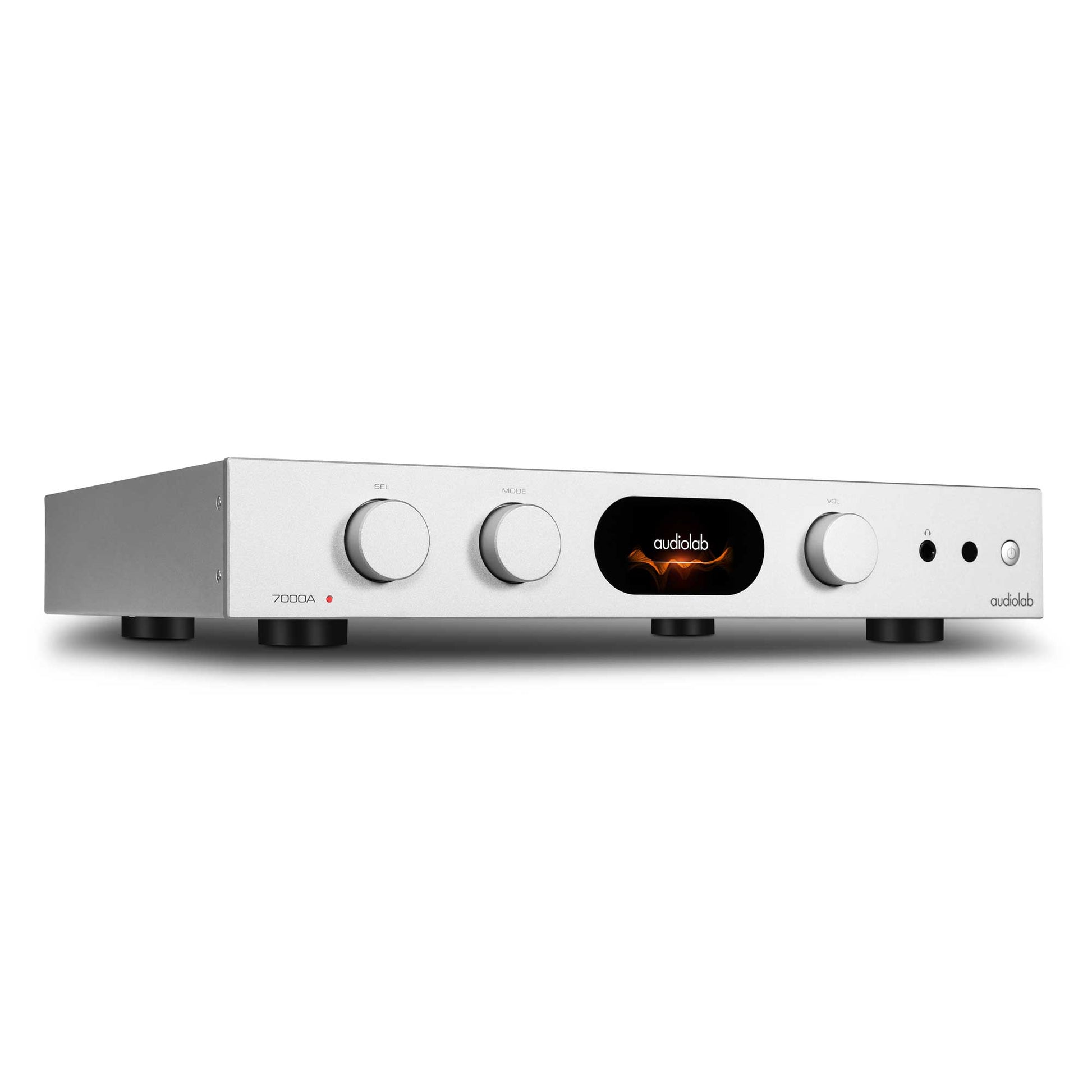

Audiolab’s engineers have definitely hit a real sweet spot with the new 7000A. By taking everything that makes the award winning 6000A one of the most popular integrated amps of the last few years and then adding a healthy dose of upgraded tech from their flagship 9000A they have created the outstanding new 7000A.
The 7000A nestles between its two siblings in terms of both price and performance. It builds upon the same design fundamentals as the 6000A, but while the ethos remains the same, every aspect of the 7000A’s circuitry, both digital and analogue, has been enhanced to deliver updated facilities and upgraded performance.
Impressive power
The 7000A’s discrete Class AB power amp stage delivers an impressive 70W per channel into eight ohms, and is 4-ohm stable, so it can drive a wide range of speakers. There's a high-current toroidal power transformer inside that helps the amp to maintain firm control of the music whilst enabling excellent dynamic range.
Versatile Connectivity
Connectivity is comprehensive: USB, coaxial, optical, Bluetooth aptX HD, HDMI ARC, plus line inputs for analogue sources. A built-in MM phono stage handles vinyl playback with clarity, while a dedicated headphone amplifier ensures engaging private listening
Flagship DAC
The 7000A DAC is built around the ESS ES9038Q2M flagship 32-bit DAC chip, using the critically acclaimed patented HyperStream® II architecture and Time Domain Jitter Eliminator for the highest level of DAC performance.
Premium IPS display
To aid ease of use (and to look cool!) 7000A offers a colour 2.8” IPS display and GUI. This shows a variety of information in a more visually appealing way than other integrated amps – volume level, input selection, format data and more. It can even be set to display a VU meter in ‘analogue’ or ‘digital’ form, showing real-time signal levels for the left and right channels, a satisfying graphical representation of the music as it plays.
Audiolab 7000N – High-Resolution Network Streamer
The Audiolab 7000N is a premium network audio streamer designed to deliver high-resolution digital streaming with exceptional sound quality and ease of use. Seamlessly integrating modern streaming services with classic hi-fi performance, it’s the perfect partner to the 7000A amplifier.
Powered by DTS Play-Fi® technology, the 7000N supports high-resolution audio playback up to 24-bit/192kHz, giving you access to lossless streaming from platforms like TIDAL, Qobuz, Amazon Music HD, and Deezer, as well as internet radio and local network music libraries. With Spotify Connect, AirPlay 2, and DLNA compatibility, it adapts to your preferred way of listening.
The 7000N features a 2.8” IPS LCD for displaying clear information about streaming service, system settings, format, folder, track details and other data, while intuitive app control makes navigation simple. Built with Audiolab’s renowned engineering, it uses high-quality DAC architecture and precision circuitry to deliver a natural, detailed, and engaging sound.
Finished in sleek aluminium with the minimalist style of the 7000 Series, the 7000N is as visually refined as it is sonically powerful. Whether you’re streaming the latest playlists or rediscovering your own digital collection, it provides a rich, reliable, and future-proof listening experience.
Specifications
Specifications
Audiolab 7000A Specifications
|
General Description |
Integrated Amplifier |
|
Design Philosophy and Core Technology |
- 2 x 70W (8 ohms) / 2 x 110W (4 ohms) Class AB |
|
|
- ES9038Q2M 32-bit DAC |
|
|
- 2.8" (480x640mm) Full View IPS LCD |
|
|
- Built in Certified Hardware MQA Full Decoder (PC USB, Coax / Optical) |
|
|
- Bluetooth 5.0 (aptX / aptX LL) Support |
|
|
- Low Noise Moving Magnet Phono Stage |
|
|
- Dedicated Current-Feedback Headphone amp |
|
|
- Integrated / PRE-POWER / PRE only Modes |
|
|
- VU Digital / VU Analogue Meter |
|
|
- USB Upgrade Support |
|
Inputs |
3 x Analogue, 1 x Phono (MM), 1 x Power Amplifier, |
|
|
2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x HDMI ARC, |
|
|
1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX LL), 1 x 12V Trigger |
|
Outputs |
1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger |
|
Sampling Frequency |
Optical / Coaxial: 44.1kHz - 192kHz; |
|
|
PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512 |
|
Preamplifier Section |
|
|
Gain |
+6dB (Line); +55dB (Phono MM) |
|
Input Sensitivity |
820mV (Line, Volume = 0dB); 3.1mV (Phone MM, Volume = 0dB) |
|
Input Impedance |
10K (Line); 47K // 100pF (Phono MM) |
|
Total Harmonic Distortion (THD) |
< 0.0005% (1kHz @ 2V, Volume = 0dB) |
|
Frequency Response |
20Hz-20kHz (+/-0.1dB) |
|
Output Voltage |
2.3V max. (Volume = 0dB) |
|
Output Impedance |
100 ohms |
|
Signal-to-Noise Ratio |
> 110dB (Line, A-weighted); > 76dB (Phono MM, A-weighted |
|
DAC |
|
|
D to A Converter |
ES9038Q2M |
|
Total Harmonic Distortion (THD) |
< 0.0005% (1KHz @ 0dBFS) |
|
Output Level (0dBFS, 1kHz) |
2.1Vrms |
|
Max. Sampling Frequency |
Optical, Coaxial: 192kHz; |
|
|
Ethernet, WiFi: 192kHz; |
|
|
USB A: 48kHz; |
|
|
PC USB: PCM768kHz, DSD512 |
|
Power Amplifier Section |
|
|
Gain |
+29dB |
|
Rated Power Output |
2 x 70W (8 ohms, THD<1%); 2 x 110W (4 ohms, THD<1%) |
|
Frequency Response |
20Hz-20kHz (+/-0.3dB) |
|
Total Harmonic Distortion (THD) |
<0.003% (1kHz @ 40W / 8 ohms) |
|
Input Sensitivity |
720mV |
|
Signal-to-Noise Ratio (S/N) |
> 110dB (A-weighted) |
|
Max. Output Current |
9A |
|
Headphone Amplifier |
|
|
Total Harmonic Distortion (THD) |
< 0.01% (1kHz, 50mW) |
|
Output Impedance |
4.7 ohms |
|
Load Impedance |
20-600 ohms |
|
General |
|
|
Standby Power Consumption |
<0.5W |
|
Net Weight |
8.4kg |
|
Gross Weight |
10.7kg |
|
Dimensions (mm) (W x D x H) |
444 x 340 x 78 |
|
Carton Size (mm) (W x D x H) |
500 x 455 x 140 |
|
Finish |
Black / Silver |
|
Power Requirements |
220-240V ~ 50/ 60Hz; |
|
(depending on region) |
100-120V ~ 50/ 60Hz |
|
Standard Accessories |
Power Cord, Remote Control, User Manual, Antennas, etc. |
Audiolab 7000CDT CD Transport Specifications
|
General Description |
CD Transport |
|
Design Philosophy and Core Technology |
Compatible with CD/CD-R/CD-RW |
|
|
Support playing USB storage devices (MP3/WMA/AAC/WAV) |
|
|
Display indication |
|
|
Adjustable screen brightness |
|
|
Activate the device automatically via 12V trigger |
|
|
Auto standby function can be turned on or off |
|
USB Storage Device Audio Format |
Support MP3, WMA, AAC, WAV format playback |
|
USB Storage Device File System |
Support FAT12, FAT16 and FAT32 format |
|
Digital Output Amplitude |
500 +/-50mVpp |
|
Output Impedance |
75Ω |
|
Frequency Response |
-0.01dB (20Hz-20kHz, ref.1kHz) |
|
Total Harmonic Distortion (THD) |
< 0.002% |
|
Sampling Rate |
44.1kHz |
|
Digital Output Interface |
1 x Coaxial, 1 x Optical |
|
Standby Power Consumption |
< 0.5W |
|
Power Requirements (according to region) |
220-240V - 50/60Hz |
|
|
100-120V - 50/60Hz |
|
Product Size (mm) (W x D x H) |
444 x 322 x 78 |
|
Carton Size (mm) (W x D x H) |
514 x 470 x 158 |
|
Net Weight |
5.5kg |
|
Gross Weight |
7.4kg |
