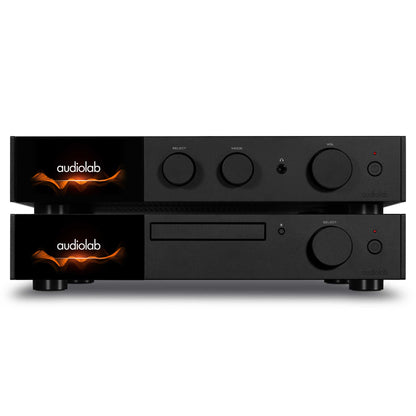

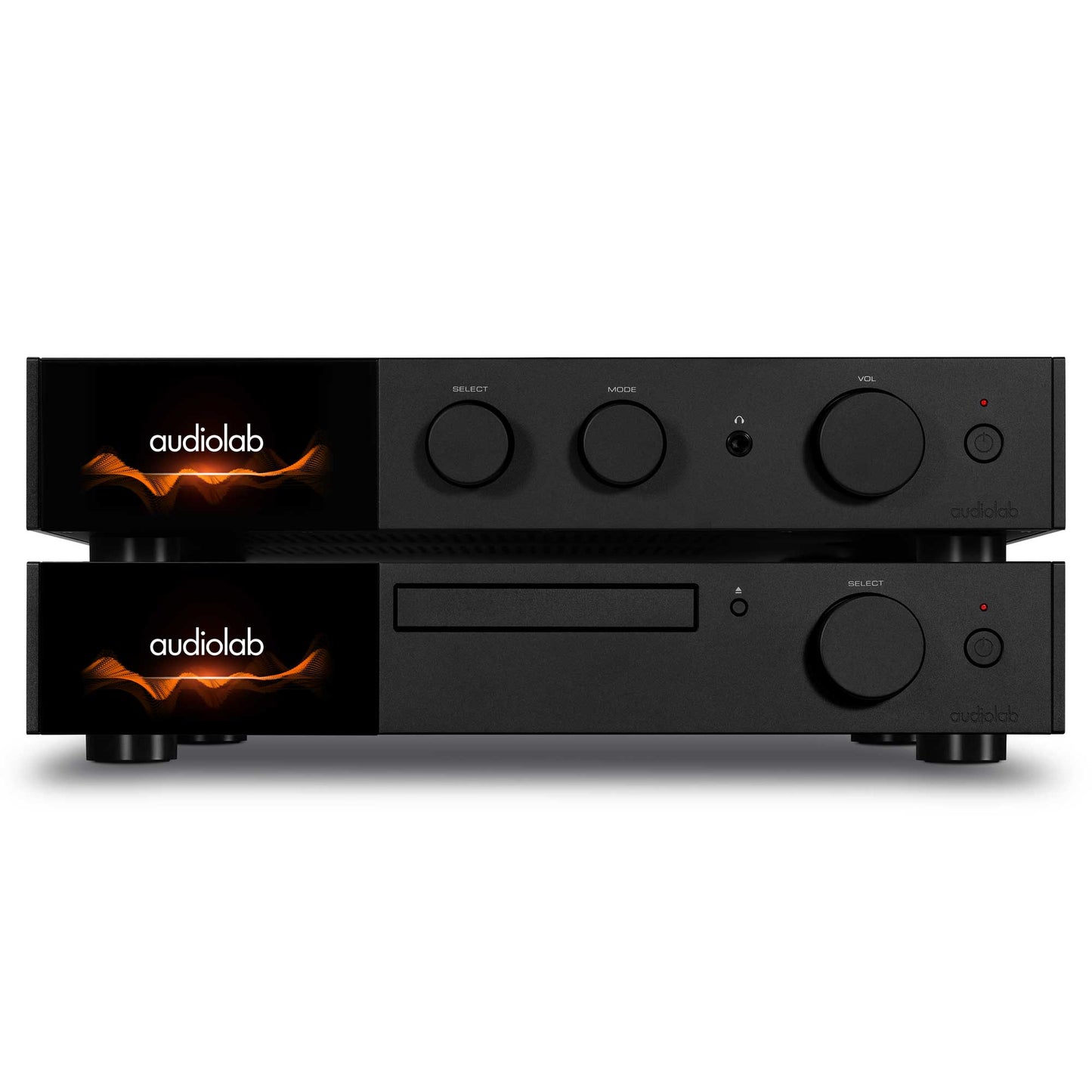

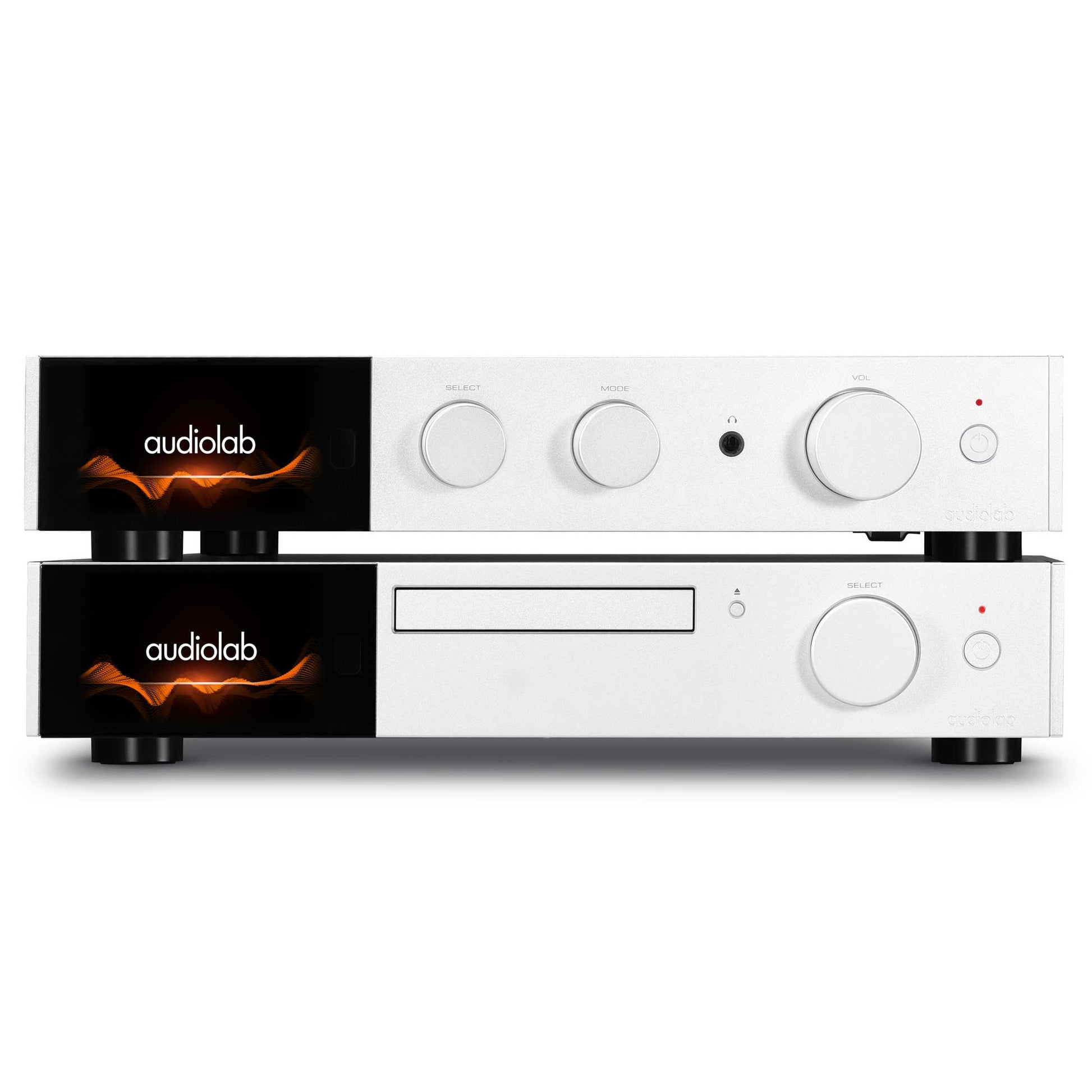

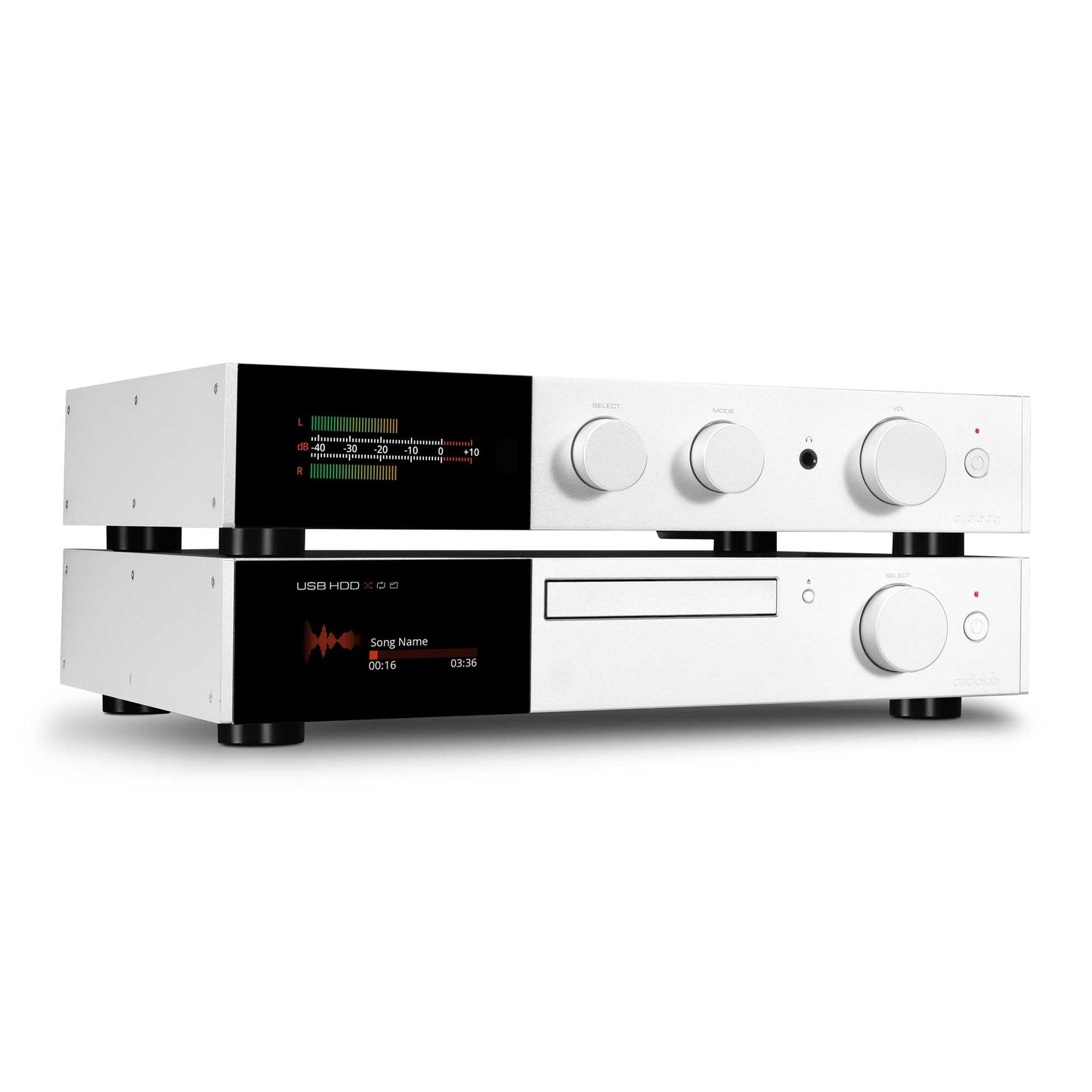

Audiolab 9000A Stereo Integrated Amplifier with matching 9000CDT CD Transport
Audiolab’s stunning 9000A stereo amplifier makes a superb choice as the beating heart of any high-performance audio system. It's powerful, capable and feature-packed.
Versatility is key to the 9000A’s appeal, loaded with digital and analogue source connection, wireless connectivity for portable devices, an all-new phono stage to cater for vinyl playback and the usual, class-leading amplification for loudspeakers and headphones.
Power in abundance
The 9000A’s all-new Class AB power amplifier offers an impressive 100w per channel into 8 ohms, more than enough power to fill the largest spaces and drive the most demanding speakers. Featuring a large toroidal transformer and quad 15,000uF output capacitors, the 9000A always has plenty in reserve.
All about the sound
As well as the impressive power, 9000A also boasts a whole array of premium Audiolab tech including their highly regarded CFB (Complementary Feedback) technology, an ESS 9038PRO flagship 32-bit DAC and state-of-the-art hi-res audio support.
Versatile connectivity
The 9000A incorporates state-of-the art digital-to-analogue signal conversion, enabling digital sources to be connected directly without an external DAC. A USB Type B input caters for PCs, Macs, smartphones, tablets and digital storage devices, alongside four S/PDIF digital inputs – two coaxial and two optical. There are also four line-level analogue inputs – three stereo RCA and one stereo XLR for balanced connectivity – plus an MM phono input for a turntable.
aptX HD Bluetooth built-in
9000A is equipped with Bluetooth aptX HD. Pair your compatible smartphone, tablet or laptop and take advantage of the high-end integrated DAC. Enjoy Hi-Res sound quality, wirelessly, perfect for streaming from your favourite music service.
High performance MM phono stage
Hook up a premium turntable and Audiolab’s 9000A will help you get the best from your precious vinyl collection. A built-in Moving Magnet (MM) phono stage with precision RIAA equalisation sets the 9000A phono stage apart from other lesser designs, unlocking all detail and emotion within those grooves.
Exceptional build and design
The 9000A introduces a smart new aesthetic, as befits a new flagship range. Solidly built and impeccably finished, the amp’s appearance reflects the crisp elegance and controlled muscularity of its sound. Three rotary controls and an absence of buttons (except for the power switch) give the 9000A’s fascia a clean, assured appearance, augmented with a high quality 4.3in colour screen – like a sharp Saville Row suit complemented by a perfectly appointed accessory
Audiolab 9000CDT CD Transport
Built for sonic excellence, the 9000 Series CD transport – the 9000CDT – is the perfect CD-playing companion to Audiolab’s flagship 9000A integrated amplifier.
The 9000CDT builds on the reputation of the highly respected 6000CDT, engineered to make the most of any still-treasured CD collection. It incorporates a new, high-end transport mechanism, featuring a high-precision optical system and low-friction loading tray. A read-ahead digital buffer reduces disc-reading failures, enabling the 9000CDT to play damaged discs that may be rejected by other CD players.
The 9000CDT’s construction, with its sturdy aluminium base and chassis, combats the effect of vibrations generated both externally and by the mechanism’s high-spin-velocity motor. By mounting the transport in its own, electromagnetically shielded enclosure, and including a dedicated power supply, the digital signal extraction from any CD is as accurate and precise as it is possible to achieve.
The 9000CDT’s aluminium casework shares the same crisp design and impeccable finish quality as the 9000A, with a matching 4.3in colour display and rotary function selector. The display shows track information from CDs and USB-connected storage devices, and also provides access to functions such auto-standby settings, language selection and dimming of the display itself (or the option to switch it off entirely). The presence of this 4.3in screen not only matches the 9000A integrated amp, it also elevates the user experience above that of a typical CD player
Specifications
Specifications
Audiolab 9000A Specifications
General Description |
Integrated Amplifier |
Design Philosophy and Core Technology |
2 x 100W (8 ohms) / 2 x 160W (4 ohms) Class AB |
|
ES9038Pro 32-bit DAC |
|
4.3" (800 x 480mm) Large Size Full View IPS LCD |
|
Built-in Certified MQA Full Decoder (PC USB, Coax/Optical) |
|
Bluetooth 5.1 (aptX/aptX HD/AAC/LDAC) Support |
|
Dedicated High-performance, Low-noise MM Phono Stage |
|
Dedicated Current-Feedback Headphone AMP |
|
Integrated / PRE-POWER / PRE Only Modes |
|
USB Upgrade Support |
Inputs |
3 x Analogue, 1 x XLR, 1 x Phono (MM), 1 x Power Amplifier, |
|
2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x PC USB (USB B), |
|
1 x Bluetooth (aptX/aptX HD/LDAC), 1 x 12V Trigger |
Outputs |
1 x PRE Amplifier,1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger |
Sampling Frequency |
Optical / Coaxial: 44.1kHz-192kHz; |
|
PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512 |
Preamplifier Section |
|
Gain (max.) |
+6dB (Line), +53dB (Phono MM) |
Input Sensitivity |
1Vrms (Line, Volume = 0dB); |
|
2Vrms (XLR, Volume = 0dB), 4.4mV (Phono MM, Volume=0dB) |
Input Impedance |
10K (Line); 47K // 100pF (Phono MM) |
Total Harmonic Distortion (THD) |
< 0.0004% (1kHz @ 2V, Volume = 0dB) |
Frequency Response |
20Hz-20kHz (+/-0.1dB) |
Output Voltage |
2.3V max. (Volume = 0dB) |
Output Impedance |
120 ohms |
Signal-to-Noise Ratio |
> 110dB (Line & XLR, A-weighted); > 80dB (Phono MM, A-weighted) |
DAC |
|
D to A Converter |
ES9038Pro |
Total Harmonic Distortion (THD) |
< 0.001% (1kHz @ 0dBFS) |
Output Level (0dBFS, 1kHz) |
2.1Vrms |
Max. Sampling Frequency |
Optical, Coaxial: 192kHz; |
|
PC USB: PCM768kHz, DSD512 |
Signal-to-Noise Ratio (S/N) |
> 117dB (A-weighted) |
Power Amplifier Section |
|
Gain |
+29dB |
Rated Power Output |
2 x 100W (8 ohms, THD<1%); |
|
2 x 160W (4 ohms, THD<1%) |
Frequency Response |
20Hz-20kHz (+/-0.3dB) |
Total Harmonic Distortion (THD) |
<0.002% (1kHz @ 50W / 8 ohms) |
Input Sensitivity |
1Vrms |
Signal-to-Noise Ratio (S/N) |
> 110dB (A-weighted) |
Max. Output Current |
15A |
Headphone Amplifier |
|
Total Harmonic Distortion (THD) |
< 0.01% (1kHz, 50mW ) |
Output Impedance |
2.35 ohms |
Load Impedance |
20-600 ohms |
General |
|
Standby Power Consumption |
<0.5W |
Net Weight |
9.4kg |
Gross Weight |
11.2kg |
Dimensions (mm) (W x H x D) |
444 x 89 x 342 |
Carton Size (mm) (W x H x D) |
514 x 470 x 161 |
Finish |
Black / Silver |
Power Requirements |
220-240V ~ 50/60Hz; |
(depending on region) |
100-120V ~ 50/60Hz |
Standard Accessories |
Power Cord, Remote Control, User Manual, Antennas, etc. |
Audiolab 9000CDT Specifications
Model |
9000CDT |
General Description |
CD Transport and USB HDD player |
USB Storage Device Audio Format |
MP3, WMA, AAC, WAV file compatible |
USB Storage Device File System |
FAT12, FAT16 and FAT32 device compatible |
Digital Output Amplitude |
500 +/-50mVpp |
Output Impedance |
75Ω |
Frequency Response |
-0.01dB (20Hz-20kHz, ref.1 kHz) |
Total Harmonic Distortion (THD) |
< 0.002% |
Sampling Rate |
44.1kHz (48kHz files can be played via the 9000CDT |
|
but will be resampled to 44.1kHz) |
Digital Output Interface |
1 x Coaxial , 1 x Optical |
Standby Power Consumption |
< 0.5W |
Power Requirements (according to region) |
220-240V - 50/60Hz |
|
100-120V - 50/60Hz |
Product Size (mm) (W x D x H) |
444 x 89 x 342 |
Carton Size (mm) (W x D x H) |
514 x 470 x 161 |
Net Weight |
5.74kg |
Gross Weight |
7.6kg |
