Audiolab
Audiolab 9000A + 9000N Amp & Streamer Bundle
Audiolab 9000A + 9000N Amp & Streamer Bundle
Couldn't load pickup availability
- Demo Available
- 3 year Warranty
- free deliveryin 2-3 days
Share
Details
Description

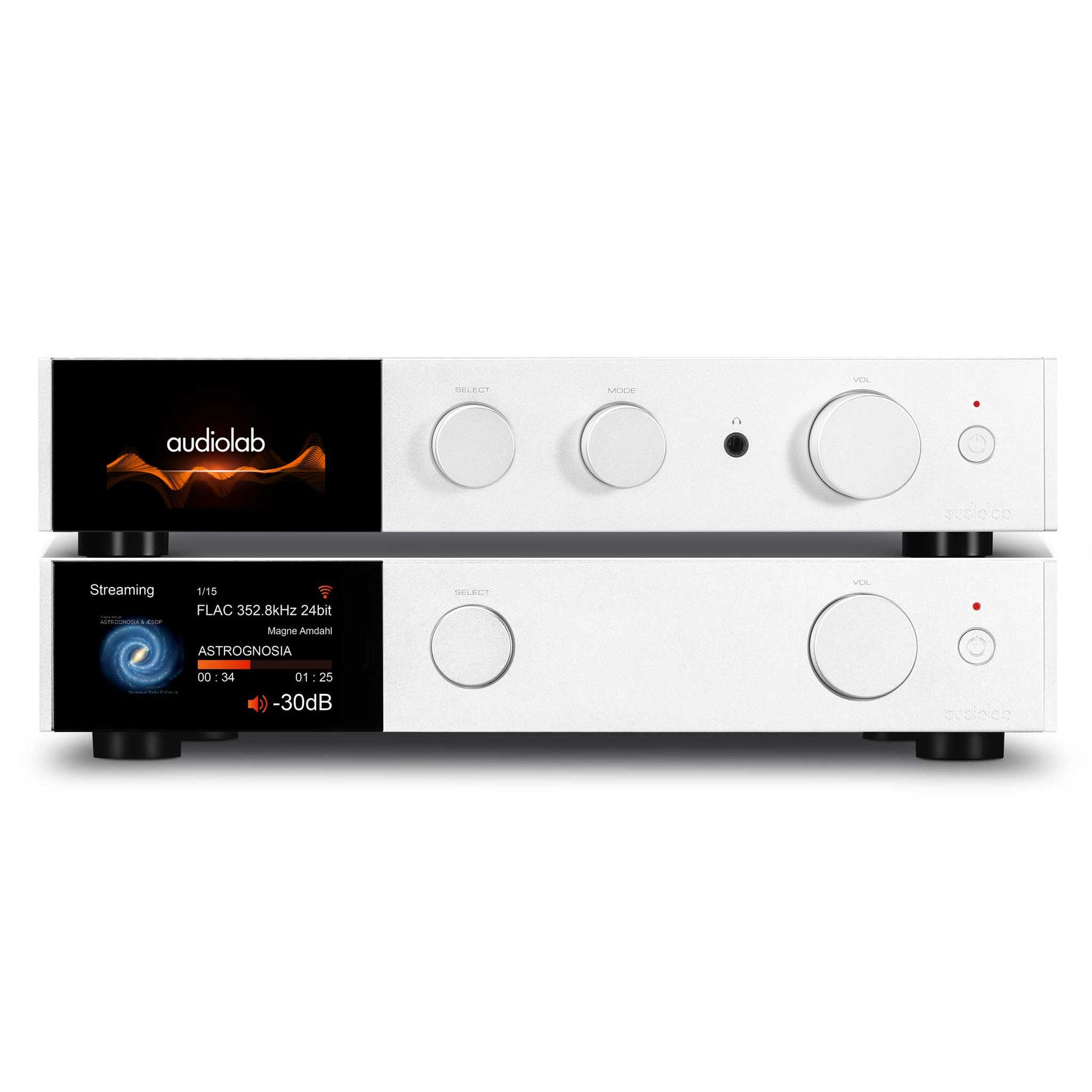

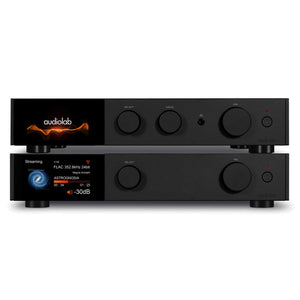

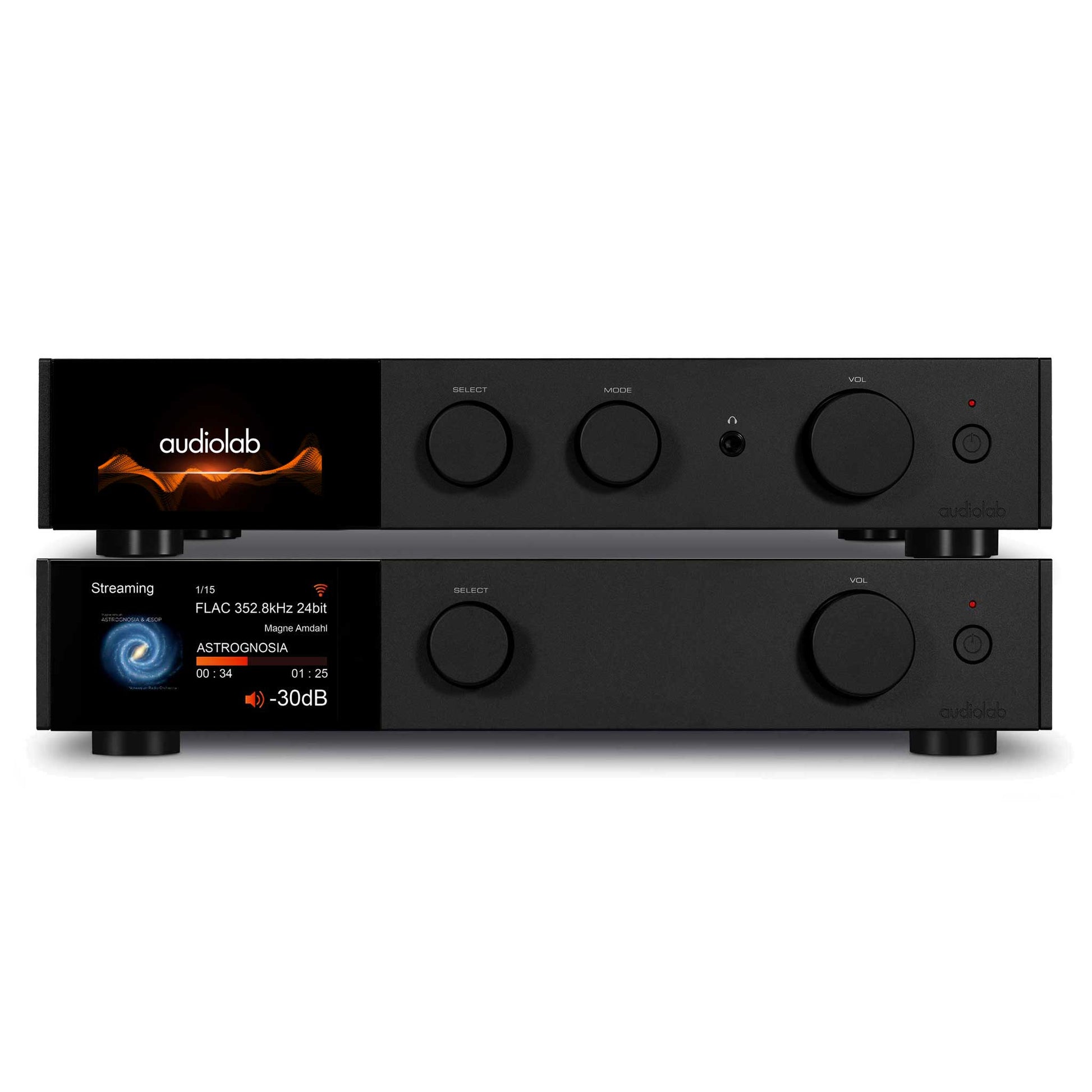

Audiolab 9000A Integrated Amplifier with 9000N Music Streamer
Audiolab’s stunning 9000A stereo amplifier makes a superb choice as the beating heart of any high-performance audio system. It's powerful, capable and feature-packed.
Versatility is key to the 9000A’s appeal, loaded with digital and analogue source connection, wireless connectivity for portable devices, an all-new phono stage to cater for vinyl playback and the usual, class-leading amplification for loudspeakers and headphones.
Power in abundance
The 9000A’s all-new Class AB power amplifier offers an impressive 100w per channel into 8 ohms, more than enough power to fill the largest spaces and drive the most demanding speakers. Featuring a large toroidal transformer and quad 15,000uF output capacitors, the 9000A always has plenty in reserve.
All about the sound
As well as the impressive power, 9000A also boasts a whole array of premium Audiolab tech including their highly regarded CFB (Complementary Feedback) technology, an ESS 9038PRO flagship 32-bit DAC and state-of-the-art hi-res audio support.
Versatile connectivity
The 9000A incorporates state-of-the art digital-to-analogue signal conversion, enabling digital sources to be connected directly without an external DAC. A USB Type B input caters for PCs, Macs, smartphones, tablets and digital storage devices, alongside four S/PDIF digital inputs – two coaxial and two optical. There are also four line-level analogue inputs – three stereo RCA and one stereo XLR for balanced connectivity – plus an MM phono input for a turntable.
aptX HD Bluetooth built-in
9000A is equipped with Bluetooth aptX HD. Pair your compatible smartphone, tablet or laptop and take advantage of the high-end integrated DAC. Enjoy Hi-Res sound quality, wirelessly, perfect for streaming from your favourite music service.
High performance MM phono stage
Hook up a premium turntable and Audiolab’s 9000A will help you get the best from your precious vinyl collection. A built-in Moving Magnet (MM) phono stage with precision RIAA equalisation sets the 9000A phono stage apart from other lesser designs, unlocking all detail and emotion within those grooves.
Exceptional build and design
The 9000A introduces a smart new aesthetic, as befits a new flagship range. Solidly built and impeccably finished, the amp’s appearance reflects the crisp elegance and controlled muscularity of its sound. Three rotary controls and an absence of buttons (except for the power switch) give the 9000A’s fascia a clean, assured appearance, augmented with a high quality 4.3in colour screen – like a sharp Saville Row suit complemented by a perfectly appointed accessory

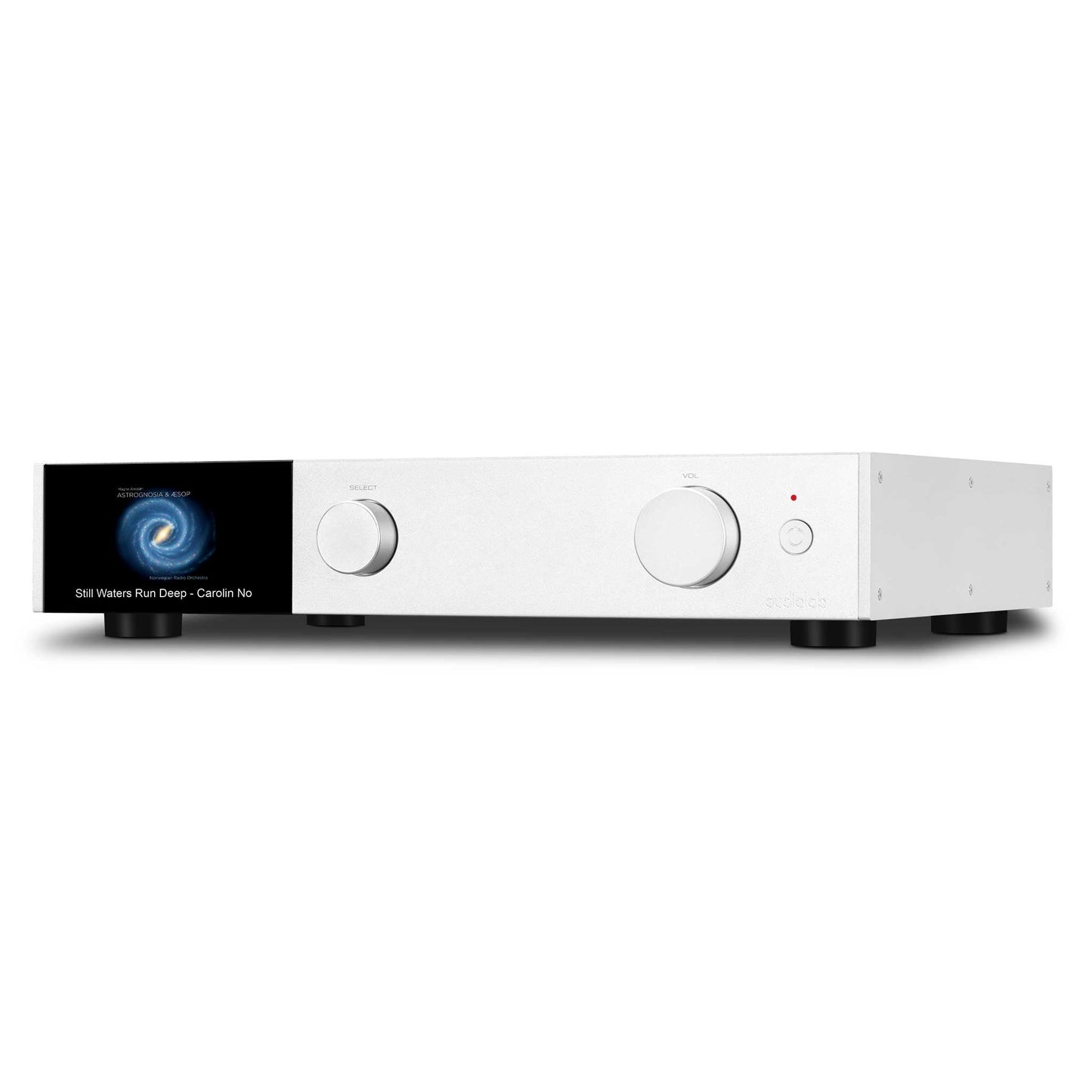

Audiolab 9000N – Flagship Network Streamer / DAC
Developed to be the perfect digital streaming companion for the flagship Audiolab 9000A series, the new 9000N is the result of over three year’s development and innovation to deliver a reference-grade network streamer and DAC, combining high-resolution digital playback with elegant design and flexible connectivity. At its heart is the ESS Sabre ES9038PRO DAC, delivering ultra-low distortion and high dynamic range for true audiophile sound.
Capable of handling PCM up to 768 kHz, DSD512, and full MQA decoding, the 9000N ensures uncompromising playback of digital sources. A powerful streaming engine supports Spotify Connect, Tidal Connect, Qobuz, TuneIn, UPnP, and is Roon Ready, offering both convenience and performance.
The 4.3-inch full-colour IPS display provides album artwork, track metadata, format and sample rate info, and even stylish VU meters.
Connectivity options include balanced XLR and RCA outputs, USB-B for computer audio, USB-A for external storage, coaxial and optical outputs, plus Ethernet and Wi-Fi for stable network integration.
Finished in Audiolab’s premium design with a robust chassis and sleek finish, the 9000N partners perfectly with the 9000A amplifier and 9000CDT transport to form a flagship hi-fi system.
Specifications
Specifications
Audiolab 9000A Specifications
|
General Description |
Integrated Amplifier |
|
Design Philosophy and Core Technology |
2 x 100W (8 ohms) / 2 x 160W (4 ohms) Class AB |
|
|
ES9038Pro 32-bit DAC |
|
|
4.3" (800 x 480mm) Large Size Full View IPS LCD |
|
|
Built-in Certified MQA Full Decoder (PC USB, Coax/Optical) |
|
|
Bluetooth 5.1 (aptX/aptX HD/AAC/LDAC) Support |
|
|
Dedicated High-performance, Low-noise MM Phono Stage |
|
|
Dedicated Current-Feedback Headphone AMP |
|
|
Integrated / PRE-POWER / PRE Only Modes |
|
|
USB Upgrade Support |
|
Inputs |
3 x Analogue, 1 x XLR, 1 x Phono (MM), 1 x Power Amplifier, |
|
|
2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x PC USB (USB B), |
|
|
1 x Bluetooth (aptX/aptX HD/LDAC), 1 x 12V Trigger |
|
Outputs |
1 x PRE Amplifier,1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger |
|
Sampling Frequency |
Optical / Coaxial: 44.1kHz-192kHz; |
|
|
PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512 |
|
Preamplifier Section |
|
|
Gain (max.) |
+6dB (Line), +53dB (Phono MM) |
|
Input Sensitivity |
1Vrms (Line, Volume = 0dB); |
|
|
2Vrms (XLR, Volume = 0dB), 4.4mV (Phono MM, Volume=0dB) |
|
Input Impedance |
10K (Line); 47K // 100pF (Phono MM) |
|
Total Harmonic Distortion (THD) |
< 0.0004% (1kHz @ 2V, Volume = 0dB) |
|
Frequency Response |
20Hz-20kHz (+/-0.1dB) |
|
Output Voltage |
2.3V max. (Volume = 0dB) |
|
Output Impedance |
120 ohms |
|
Signal-to-Noise Ratio |
> 110dB (Line & XLR, A-weighted); > 80dB (Phono MM, A-weighted) |
|
DAC |
|
|
D to A Converter |
ES9038Pro |
|
Total Harmonic Distortion (THD) |
< 0.001% (1kHz @ 0dBFS) |
|
Output Level (0dBFS, 1kHz) |
2.1Vrms |
|
Max. Sampling Frequency |
Optical, Coaxial: 192kHz; |
|
|
PC USB: PCM768kHz, DSD512 |
|
Signal-to-Noise Ratio (S/N) |
> 117dB (A-weighted) |
|
Power Amplifier Section |
|
|
Gain |
+29dB |
|
Rated Power Output |
2 x 100W (8 ohms, THD<1%); |
|
|
2 x 160W (4 ohms, THD<1%) |
|
Frequency Response |
20Hz-20kHz (+/-0.3dB) |
|
Total Harmonic Distortion (THD) |
<0.002% (1kHz @ 50W / 8 ohms) |
|
Input Sensitivity |
1Vrms |
|
Signal-to-Noise Ratio (S/N) |
> 110dB (A-weighted) |
|
Max. Output Current |
15A |
|
Headphone Amplifier |
|
|
Total Harmonic Distortion (THD) |
< 0.01% (1kHz, 50mW ) |
|
Output Impedance |
2.35 ohms |
|
Load Impedance |
20-600 ohms |
|
General |
|
|
Standby Power Consumption |
<0.5W |
|
Net Weight |
9.4kg |
|
Gross Weight |
11.2kg |
|
Dimensions (mm) (W x H x D) |
444 x 89 x 342 |
|
Carton Size (mm) (W x H x D) |
514 x 470 x 161 |
|
Finish |
Black / Silver |
|
Power Requirements |
220-240V ~ 50/60Hz; |
|
(depending on region) |
100-120V ~ 50/60Hz |
|
Standard Accessories |
Power Cord, Remote Control, User Manual, Antennas, etc. |
Audiolab 9000CDT Specifications
|
Model |
9000CDT |
|
General Description |
CD Transport and USB HDD player |
|
USB Storage Device Audio Format |
MP3, WMA, AAC, WAV file compatible |
|
USB Storage Device File System |
FAT12, FAT16 and FAT32 device compatible |
|
Digital Output Amplitude |
500 +/-50mVpp |
|
Output Impedance |
75Ω |
|
Frequency Response |
-0.01dB (20Hz-20kHz, ref.1 kHz) |
|
Total Harmonic Distortion (THD) |
< 0.002% |
|
Sampling Rate |
44.1kHz (48kHz files can be played via the 9000CDT |
|
|
but will be resampled to 44.1kHz) |
|
Digital Output Interface |
1 x Coaxial , 1 x Optical |
|
Standby Power Consumption |
< 0.5W |
|
Power Requirements (according to region) |
220-240V - 50/60Hz |
|
|
100-120V - 50/60Hz |
|
Product Size (mm) (W x D x H) |
444 x 89 x 342 |
|
Carton Size (mm) (W x D x H) |
514 x 470 x 161 |
|
Net Weight |
5.74kg |
|
Gross Weight |
7.6kg |
Audiolab 9000N Specifications
|
Design Philosophy And Core Technology |
ESS Sabre ES9038Pro 32bit DAC Quad Arm® Cortex®-A53 core,1.8GHz per Core Audiolab 9000N Streaming technology (IEEE 802.11 a / b / g / n / ac,2.4/5GHz) UPnP AV protocol with audio streaming extension (Open Home) Built-in Certified MQA Full decoder (via streaming & PC USB) Native support for Spotify Connect, TIDAL Connect, MQA, Qobuz and TuneIn Radio Roon Ready Gapless Playback High-resolution album artwork display USB storage / flash drive / USB hard disk (Single-partition FAT32, exFAT and NTFS) playback 4.3" (800 x 480px) IPS LCD screen iOS (11.0 or later) / Android (Android 4.0 or later) required for App control |
|
Audiolab 9000N App Features |
Native support for TIDAL, MQA, Qobuz and TuneIn Radio Tidal MQA icons to easily identify high-res music Qobuz high-res icons to identify high-res music Volume control High-resolution album artwork display Artwork caching Intelligent search functionality Multiple Playlist complications & functionality Multiple tag handling Composer tag support Album-grouping in playlist Automatic internet links to artists / album / songs Saving and restoring of playlists (including Tidal and Qobuz) |
|
Inputs |
1 x Network Streaming 1 x PC USB (USB Type-B) 1 x Ethernet 10/100 / 1000 Base-T Ethernet 1 x 12V Trigger |
|
Outputs |
1 x RCA (pair) 1 x XLR (pair) 1 x Optical 1 x Coaxial 1 x 12V Trigger (Link) |
|
Supported File Formats |
DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD) PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF Compressed (lossy) Audio: MP3 MQA |
|
Sampling Frequency |
PCM: 44.1kHz-768kHz (705.6kHz / 768kHz Fixed-point supported via Audiolab 9000N App streaming) DSD: DSD64, DSD128, DSD256, DSD512 (Native) |
|
Digital Section |
|
|
Digital Output Voltage |
500mV +/- 50mVpp |
|
Output Impedance |
75Ω |
|
Frequency Response |
-0.01dB (20Hz - 20kHz, ref.1kHz) |
|
Max. Sampling Frequency |
192kHz / 24bit |
|
Digital Outputs |
1 x Coaxial , 1 x Optical |
|
D to A Converter |
|
|
Variable Output Voltage |
0 – 2.05V |
|
DAC |
ES9038Pro |
|
Frequency Response |
+/-0.5dB (20Hz - 20kHz, ref.1kHz) |
|
Total Harmonic Distortion |
<0.001% (1kHz @ 2.05Vrms) |
|
Max. Sampling Frequency |
768kHz / 32bit |
|
Signal-to-noise ratio (A-weighted) |
>116dB(RCA), >120dB(XLR) |
|
Output Impedance |
120Ω |
|
General |
|
|
Standby Power Consumption |
<0.5W |
|
Net Weight |
6.2kg |
|
Gross Weight |
8kg |
|
Dimensions (mm)(W x H x D) |
444 x 89 x 333 |
|
Carton Size (mm)(W x H x D) |
514 x 470 x 161 |
|
Finish |
Black / Silver |
|
Power Requirements (depending on region) |
220-240V ~ 50 - 60Hz 100-120V ~ 50 - 60Hz |
