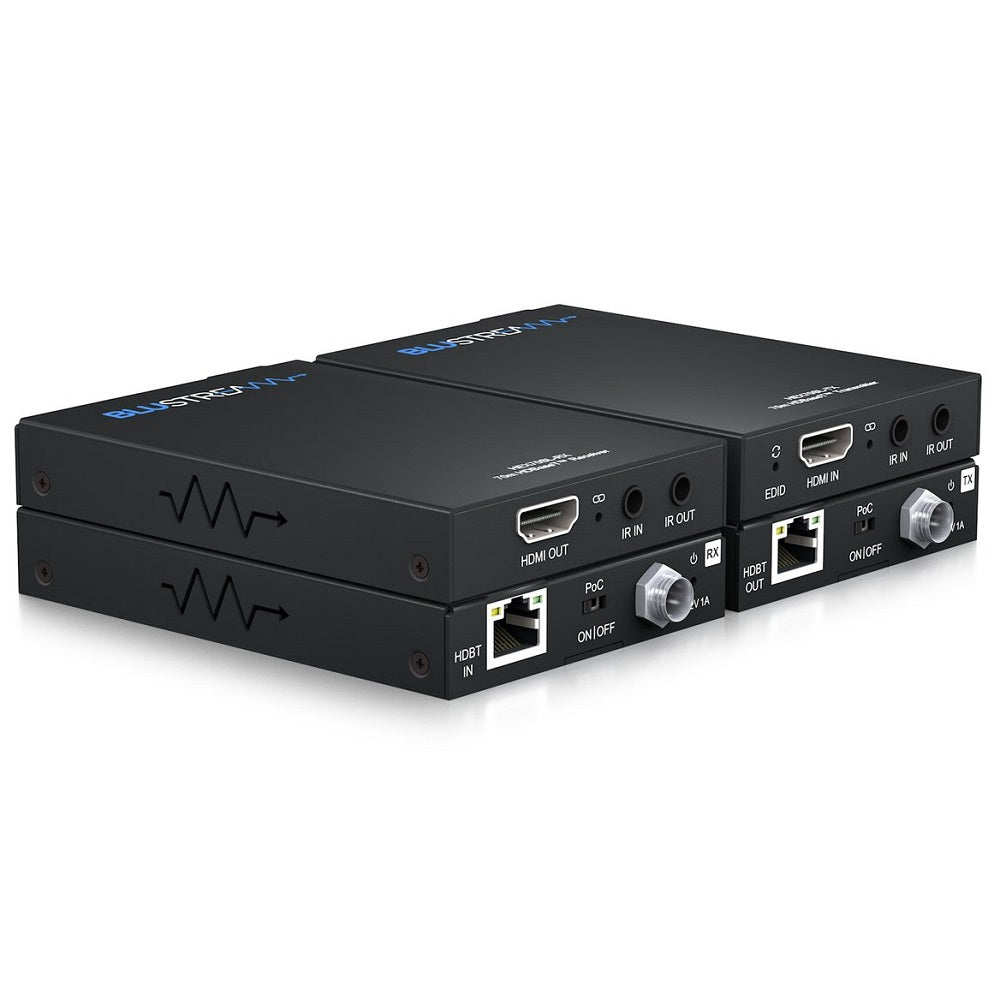

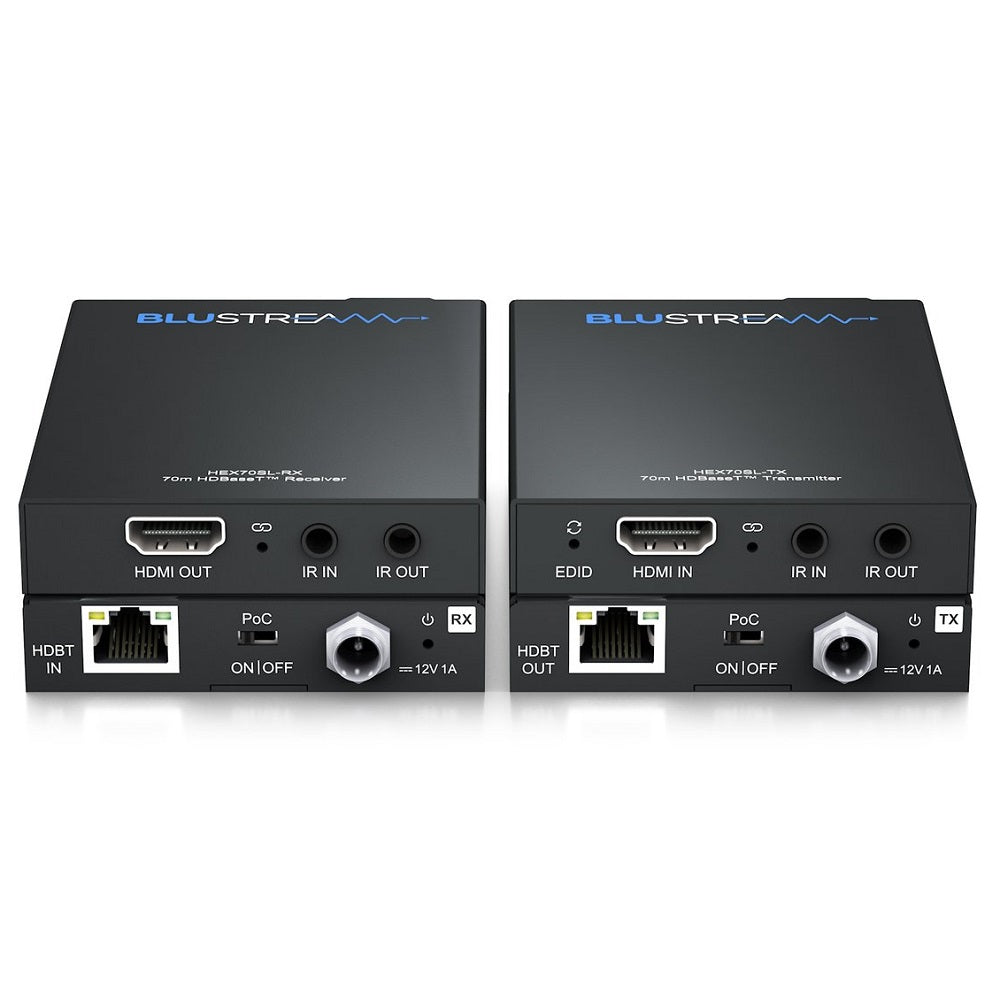

Blustream HEX70SL-KIT 4K HDMI Extender
Blustream HEX70SL-KIT 4K HDMI Extender
Couldn't load pickup availability
- Free Delivery
- 2 year Warranty
Share
Details
Description
Blustream HEX70SL-KIT 4K Video Over Cat5e Balun Kit
The HEX70SL-KIT 4K HDBaseT™ extender set offers market leading features in a slimline chassis. The product delivers HDMI, Bi-directional IR and Bi-directional PoC up to lengths of 70m.
Main features:
Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
Enhanced slimline chassis
Extends HDMI 1080p up to a distance of 70m over a single CAT cable
Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
Bi-directional IR pass-through
Supplied with Blustream IR Receiver and Emitter
Supports Bi-directional PoC to power extenders from either Transmitter or Receiver end
HDCP 2.2 Compliant with Smart EDID management
Specifications
Specifications
|
TX / RX form factor |
Palm-sized, ultra lightweight aluminium enclosure |
|
Inputs / outputs |

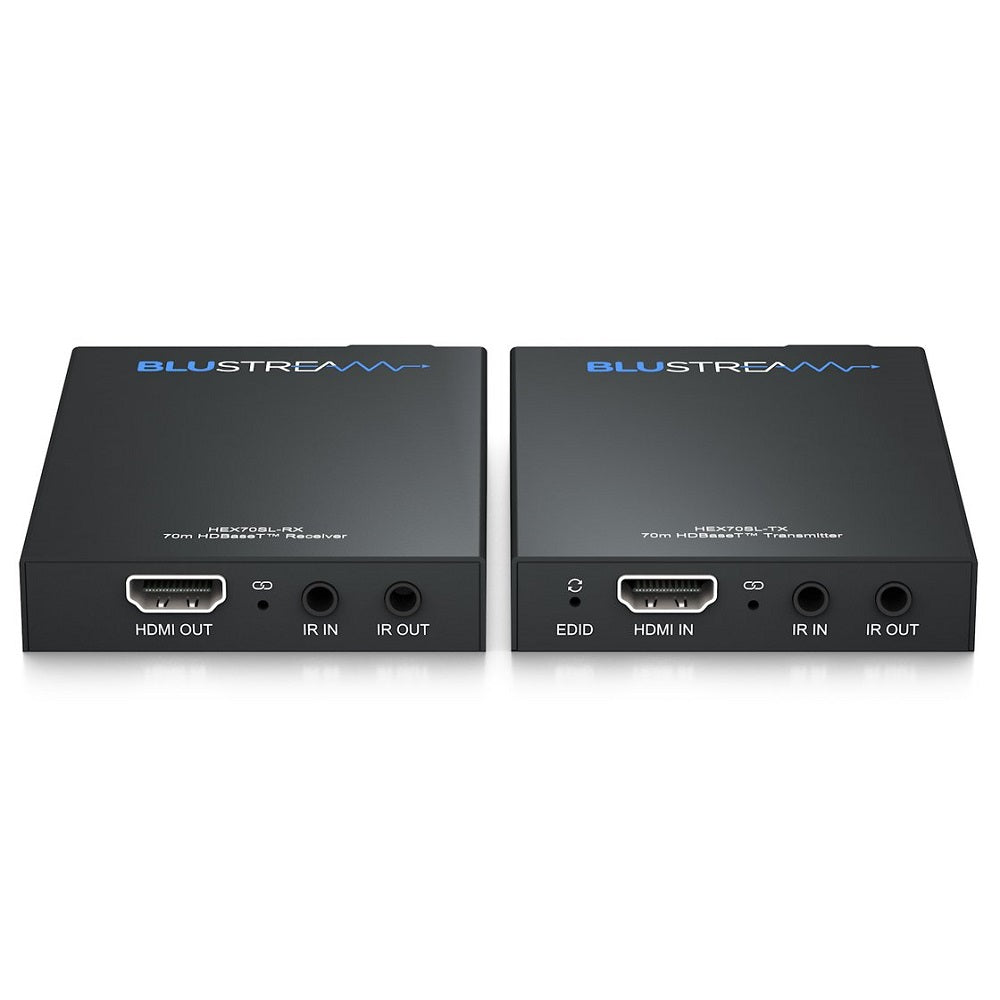

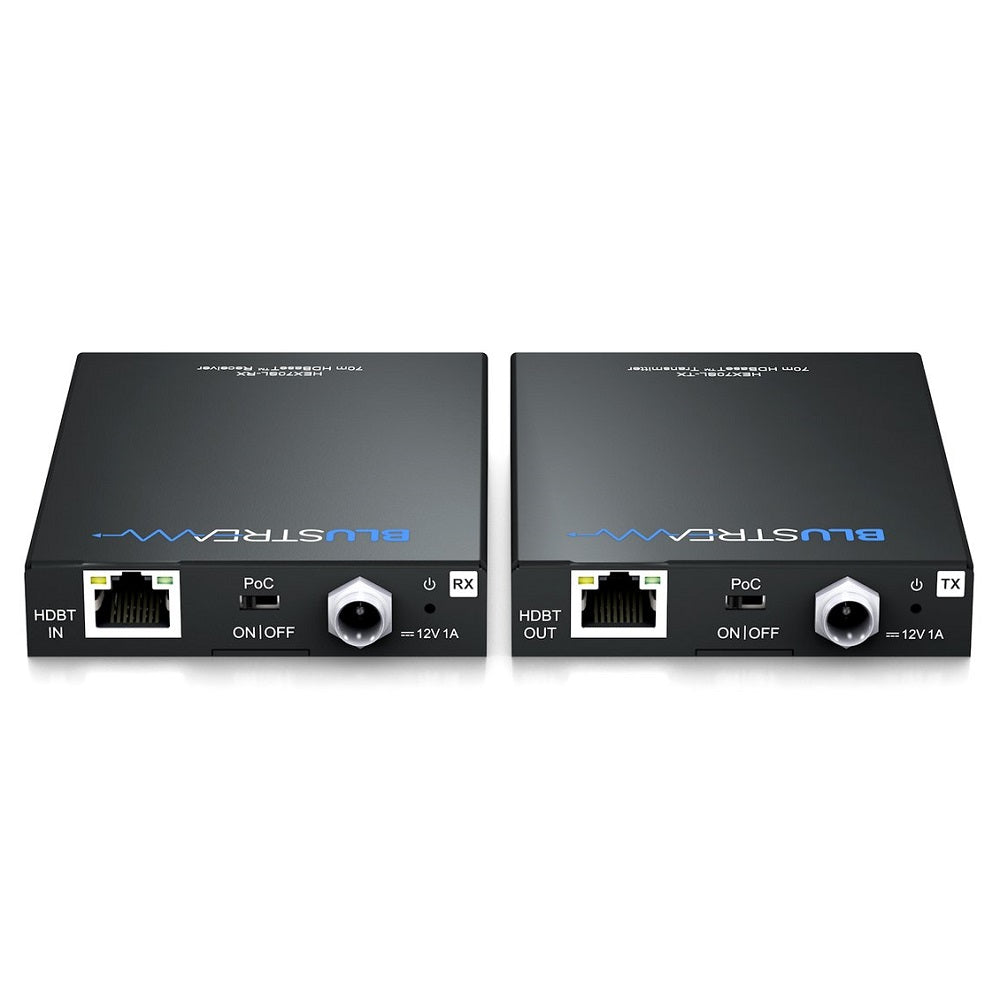

TX HDMI in / HDMI loop out / RJ45 HDBaseT out / 1x IR 3.5mm jack (out = from RX) |
|
Transmission tech. |
HDBaseT 2.0 + TPC w/DSC |
|
Video bandwidth |
594MHz clock / 18Gbps data |
|
ESD protection |
± 8kV (air-gap discharge) ± 4kV (contact discharge) |
|
Control |
Bi-directional IR, RS232, HDMI-CEC pass through. |
|
Device / Package weight |
56 / 700 g |
|
Dimensions (W/D/H) |
88 / 60 / 16 mm (TX and RX) |
|
Power |
DC12V/3A DC screw type connector |
|
Operating temperature |
32°F to 104°F (0°C to 40°C) |
|
Storage temperature |
-4°F to 140°F (-20°C to 60°C) |
|
Relative humidity |
20~90 % RH (non-condensing) |
|
Power consumption |
30W (max) 0.5W (standby) |
|
Guarantee |
2 year guarantee |
