Bowers & Wilkins CCM684 – High-Performance In-Ceiling Loudspeaker (pair)
The Bowers & Wilkins CCM684 is a high-quality in-ceiling loudspeaker designed to deliver the clarity, detail, and musicality expected from B&W, while remaining discreet and elegant. Ideal for custom installations, home cinema, or multi-room audio, it brings powerful yet refined sound to any space.

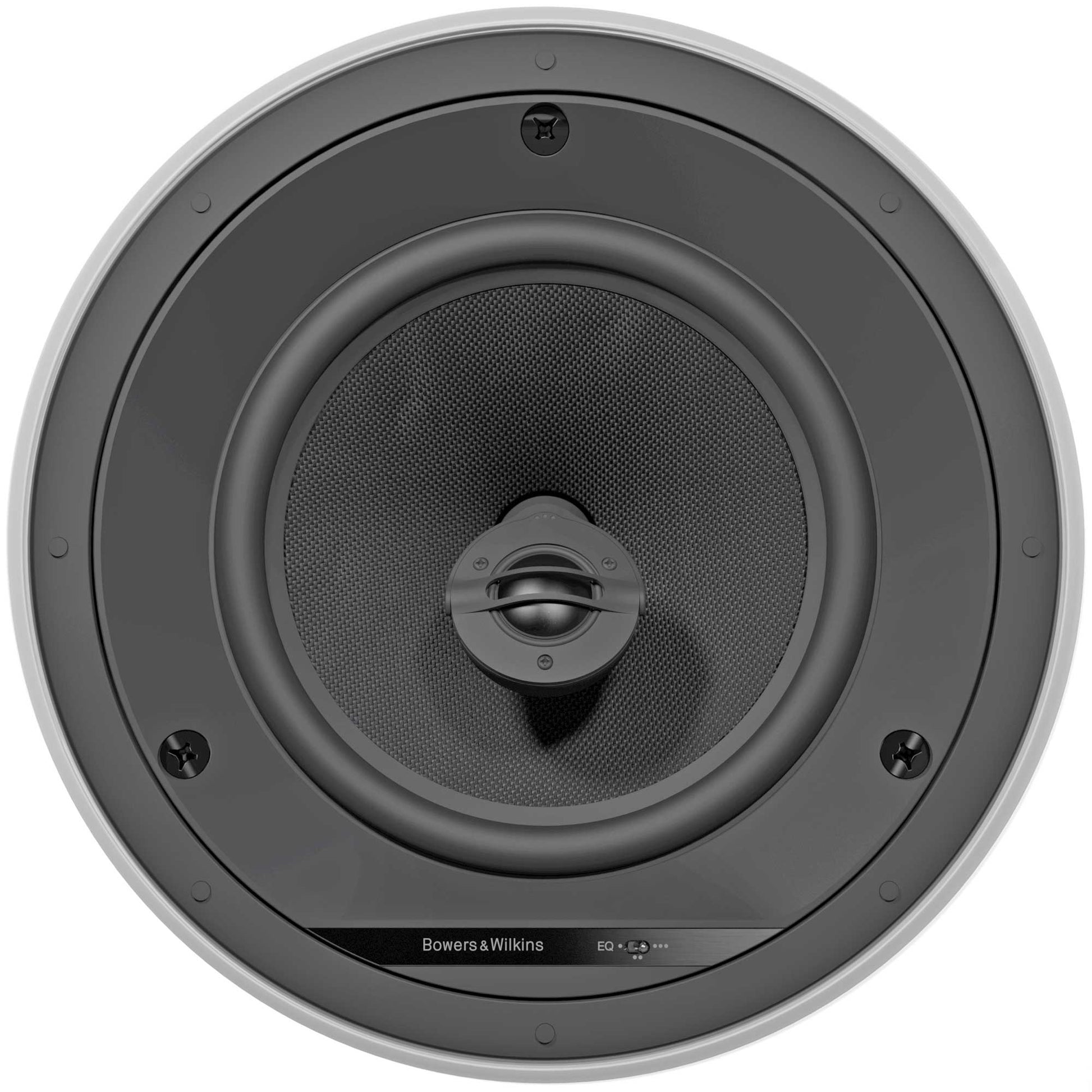

At its heart, the CCM684 features a 200 mm (8-inch) woven glass-fibre bass/midrange driver, providing smooth, controlled midrange and deep, dynamic bass. It’s paired with a 25 mm (1-inch) soft dome tweeter mounted on a pivoting housing, allowing the high frequencies to be directed precisely toward the listening position for optimum imaging.
A three-position high-frequency switch allows easy adjustment of treble output to match room acoustics or personal preference. With an 8-ohm nominal impedance and 88 dB sensitivity, the CCM684 pairs effortlessly with a wide range of amplifiers and AV receivers, ensuring flexible system integration.

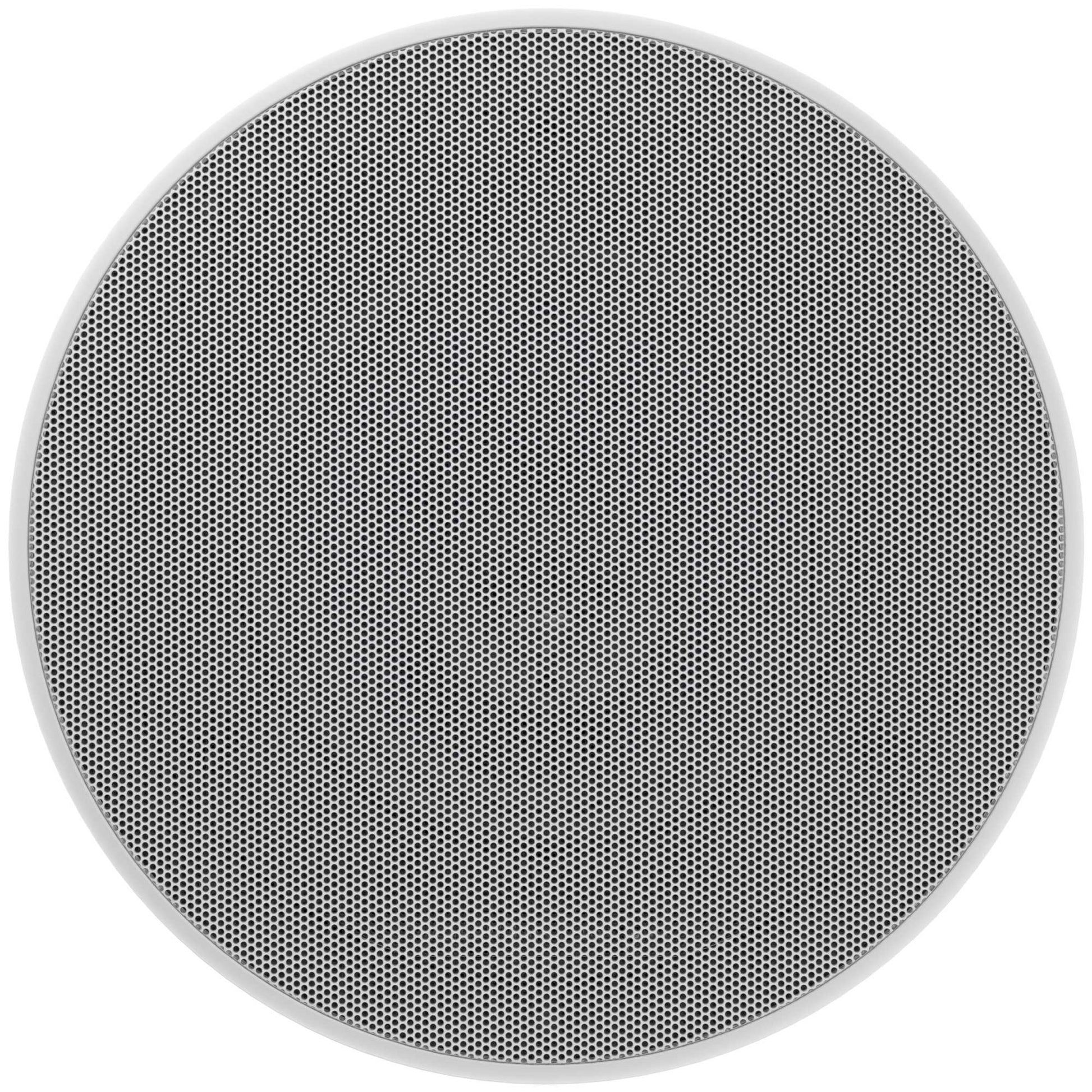

Installation is quick and secure thanks to Bowers & Wilkins’ QuickDog™ mounting system, while the magnetic, paintable grille ensures a seamless, low-profile appearance.
The CCM684 combines performance, practicality, and style—delivering Bowers & Wilkins’ signature sound from an unobtrusive ceiling design.
Specifications
Specifications
B&W CCM684 8" Ceiling Speakers
|
Description |
2-way in-ceiling system |
|
Drive Units |
1x ø25mm (1in) soft dome tweeter |
|
Frequency Range (-6dB) |
35Hz – 35kHz |
|
Recommended Amp Power |
25 – 130w |
|
Sensitivity SPL (2.83V, 1m) |
88dB |
|
Impedance Nominal (min) |
8? (4.5?) |
|
Frame diameter |
290mm (11.4in) |
|
Cut-out diameter |
250mm (9.8in) |
|
Depth behind surface |
133mm (5.2in) |
|
Protrusion |
4mm (0.2in) |
|
Pre-mount Kit |
C8 |
|
Back Box |
6C |
