HDA
HD Anywhere Xtnd 4K 40 HDMI Extender
HD Anywhere Xtnd 4K 40 HDMI Extender
Couldn't load pickup availability
- Free Delivery
- 2 year Warranty
Share
Details
Description
HD Anywhere Xtnd 4K 40 Video Over Cat5e Balun Kit
A compact, palm-sized HDMI 2.0 / HDBaseT 2.0 extender set - supports 18Gbps premium UHD/4K 60Hz 4:4:4 data rates, with all current HDR formats inc. Dolby Vision®, HDR10 and HLG up to 40 metres, over one twisted pair Cat cable. Control of the transmitter source is made possible via a return IR channel and included IR cabling. Tipping Point Compression w/DSC enables the transmission of 18Gbps content via HDBaseT 2.0 technology, with no human-perceivable difference in video quality.
TPC can handle all HDR formats, including Dolby Vision, retaining all original HDR Meta and is compatible with all chroma subsampling and colour space options (4:4:4, 4:2:2, and 4:2:0).
- HDMI 2.0 (Native 18G) loop port on TX
- Supports all resolutions up to and inc. UHD 4K 18Gbps up to 40m
- HDMI® 2.0 (a/b) HDCP 2.2 compliant
- Supports all current High Dynamic Range (HDR) formats inc. Dolby Vision®
- Bi-directional PoH - can be powered from either RX or TX.
Specifications
Specifications
|

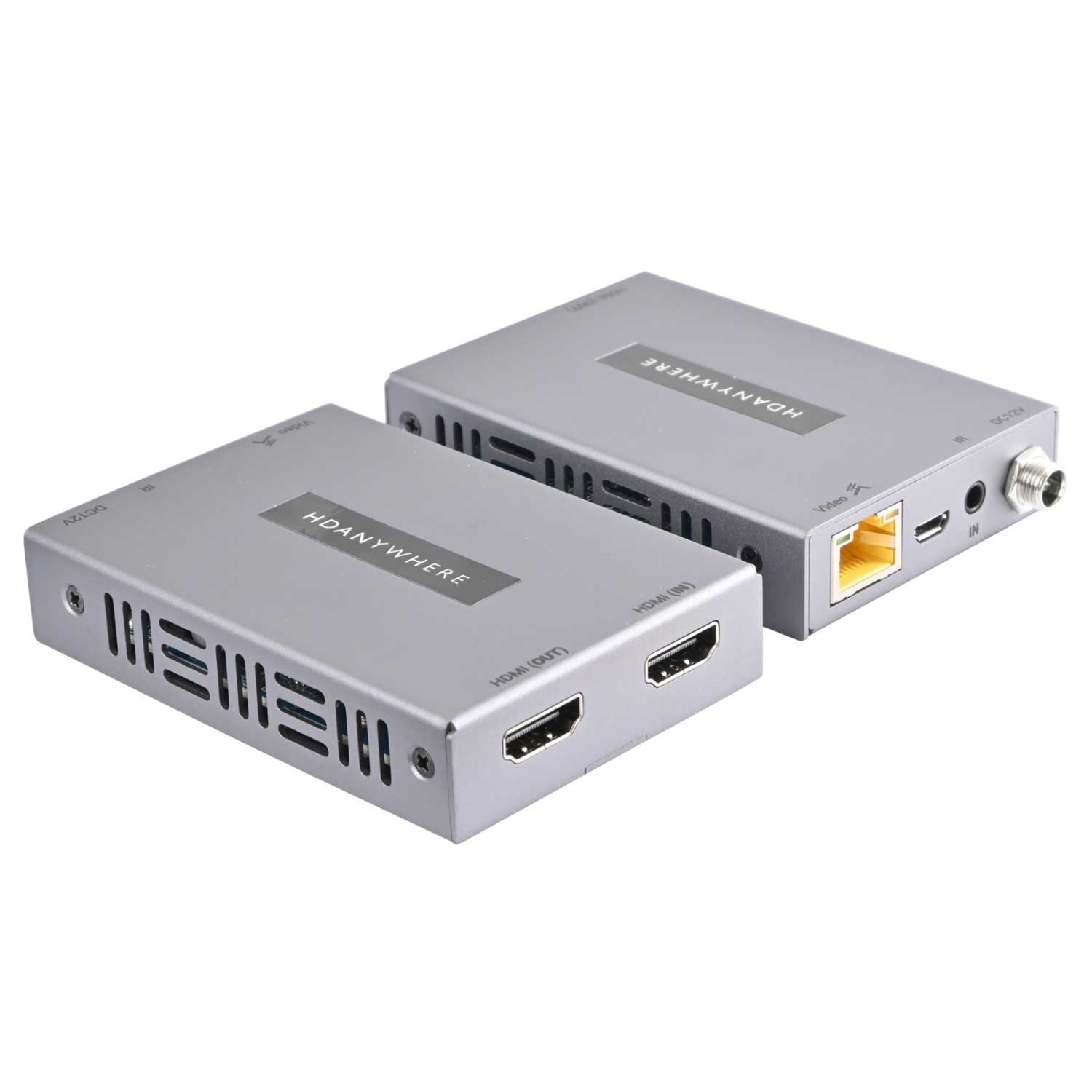

TX / RX form factor |
Palm-sized, ultra lightweight aluminium enclosure |
|
Inputs / outputs |

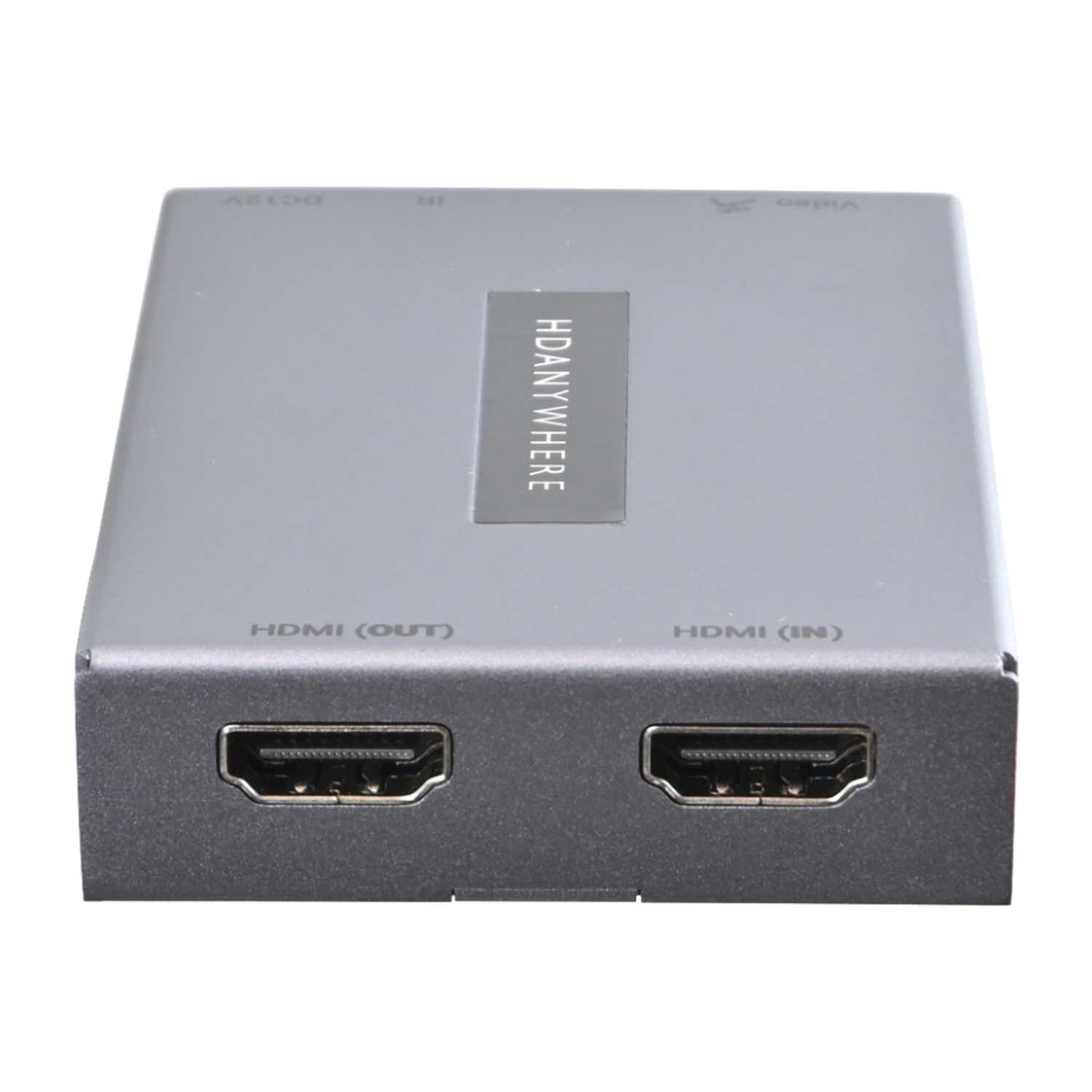

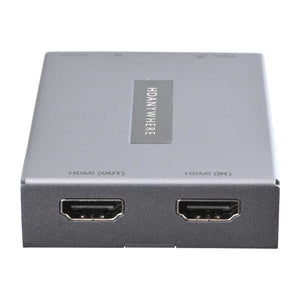

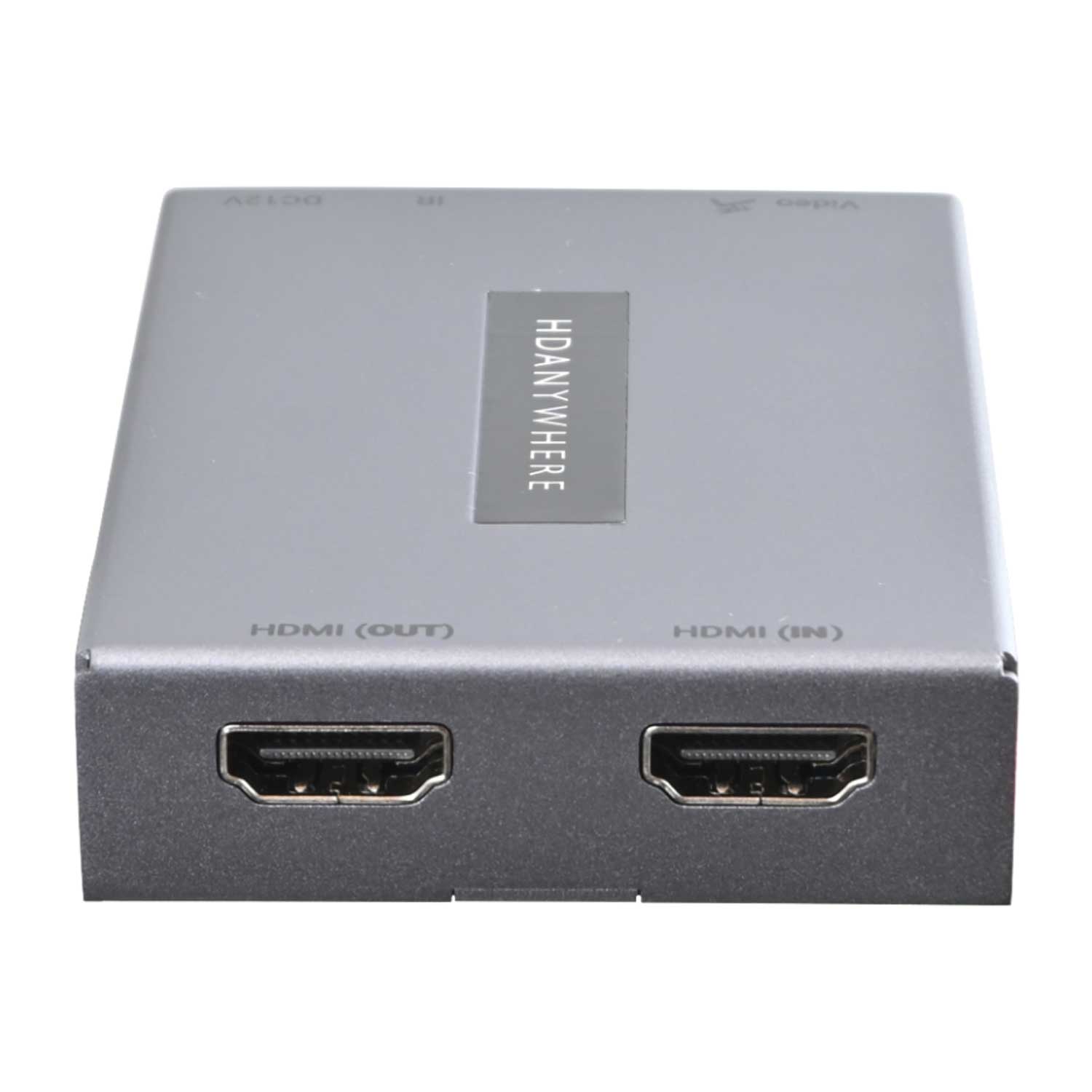

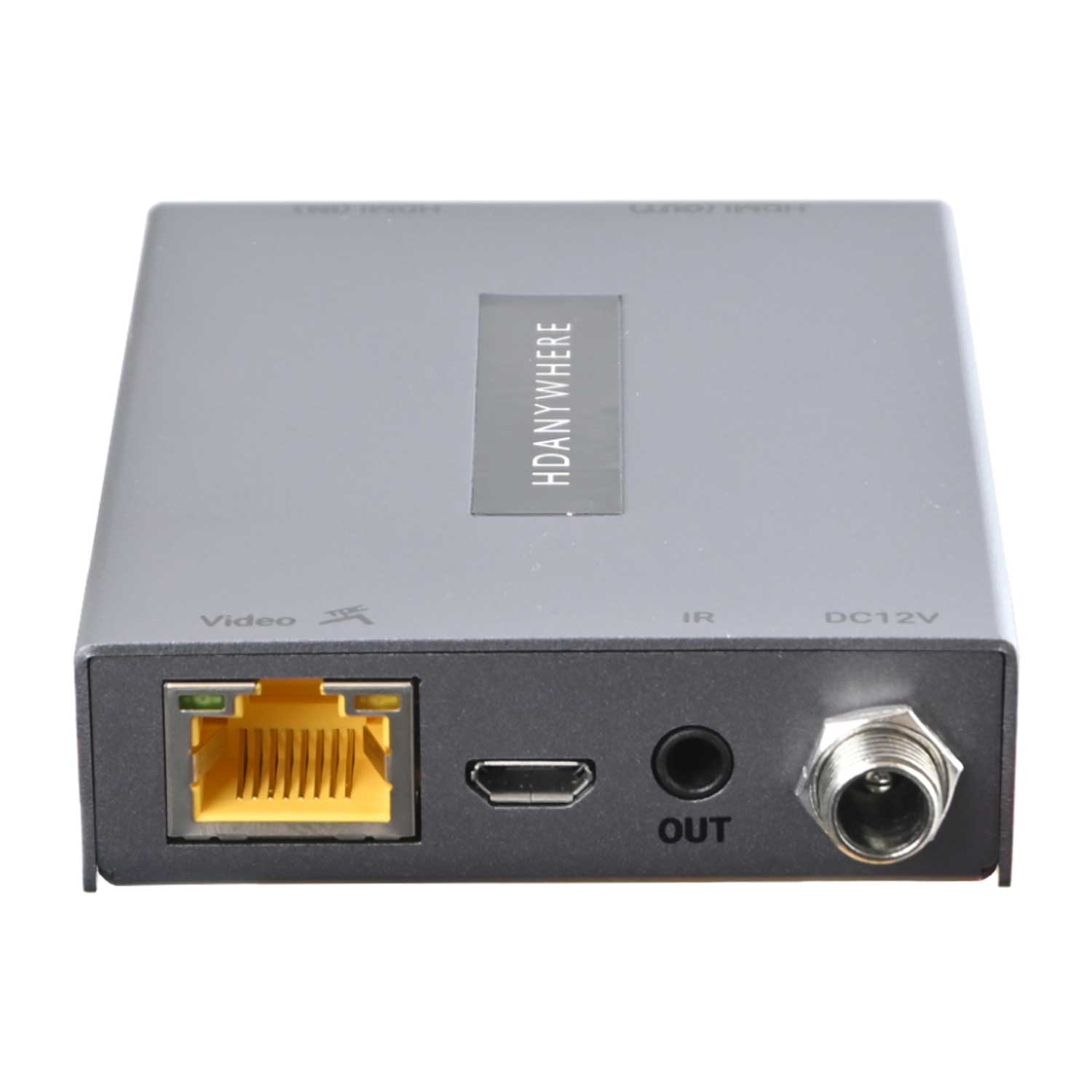

TX HDMI in / HDMI loop out / RJ45 HDBaseT out / 1x IR 3.5mm jack (out = from RX) |
|
Transmission tech. |
HDBaseT 2.0 + TPC w/DSC |
|
Video bandwidth |
594MHz clock / 18Gbps data |
|
ESD protection |
± 8kV (air-gap discharge) ± 4kV (contact discharge) |
|
Control |
Bi-directional IR, RS232, HDMI-CEC pass through. |
|
Device / Package weight |
56 / 700 g |
|
Dimensions (W/D/H) |
88 / 60 / 16 mm (TX and RX) |
|
Power |
DC12V/3A DC screw type connector |
|
Operating temperature |
32°F to 104°F (0°C to 40°C) |
|
Storage temperature |
-4°F to 140°F (-20°C to 60°C) |
|
Relative humidity |
20~90 % RH (non-condensing) |
|
Power consumption |
30W (max) 0.5W (standby) |
|
Guarantee |
2 year guarantee |
