HDA

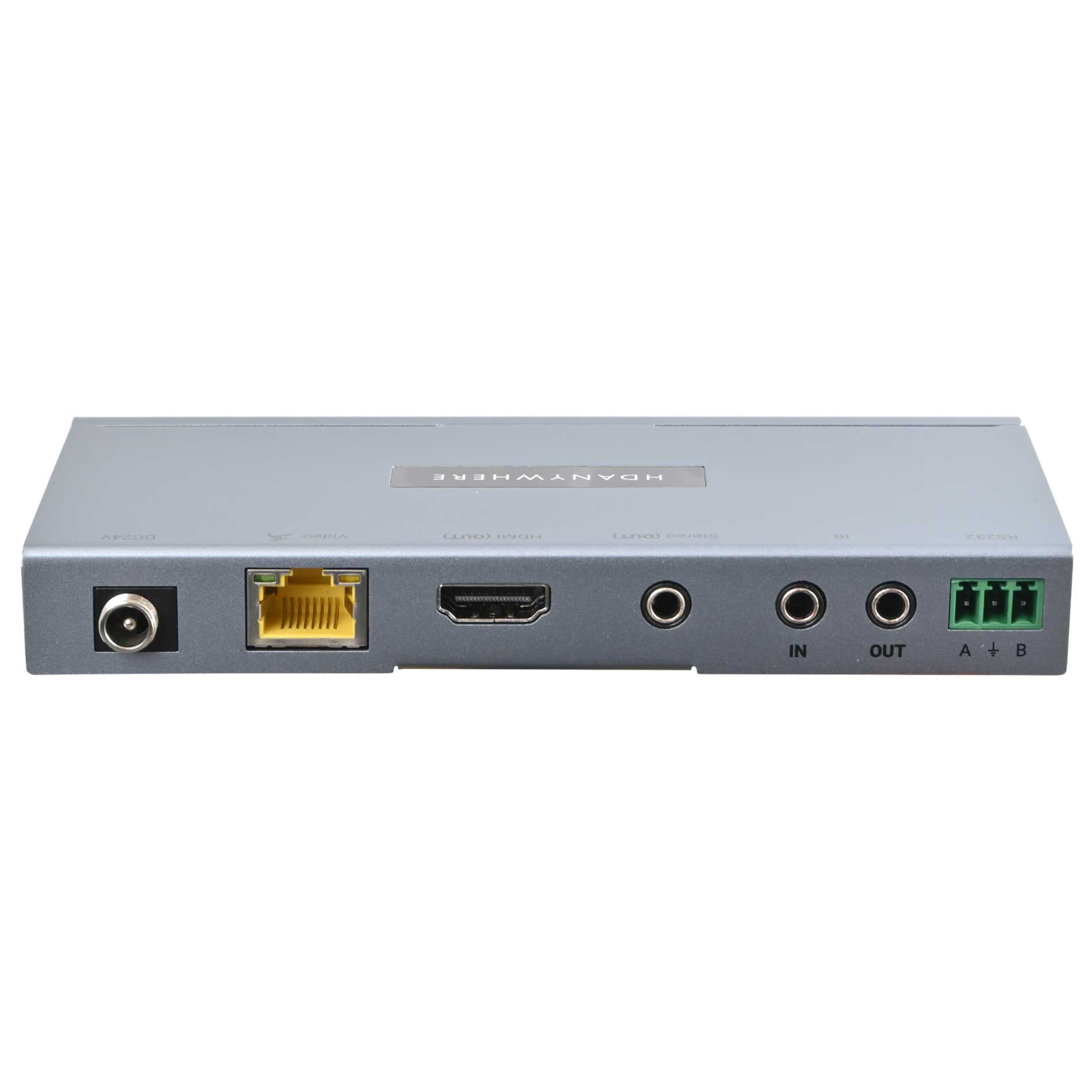

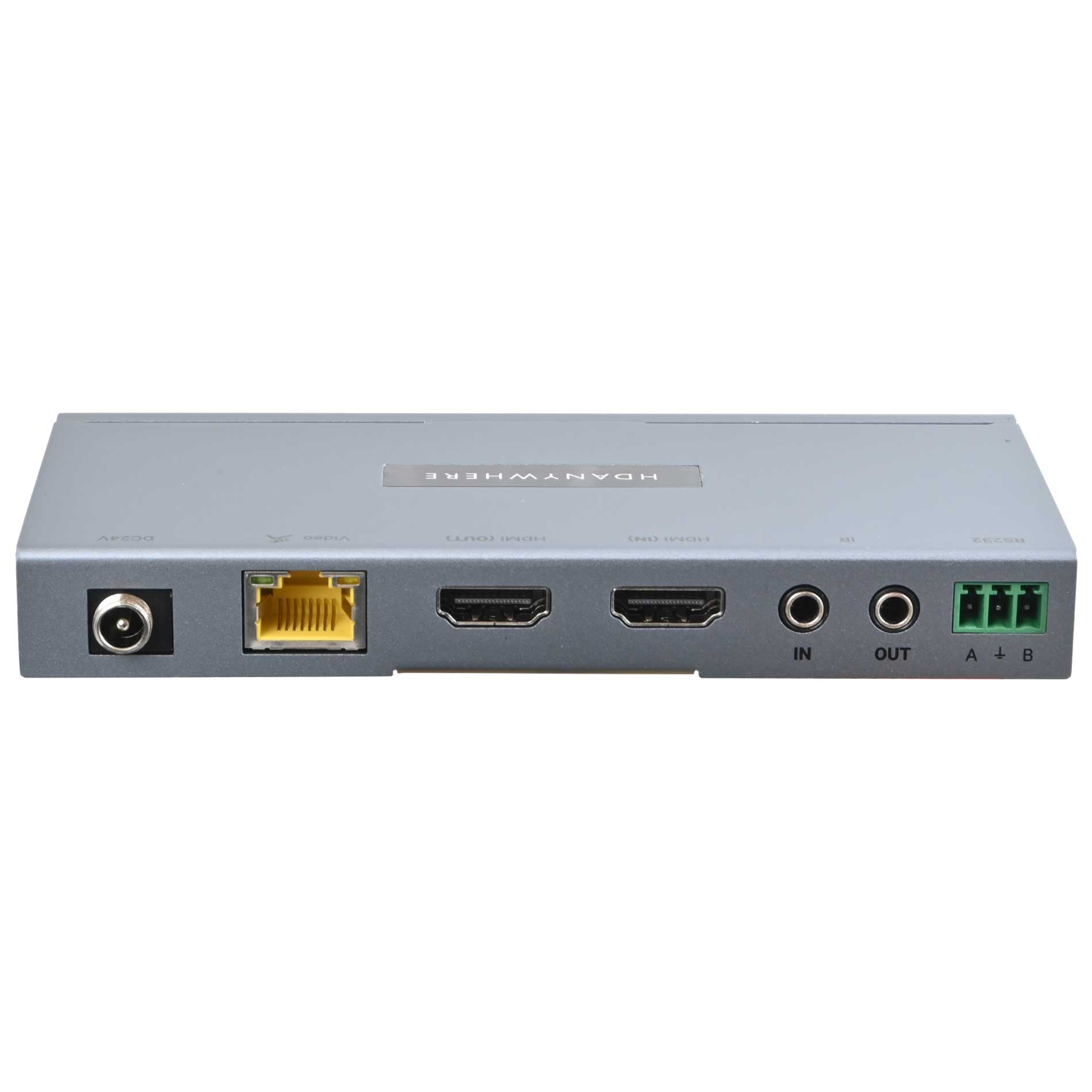

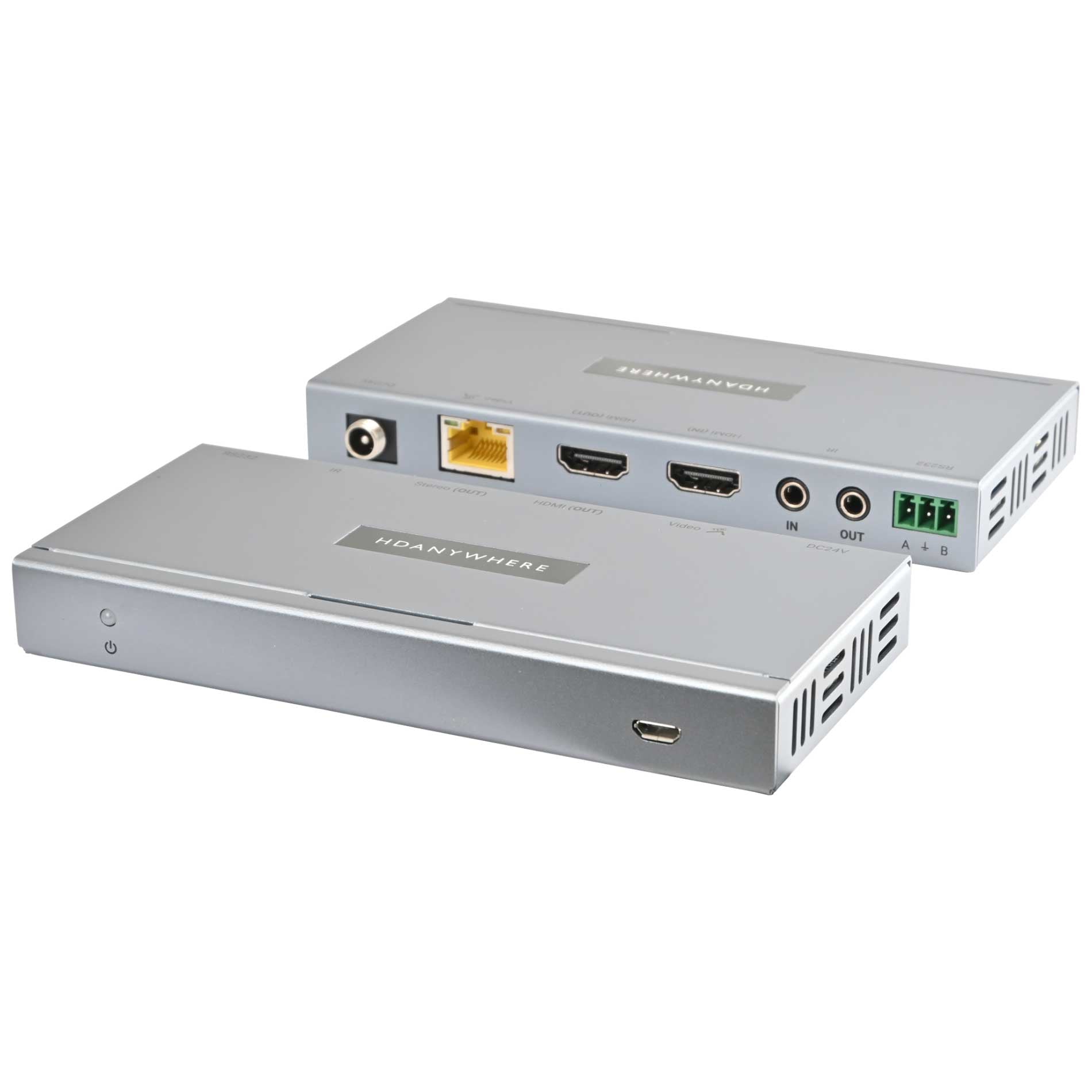

HD Anywhere XTND 4K 100 TPC HDMI Extender
HD Anywhere XTND 4K 100 TPC HDMI Extender
Couldn't load pickup availability
- Free Delivery
- 2 year Warranty
Share
Details
Description
HD Anywhere XTND 4K 100 TPC HDMI Video Distribution Balun Kit
A long-range super-slim and ultra-lightweight HDMI 2.0 extender set - supports 18Gbps premium UHD/4K 60Hz 4:4:4 data rates, with all current HDR formats inc. Dolby Vision®, HDR10 and HLG up to 100 metres, over one twisted pair Cat cable. A de-embed stereo audio ouput port is available on the RX for as a helpful connection option for amplifiers or sounbars etc. Control via two-way IR or RS232 available on the receiver.
Tipping Point Compression w/DSC enables the transmission of 18Gbps content with no human-perceivable difference in video quality. TPC can handle all HDR formats, including Dolby Vision, retaining all original HDR Meta and is compatible with all chroma subsampling and colour space options (4:4:4, 4:2:2, and 4:2:0).
Features:
HDMI® 2.0 (a/b) HDCP 2.2 compliant
18Gbps data rate throughout (up to 100m)
HDMI 2.0 (Native 18G) loop port on TX
Supports all resolutions up to and inc. Ultra HD 4K 60 4:4:4
Supports all current High Dynamic Range (HDR) formats inc. Dolby Vision®
Supports all current audio formats up to Dolby Atmos® and DTS:X®
Stereo audio de-embed port on the RX
Bi-directional PoH - can be powered from either RX or TX.
Sold as a complete install package, with all IR cabling and mounting kit included.
UK / EU / AU / US multi-territory adapters included
Specifications
Specifications
|
TX / RX form factor |
Palm-sized, ultra lightweight aluminium enclosure |
|
Inputs / outputs |
TX HDMI in / HDMI loop out / RJ45 HDBaseT out / 1x IR 3.5mm jack (out = from RX) |
|
Transmission tech. |
HDBaseT 2.0 + TPC w/DSC |
|
Video bandwidth |
594MHz clock / 18Gbps data |
|
ESD protection |
± 8kV (air-gap discharge) ± 4kV (contact discharge) |
|
Control |
Bi-directional IR, RS232, HDMI-CEC pass through. |
|
Device / Package weight |
56 / 700 g |
|
Dimensions (W/D/H) |
88 / 60 / 16 mm (TX and RX) |
|
Power |
DC12V/3A DC screw type connector |
|
Operating temperature |
32°F to 104°F (0°C to 40°C) |
|
Storage temperature |
-4°F to 140°F (-20°C to 60°C) |
|
Relative humidity |
20~90 % RH (non-condensing) |
|
Power consumption |
30W (max) 0.5W (standby) |
|
Guarantee |
2 year guarantee |
