Mission
Mission 778x Amplifier with Dali Oberon 1 Speakers
Mission 778x Amplifier with Dali Oberon 1 Speakers
Couldn't load pickup availability
- Demo Available
- free deliveryin 2-3 days
Share
Details
Description

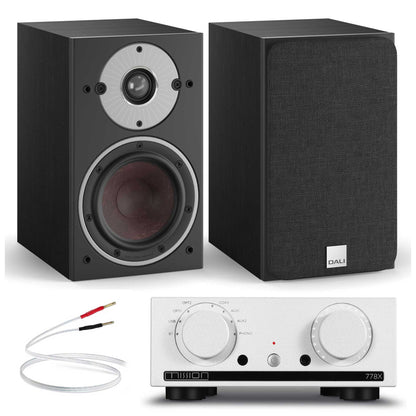

Mission 778x + DALI Oberon 1 Bookshelf Speakers + QED Cables
The Mission 778X is a modern take on a classic Mission amplifier, blending vintage style touches with the features audiophiles expect today. Designed for music lovers who want elegance, flexibility and quality in a compact form, it makes an excellent centrepiece for both serious hi-fi setups and more modest systems.
Despite its half-width chassis, the 778X packs plenty of punch: 45 watts per channel into 8 ohms and 65 watts into 4 ohms. Whether driving medium-sized speakers in a living room or a smaller stand-mount pair in a study, it delivers clean, dynamic sound without strain. Its signal path is refined, with careful attention to distortion, noise floor, and component quality.
For digital lovers, it includes a high-performance ESS Sabre32 DAC, capable of decoding up to 384 kHz PCM and DSD256 via USB, with optical and coaxial inputs up to 192 kHz. Analogue sources are equally well supported: twin RCA line inputs, a dedicated MM (moving magnet) phono stage with low noise, and a front-panel high-drive headphone amplifier make it versatile for turntables, digital streamers, tablets or headphones alike.
Connectivity is generous: USB-B, coaxial, optical, Bluetooth (aptX/AAC), analogue inputs, and useful outputs such as pre-out, meaning you can expand to external power amps or add other gear in time. Large tactile control knobs, LED level indicators, and a well-finished metal case complete the package, adding to the sense of quality and usability.
DALI Oberon 1 Bookshelf Speakers - Big Sound. Compact Form
The DALI Oberon 1 may be ultra-compact, but it still packs a mighty audio punch – making it the perfect solution for smaller rooms or discreet setups. Sporting DALI's newly developed 29mm soft dome tweeter and a 5¼-inch wood fibre woofer, Oberon 1 will fill your room with refined, expressive sound whether positioned on a bookshelf or wall-mounted.
The Oberon 1 is available in four finishes: Black Ash, White, Dark Walnut and Light Oak. Matched with a matte black or white front baffle. Oberon 1 also introduces a brand new front grille design with rounded edges that add a lighter, more contemporary look.
Package includes a Free 2m pair of QED XT25 Pre-terminated speaker cables worth £79.95. (see below)
Specifications
Specifications
Mission 778x Specifications
|
General Description |
Stereo Amplifier, Digital-to-Analogue Converter |
|
Design Philosophy and Core Technology |
• Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms) |
|
Inputs |
1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC), |
|
Outputs |
1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out) |
|
Sampling Frequency |
Optical / Coaxial: 44.1kHz-192kHz; |
|
Preamplifier Section |
|
|
Gain (max.) |
=A8I (Line), +47dB (Phono MM) |
|
Input Sensitivity |
540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB) |
|
Input Impedance |
10K (AUX); 47K//100pF (Phono MM) |
|
Total Harmonic Distortion (THD) |
<0.003% |
|
Frequency Response (ref. 1kHz) |
20Hz-20kHz (±0.1dB) |
|
PRE Output Level |
2.1Vrms (max.) |
|
PRE Output SNR |
>110dB (A-weighted) |
|
DAC |
|
|
D to A Converter |
ESS Sabre32 ES9018K2M |
|
Resolution |
32-bit |
|
Max. Sampling Frequency |
Optical/Coaxial: 192kHz; |
|
Total Harmonic Distortion (THD) |
< 0.001% (1KHz @ 0dBFS) |
|
Output level (0dBFS, 1KHz) |
2.1Vrms |
|
Power Amplifier Section |
|
|
Gain (max.) |
+31dB |
|
Rated Power Output |
2x45W(@8ohms); 2 x 65W (@ 4 ohms) |
|
Frequency Response (ref. 1kHz) |
20Hz-20KHz (± 0.5dB) |
|
Total Harmonic Distortion (THD) |
<0.005% (30W / 8 ohms) |
|
Input Sensitivity |
540mV (RCA AUX In); 2.5mV (Phono MM) |
|
Signal-to-Noise Ratio (SNR) |
>108dB (ref. 45W, A-weighted) |
|
Crosstalk @1K |
>80dB (ref.1W) |
|
Standby Power Consumption |
<0.5W |
|
Headphone Amplifier |
|
|
Total Harmonic Distortion (THD) |
< 0.01% (1kHz, 50mW ) |
|
Output Impedance |
4.7 ohms |
|
Load impedance |
20-600 ohms |
|
General |
|
|
Dimensions (mm) (W x H x D) |
236x98x380.6 |
|
Carton Size (mm) ( W X H X D) |
450x392x175 |
|
Net Weight |
6.3kg |
|
Finish |
Black / Silver |
|
Power requirements (depending on region) |
220-240V ~ 50/60Hz; 100-120V ~ 50/60Hz |
|
Standard Accessories |
Power Cord, Remote Control, User Manual, Antenna |
Dali Oberon 1 Specifications
|
Product Series |
Oberon |
|
Speaker Type |
Bookshelf / stand mount |
|
Frequency Range (+/-3 dB) [Hz] |
51 - 26.500 |
|
Sensitivity (2,83 V/1 m) [dB] |
86 |
|
Nominal Impedance [Ω] |
6 |
|
Maximum SPL [dB] |
106 |
|
Recommended Amplifier Power [W] |
25 - 100 |
|
Crossover Frequency [Hz] |
2.800 Hz |
|
High Frequency Driver |
1 x 29 mm Soft Textile Dome |
|
Low Frequency Driver |
1 x 5.25" Wood Fibre Cone |
|
Enclosure Type |
Bass Reflex |
|
Bass Reflex Tuning Frequency [Hz] |
50 |
|
Connection input(s) |
Single Wire |
|
Recommended Placement |
|
|
Max. Dimensions Incl. Base And Grille (HxWxD) [mm] |
274 x 162 x 234 |
|
Weight [kg] |
4.2 |
|
Accessories Included |
Manual |
