Monitor Audio WSS230 Super Slim In-Wall Speaker
The mid-point WSS230 offers a step-up in performance with the inclusion of Monitor Audio’s renowned C-CAM metal drivers, delivering increased precision and detailed sonic characteristics.
To provide protection from damage by residual masonry or building materials, Monitor Audio designed a protective cover to keep the drivers and crossover safe. And the trim-less grille not only provides protection, it also adopts an incredibly discreet and low-profile aesthetic appearance. These covers can be painted to achieve seamless décor integration, with the supplied replacement scrim maintaining the stealthy presence of the speaker once decorating is done. Nice and neat. Super strong, magnetically attached rare earth magnets ensure long-term security, coupled with easy installation and servicing

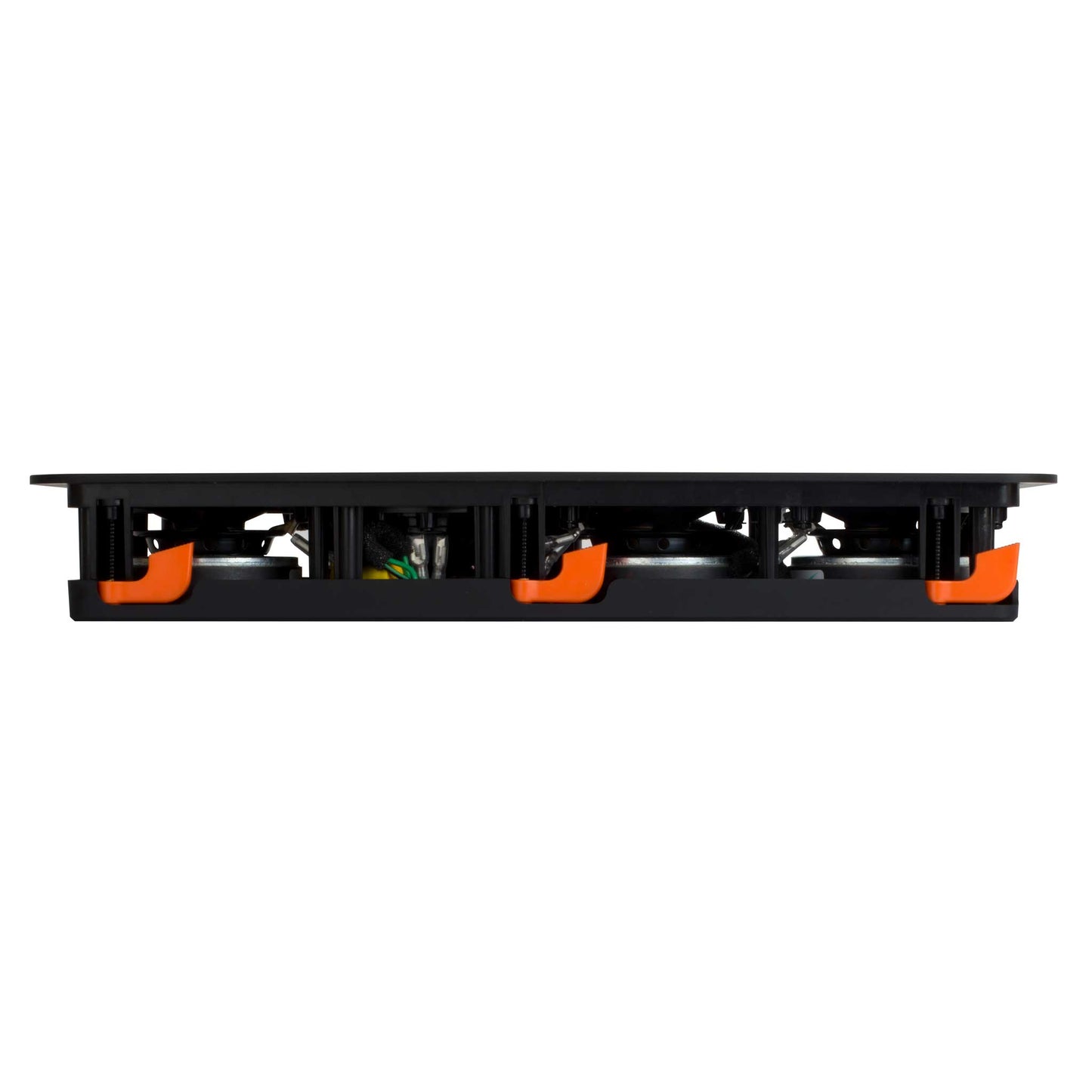

- Super-slim depth 50 mm (2") – designed to fit in 2" stud walls or where space is restricted
- Designed for portrait or landscape installation – fits between standard 14" stud bays
- Elegant, slim profile only 385 x 140 mm wide
- Three, 3" bass/mid-range drivers featuring incremental technology and performance benefits – MMP II, C-CAM and dished C-CAM cones
- 25 mm C-CAM Gold Dome tweeter
- High quality crossover components

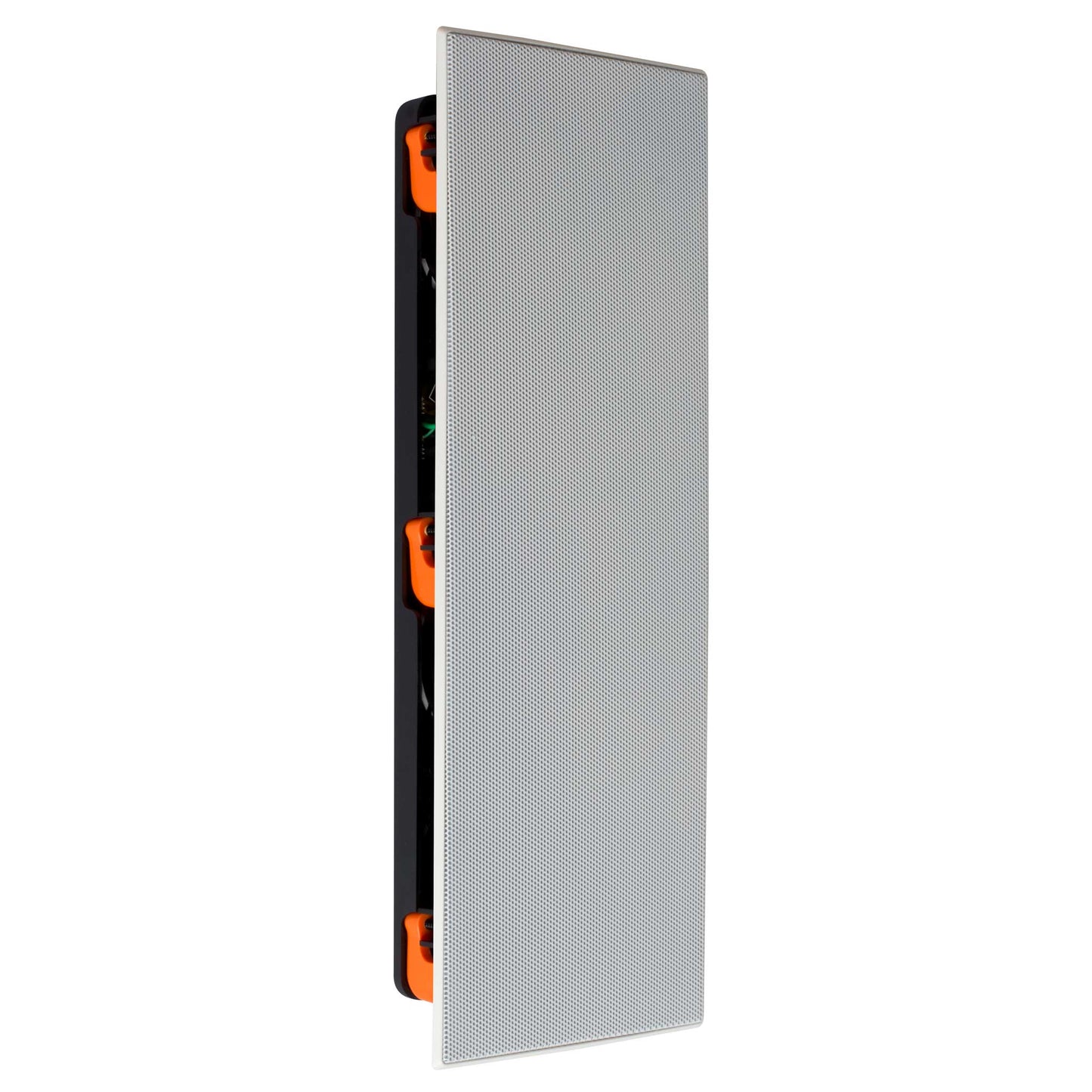

- Magnetically attached ‘trim-less’ grille – discreet, reliable, and easy servicing
- Tri-Grip Dog leg fixings – reliable, robust, and quick to install
- Gold plated sprung push terminals – easy to connect and reliable
- Paintable grille – to complement and blend with décor
- WB3 (dark blue) pre-construction bracket
Specifications
Specifications
Frequency Response
75 Hz - 30 kHz
Impedance (Nominal)
8 Ohms
Sensitivity (1W@1M)
87 dB
Maximum SPL
105.6 dBA
Power Handling (RMS)
60 W Full Range, 100 W with crossover set to 100Hz
Recommended Amp Requirements
10 - 100 W
Drivers Unit Complement
3 x 3” C-CAM cone bass driver
1 x 1” C-CAM® gold dome tweeter
Overall Dimensions:(including grille) (HxW)
385 mm x 140.5 mm
Overall Depth:(including grille)
54.25 mm
Cut Out Dimensions:(HxW)
346 mm x 101 mm
Mounting Depth
50 mm
Fixing Type
6 position Tri-Grip® dog leg fixings
Construction Material
Mineral Filled ABS Plastic
(UL V0 Fire Retardant, RoHS2 Compliant)
Pre-Construction Bracket
WB3 (Dark Blue)
Weight
1.4kg
