Details
Description

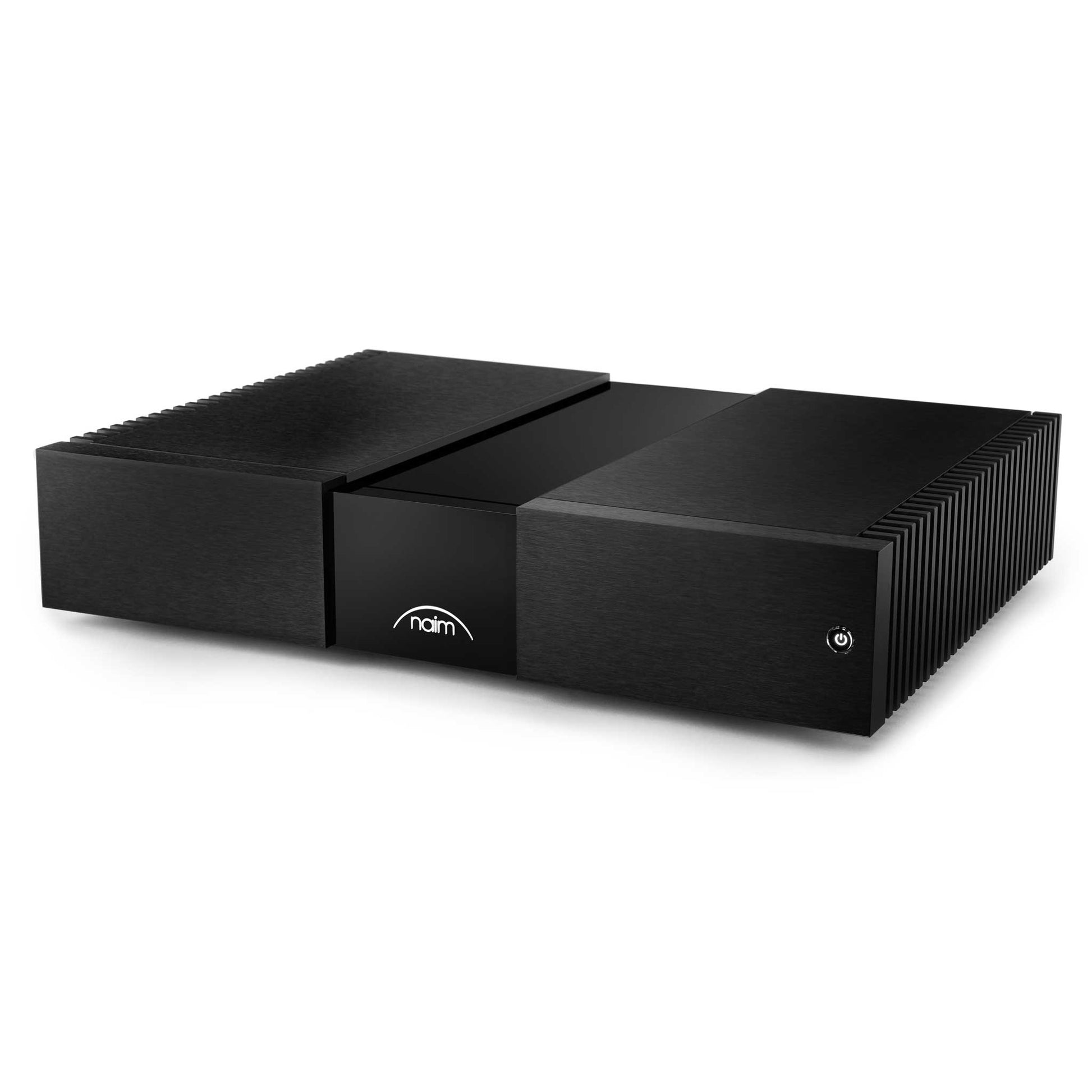

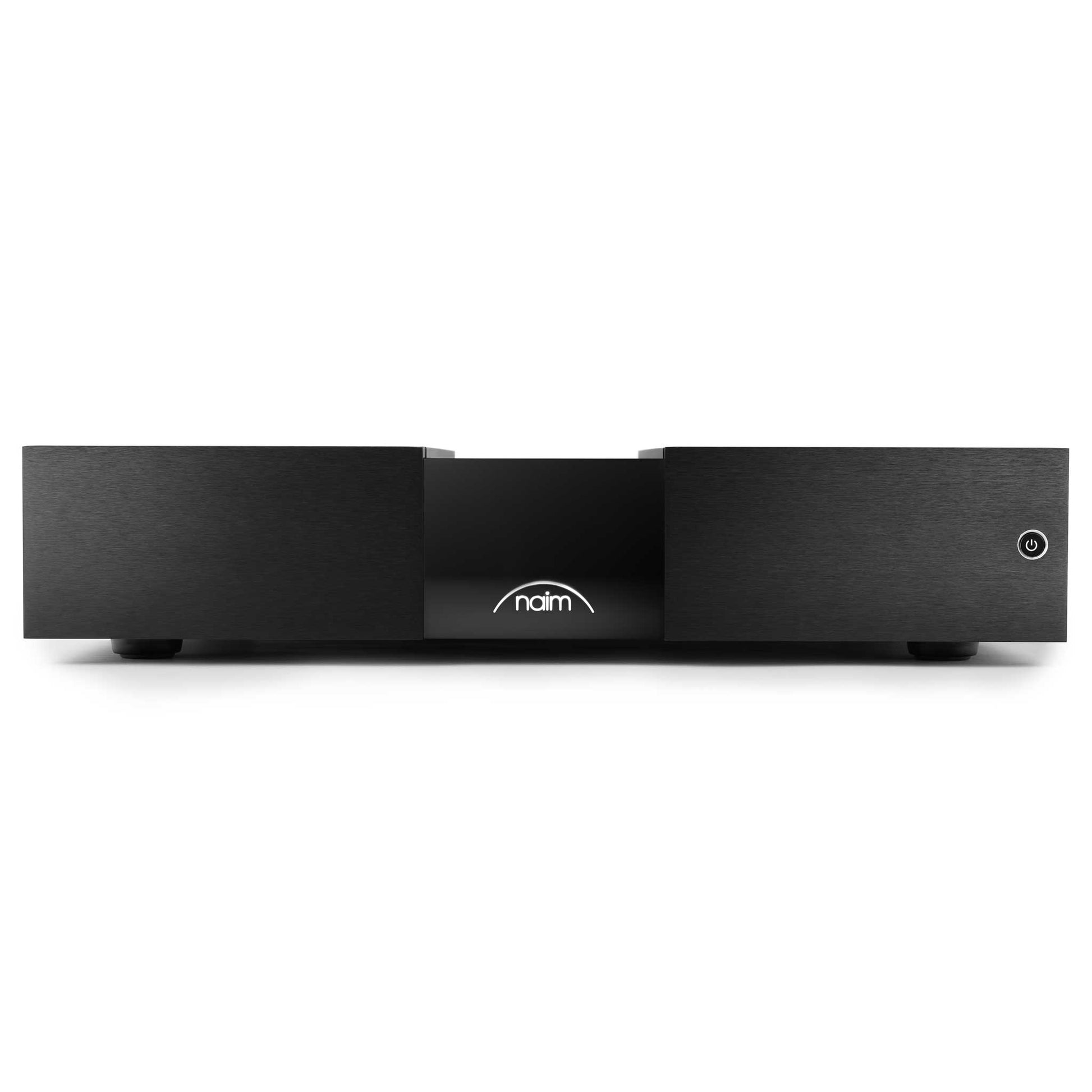

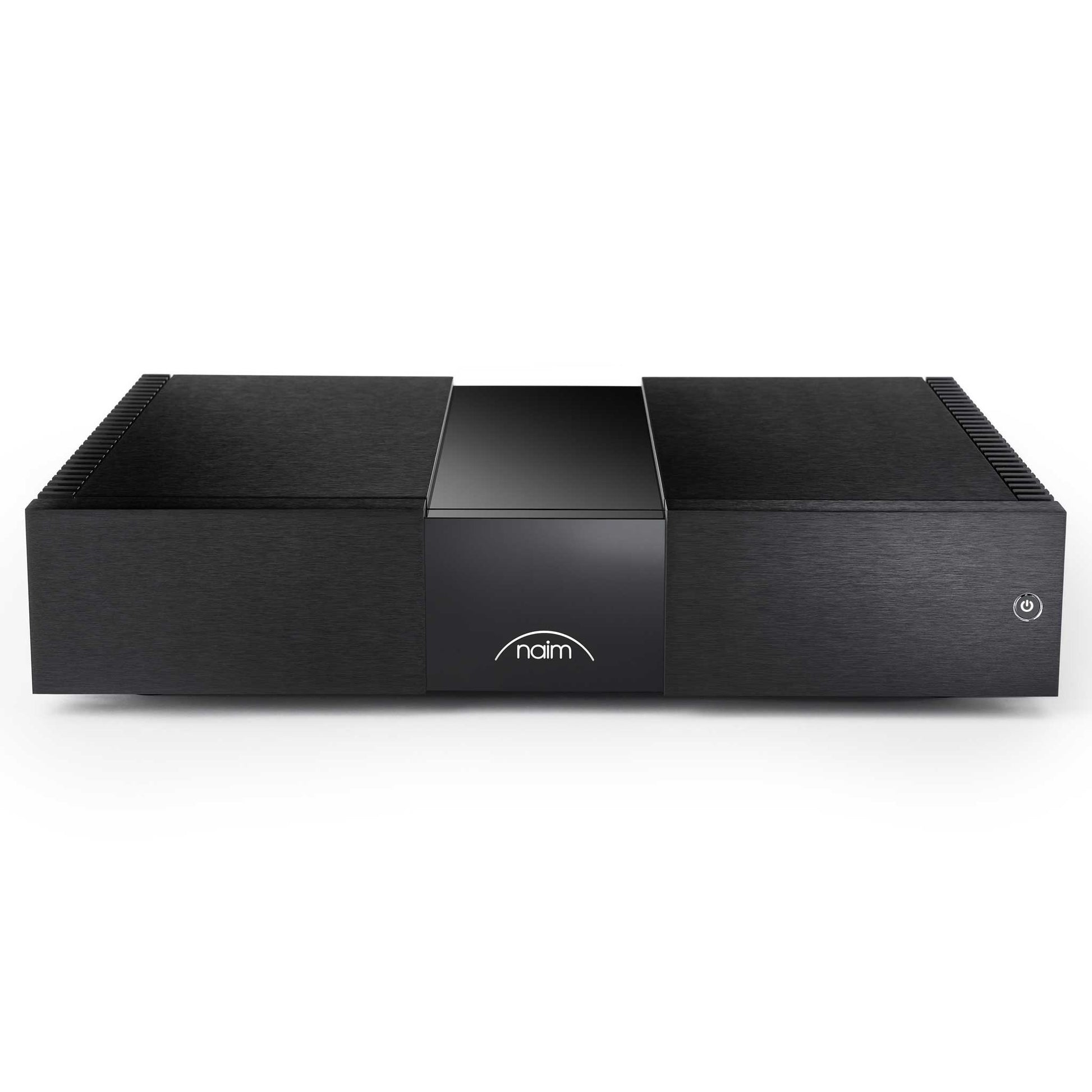

Naim NAP 250 - The iconic Naim power amplifier
First appearing in 1975, NAP 250 power amplifier has become an iconic product. Its aesthetic and technical evolution has ensured its sustained first-rate performance over the years, creating unforgettable musical experiences.
Today, the new sixth generation model delivers more power than ever and offers ever more flexibility within a complete system. The cutting-edge engineering work involved in the NAP 250 results in unrivalled performance. It delivers 100 watts of A/B class power per channel, fully adjustable to set your music free in the most remarkable way.
To get the best out of your loudspeakers and music, combine the NAP 250 with its perfect partner: the NSC 222 streaming preamplifier.
The best of Naim
The cutting-edge design of the NAP 250 means it can be used even at high sound levels: its heat sink reacts to the increased volume, keeping the product “cool”. Other improvements include the addition of symmetrical XLR connections and a series of technologies derived from Naim's iconic Statement amplifier, including a eddy current separator available between the loudspeaker outputs. It also incorporates the Naim Audio DR (Discrete Regulator) technology found in the Statement, to benefit from the stable, fluid power supply we know to be essential.
Naim know-how
Under the guidance of Naim’s Technical Director, their specialist engineers have developed simple but elegant circuits, combined with their acclaimed and high-performing DR technology, guaranteeing the stable and fluid power supply so essential for superior performance. Naim’s engineering team opt for the highest-quality components and perform ultra-precise measurements for an uncompromising result.
A timeless design
Naim products are designed to be both contemporary and timeless. Their creations forego any unnecessary decoration that does not contribute to performance targets or add to the sound quality. The design of the iconic NAP 250 power amplifier is functionally coherent, making it a pleasure to use. It also boasts extreme precision, combining a sleek design with innovative materials.
Perfect integration in a complete system
The NAP 250 can be connected to any of the New Classic products, but also to the previous Classic lines using a new range of specific cabling. Above all, it is the perfect partner for the NSC 222 preamplifier and streamer.
The story of Naim and aluminium
Naim’s founder, Julian Vereker, immediately understood the many benefits of aluminium as a material for wrapping Naim electronic components. He knew that delicate audio components are very sensitive to the effects of magnetic fields, unstable temperatures, unwanted vibrations, etc. While other manufacturers were bending thin sheets of steel, Naim used thick plates of aluminium.
The Naim Classic range maximises this highly technical and durable approach, with aluminium housings rivalled only by Statement, their flagship £205,000 amplifier. Naim chose a superior-quality aluminium, which optimally combines thermal and microphonic properties. The front panels are treated with solid 20mm-thick aluminium billets; heat sinks frame the side panels and 5mm plates cover the top and bottom surfaces of the products. The aluminium is brushed, sandblasted and anodised to guarantee unalterable beauty throughout the product's life. The New Classic range can be immediately distinguished with one look and one touch, before the first note of music even plays.
Key Features:
100W per channel Class A/B amplification

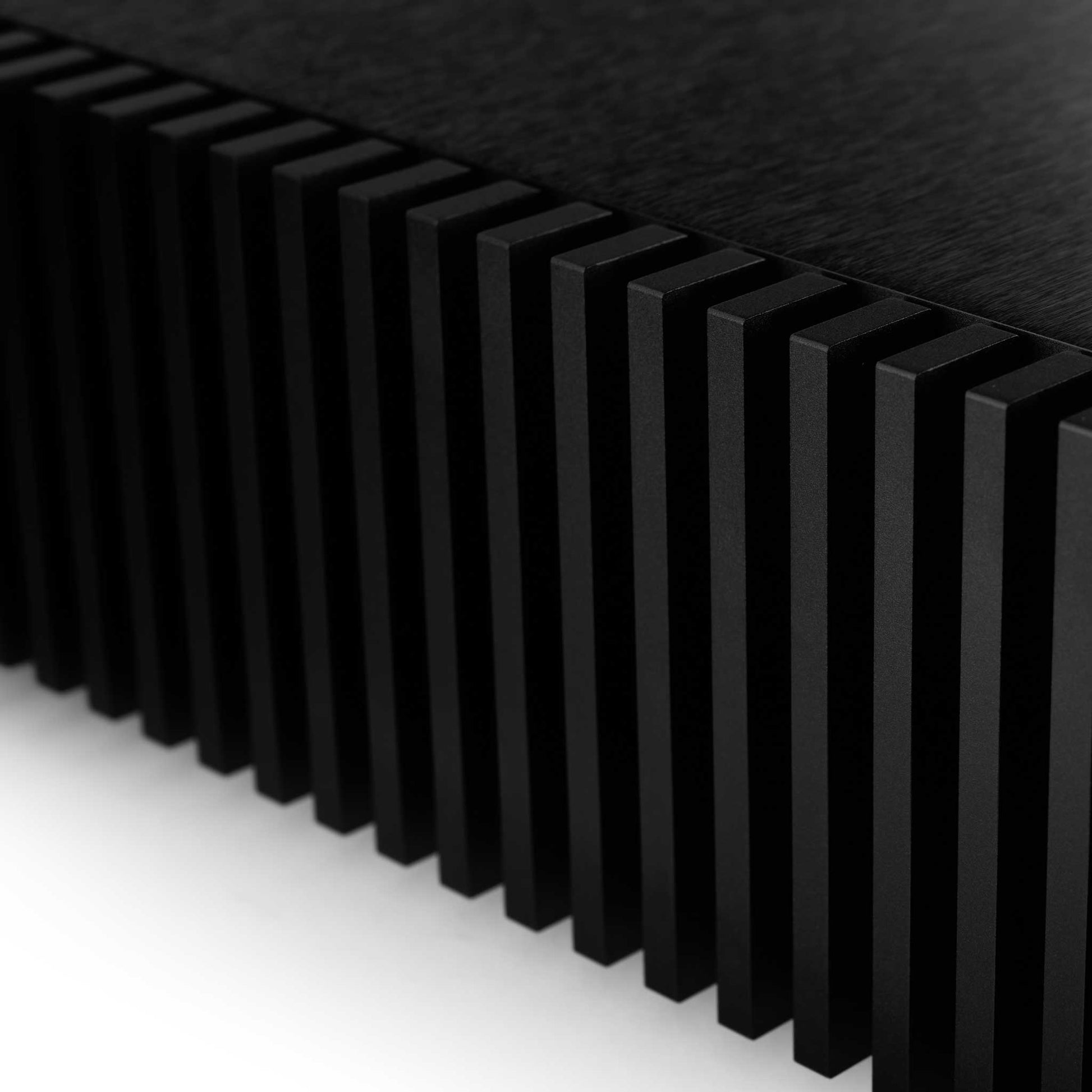

Reactive heat sinks keep the amp cool during high sound levels

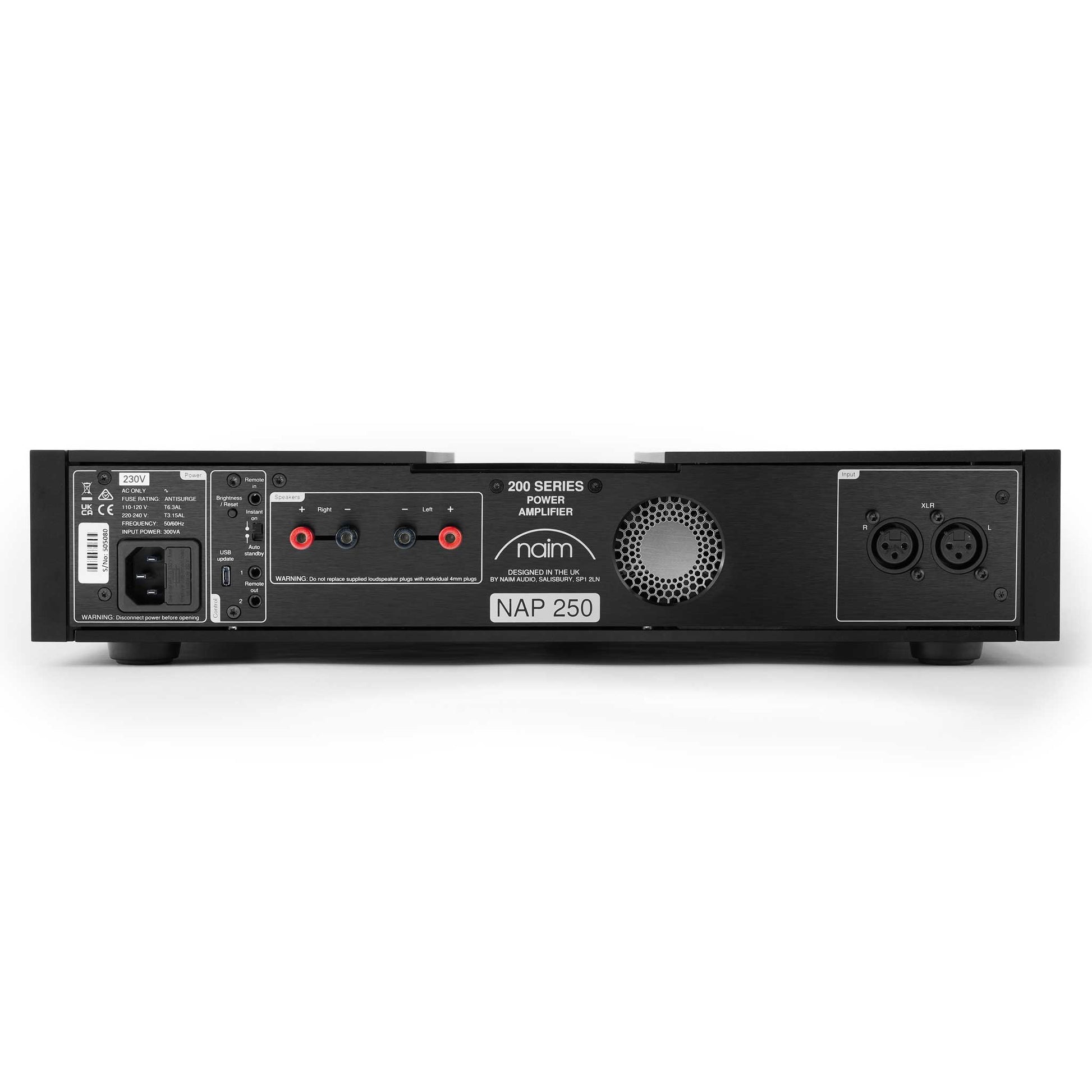

Symmetrical balanced XLR inputs from a pre-amp
Discrete Regulator power supply technology
Ideal partner to the NSC 222 streaming pre-amplifier
Specifications
Specifications
NAP 250 Specifications
Damping factor into 8 |
36 |
Signal to noise ratio ref 100w 8 A-weighted |
111dB |
Signal to noise ratio ref 1w 8 A-weighted |
91dB |
Input signal for clipping |
1V RMS |
Peak current into 1 (1kHz 1mS) |
+/-28 amps peak (780w peak power) |
Burst power 2 |
300 watts 2 @ 1% THD+N (1kHz for 20mS, repeat 500mS IHF) |
Audio Inputs
Analogue Input |
2 x True balanced via XLR, 47k 34 k single ended via legacy adaptor lead |
Audio Outputs
Crosstalk |
60 dB |
THD + N |
at 2/3rds full power 8 @1kHz (0.013%) |
Power Output |
100 watts 8 @ 0.1% THD+N (100w @ 0.1%) 190 watts 4 @ 1% THD+N |
Frequency Response |
-3dB at 1.4Hz to 100kHz |
Gain |
+29dB |
Finish
Case |
Black powder coated |
Front |
Brushed and black anodised |
Physical
Weight |
16.8 kg |
Dimensions (W x H x D) |
432 x 91.5 x 317 mm |
Power
Mains Supply |
100V, 115V, 230V; 50 or 60Hz |
Power Consumption |
Passive 26W (idle) Standby <0.5w |
Speaker Outputs
Power Output |
80W/channel, 8Ω |
Transient |
400VA |
Speaker Outputs |
L & R, 4mm “banana” sockets |
Supplied with
Supplied with |
2 x XLR balanced interconnect, 1 x optical system automation cable, Power-Line Lite mains cable (UK denominations only) |
