Ortofon
Ortofon 2m Bronze MM Cartridge
Ortofon 2m Bronze MM Cartridge
Couldn't load pickup availability
- Free Delivery
- 2 year Warranty
Share
Details
Description

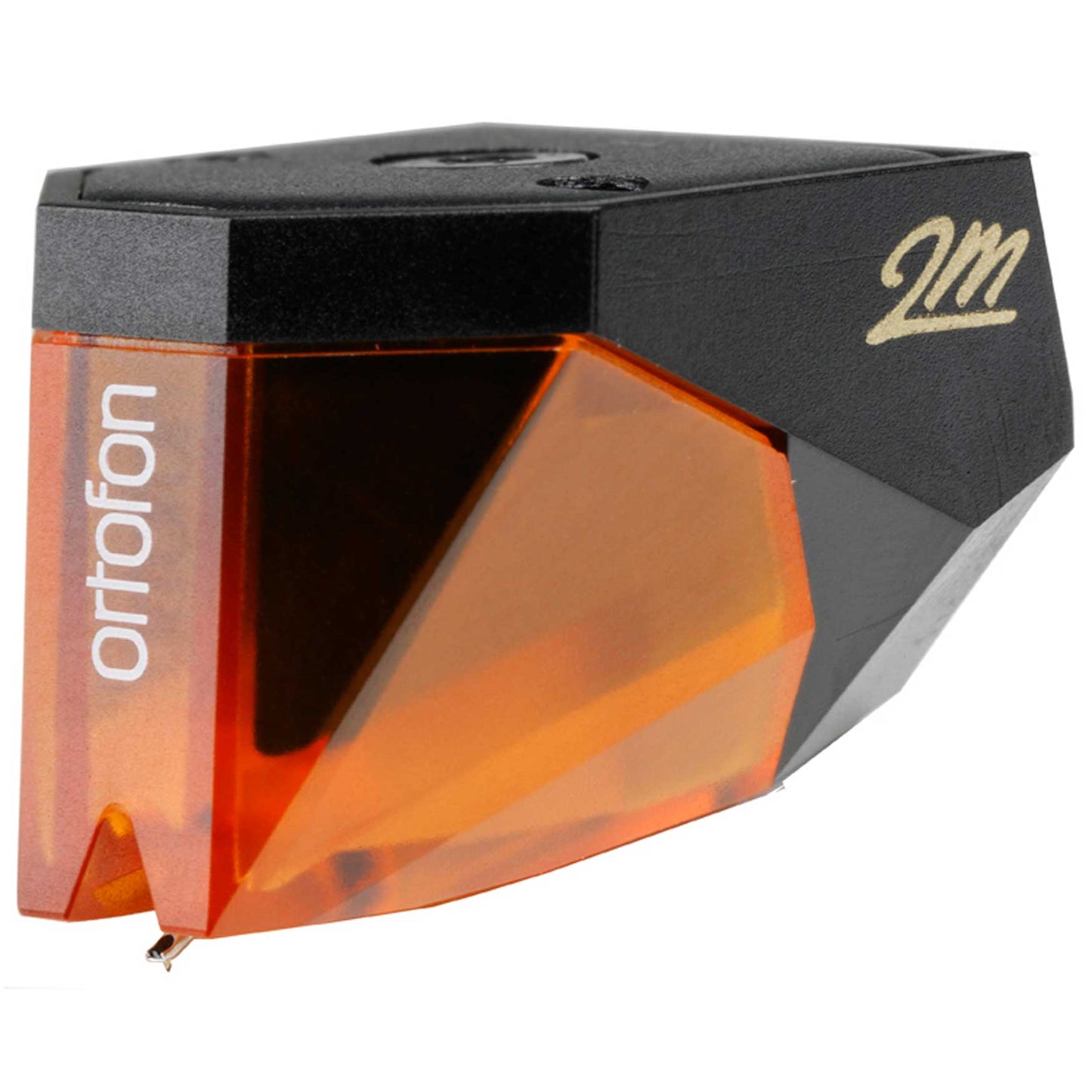

Ortofon 2M Bronze Moving Magnet (MM) Cartridge
The 2M Bronze features a premium nude Fine Line diamond stylus, helping it to deliver an extremely accurate and detailed sound, revealing subtle details in music that you may not have heard previously. The slim profile of the Fine Line stylus will track even the highest frequency information, making it a must for discerning listeners. Additionally it's larger footprint ensures less distortion and reduced wear on your records.
Compatibility
The 2M Series is designed for easy installation and is available in three different variants: the 2M for most common turntables on the market, the 2M Verso, for bottom mount headshells and the 2MR, which has a reduced height form factor making it suitable for turntables and tonearms with a requirement for low-form factor cartridges.
The 2M Bronze cartridge is suitable for most record players costing between £1000-£2000.
- Inviting soundstage with even more resolution and detail
- Nude Fine-Line diamond stylus
- Moving magnet cartridge with removable stylus
- Utilises Ortofon's split-pole pin technology
- Anti-resonant Hopelex body and improved internal engine with silver-plated copper wire
Specifications
Specifications
|
OUTPUT VOLTAGE (@ 1000HZ, 5CM/SEC.) |
5 mV |
|
CHANNEL BALANCE (@ 1000HZ) |
1 dB |
|
CHANNEL SEPARATION (@ 1000HZ) |
26 dB |
|
CHANNEL SEPARATION (@ 15000HZ) |
15 dB |
|
FREQUENCY RANGE (@ -3DB) |
20 - 290000 Hz |
|
FREQUENCY RESPONSE ±2DB |
20 - 20000 Hz |
|
TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE) |
80 μm |
|
COMPLIANCE, DYNAMIC, LATERAL |
22 μm |
|
STYLUS TYPE |
Nude Fine Line |
|
TRACKING FORCE RANGE |
1.4 - 1.7 g |
|
RECOMMENDED TRACKING FORCE |
1.5 g |
|
TRACKING ANGLE |
20 ° |
|
INTERNAL IMPEDANCE |
1200 Ω |
|
INTERNAL INDUCTANCE |
630 mH |
|
CANTILEVER MATERIAL |
Aluminium Tube |
|
RECOMMENDED LOAD IMPEDANCE |
47000 Ω |
|
RECOMMENDED LOAD CAPACITANCE |
150 - 300 pF |
|
CARTRIDGE WEIGHT |
7.2 g |
