Pro-Ject
Pro-Ject Phono Box
Pro-Ject Phono Box
Couldn't load pickup availability
- 2 year Warranty
Share
Details
Description

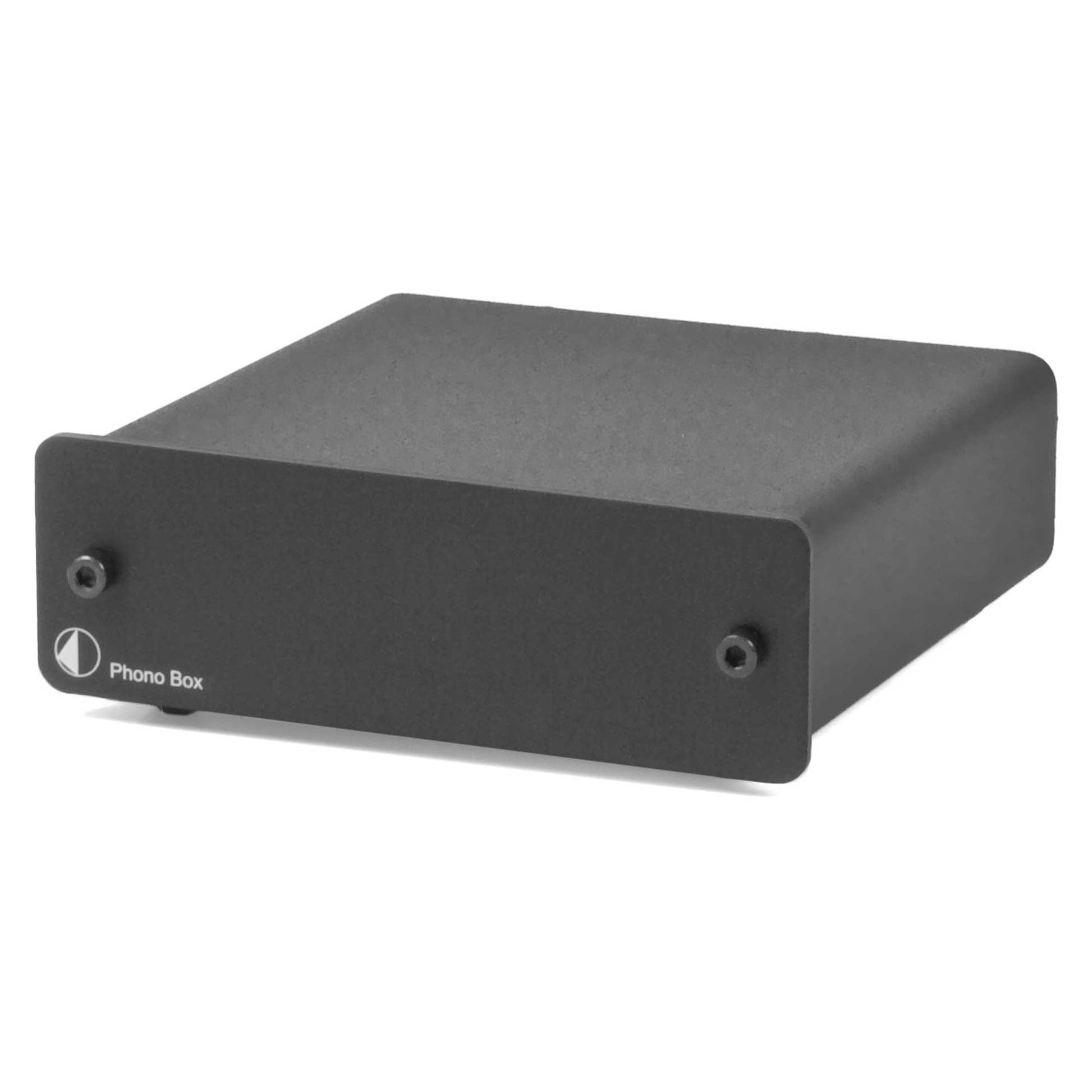

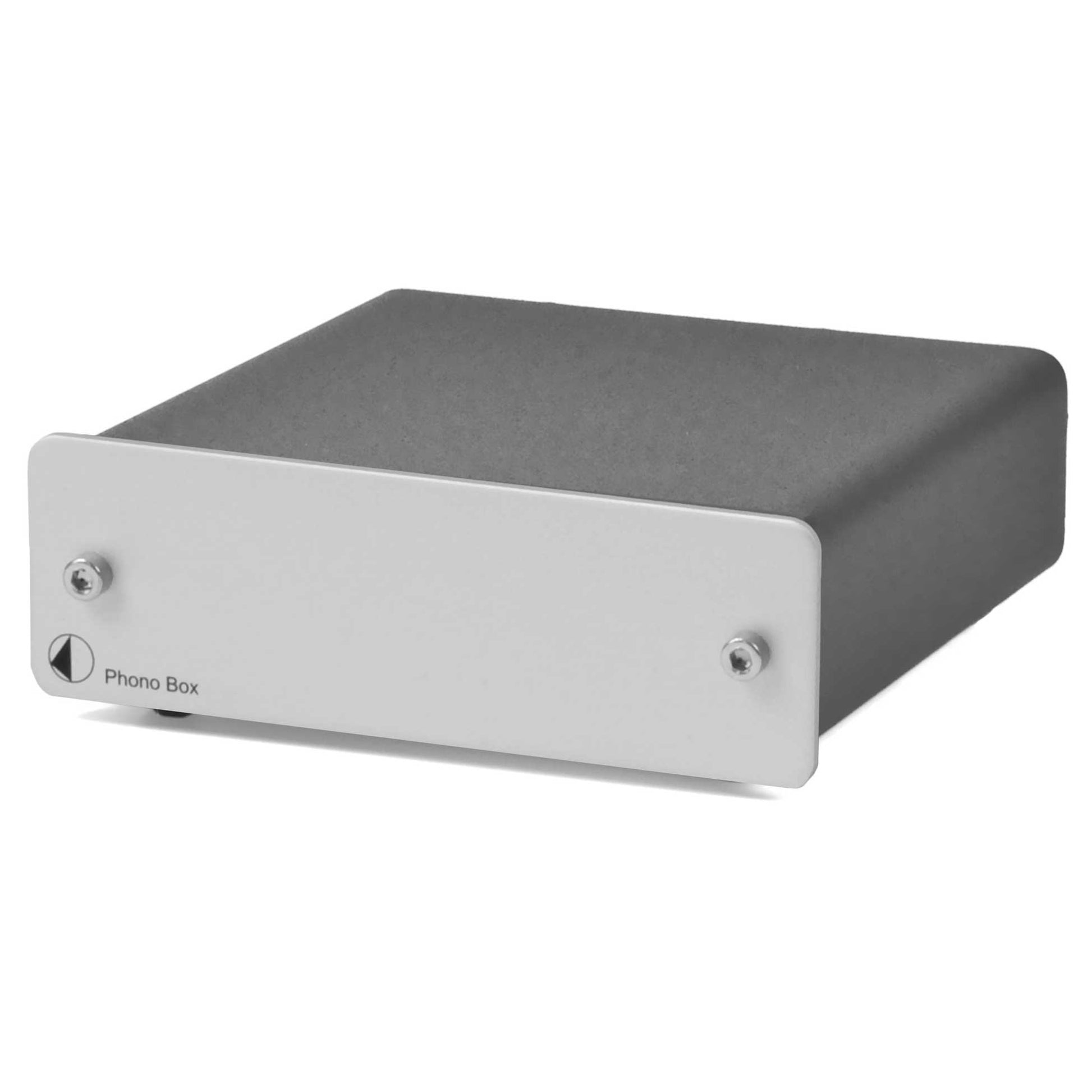

Pro-Ject Phono Box
Boasting a sophisticated internal design that employs low-noise ICs and precise RIAA equalisation circuitry, the Phono Box is often found used with far more expensive turntables. Simply connect the In and Output cables, push the switch to select Moving Magnet or Moving Coil operation (depending on your turntable cartridge), plug it in and off you go.
The small size of the Phono Box allows for discrete placement near your turntable or behind an existing system.
Key Features:

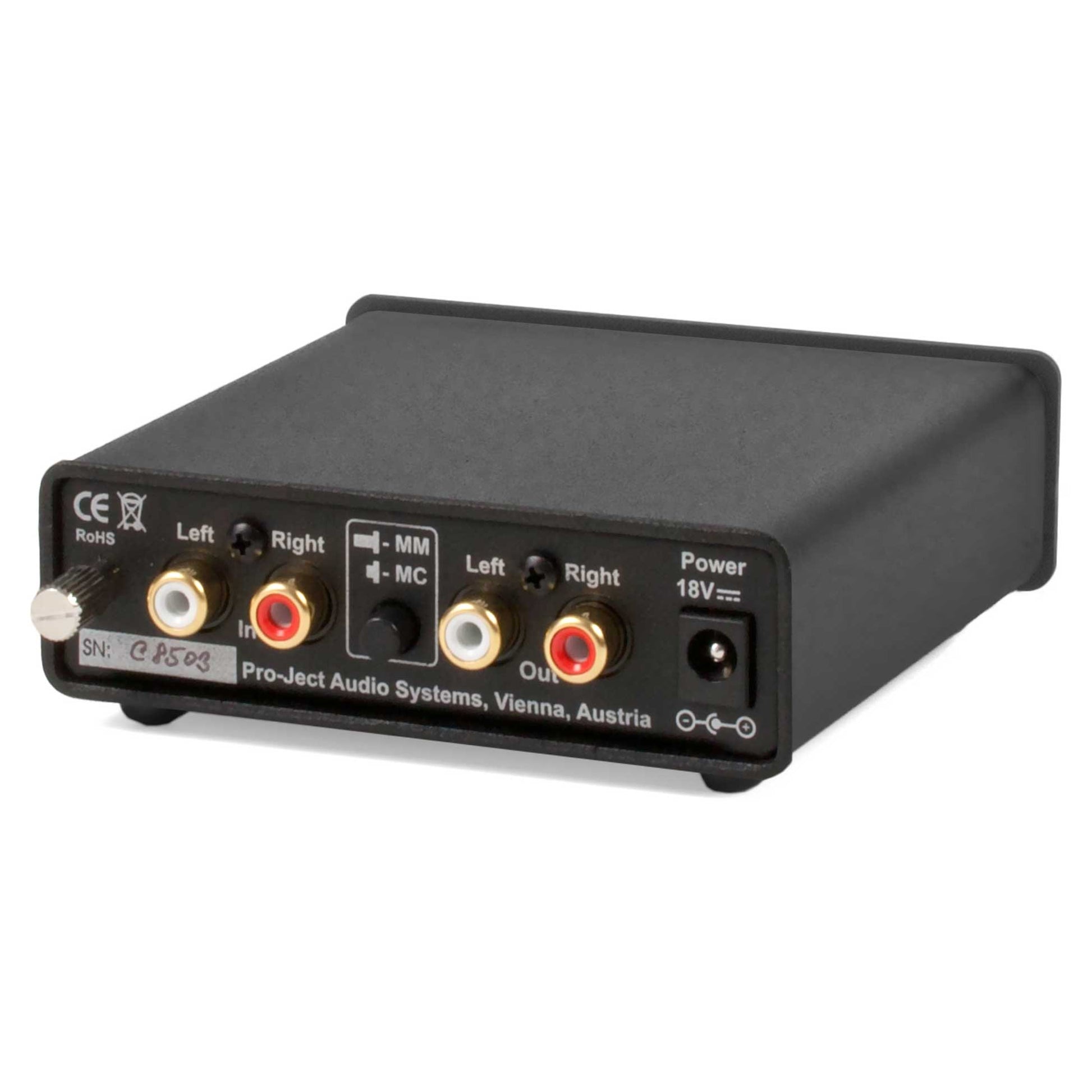

Preamplifier for MM or MC with switch on rear panel
Best buy classic
Precise RIAA equalisation
Low noise ICs
Output stage with ultra-low impedance
Gold-plated RCA sockets
Specifications
Specifications
|
Input Impedance: |
47kΩ / 100pF |
|
Gain MM: |
40dB |
|
Output Voltage Typically: |
300mV/1kHz at 3mV/1kHz (MM input) |
|
Gain MC: |
60dB |
|
Output Voltage Typically: |
300mV/1kHz at 0,3mV/1kHz (MC input) |
|
Noise Floor MM: |
86dB (94dB - A weighted) |
|
Noise Floor MC: |
68dB (75dB - A weighted) |
|
THD MM: |
0,01% |
|
THD MC: |
0,05% |
|
RIAA Equalisation Curve Accuracy: |
20Hz - 20kHz / max. 0.5dB |
|
Power Consumption: |
20mA DC |
|
Outboard Power Supply: |
18V / 200mA DC |
|
Dimensions (W x H x D)(w/Plugs): |
103 x 36 x 103 (109 with sockets)mm |
|
Weight: |
540g |
