Quad

Quad 3 with Dali SONIK 5 Speakers

Quad 3 with Dali SONIK 5 Speakers

Regular price £1,849.00
Regular price £2,148.00 Sale price £1,849.00
-14% Sold out
Shipping calculated at checkout.
  • free delivery2-4 days
  • free qed xt25speaker cables

View full details

Details

Description

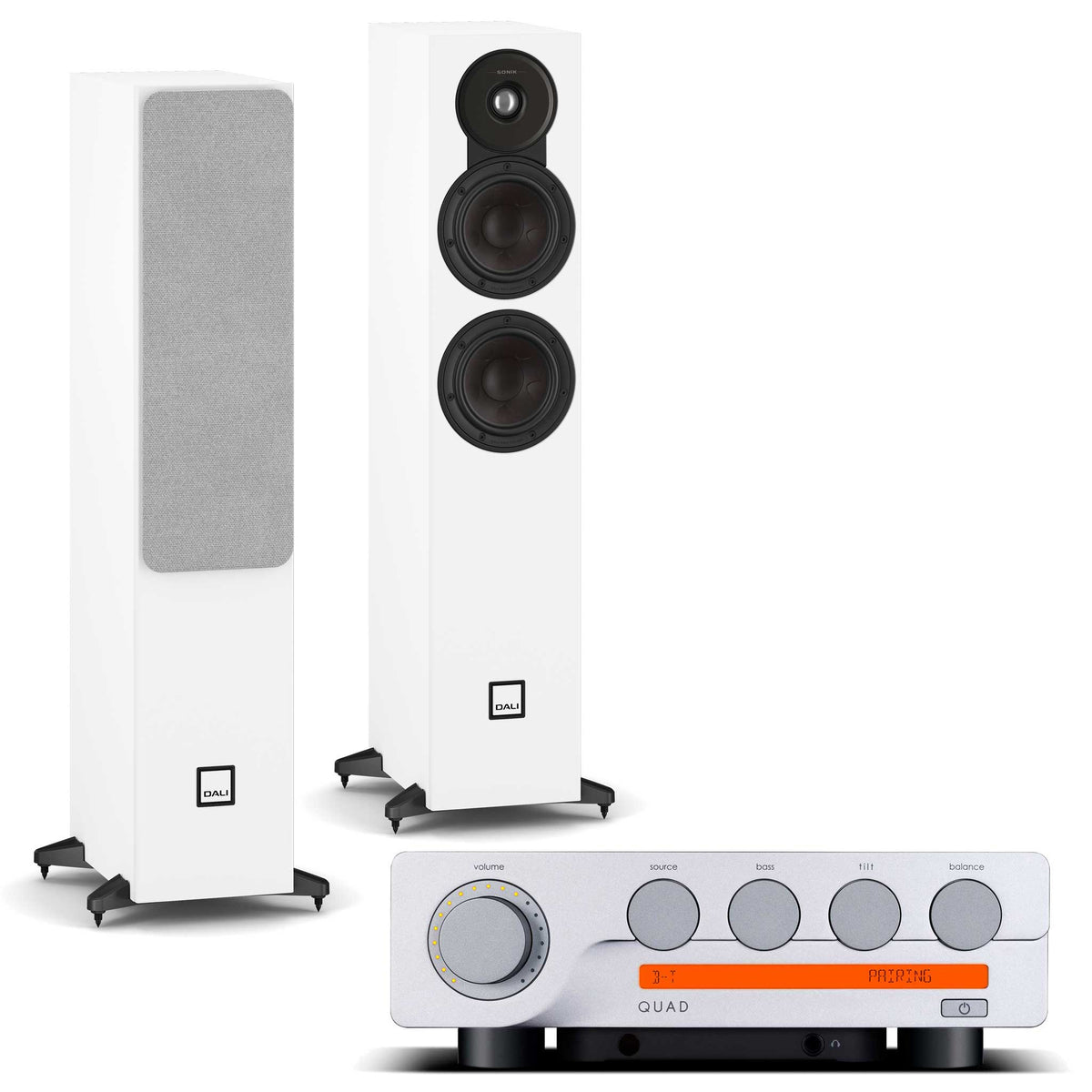

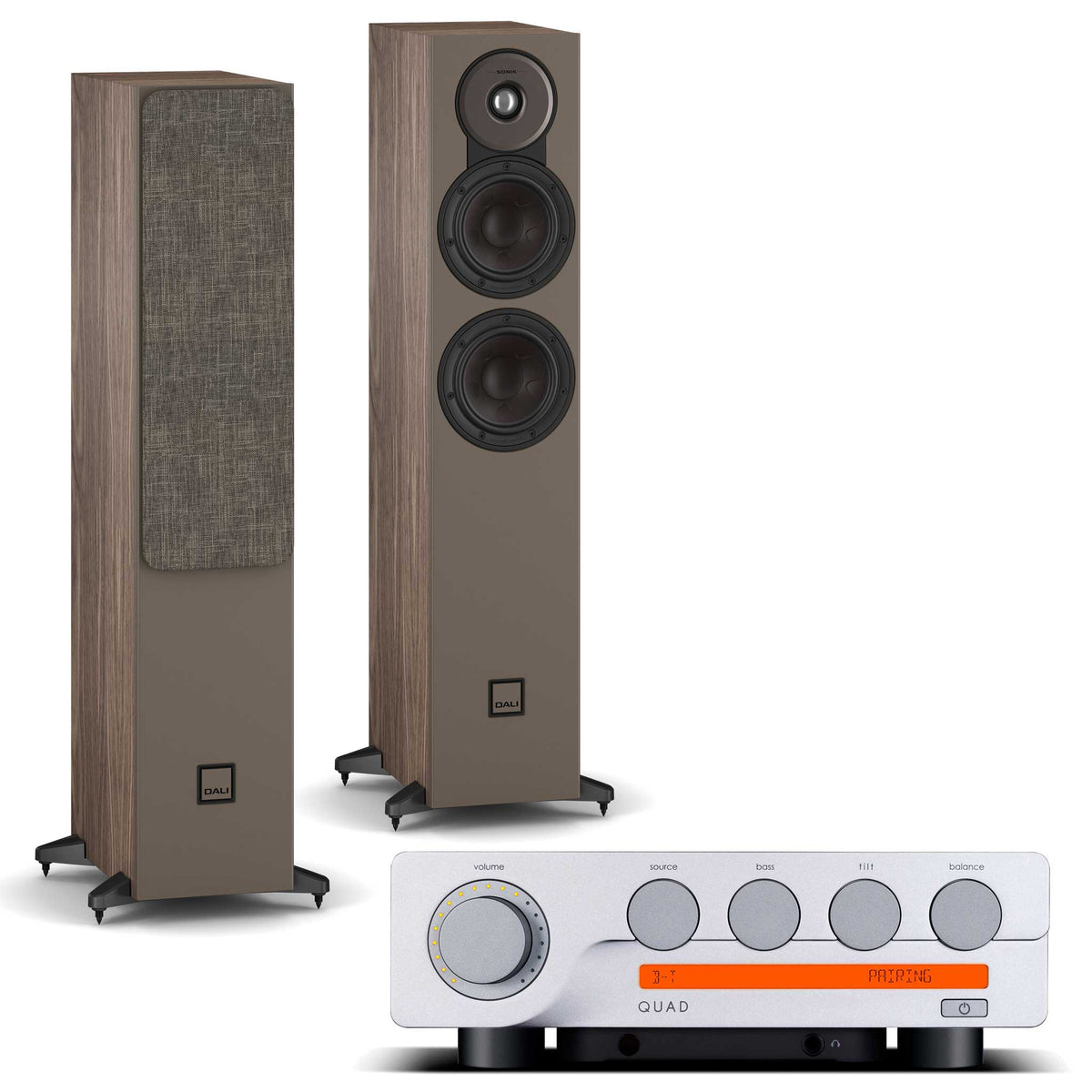

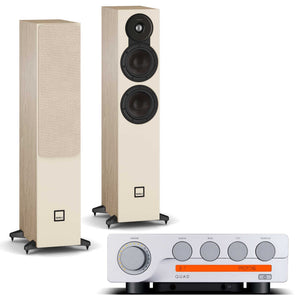

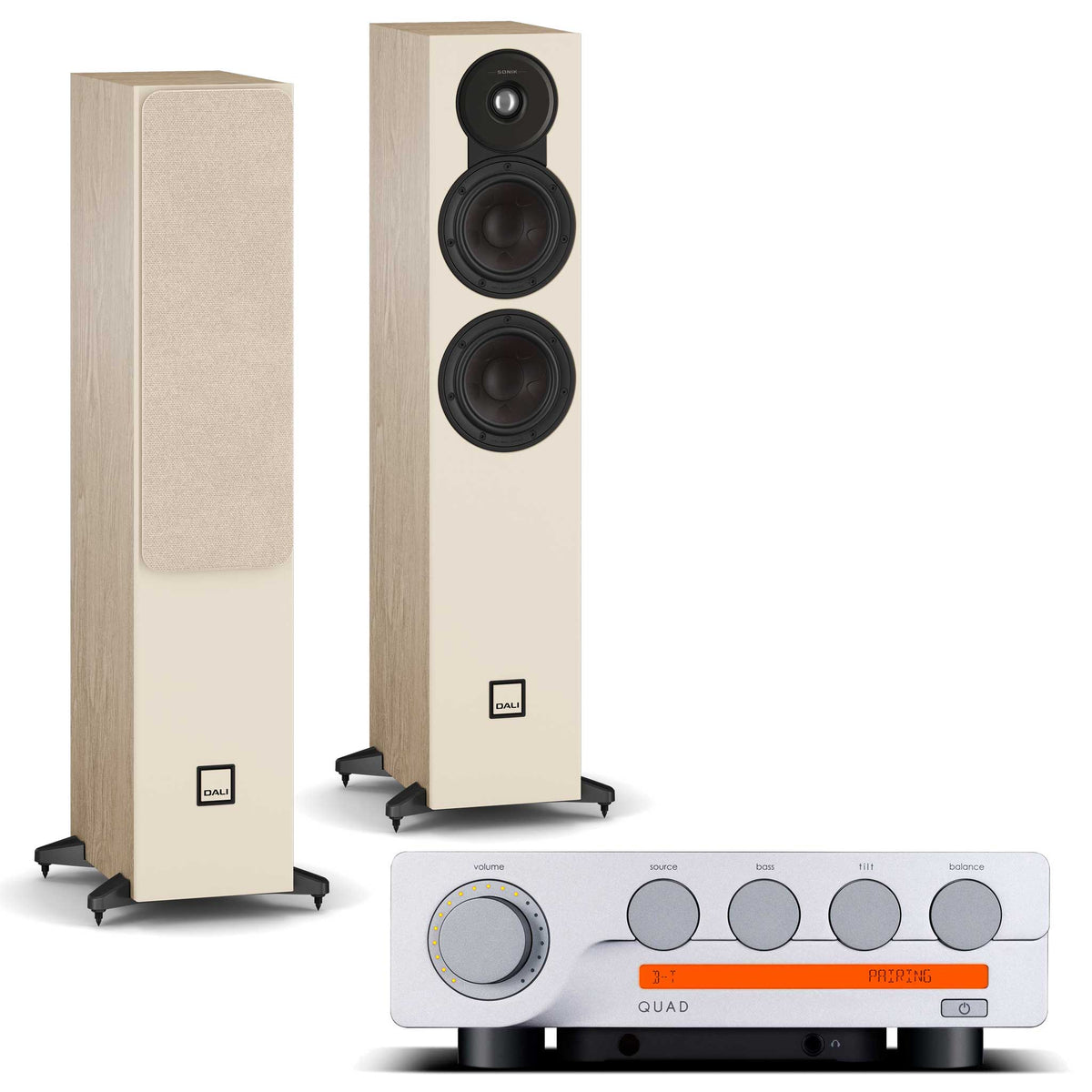

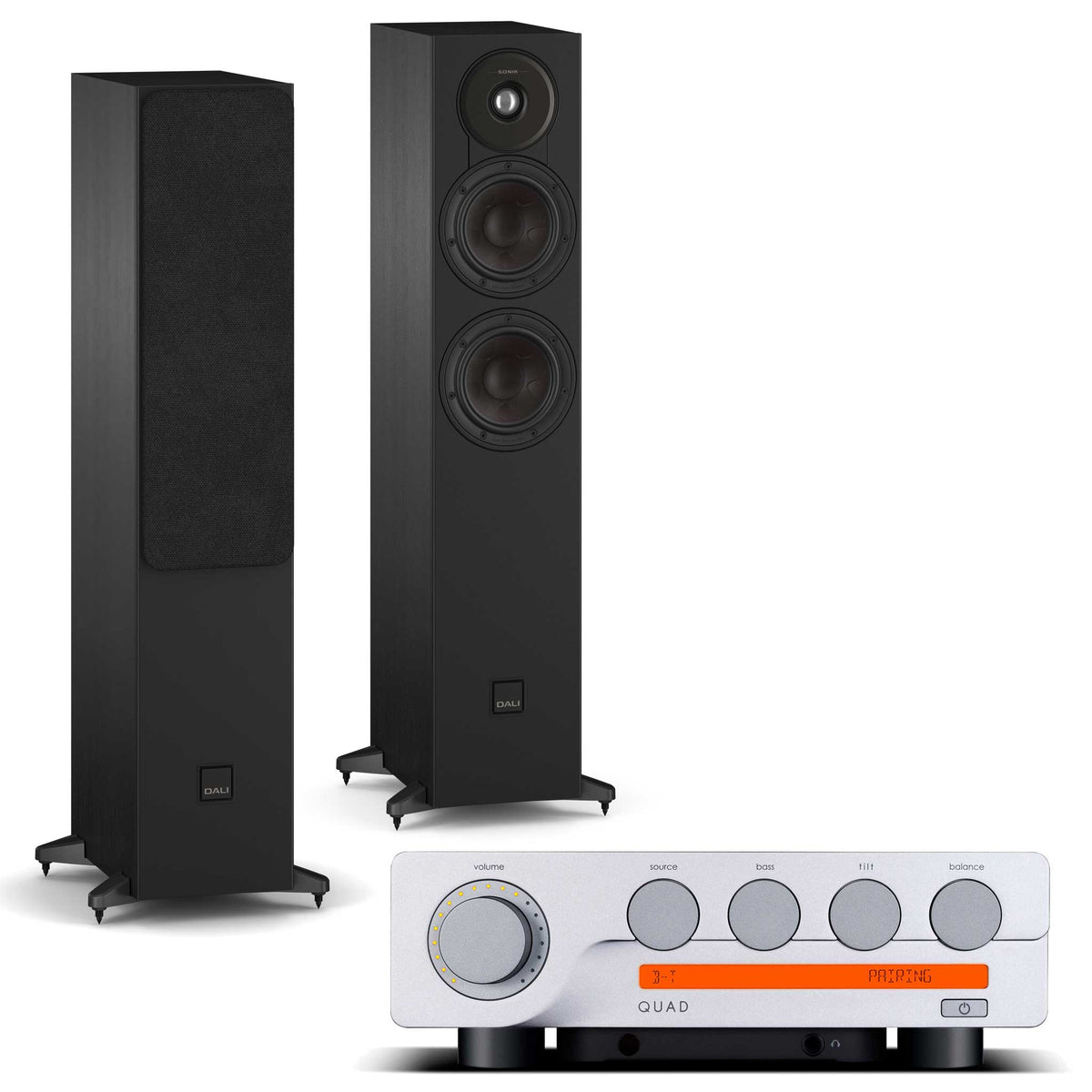

QUAD 3 with Dali SONIK 5 Floorstanding Speakers

The QUAD 3 with Dali SONIK 5 speakers is a compact floorstanding hi-fi system that combines modern connectivity with a clean, dynamic and spacious sound.

At the heart of the system is the QUAD 3 Integrated Amplifier, delivering 65 watts per channel into 8 ohms with HDMI ARC, high-resolution digital inputs, Bluetooth and a built-in MM phono stage. It is partnered here with the Dali SONIK 5, a slim two-way floorstander featuring twin 5¼-inch Clarity Cone bass/mid drivers, Dali’s SMC Essential magnet system and a 29mm low-loss soft dome tweeter.

Together they create a versatile system for streaming, vinyl, TV sound and traditional hi-fi sources, with enough scale for a main living room without the bulk of a larger floorstanding speaker.

A Well-Matched Hi-Fi System

The QUAD 3 and SONIK 5 make a natural pairing for listeners who want a compact system with strong bass, clear vocals and a wide stereo image.

The Dali’s 6-ohm nominal impedance, 88dB sensitivity and 30–150W recommended amplifier range make it a sensible match for the QUAD 3’s 65W per channel output.

The result is a system that is easy to live with, yet still capable of delivering a full and engaging presentation with music, films and TV sound.

QUAD 3 Integrated Amplifier

The QUAD 3 combines classic styling with a wide range of modern analogue and digital inputs. Its Class AB amplifier delivers 65W per channel into 8 ohms and 100W into 4 ohms, while the ESS ES9038Q2M DAC handles digital sources with excellent clarity.

Connectivity includes HDMI ARC, USB-B, optical, coaxial, Bluetooth 5.1 with aptX HD, two RCA line inputs and a dedicated MM phono stage for simple connection to a turntable.

High-resolution USB playback supports PCM up to 32-bit/768kHz and DSD512, while optical and coaxial inputs support up to 24-bit/192kHz.

Dali SONIK 5 Compact Floorstanding Speakers

The Dali SONIK 5 is a slim two-way floorstanding speaker designed for small to medium-sized rooms. Each speaker uses twin 5¼-inch Clarity Cone bass/mid drivers with Dali’s SMC Essential magnet system, together with a 29mm low-loss soft dome tweeter.

The combination is designed to deliver natural vocals, controlled bass and an open, detailed top end, while the slim cabinet keeps the overall footprint relatively compact.

Key Features:

  • 65W per channel into 8 ohms
  • Class AB amplification
  • ESS ES9038Q2M DAC
  • HDMI ARC / USB audio up to 32-bit/768kHz
  • Optical and coaxial digital inputs
  • Bluetooth 5.1 with aptX HD
  • Built-in MM phono stage

The QUAD 3 and DALI SONIK 5 package is ideal for listeners who want the scale and bass response of floorstanding speakers without moving to a large or imposing system.

The QUAD 3 provides modern digital connectivity, HDMI TV sound, Bluetooth and vinyl playback, while the SONIK 5 adds a natural, detailed presentation with strong bass and excellent room-filling ability.

For small to medium-sized living rooms, it offers an appealing balance of performance, flexibility and understated design.

High Quality Speaker Cables Included

This bundle includes a 3m pair of QED XT25 factory-terminated speaker cables worth £89.95 free of charge. (please contact us if you need longer cables)

Specifications

Specifications



Quad 3 Integrated Specifications

General Description

Integrated Amplifier

Design Philosophy and Core Technology

2 x 65W (8 ohm), 2 x 100W (4 ohm)
Class AB power amp section
ES9038Q2M 32-bit DACBluetooth 5.1 (aptX/aptX HD) Streaming
Dedicated High Performance Low Noise MM Phono stage
Dedicated Current-Feedback Headphone Amplifier
Built-in Bass and Tilt adjustment
USB Firmware Upgrade
2 x Analogue (Aux), 1 x Phono (MM) inputs

Inputs

1 x SPDIF (Coax), 1 x SPDIF (Optical), 1 x PC USB
1 x HDMI ARC, 1 x Bluetooth (aptX/aptX HD), 1 x 12V Trigger

Outputs

1 x Pre Amplifier,1 x Stereo Speaker,1 x Headphone, 1 x 12V Trigger

Preamplifier Section



Gain (max.)

+0dB (Line), +47dB (Phono MM)

Input Sensitivity

800mVrms (Line, Volume = 0dB), 3.6mV (Phono MM, Volume = 0dB)

Input Impedance

10K (Line), 47K / 100pF (Phono MM)

Total Harmonic Distortion (THD)

<0.001% (1kHz @ 2V, Volume = 0dB)

Frequency Response

20Hz-20kHz (+/-0.1dB)

Output Voltage

2.3V max. (Volume = 0dB)

Output Impedance

120Ω

Signal-to-Noise Ration (S/N)

>110dB (Line, A-weighted); > 78dB (Phono MM, A-weighted)

DAC



D to A converter

ES9038Q2M

Total Harmonic Distortion (THD)

<0.001% (1KHz @ 0dBFS)

Output level (0dBFS, 1KHz)

2.05V

Max. Sampling Frequency

Optical/Coaxial: 192kHz, PC USB: PCM768kHz, DSD512

Signal-to-noise ratio (S/N)

> 116dB (A-weighted)

Power Amplifier Section



Gain

+29dB

Rated Power Output

2 x 65W (8 ohms, THD<1%); 2 x 100W (4 ohms, THD<1%)

Frequency Response

20Hz-20kHz (+/-0.3dB)

Total Harmonic Distortion (THD)

<0.003% (1kHz @ 30W / 8 ohms)
720mV

Signal-to-Noise ratio (S/N)

> 110dB (A-weighted)

Max. Output Current

10A

General

Standby Power Consumption

<0.5W

Net weight

8kg

Gross weight

9.3kg

Power requirements (depending on region)

220-240V ~ 50/60Hz, 100-120V ~ 50/60Hz

Standard accessories

Power Cord, Remote Control,User Manual, 2 x AAA batteries



Dali SONIK 5 Specifications

Frequency Range (+/-3 dB) [Hz]

36 - 26.000

Sensitivity (2,83 V/1 m) [dB]

88 dB

Nominal Impedance [Ω]

6

Maximum SPL [dB]

108

Recommended Amplifier Power [W]

30 - 150

Crossover principle

2-way

Crossover Frequency [Hz]

2,200 Hz

High Frequency Driver

1 × 29 mm low loss soft dome

Low Frequency Driver

2 x 5¼" Clarity Cone™ paper
and wood fibre

Enclosure Type

Bass Reflex

Bass Reflex Tuning Frequency [Hz]

43

Connection input(s)

Single Wire

Recommended Distance From Wall [cm]

15 - 100

Dimensions Incl. Base (HxWxD)

826 x 249 x 270

Weight [kg]

10.8

Accessories Included

Front grilles, Rubber pads, Spikes, Lock nuts, Hemispherical rubber feet, Spike outriggers, Spike outrigger screws, Toolkit, Document pack
