Details
Description

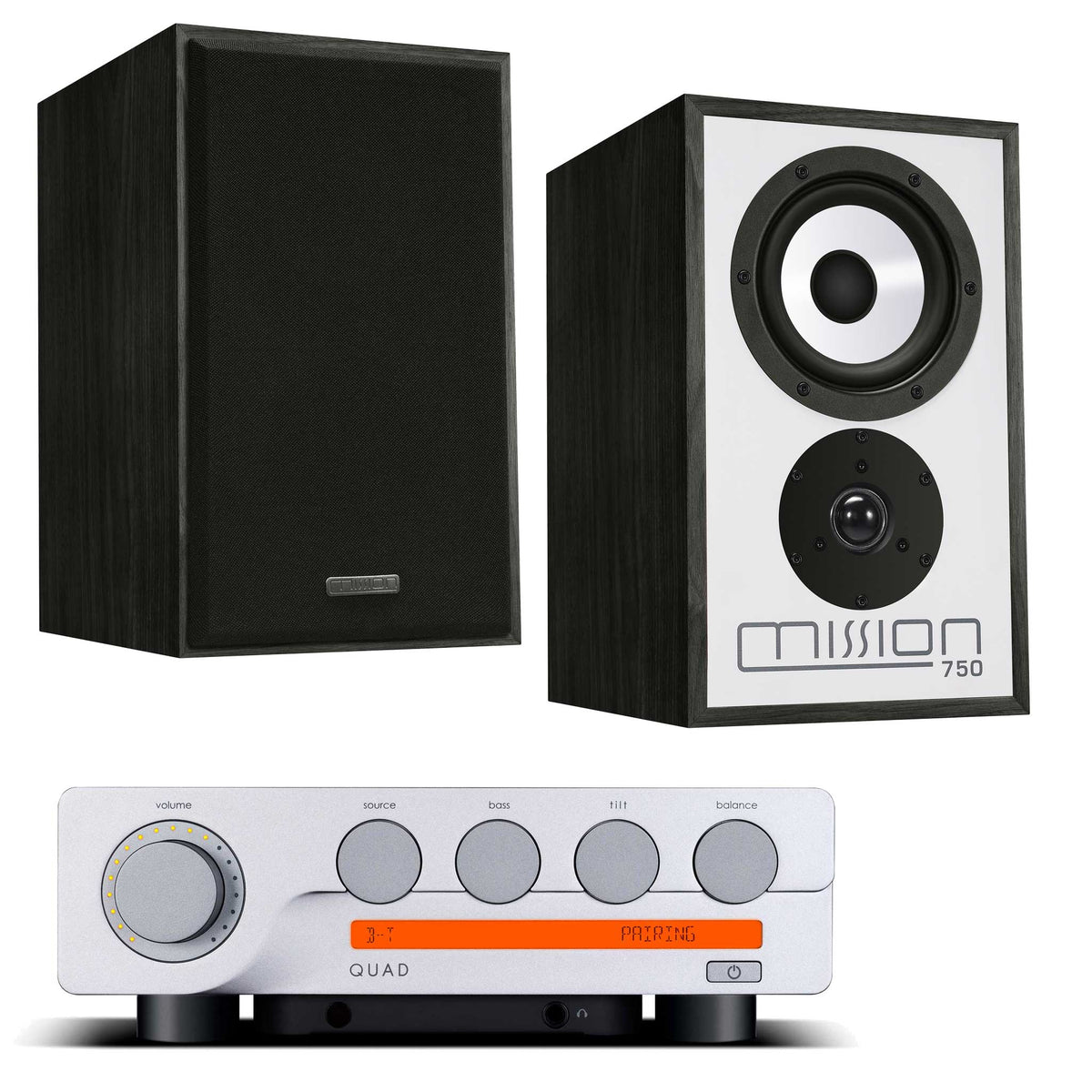

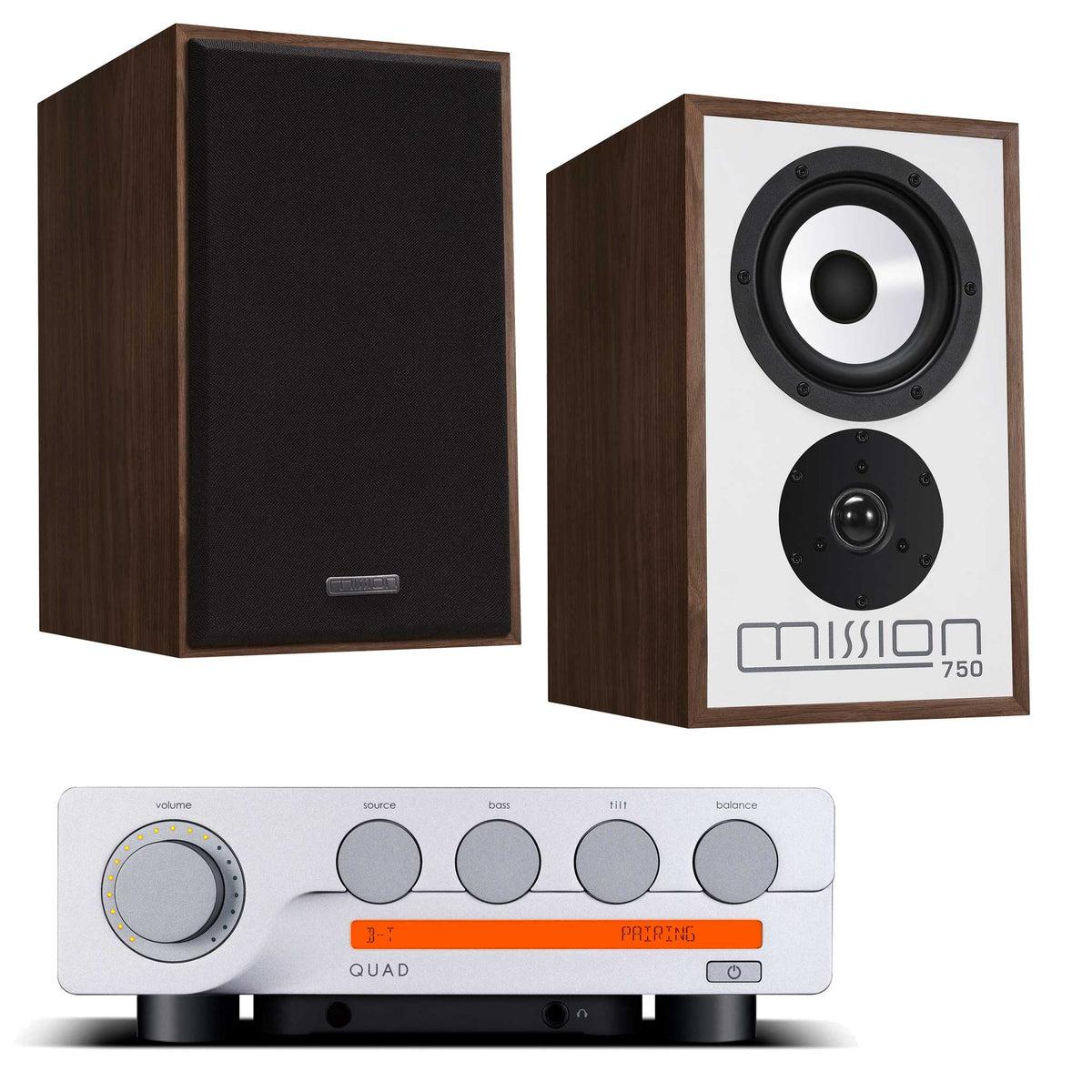

QUAD 3 with Mission 750 Bookshelf Speakers
The QUAD 3 and Mission 750 make a natural pairing for listeners who want a compact system with plenty of character. As a pairing the system combines modern connectivity with classic loudspeaker styling and a lively, engaging sound.
At the heart of the system is the QUAD 3 Integrated Amplifier, delivering 65 watts per channel into 8 ohms with HDMI ARC, high-resolution digital inputs, Bluetooth and a built-in MM phono stage. It is partnered here with the Mission 750, a two-way standmount speaker with a 135mm mineral-loaded polypropylene bass/mid driver, 28mm soft dome tweeter and Mission’s distinctive Inverted Driver Geometry. Together they create a versatile system for streaming, vinyl, TV sound and traditional hi-fi sources, with a compact footprint that makes it especially well-suited to smaller and medium-sized rooms.
The QUAD 3 Integrated Amplifier combines classic British hi-fi styling with modern connectivity and refined Class AB amplification. Delivering 65 watts per channel into 8 ohms, it offers plenty of power for the Mission 750 speakers.
An ESS ES9038Q2M DAC handles high-resolution digital playback via USB, optical and coaxial inputs, while HDMI ARC makes it easy to connect a compatible TV. Bluetooth 5.1 with aptX HD adds convenient wireless streaming, and a built-in MM phono stage allows direct connection of a turntable.
With QUAD’s signature Tilt control, headphone output and compact retro-inspired design, the QUAD 3 is a versatile amplifier for vinyl, digital music and TV sound.
Mission 750 Bookshelf Speakers
Inspired by Mission's legendary loudspeaker heritage, the all-new Mission 750 brings the acclaimed design philosophy of the flagship 770 and award-winning 700 into a more compact standmount speaker. Combining timeless styling with modern acoustic engineering, it delivers a richly detailed, natural and engaging sound that's perfect for both dedicated hi-fi systems and contemporary streaming setups.
The Mission 750 features a newly developed 135mm mineral-loaded polypropylene bass/midrange driver, partnered with a precision 28mm soft dome tweeter. Mission's iconic Inverted Driver Geometry places the tweeter below the bass driver to improve time alignment, creating a spacious, focused soundstage with exceptional stereo imaging and remarkably natural vocals.
Despite its compact dimensions, the Mission 750 is built to the same exacting standards as its larger siblings. The multi-layer sandwich cabinet uses advanced damping materials and extensive internal bracing to minimise unwanted resonance, while the specially profiled rear reflex port extends bass performance for a surprisingly full-bodied and controlled low end.
Designed to disappear into the music, the Mission 750 delivers an expressive, balanced presentation with impressive clarity, dynamics and musicality. Whether you're enjoying vinyl, high-resolution streaming or your favourite CDs, these beautifully crafted bookshelf speakers offer an immersive listening experience that far exceeds their size.
Key Features:
- Class AB amplification with 2 x 65W into 8 ohms
- ESS ES9038Q2M DAC
- HDMI ARC
- Optical and coaxial digital inputs
- Bluetooth 5.1 with aptX HD
- Built-in MM phono stage
Compact Size, Proper Hi-Fi Performance
The QUAD 3 and Mission 750 package is ideal for listeners who want a traditional stereo hi-fi system without taking over the room.
The QUAD 3 provides modern digital connectivity, HDMI TV sound, Bluetooth and vinyl playback, while the Mission 750 adds a lively, spacious presentation and distinctive Heritage-inspired styling.
For a smaller living room, study or dedicated listening space, it offers an appealing balance of sound quality, flexibility and compact design.
High Quality Speaker Cables Included
This bundle includes a 3m pair of QED XT25 factory-terminated speaker cables worth £89.95 free of charge. (please contact us if you need longer cables)
Specifications
Specifications
|
Quad 3 Integrated Specifications |
|
|
General Description |
Integrated Amplifier |
|
Design Philosophy and Core Technology |
2 x 65W (8 ohm), 2 x 100W (4 ohm) |
|
Inputs |
1 x SPDIF (Coax), 1 x SPDIF (Optical), 1 x PC USB |
|
Outputs |
1 x Pre Amplifier,1 x Stereo Speaker,1 x Headphone, 1 x 12V Trigger |
|
Preamplifier Section |
|
|
Gain (max.) |
+0dB (Line), +47dB (Phono MM) |
|
Input Sensitivity |
800mVrms (Line, Volume = 0dB), 3.6mV (Phono MM, Volume = 0dB) |
|
Input Impedance |
10K (Line), 47K / 100pF (Phono MM) |
|
Total Harmonic Distortion (THD) |
<0.001% (1kHz @ 2V, Volume = 0dB) |
|
Frequency Response |
20Hz-20kHz (+/-0.1dB) |
|
Output Voltage |
2.3V max. (Volume = 0dB) |
|
Output Impedance |
120Ω |
|
Signal-to-Noise Ration (S/N) |
>110dB (Line, A-weighted); > 78dB (Phono MM, A-weighted) |
|
DAC |
|
|
D to A converter |
ES9038Q2M |
|
Total Harmonic Distortion (THD) |
<0.001% (1KHz @ 0dBFS) |
|
Output level (0dBFS, 1KHz) |
2.05V |
|
Max. Sampling Frequency |
Optical/Coaxial: 192kHz, PC USB: PCM768kHz, DSD512 |
|
Signal-to-noise ratio (S/N) |
> 116dB (A-weighted) |
|
Power Amplifier Section |
|
|
Gain |
+29dB |
|
Rated Power Output |
2 x 65W (8 ohms, THD<1%); 2 x 100W (4 ohms, THD<1%) |
|
Frequency Response |
20Hz-20kHz (+/-0.3dB) |
|
Total Harmonic Distortion (THD) |
<0.003% (1kHz @ 30W / 8 ohms) |
|
Signal-to-Noise ratio (S/N) |
> 110dB (A-weighted) |
|
Max. Output Current |
10A |
|
General |
|
|
Standby Power Consumption |
<0.5W |
|
Net weight |
8kg |
|
Gross weight |
9.3kg |
|
Power requirements (depending on region) |
220-240V ~ 50/60Hz, 100-120V ~ 50/60Hz |
|
Standard accessories |
Power Cord, Remote Control,User Manual, 2 x AAA batteries |
|
Mission 750 Specifications |
|
|
Enclosure Type |
bass reflex |
|
Transducer Complement |
2-way |
|
Bass Driver |
5.25" (135mm) mineral loaded polypropylene cone |
|
Treble Driver |
1.25" (28mm) soft dome |
|
Sensitivity (2.83V @ 1M) |
86dB |
|
Recommended Amplifier Power |
25-100W |
|
Peak SPL |
103dB |
|
Nominal Impedance |
6Ω (Compatible 8Ω) |
|
Minimum Impedance |
4.5Ω |
|
Frequency Response (+/-3dB) |
48Hz ~ 20kHz |
|
Bass Extension (-6dB) |
42Hz |
|
Crossover Frequency |
2.4kHz |
|
Dimensions (with terminals) (HxWxD) |
355 x 216 x (270+35)mm |
|
Net Weight |
9.0 kg/pcs |
