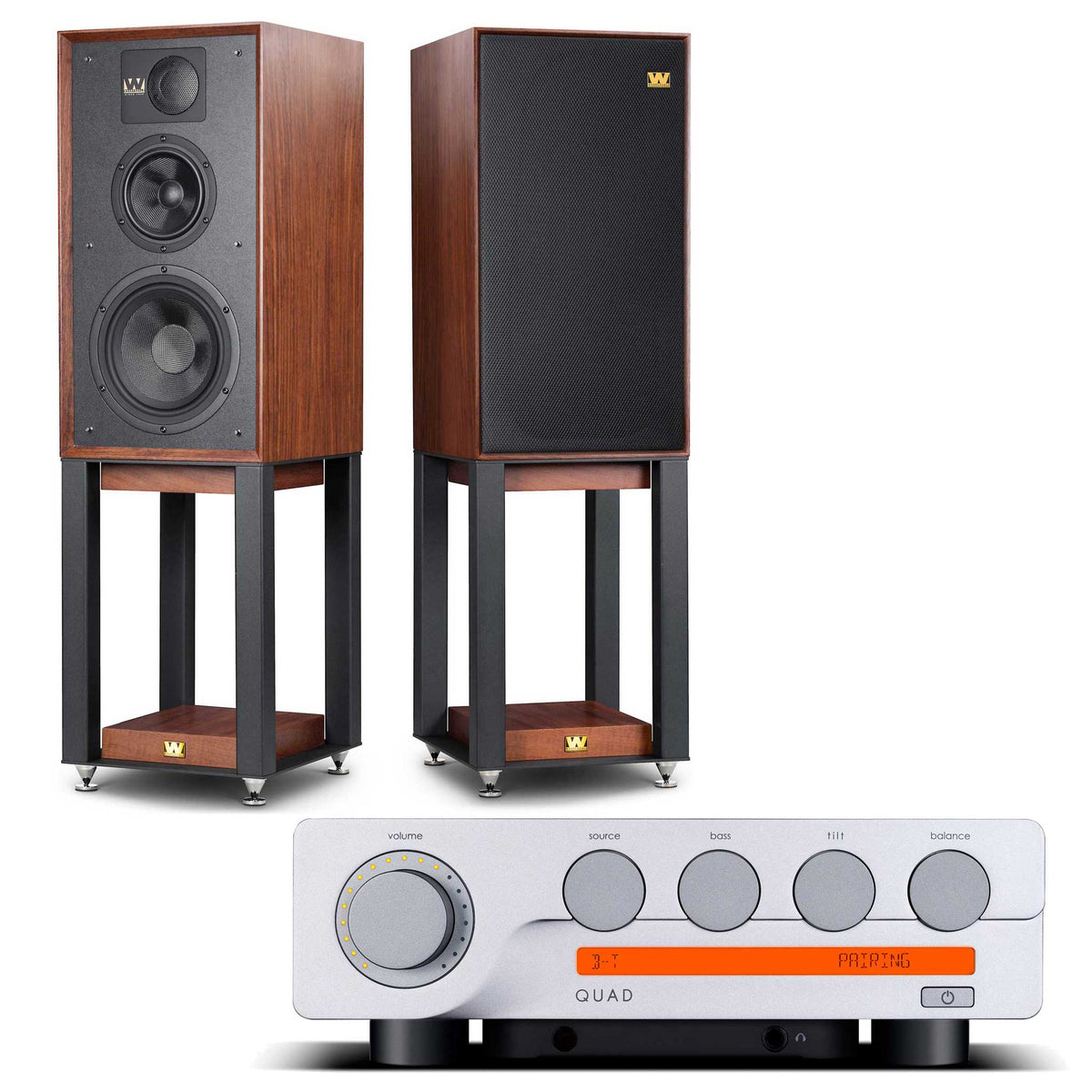

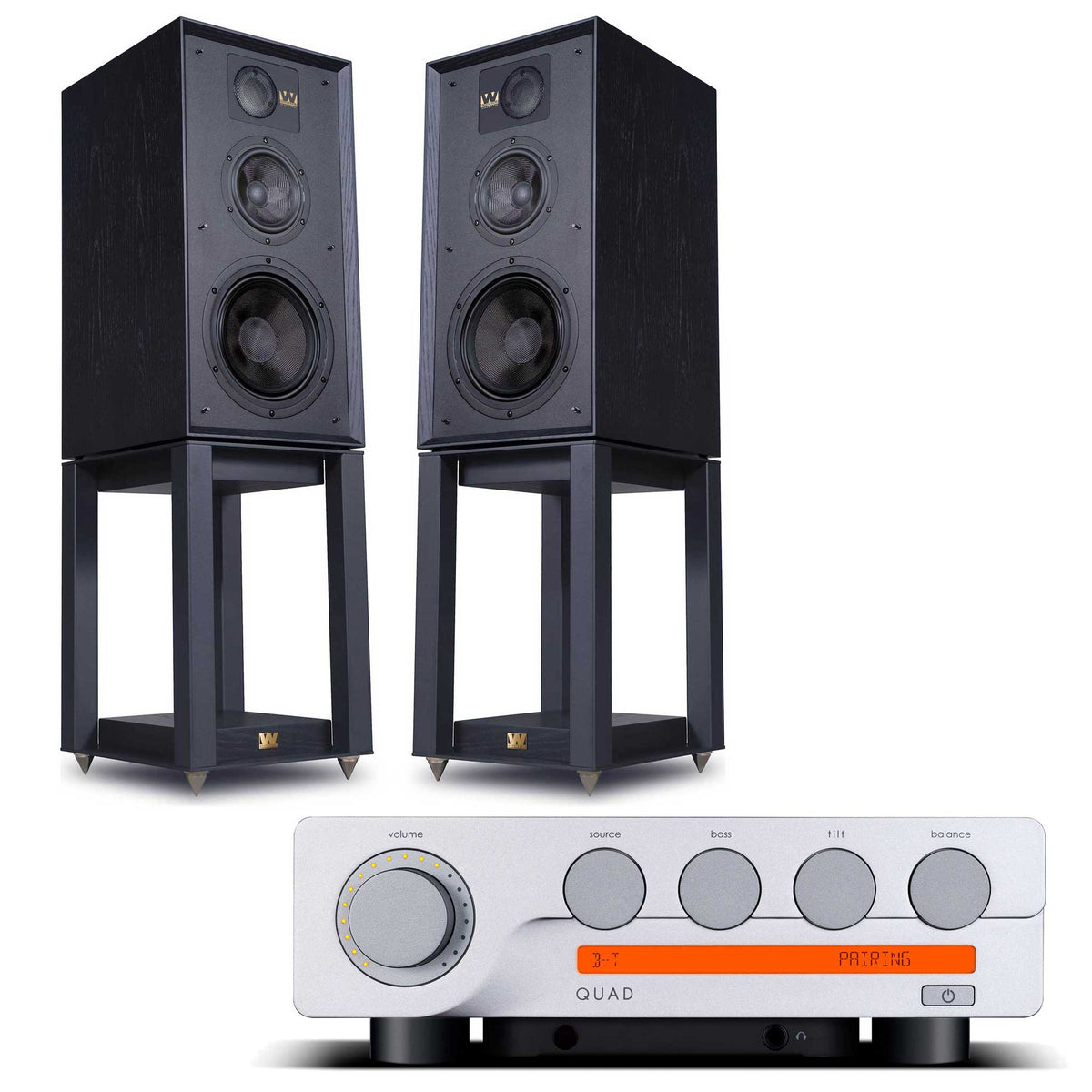

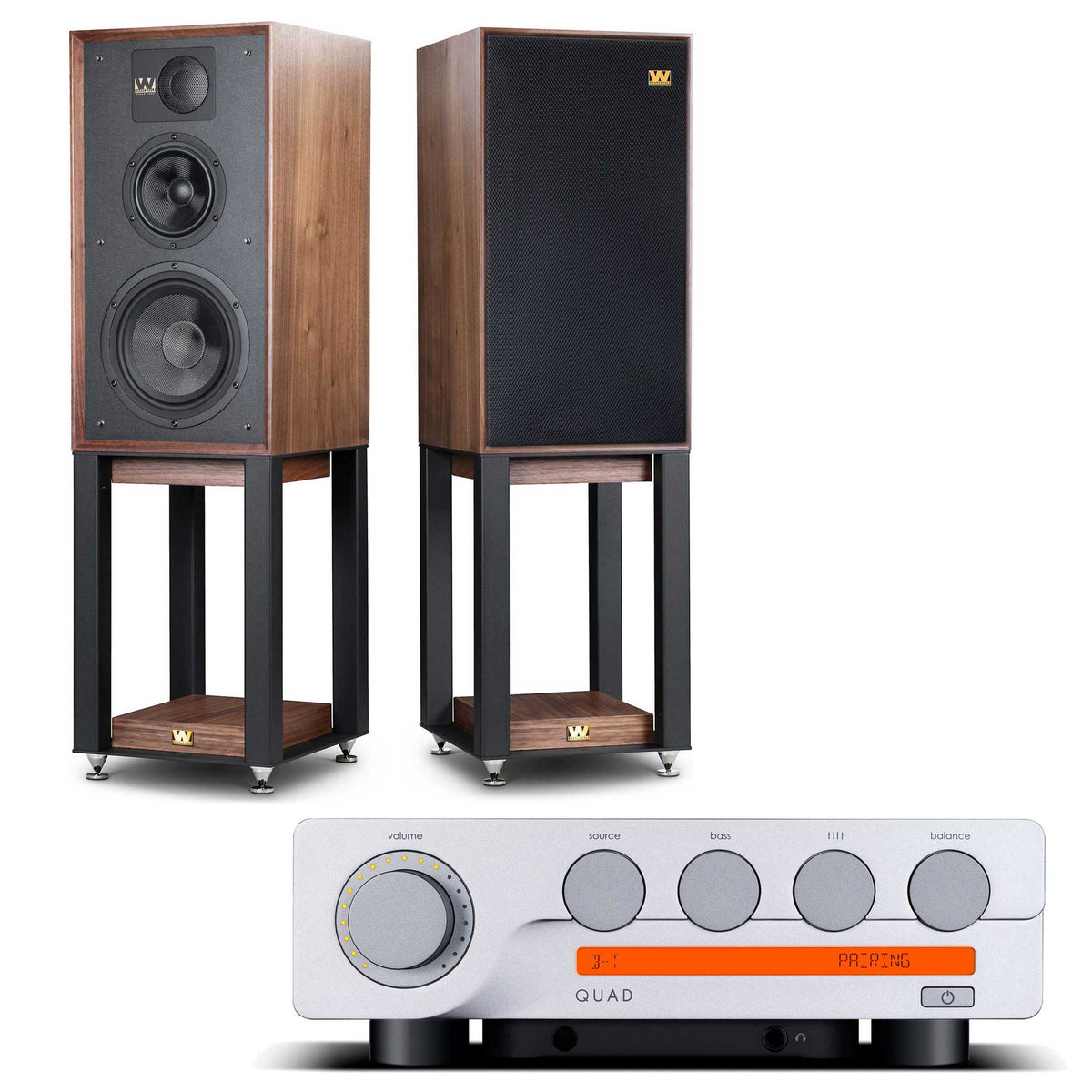

Quad 3 with Wharfedale Linton Speakers & Matching Stands

Quad 3 with Wharfedale Linton Speakers & Matching Stands

Regular price £2,199.00
Regular price £2,498.00 Sale price £2,199.00
-12% Sold out
Shipping calculated at checkout.
  • 3 year Warranty
  • free delivery2-4 days
  • Free QED XT25Speaker Cables

View full details

Details

Description

QUAD 3 with Wharfedale Linton Speakers & Matching Stands

The QUAD 3 with Wharfedale LINTON speakers combines modern amplification and connectivity with one of Wharfedale’s most iconic Heritage Series loudspeakers.

At the heart of the system is the QUAD 3 Integrated Amplifier, delivering 65 watts per channel into 8 ohms with HDMI ARC, high-resolution digital inputs, Bluetooth and a built-in MM phono stage. It is partnered here with the Wharfedale LINTON, a substantial three-way standmount speaker with a 200mm Kevlar bass driver, dedicated 135mm midrange and 25mm soft dome tweeter.

Together they create a rich, spacious and engaging hi-fi system with plenty of scale, making this package particularly well suited to larger living rooms and dedicated listening spaces.

A Classic British Hi-Fi Combination

QUAD and Wharfedale share a long British hi-fi heritage, and the QUAD 3 and LINTON make a particularly natural pairing. The QUAD 3 offers enough power and current delivery to drive the Linton confidently, while the speaker’s 90dB sensitivity makes it relatively easy to drive despite its larger cabinet and 6-ohm nominal impedance.

The result is a system with strong bass, open midrange and a broad, room-filling presentation that works equally well with vinyl and the latest digital sources.

QUAD 3 Integrated Amplifier

The QUAD 3 combines classic styling with a thoroughly modern range of connections. Its 65W per channel Class AB amplifier is backed by a substantial toroidal power supply, while the ESS ES9038Q2M DAC handles digital sources with excellent clarity.

Connectivity is comprehensive and includes Digital Optical, Digital Coaxial, 2 x RCA line inputs, MM phono input, Bluetooth 5.1 with aptX HD, HDMI ARC and USB-B.

The QUAD 3 also includes bass adjustment, QUAD’s signature Tilt control and a dedicated headphone amplifier.

Wharfedale Linton Speakers with matching Linton stands

The Wharfedale Linton is a three-way standmount speaker inspired by the original LINTON models of the 1960s and 1970s. Its large cabinet, wide front baffle and classic proportions give it a distinctive Heritage appearance, while modern driver and crossover design provide a more refined and controlled performance than the original models.

Linton in a genuine 3-Way design and features a 200mm woven Kevlar bass driver, a 135mm woven Kevlar midrange driver and 25mm soft dome tweeter. The large bass driver gives the LINTON excellent low-frequency weight and scale, while the dedicated midrange allows vocals and instruments to sound open and natural.

Strong Bass and Room-Filling Scale

The Linton extends down to around 35Hz at -6dB, giving it considerably more low-frequency authority than a typical compact standmount speaker. Its 90dB sensitivity also helps it produce impressive dynamics without demanding extreme amplifier power.

Heritage Styling

The LINTON is finished in hand-matched wood veneer and retains the classic wide-baffle proportions of the original models.

The matching Linton are designed to position the speakers at the correct listening height while also providing convenient vinyl record storage.

Key Features:

  • 65W per channel into 8 ohms
  • Class AB amplification
  • ESS ES9038Q2M DAC
  • Optical and coaxial inputs
  • Bluetooth 5.1 with aptX HD
  • Built-in MM phono stage

Classic Scale with Modern Flexibility

The QUAD 3 and Wharfedale LINTON package is ideal for listeners who want the warmth, scale and presence of a larger Heritage loudspeaker together with modern digital convenience.

The QUAD 3 provides amplification, HDMI TV connectivity, high-resolution digital audio, Bluetooth and vinyl playback, while the LINTON adds deep bass, a generous soundstage and the relaxed musical character that has made it one of Wharfedale’s most popular Heritage models.

It is a particularly strong choice for medium to larger rooms where a fuller, more substantial presentation is preferred.

High Quality Speaker Cables Included

This bundle includes a 3m pair of QED XT25 factory-terminated speaker cables worth £89.95 free of charge. (please contact us if you need longer cables)

Specifications

Specifications



Quad 3 Integrated Specifications

General Description

Integrated Amplifier

Design Philosophy and Core Technology

2 x 65W (8 ohm), 2 x 100W (4 ohm)
Class AB power amp section
ES9038Q2M 32-bit DACBluetooth 5.1 (aptX/aptX HD) Streaming
Dedicated High Performance Low Noise MM Phono stage
Dedicated Current-Feedback Headphone Amplifier
Built-in Bass and Tilt adjustment
USB Firmware Upgrade
2 x Analogue (Aux), 1 x Phono (MM) inputs

Inputs

1 x SPDIF (Coax), 1 x SPDIF (Optical), 1 x PC USB
1 x HDMI ARC, 1 x Bluetooth (aptX/aptX HD), 1 x 12V Trigger

Outputs

1 x Pre Amplifier,1 x Stereo Speaker,1 x Headphone, 1 x 12V Trigger

Preamplifier Section



Gain (max.)

+0dB (Line), +47dB (Phono MM)

Input Sensitivity

800mVrms (Line, Volume = 0dB), 3.6mV (Phono MM, Volume = 0dB)

Input Impedance

10K (Line), 47K / 100pF (Phono MM)

Total Harmonic Distortion (THD)

<0.001% (1kHz @ 2V, Volume = 0dB)

Frequency Response

20Hz-20kHz (+/-0.1dB)

Output Voltage

2.3V max. (Volume = 0dB)

Output Impedance

120Ω

Signal-to-Noise Ration (S/N)

>110dB (Line, A-weighted); > 78dB (Phono MM, A-weighted)

DAC



D to A converter

ES9038Q2M

Total Harmonic Distortion (THD)

<0.001% (1KHz @ 0dBFS)

Output level (0dBFS, 1KHz)

2.05V

Max. Sampling Frequency

Optical/Coaxial: 192kHz, PC USB: PCM768kHz, DSD512

Signal-to-noise ratio (S/N)

> 116dB (A-weighted)

Power Amplifier Section



Gain

+29dB

Rated Power Output

2 x 65W (8 ohms, THD<1%); 2 x 100W (4 ohms, THD<1%)

Frequency Response

20Hz-20kHz (+/-0.3dB)

Total Harmonic Distortion (THD)

<0.003% (1kHz @ 30W / 8 ohms)
720mV

Signal-to-Noise ratio (S/N)

> 110dB (A-weighted)

Max. Output Current

10A

General

Standby Power Consumption

<0.5W

Net weight

8kg

Gross weight

9.3kg

Power requirements (depending on region)

220-240V ~ 50/60Hz, 100-120V ~ 50/60Hz

Standard accessories

Power Cord, Remote Control,User Manual, 2 x AAA batteries



Wharfedale Linton Specifications

Enclosure Type

Bass reflex

Transducer Complement

3-way

Bass Driver

8" (200mm) black woven Kevlar® cone

Midrange Driver

5" (135mm) black woven Kevlar® cone

Treble Driver

1" (25mm) soft dome tweeter

AV Shield

No

Sensitivity (2.83V @ 1M)

90dB

Recommended Amplifier Power

25-200W

Peak SPL

110dB

Nominal Impedance

6Ω Compatible

Minimum Impedance

3.5Ω

Frequency Response (+/-3dB)

40Hz ~ 20kHz

Bass Extension (-6dB)

35Hz

Crossover Frequency

630Hz,2.4kHz

Dimensions With Stand (HxWxD)

1002 x 300 x 330 mm

Dimensions Without Stand (HxWxD)

565 x 300 x 330 (+30 inc terminals) mm

Net Weight

18.4kg/pcs
