Rotel A10 MKII Integrated Amplifier

Description

Rotel A10 MKII Integrated Amplifier

The Rotel A10 MKII is a straightforward, high-quality integrated amplifier designed for listeners who want genuine hi-fi performance without unnecessary complexity.

Built around a substantial Rotel-made toroidal transformer and traditional Class AB amplification, the A10 MKII delivers 50 watts per channel into 8 ohms and 60 watts per channel into 4 ohms. With three analogue line inputs, a built-in moving magnet phono stage and a dedicated headphone amplifier, it is an excellent choice for a simple music system built around vinyl, CD or a separate streamer.

50W Class AB Amplification

At the heart of the A10 MKII is a carefully engineered Class AB amplifier stage powered by a high-current linear power supply. A large Rotel-built toroidal transformer provides clean, stable power to the amplifier section, helping the A10 MKII maintain control and composure across a wide range of music.

Power output is rated at 50 watts per channel into 8 ohms, increasing to 60 watts per channel into 4 ohms, making it well suited to many bookshelf and compact floorstanding speakers.

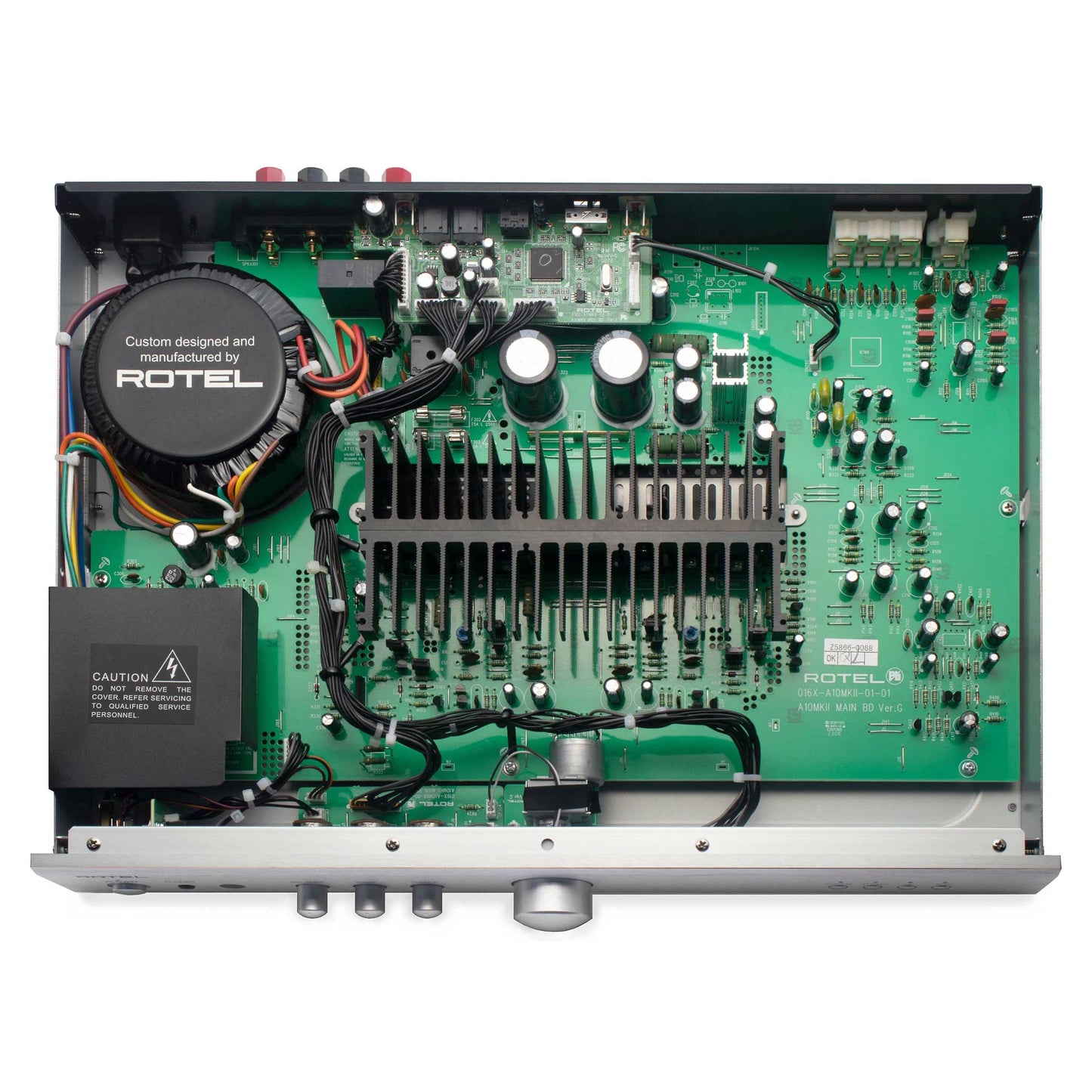

Rotel-Built Toroidal Transformer

Rotel has long placed particular importance on power supply design, and the A10 MKII continues that approach. Its oversized toroidal transformer is manufactured to Rotel’s own specification and forms the foundation of the amplifier’s clean, controlled sound. Combined with carefully selected components throughout the signal path, it helps deliver the dynamic response and musicality expected from a traditional Rotel integrated amplifier.

Built-In Moving Magnet Phono Stage

Vinyl listeners are well catered for with a dedicated moving magnet phono input. A compatible turntable can connect directly to the A10 MKII without requiring a separate phono preamplifier, making it easy to build a compact and straightforward vinyl system.

The phono input offers a wide 20Hz–20kHz frequency response and low-noise performance designed to preserve the detail and character of your records.

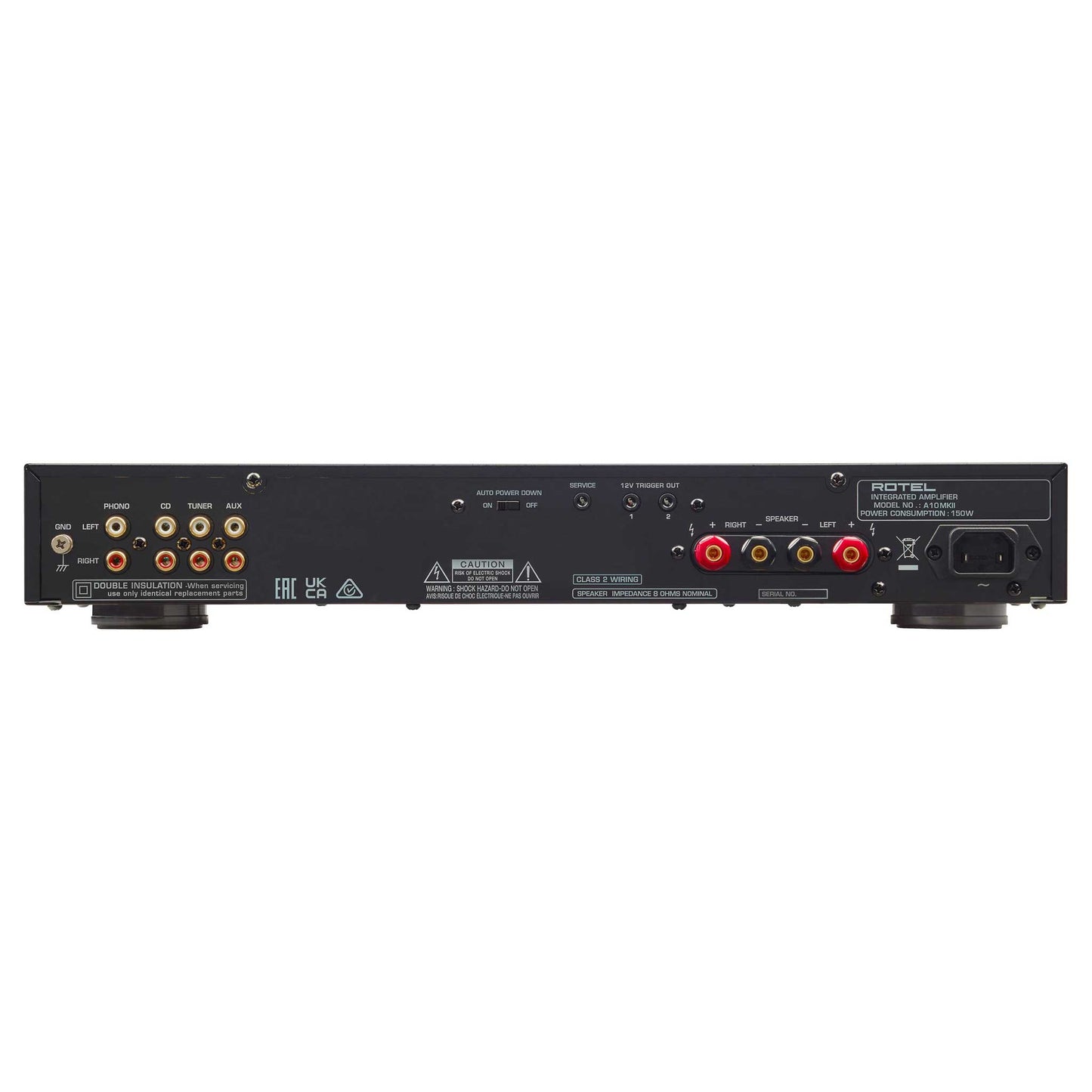

Three Analogue Line Inputs

The A10 MKII provides three stereo RCA line-level inputs, giving you space to connect traditional hi-fi sources such as a CD player, tuner, network streamer or DAC.

By concentrating on analogue connectivity rather than adding digital circuitry or streaming features, Rotel has been able to keep the A10 MKII simple and focused on the core job of amplification.

Dedicated Headphone Amplifier

A front-panel 3.5mm headphone output is supported by its own dedicated headphone amplifier circuit. This makes the A10 MKII equally useful for private listening, allowing you to enjoy connected sources through wired headphones without needing a separate headphone amplifier.

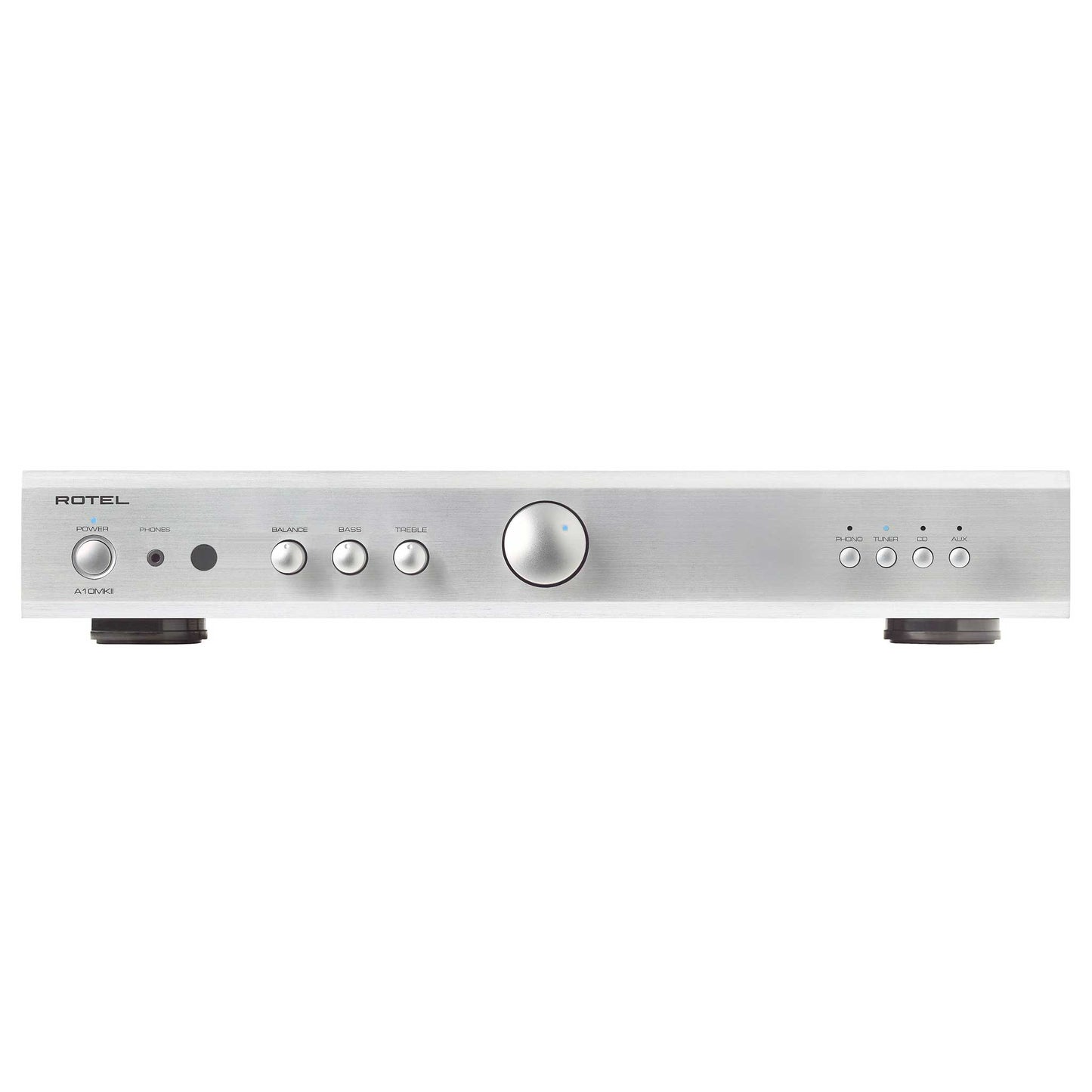

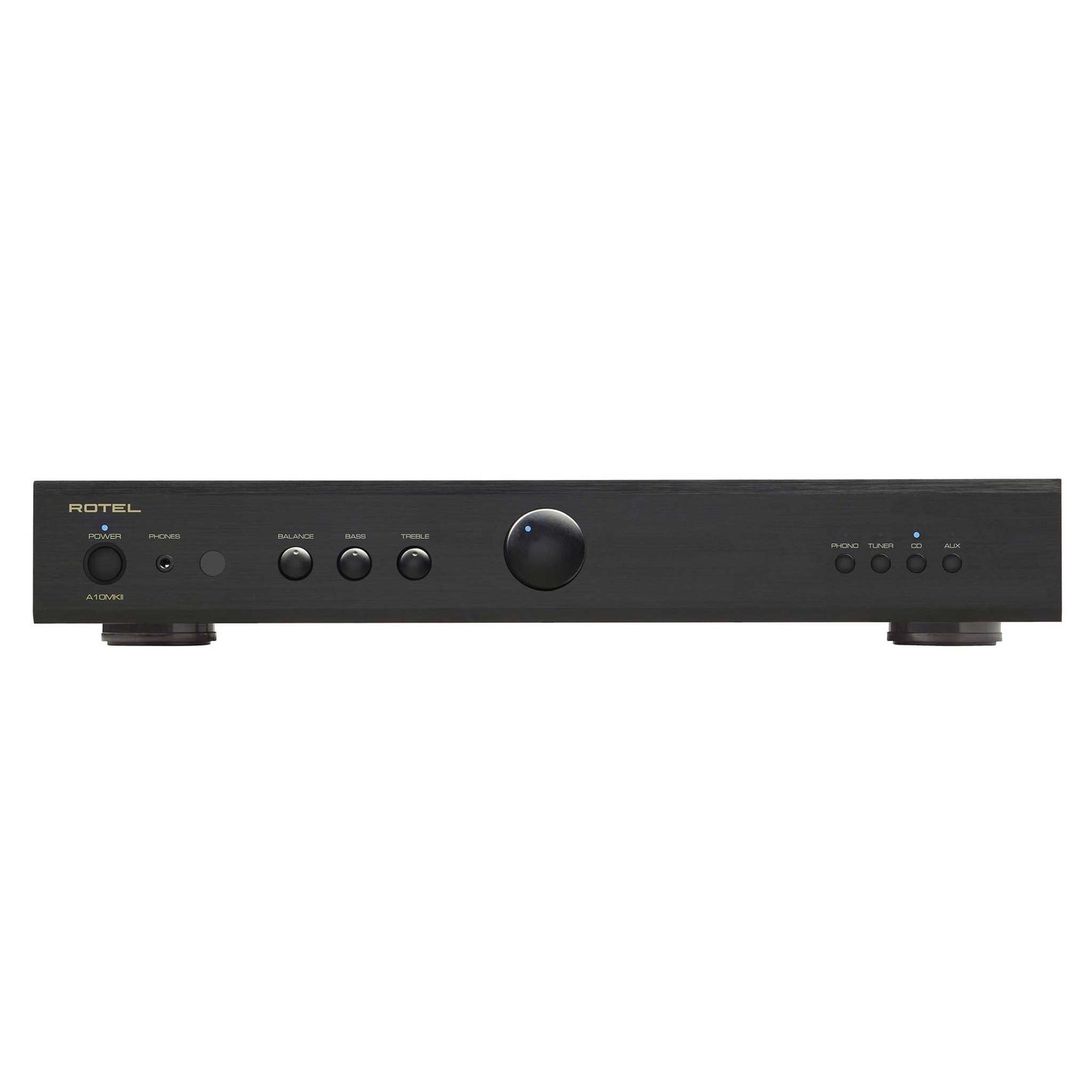

Bass, Treble and Balance Controls

Traditional rotary Bass, Treble and Balance controls allow the sound to be adjusted to suit your speakers, room or personal preference. Bass and treble adjustment is available over a ±6dB range, providing useful flexibility for real-world listening without making operation unnecessarily complicated.

Motorised Volume Control and Remote

The A10 MKII combines classic analogue operation with modern convenience. A motorised analogue volume control gives the amplifier a traditional tactile feel, while the supplied infrared remote allows volume and other everyday functions to be controlled from the listening position.

Slim, Understated Rotel Styling

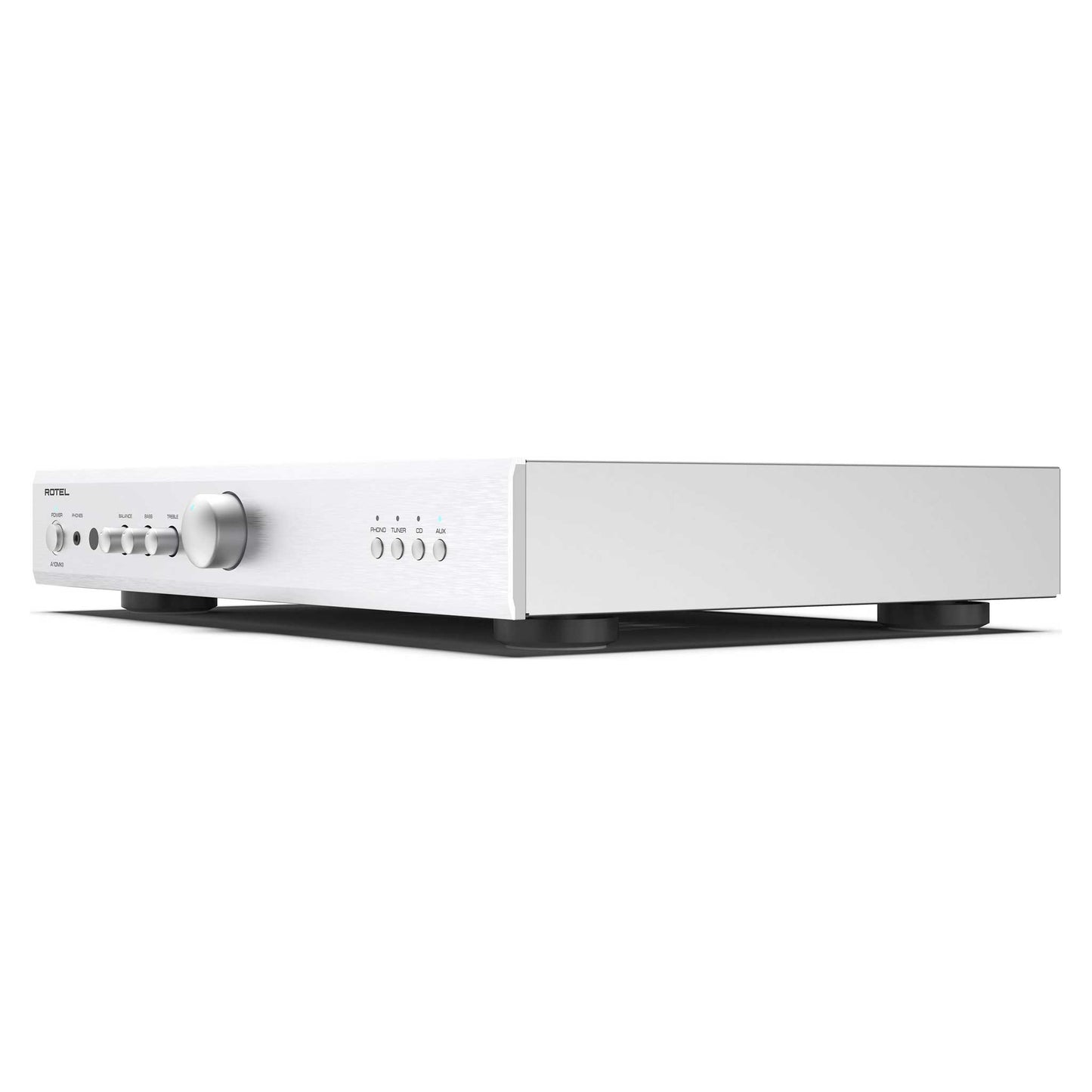

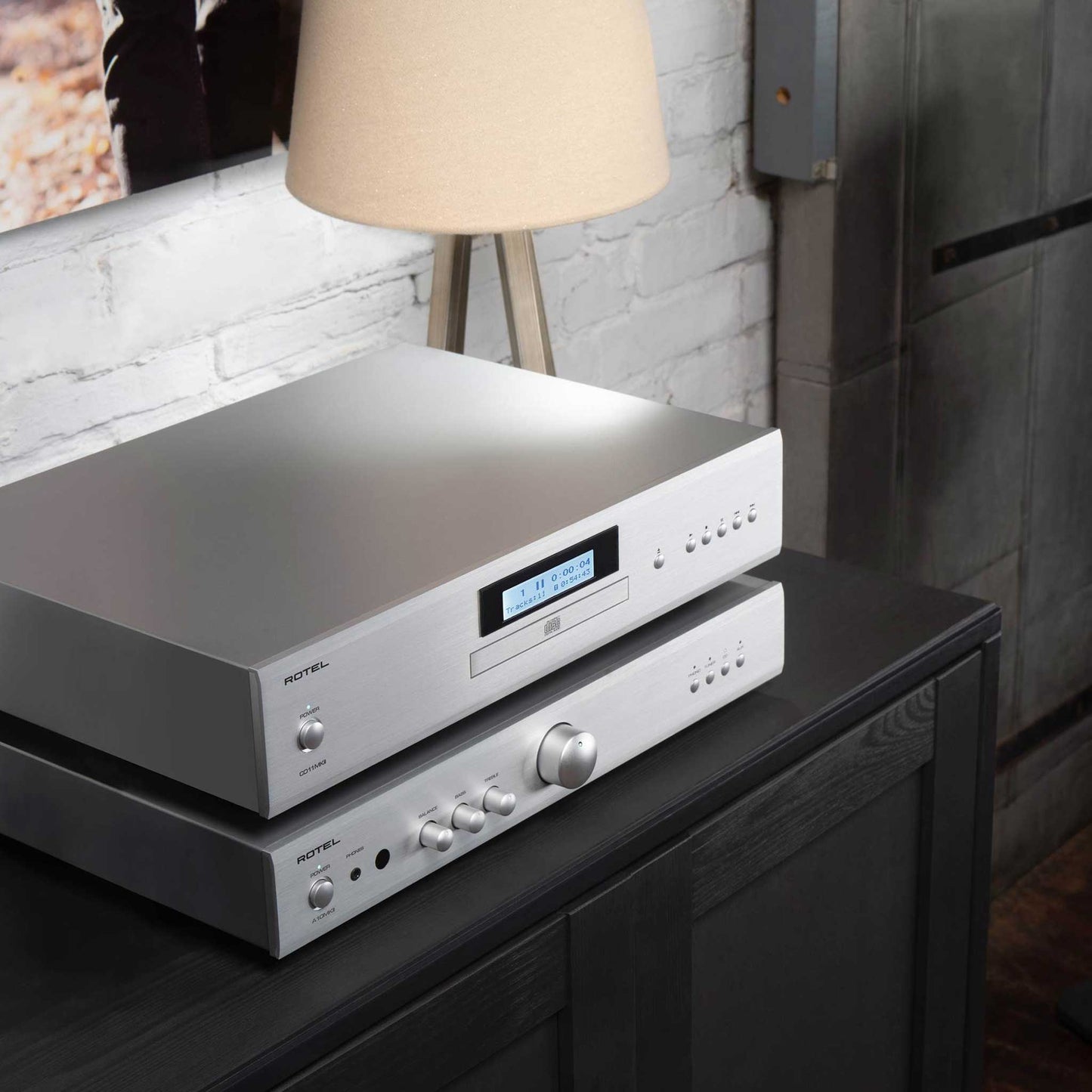

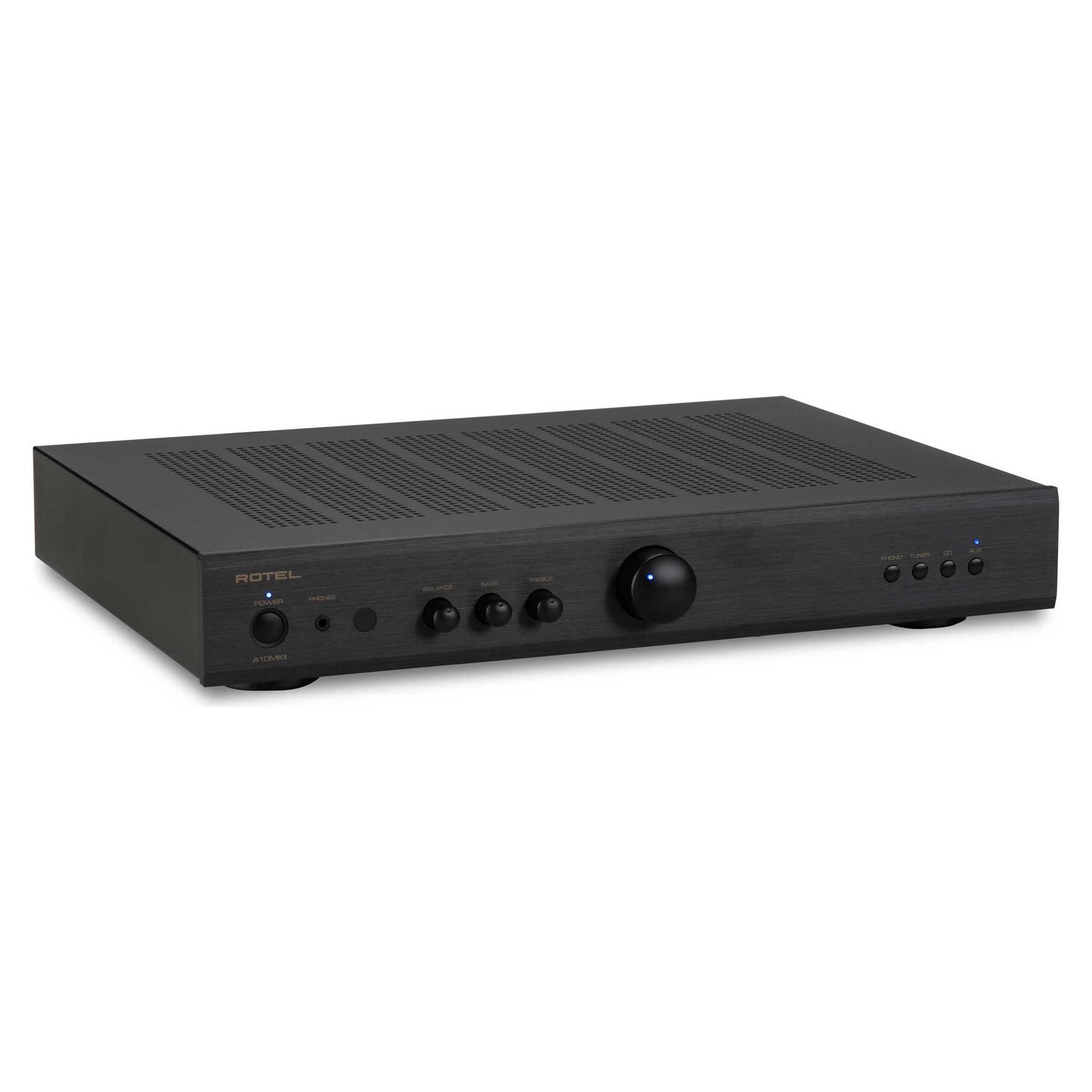

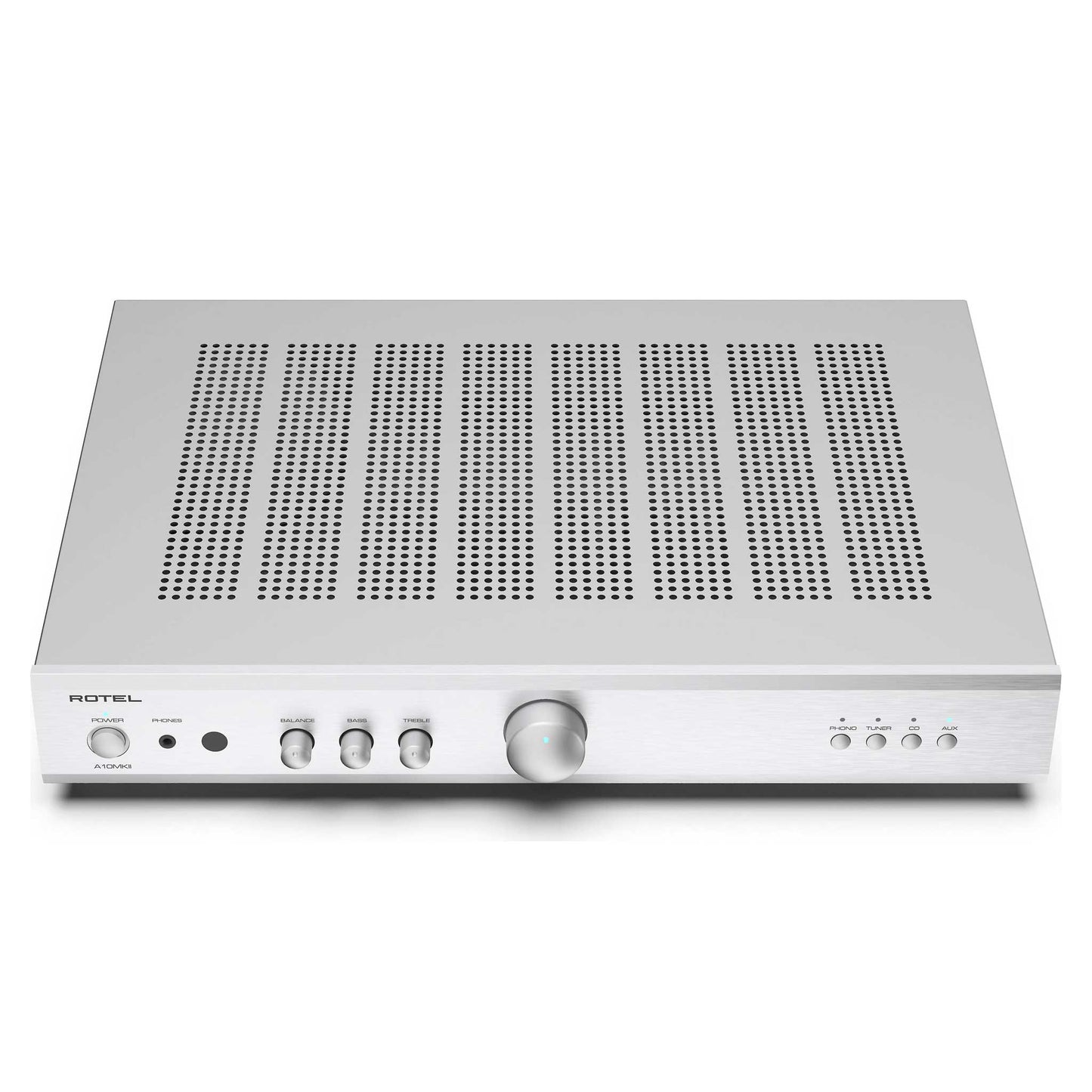

At just 73mm high, the A10 MKII has a slim, unobtrusive profile that fits easily into most hi-fi racks. Available in Black or Silver, its clean front panel and simple control layout make it a natural match for Rotel CD players, tuners and other separates.

Key Features:

• Class AB integrated amplifier
• 2 x 50W into 8 ohms / 2 x 60W into 4 ohms
• Rotel-built toroidal transformer
• Built-in moving magnet phono stage
• Dedicated headphone amplifier
• Remote control supplied
• Available in Black or Silver

Simple Analogue Hi-Fi Done Properly

The Rotel A10MKII is an excellent choice for anyone looking for a traditional integrated amplifier that concentrates on the essentials.

Its combination of Class AB amplification, a substantial toroidal power supply, MM phono stage and straightforward analogue connectivity makes it particularly well suited to vinyl, CD and streamer-based systems where simplicity and sound quality matter more than built-in digital features.
