Rotel

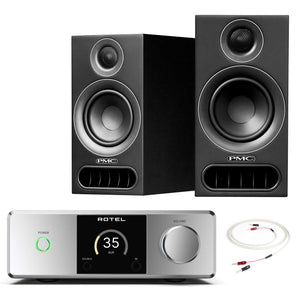

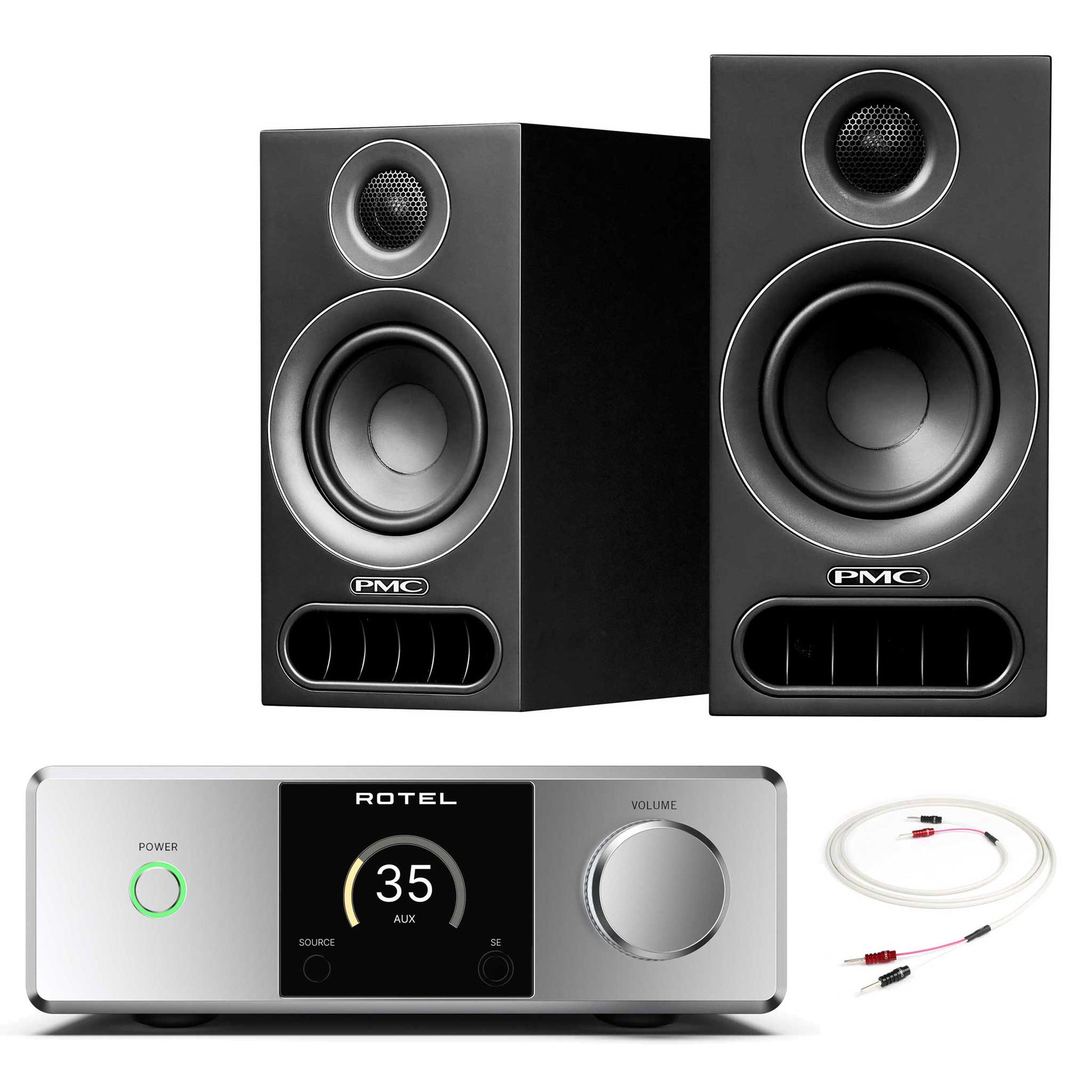

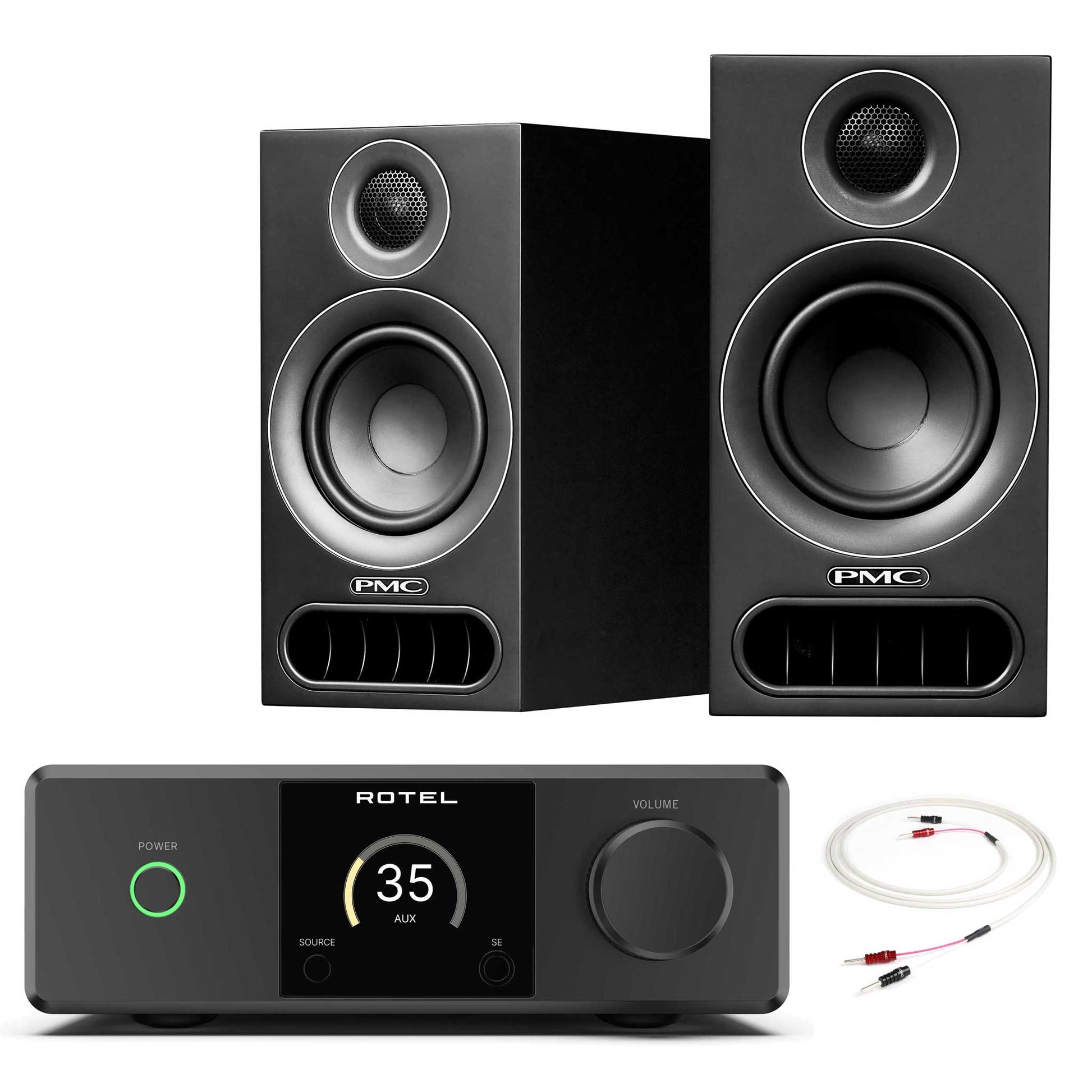

Rotel DX-5 + PMC prodigy1 + Cables

Rotel DX-5 + PMC prodigy1 + Cables

Regular price £2,399.00
Regular price £2,649.00 Sale price £2,399.00
-9% Sold out
Shipping calculated at checkout.
2 in stock
  • free chord rumourxpre-terminated speaker cables
  • free deivery2-3 days

View full details

Details

Description

Rotel DX-5 + PMC Prodigy1 + Chord RumourX Speaker Cables

The Rotel DX-5 is a compact, high-performance integrated stereo amplifier designed to deliver refined sound and modern flexibility in a single, elegant component. Combining premium Class AB amplification, aptX HD Bluetooth wireless streaming, a high-quality built-in DAC and a dedicated headphone output, the DX-5 is the perfect choice for those wanting a high performance, versatile amplifier that looks stylish and doesn’t require too much space.

At its core, the DX-5 features carefully engineered amplification that delivers clean, dynamic power with excellent control and musicality. Whether driving bookshelf or floorstanding loudspeakers, it offers a balanced, engaging sound signature that remains detailed and composed across the frequency range.

The integrated DAC supports high-resolution digital audio and allows direct connection to computers, streamers, CD transports, and TVs, ensuring accurate digital-to-analogue conversion with low noise and precise timing. For personal listening, the front-panel headphone output is driven by a dedicated amplification stage, capable of powering a wide range of headphones with clarity and authority.

Housed in a solid, space-efficient aluminium chassis, the DX-5 reflects Rotel’s minimalist industrial design and long-standing commitment to build quality. Intuitive front-panel controls, a clear display, and versatile rear-panel connectivity make it easy to integrate into both modern and traditional audio setups.

Compact yet capable, the Rotel DX-5 is an ideal all-in-one solution for music lovers seeking premium stereo amplification, high-quality digital playback, and headphone listening in a single refined unit.

PMC prodigy1 Bookshelf Speakers

Experience unmatched clarity and depth with the PMC prodigy1 speakers. Compact yet powerful, these bookshelf speakers feature advanced ATL™ (Advanced Transmission Line) bass technology, helping them to deliver studio-grade sound with exceptional detail, dynamic range, and bass performance far beyond the normal expectations for a speaker of this size.

Perfectly suited for both intimate listening and larger spaces, the prodigy1 brings true audiophile performance to your home.

High Quality Speaker Cables Included

Package includes a Free 2m pair of Chord RumourX  factory-terminated speaker cables worth £194 (see below). Please contact us if you need longer cables.

Specifications

Specifications



Rotel DX-5 Specifications

Continuous Power Output

33 W / ch, (1k Hz, 4 Ω)

25 W / ch (1k Hz, 8 Ω)

Total Harmonic Distortion (THD)

< 0.03%

Intermodulation Distortion (60Hz:7kHz, 4:1)

< 0.03%

Frequency Response

Digital section 10 Hz – 80k Hz    (0 ± 2 dB, Max)

Analogue section 10 Hz – 100k Hz (0 ± 0.19 dB)

Damping factor

140

Input Sensitivity / Impedance

Digital section -10.3 dBFS / 75 Ω

Analogue section 680 mV / 100k Ω

Input Overload

Analogue section 4.2 V

Signal to Noise Ratio   > 100 dB (IHF “A” weighted)

1.2V

Tone Controls - Bass / Treble

±10 dB at 100Hz / 10kHz

Signal to Noise Ratio (IHF “A” weighted)

Digital section > 100 dB

Analogue section > 100 dB

Digital Inputs

SPDIF LPCM    (up to 24-bit / 192k Hz )

PC-USB

USB Audio Class 2.0   (up to 32-bit / 384k Hz )*   *Driver installation required

Support DSD (up to 4X, 11.2M Hz) and DoP (up to 2X, 5.6M Hz)

Roon tested

Yes

HDMI

Support ARC function

General

-

Power Requirements (AC)

230V, 50Hz (Europe)

Power Consumption

80Watts

Standby Power Consumption 0.5W

<0.5Watts

Dimensions (W x H x D)

215 x 76 x 251 mm

Panel Height

70mm

Weight (Net)

4.1 kg

Finishes

Black, Silver



PMC prodigy1 Specifications

Available Finishes

Silk Black

Crossover Frequency

1.7kHz

Dimensions

H 320mm x W 165mm x D 237mm (+10mm with optional grille)

Drive Units

LF PMC 5.25”/133mm natural fibre long-throw LT™

HF PMC 1"/27mm soft dome

Effective ATL™ Length

1.91m

Frequency Response

50Hz - 25kHz

Impedance

6 Ohm

Input Connectors

One pair 4mm binding posts

Sensitivity

87.5dB 1W 1m

Peak SPL

123dB

Weight

4.5kg each

Recommended Amp Power

20-250w

Options

prodigy1 grille

Special Offers

Free Speaker Cables Worth £194

Package includes a Free 2m pair of Chord RumourX Factory terminated speaker cables worth £194 (see below). Should you need longer cables please contact us on 01932 851121 or by email
