Rotel RAS-5000 Streaming Amplifier
For over six decades Rotel has been engineering, manufacturing, and delivering audio products built to the highest standards of quality, with extraordinary performance and exceptional value.
Their latest offering, the RAS-5000 streaming integrated amplifier, takes this heritage and blends it with the very latest technology. Stream your favourite music from Spotify Connect, Tidal Connect, Internet Radio, or any service available on your computer, tablet, or mobile device via Airplay 2, Google Chromecast, Roon, or aptX™ HD Bluetooth.

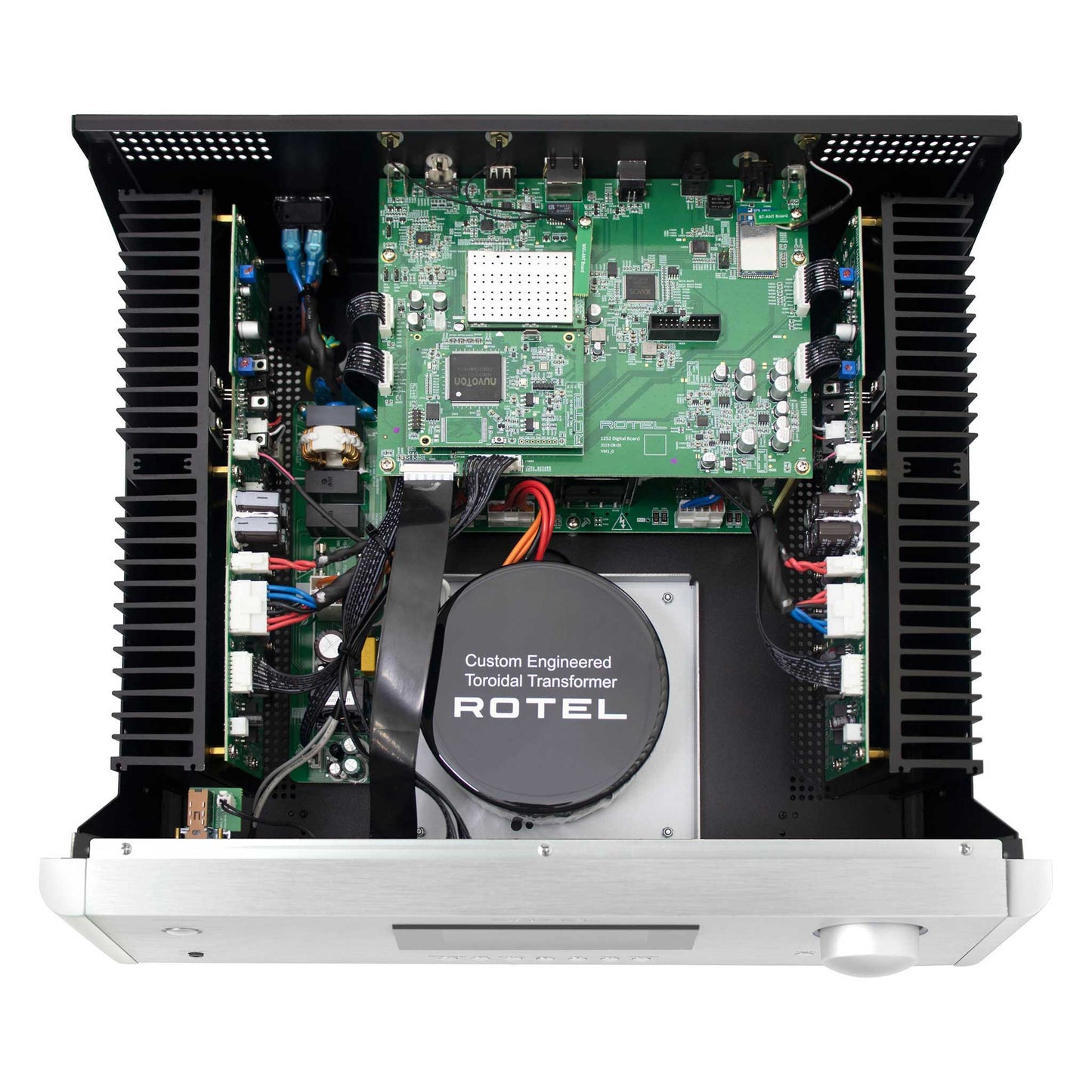

Like all Rotel amplifiers, the RAS-5000 is constructed around a massive linear power supply featuring a custom toroidal transformer, this allows the RAS-5000 to deliver a staggering 220 watts of Class AB power into 4 ohms – more than enough power to drive even the most demanding speakers. The overengineered power supply delivers ultra low-noise power to all critical components and robust current to the amplifier output transistors to deliver deep, controlled bass energy with exceptional fidelity. The RAS-5000 also features an HDMI ARC (Audio Return Channel) port to allow simple connection to modern TVs.

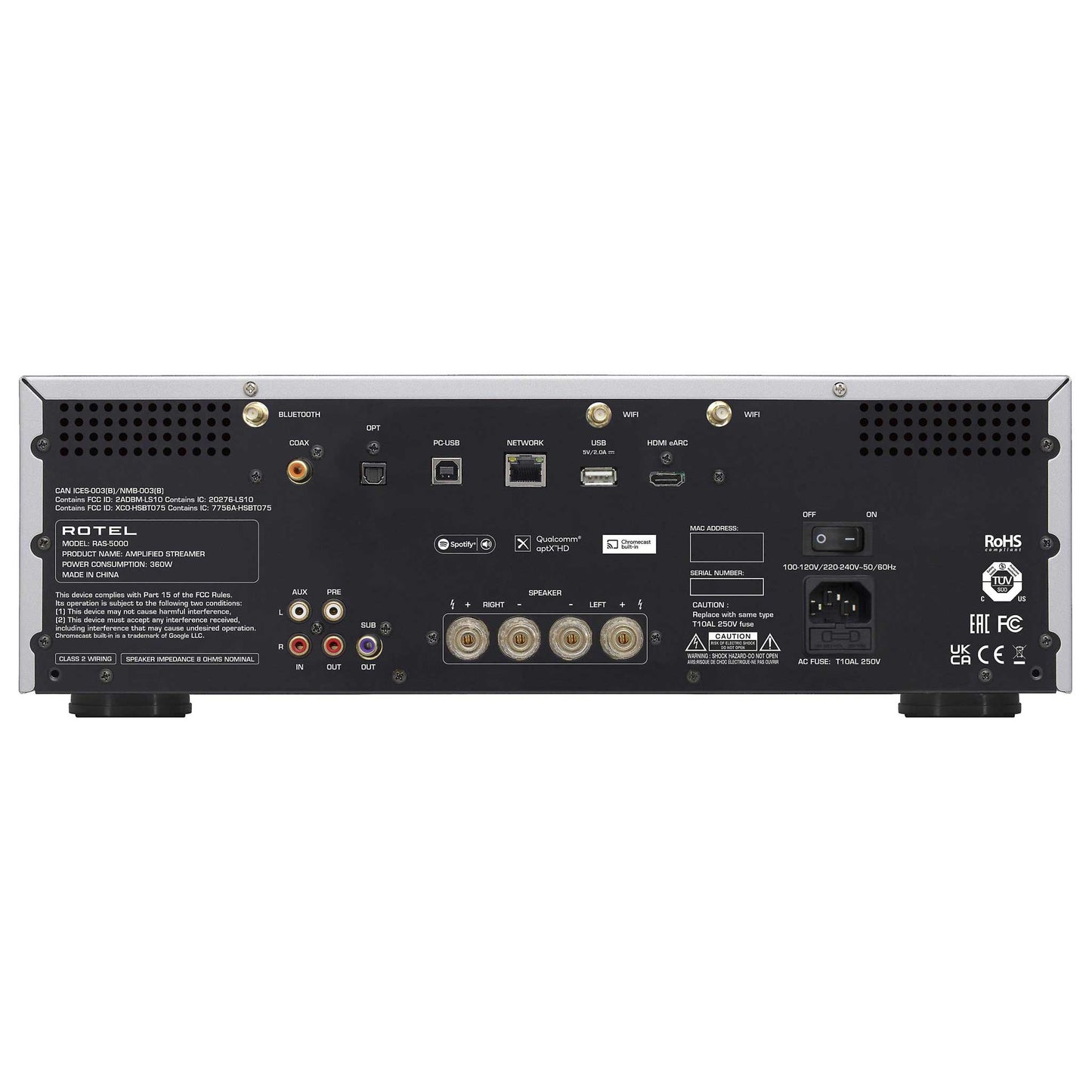

The RAS-5000 is the perfect fusion of advanced audio technology coupled with modern convenience. In addition to streaming and HDMI ARC you’ll also enjoy a wide array of traditional source inputs including Coaxial, Optical and RCA Analogue inputs.
The PC-USB input supports PCM and native MQA and MQA Studio decoding. Digital music files up to 32-bit, 384kHz resolution are rendered with ultimate precision thanks to the premium ESS Digital to Analogue converter.

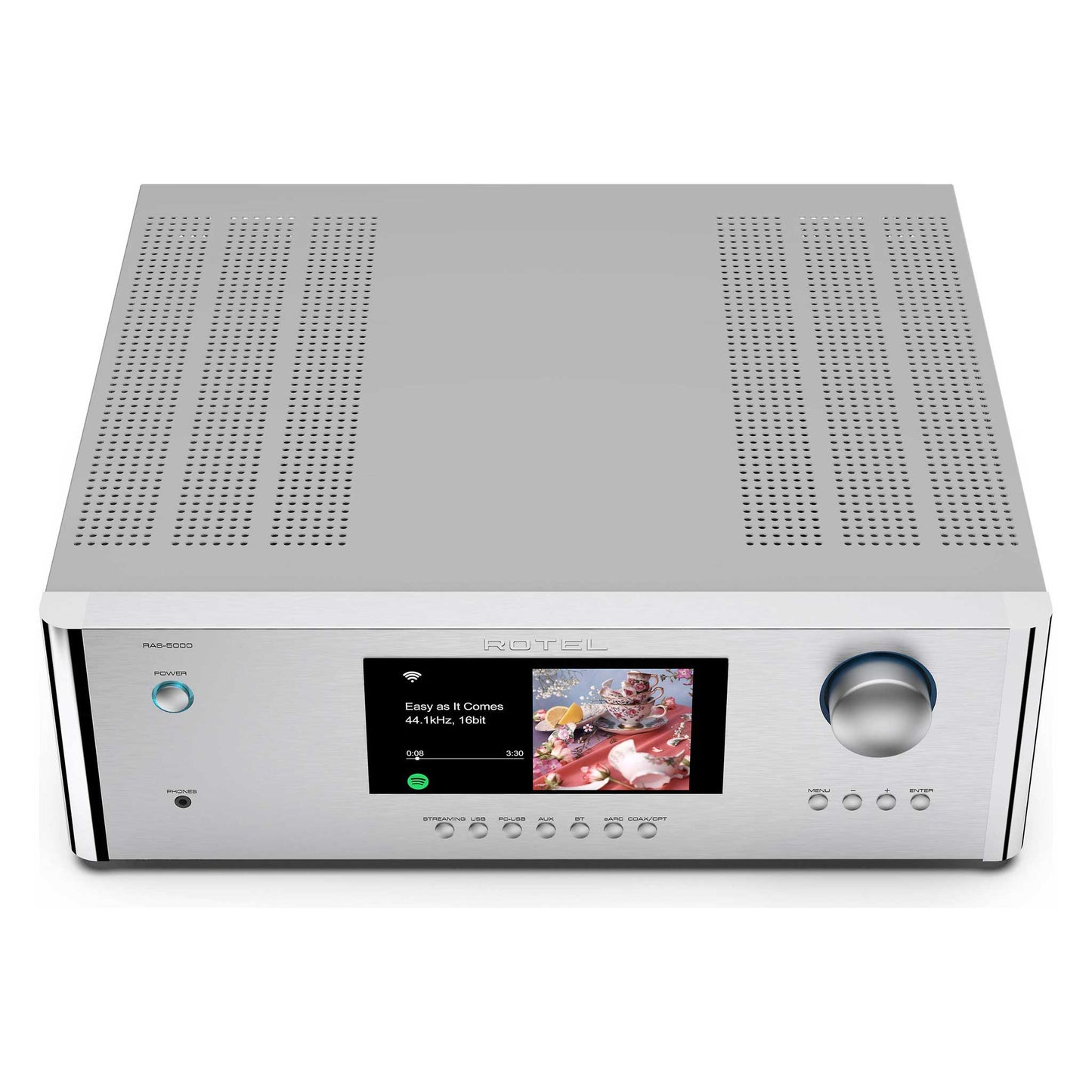

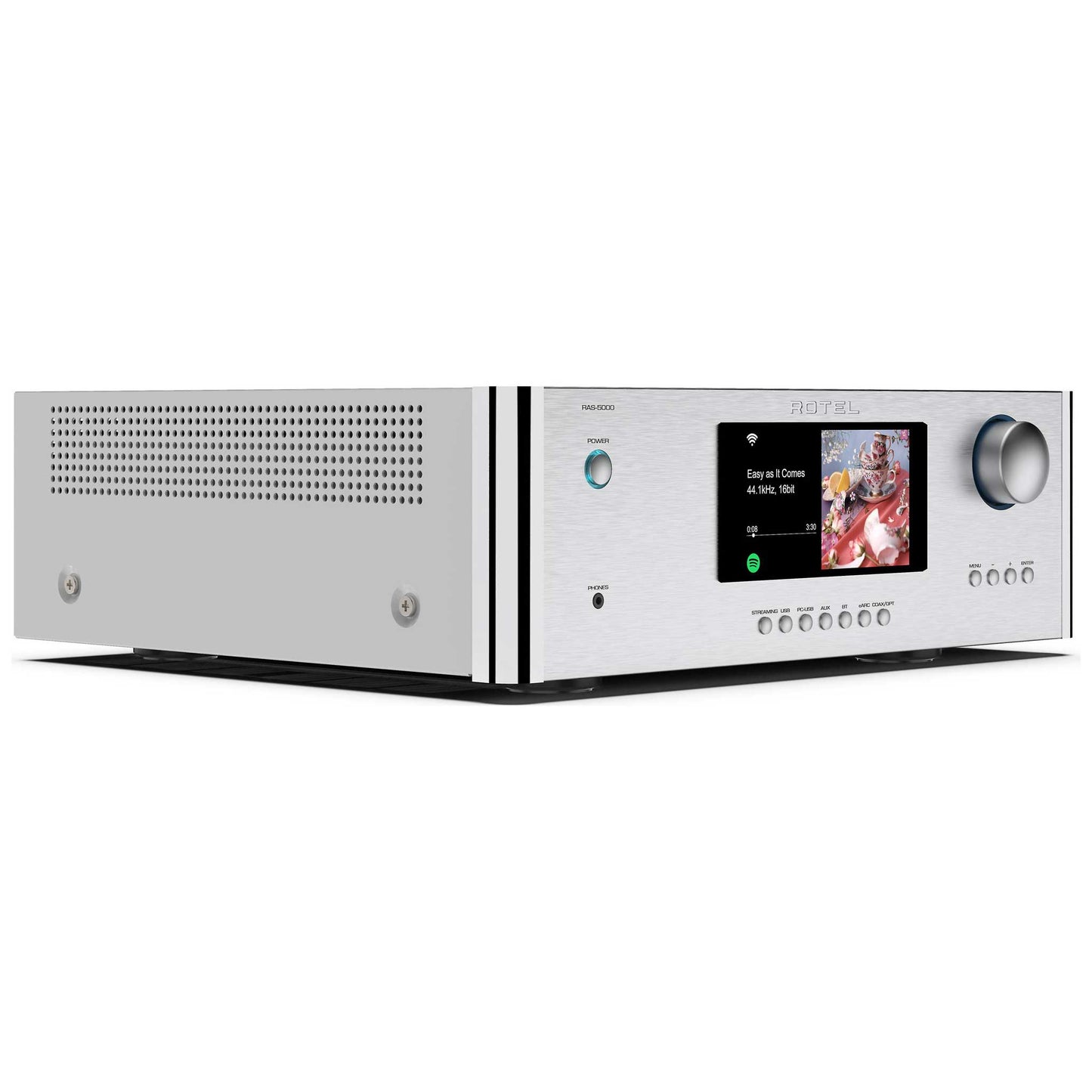

The Rotel RAS-5000 doesn’t only sound superb, it looks the part too, boasting high quality construction, premium materials and a sleek, luxurious design. A high-resolution colour display shows current unit status, streaming source information, and album art on supported source inputs as well as access to the setup and configuration menus.
Enhance and simplify your home entertainment experience without compromise today with the Rotel RAS-5000 and immerse yourself in exceptional sound.
Specifications
Specifications
|
Model |
RAS-5000 |
|
Continuous Power Output |
140 Watts/ch (8Ω) 220 Watts/ch (4Ω) |
|
Total Harmonic Distortion (THD) |
< 0.03% at rated power |
|
Intermodulation Distortion (60Hz:7kHz, 4:1) |
< 0.03% at rated power |
|
Damping Factor |
290 |
|
Frequency Response |
Digital Inputs: 10Hz - 70kHz ±3.0dB Line Level Inputs 10Hz-100kHz, ±0.5dB |
|
Input Sensitivity / Impedance |
Line Level Inputs (RCA) 0.78v / 46k Ohms Digital Level Inputs: -8dBfs / 75 Ohms |
|
Input Overload |
Line Level Inputs 4.1V |
|
HDMI |
ARC/eARC |
|
Tone Controls - Bass / Treble |
±10 dB at 100Hz / 10kHz |
|
Signal to Noise Ratio (IHF “A” weighted) |
Line Level Inputs 103dB Digital inputs 105dB |
|
Coax/Optical Input Signals |
SPDIF LPCM (up to 24-bit/192kHz) |
|
PC-USB |
USB Audio Class 2.0 (up to 24-bit/384kHz)* *Driver installation required MQA and MQA Studio (up to 24-bit/384kHz ) |
|
General |
- |
|
Power Requirements (AC) |
230V, 50Hz (Europe) |
|
Power Consumption |
380Watts |
|
Standby Power Consumption 0.5W |
<0.5Watts |
|
Dimensions (W x H x D) |
431 x 144 x 425mm |
|
Panel Height |
132.6mm |
|
Weight (Net) |
15.7 kg |
|

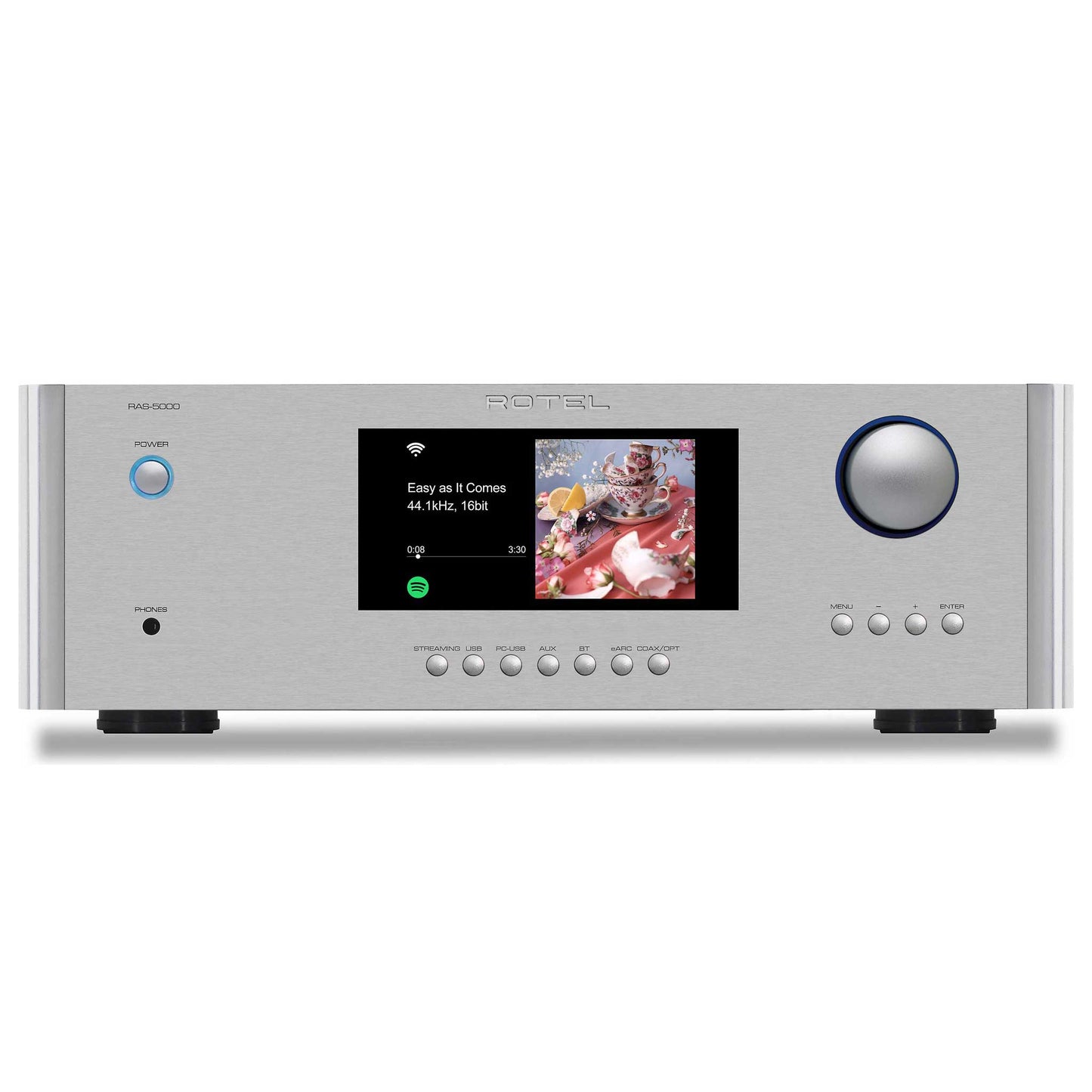

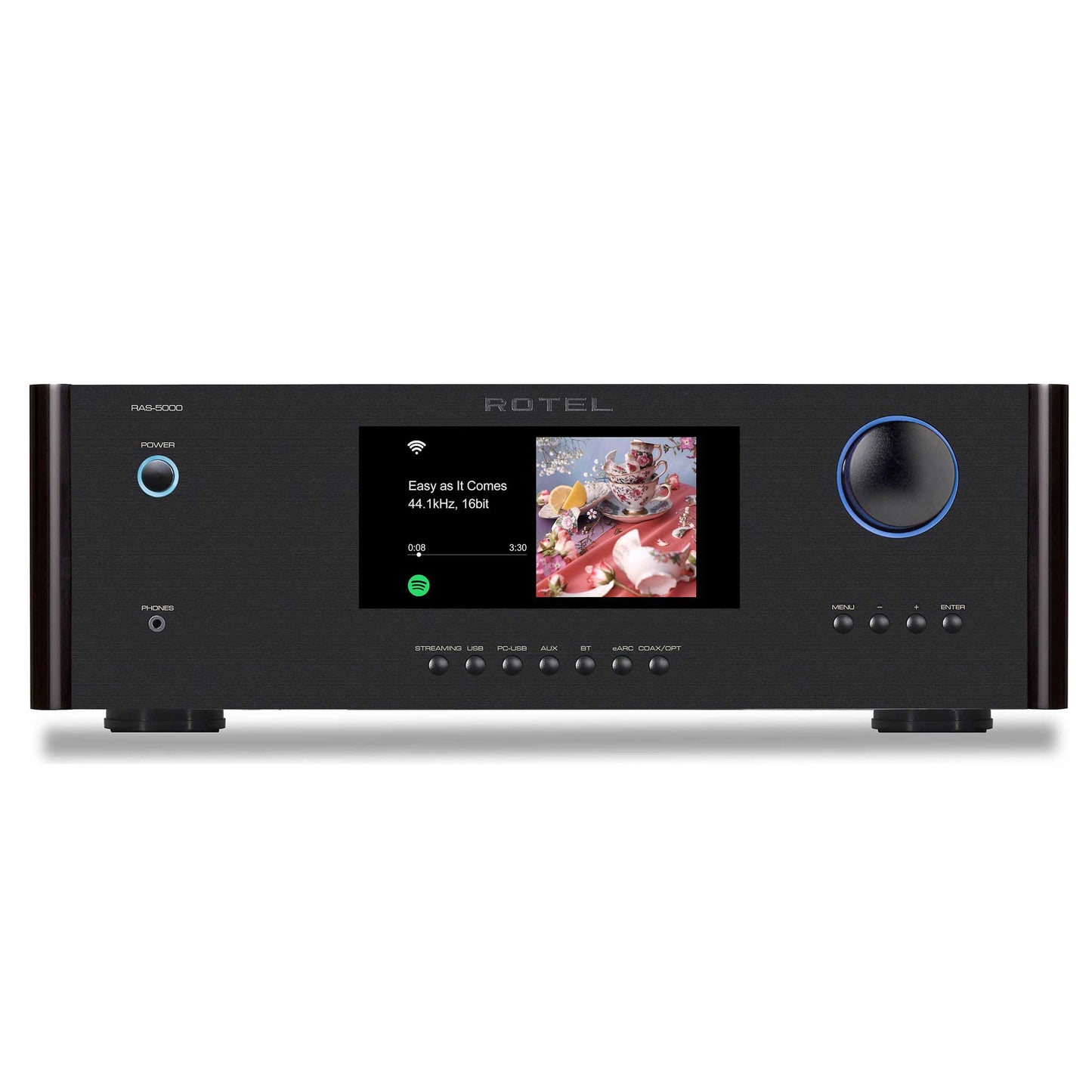

Finishes |
Black, Silver |
