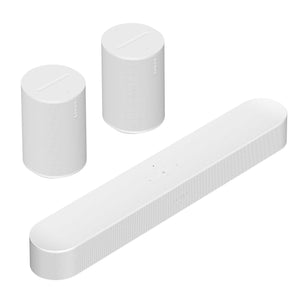

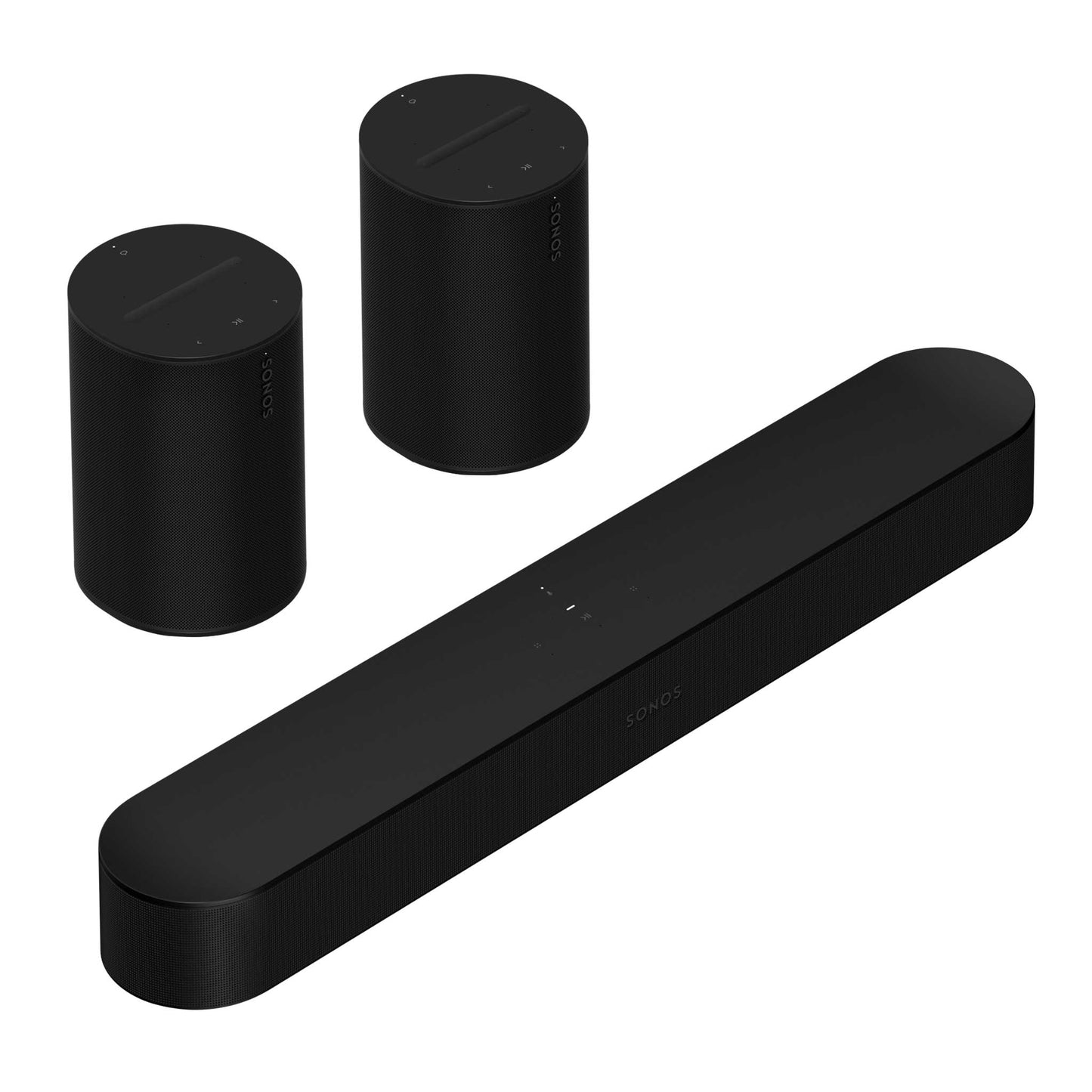

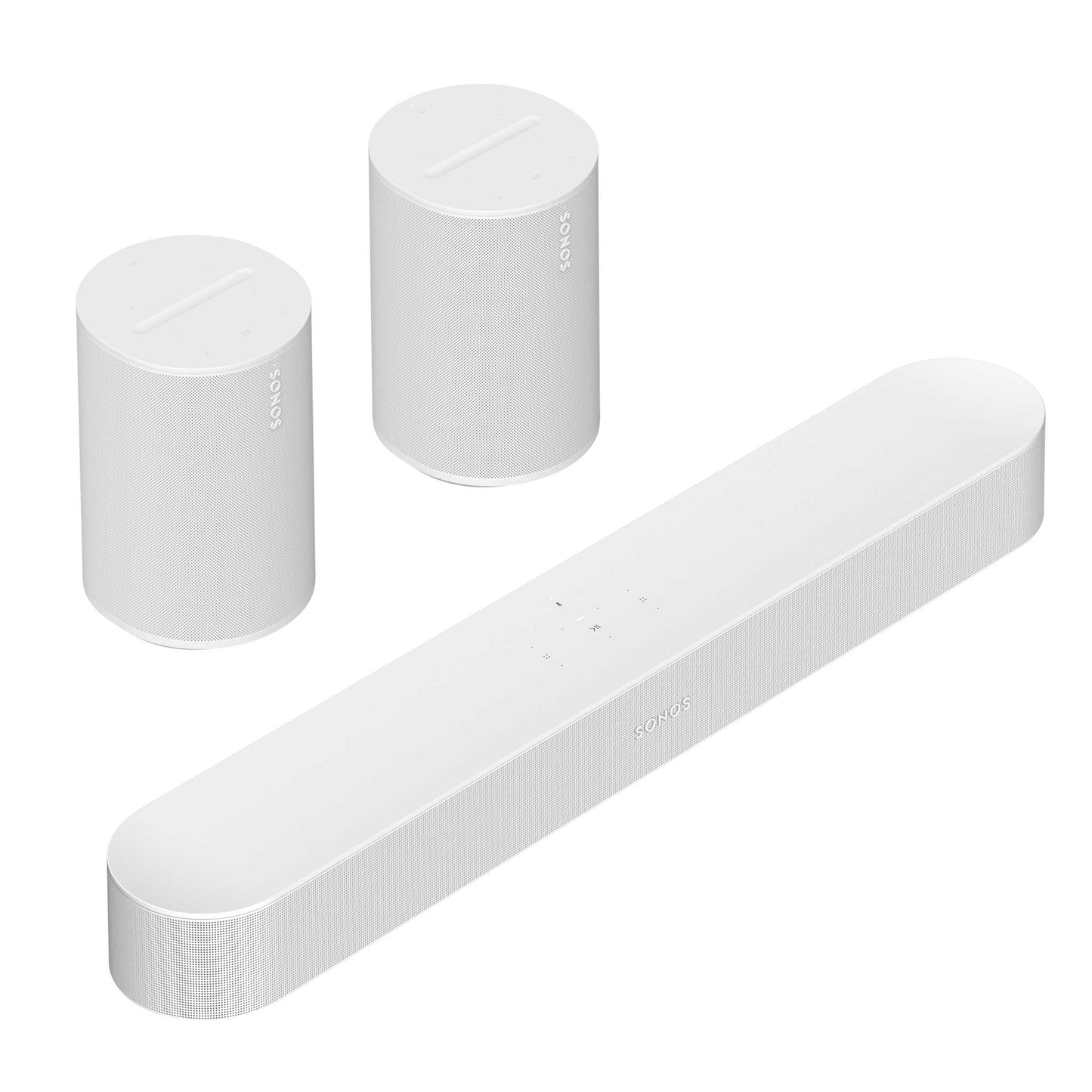

Sonos BEAM Gen 2 Surround Set

Sonos BEAM Gen 2 Compact Soundbar With Voice Control

Audio

Four full-range woofers ensure you’ll hear the faithful playback of mid-range vocal frequencies plus deep, rich bass.

One centre tweeter creates a crisp and clear dialogue.

Three passive radiators help move air around inside the compact Sonos Beam and add warm sound to the bass.

Adjustable bass and treble controls let you customise your sound by individual room or groups of rooms.

Five Class-D digital amplifiers perfectly tuned to match the speaker drivers and acoustic architecture.

Five far-field microphone array uses for advanced beamforming and multi-channel echo cancellation.

When the microphone LED is on, Alexa is ready for a voice command. When the light is off, the microphone is off.

Power & Networking

Power supply - Auto-switching 100-240 V, 50-60 Hz AC universal input.

Ethernet port - One 10/100 Mbps Ethernet port. Wire directly to your router to operate your Sonos if WiFi is unstable.

WiFi - Connects to your home WiFi network with any 802.11b/g, 2.4 GHz broadcast-capable router for uninterrupted wireless streaming. Connects directly via rear surrounds or Sonos Sub to 5 GHz broadcast.

AirPlay 2 compatible - Works with AirPlay on Apple devices [iOS 11.4 and higher]

General

Dimensions - W x H x D - 651 x 69 x 100 mm

Weight - 2.8 kg

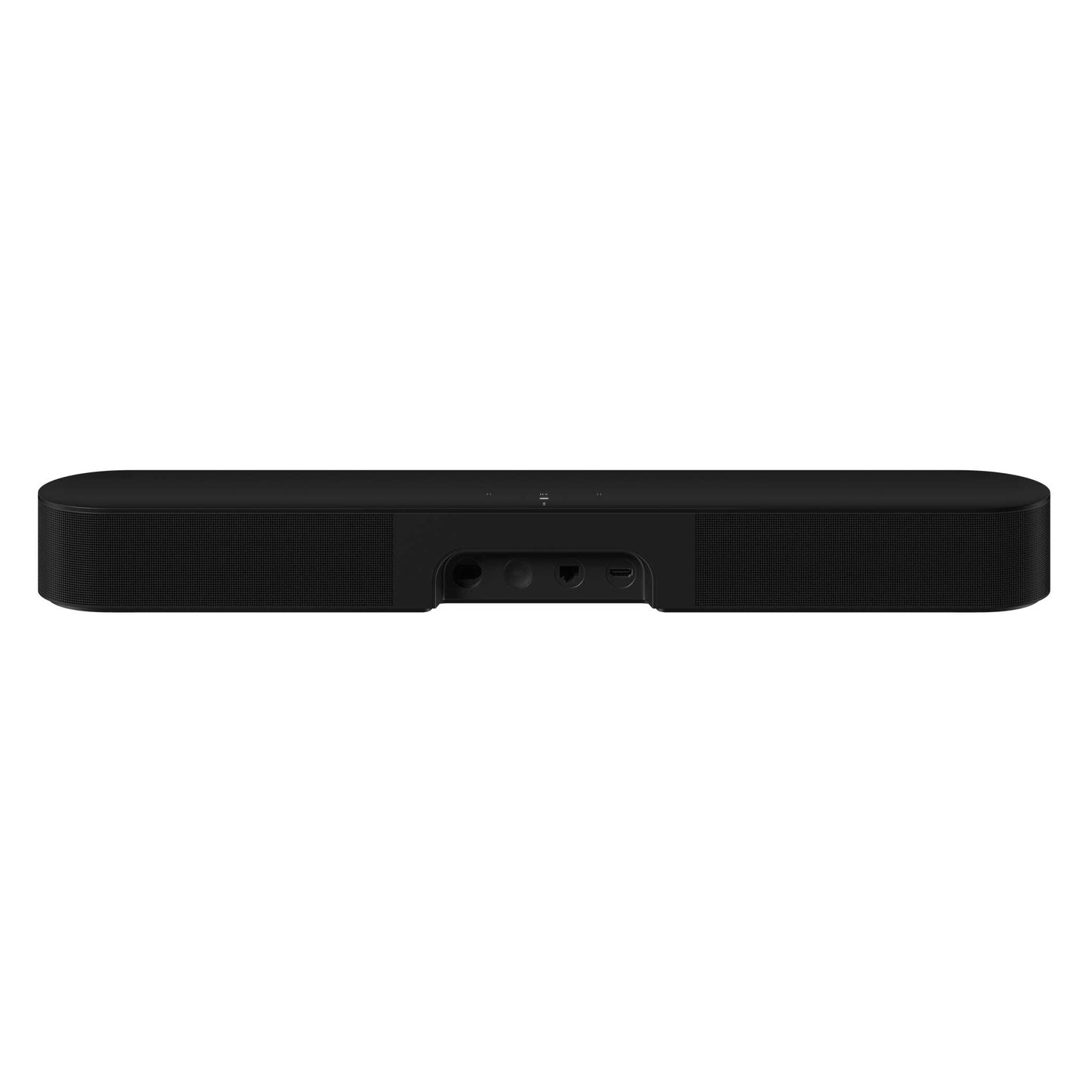

HDMI ARC / eARC - HDMI Cable connects to your TV’s HDMI ARC input.

Optical Audio - Optical Audio Adapter to connect to your TV. Allows Sonos Beam to support DOLBY DIGITAL and stereo.

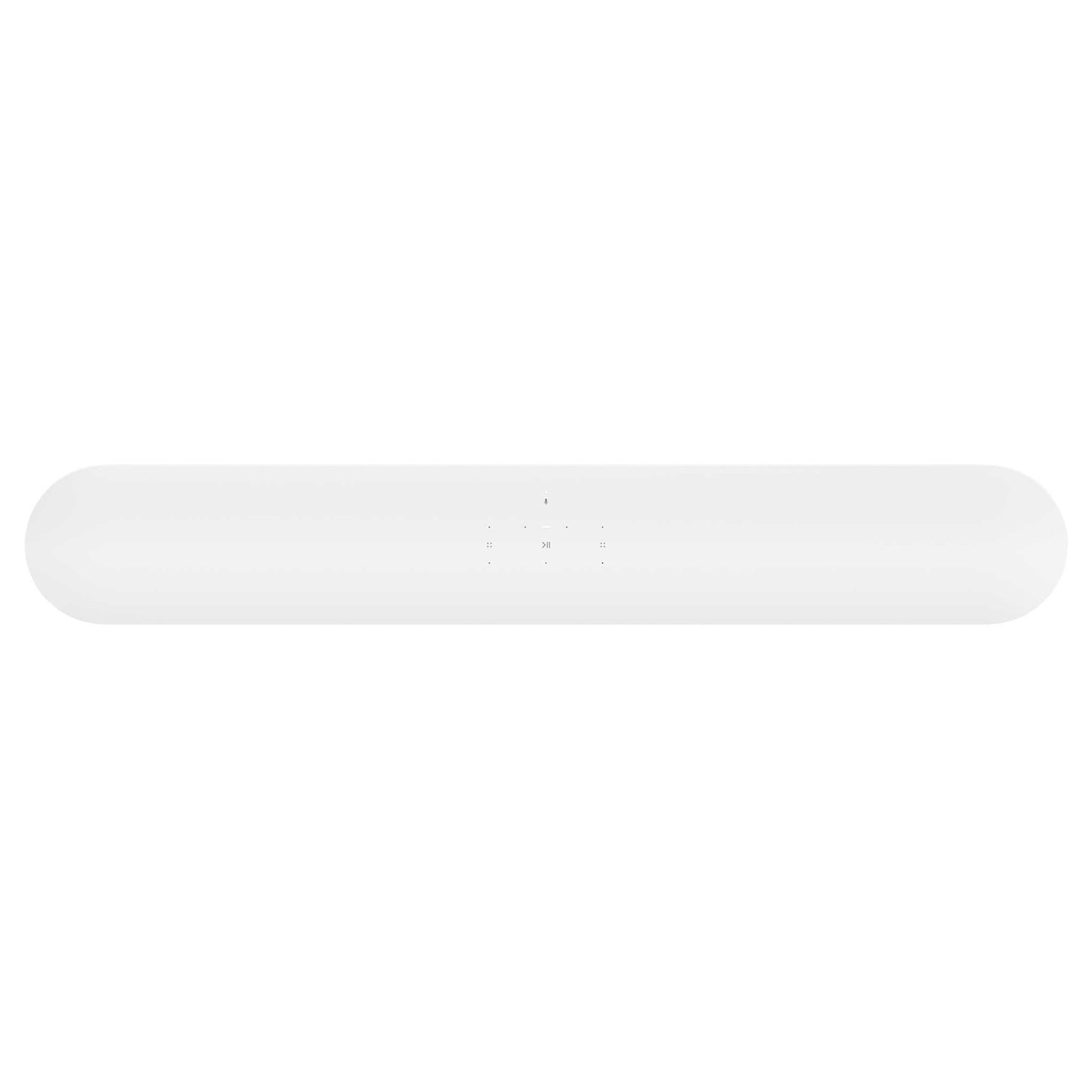

Top-panel features - Capacitive touch control for volume up/down, previous/next track, play/pause, microphone mute. LED indicates status, mute status and voice feedback.

What’s in the Box:

Sonos Beam Gen 2

Power cord

HDMI cable

Optical Audio Adapter

Flat Ethernet cable

Sonos Beam Quick-Start Guide and Legal/Warranty information.

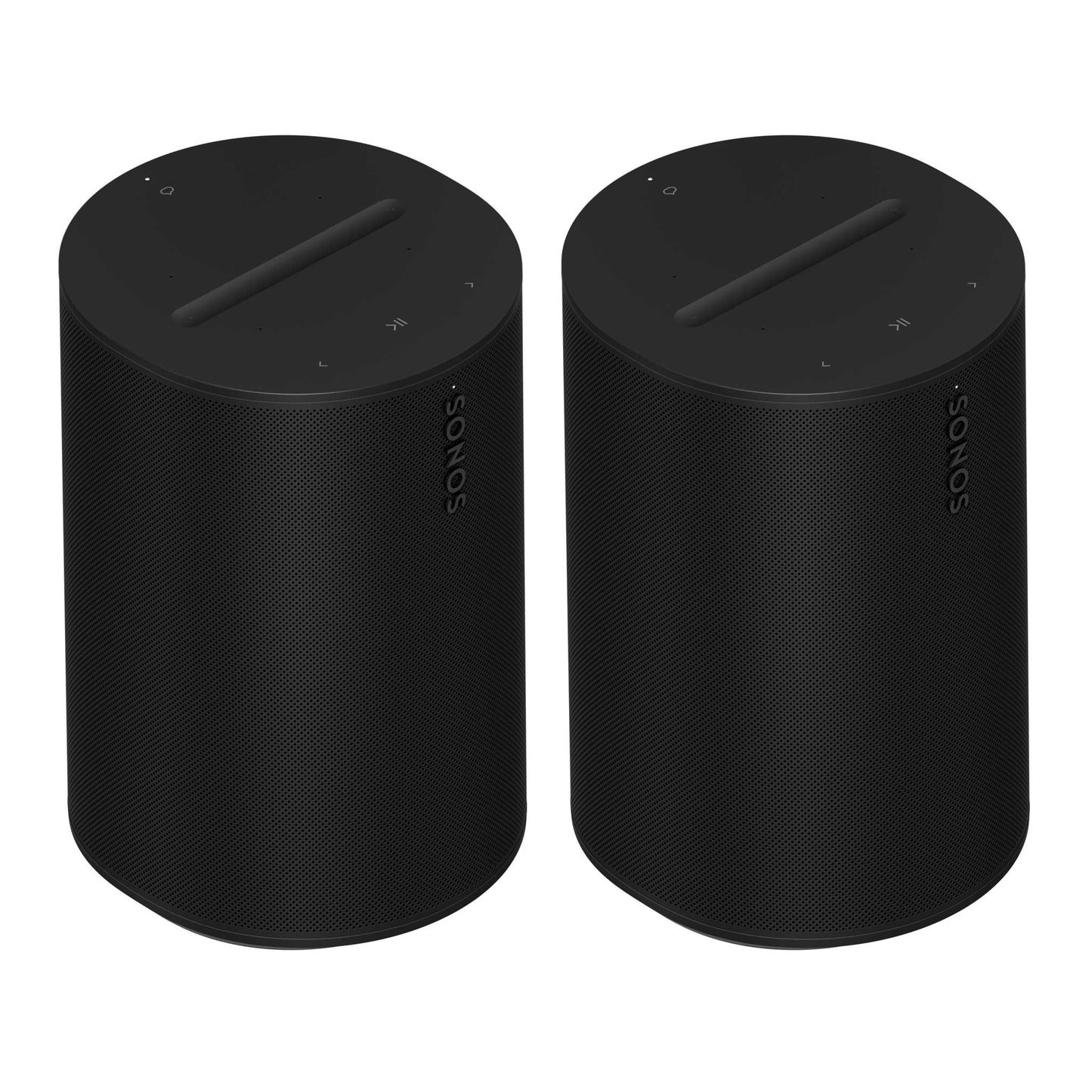

Sonos Era 100 Specifications

Audio

· Three Class-D digital amplifiers precision tuned for the speaker’s unique acoustic architecture power your sound experience.

· Two angled tweeters creates a crisp and accurate high frequency response and stereo separation.

· One mid-woofer ensures you’ll hear the faithful playback of mid-range vocal frequencies plus deep, rich bass.

· Adjustable bass and treble controls let you customise your sound by individual room or groups of rooms.

· The far-field microphone array uses advanced beamforming and multi-channel echo cancellation for quick and accurate voice control and Trueplay tuning. Disconnect by toggling off the mic switch.

· Trueplay software measures the acoustics of the room then fine-tunes the EQ. Compatible with iOS and Android devices.

Physical

· Dimensions - H x W x D 182.5 x 120 x 130.5 mm.

· Weight 2.02 kg.

· Product finish - White with white matte grille or black with black matte grille.

· Top-panel controls - Use the buttons to play, pause, skip, replay, adjust the volume, turn off the microphones, manually switch to Bluetooth, and more.

· Complete privacy with mic switch - Toggle off this switch on the back of the product to disconnect all power to the microphone hardware.

Power & Networking

· Power supply - Auto-switching 100-240 V, 50-60 Hz AC universal input.

· WiFi, - Compatible with WiFi 6. Connect to WiFi with any 802.11a/b/g/n/ac/ax 2.4 GHz/5 GHz broadcast-capable router.

· Bluetooth - Bluetooth 5.0 supports audio streaming from any Bluetooth-enabled device.

· USB-C port - 15W, 5V/3A

· CPU – Quad Core 1.4 Ghz A-53

· Memory – 1GB SDRAM, 4GB NV

· Apple AirPlay 2 - Works with AirPlay 2 on Apple devices iOS 11.4 and higher on WiFi

· Voice – works with Amazon Alexa and Sonos Voice Control

Contents

· Sonos Era 100, power cable (2m), QuickStart Guide, and Legal/Warranty information.
