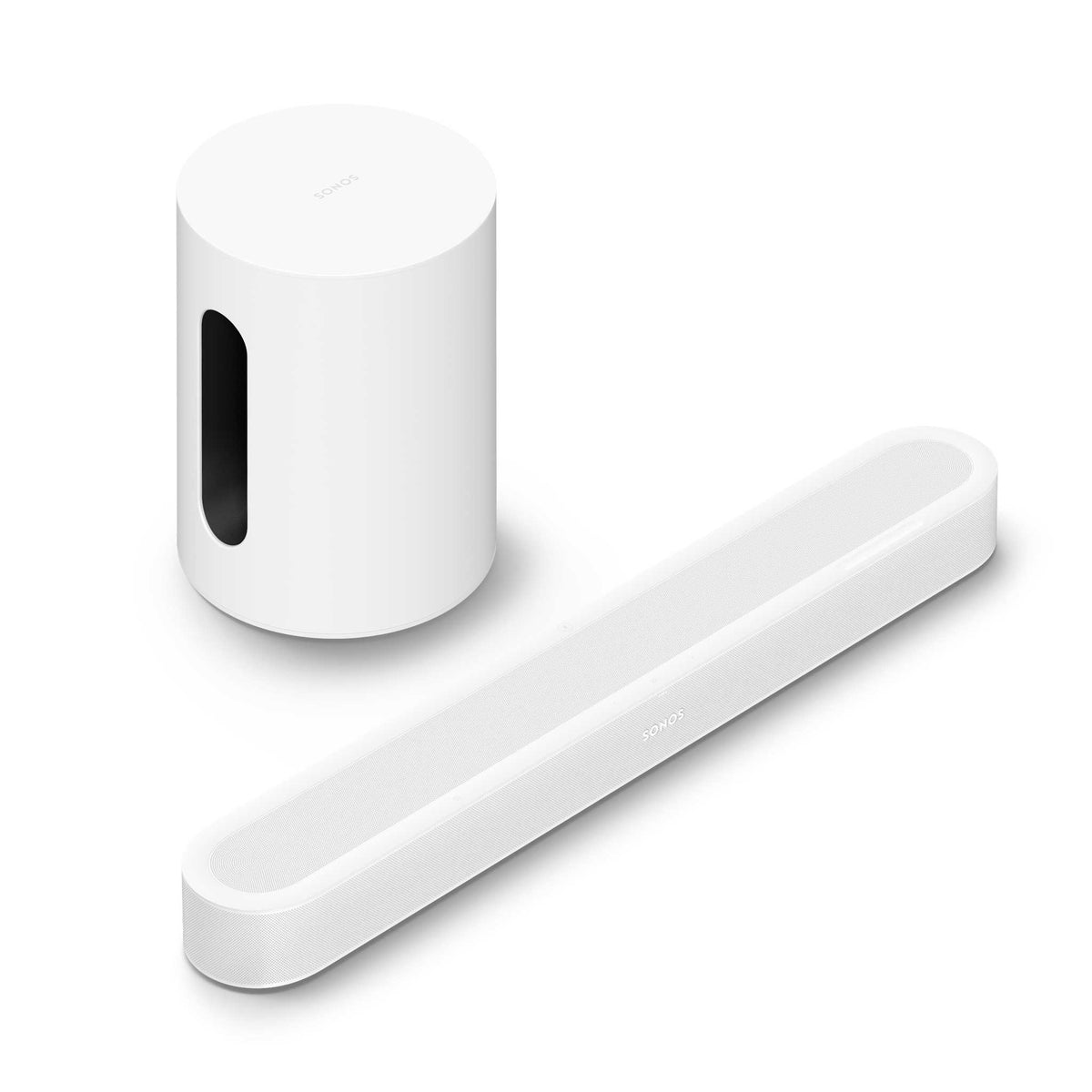

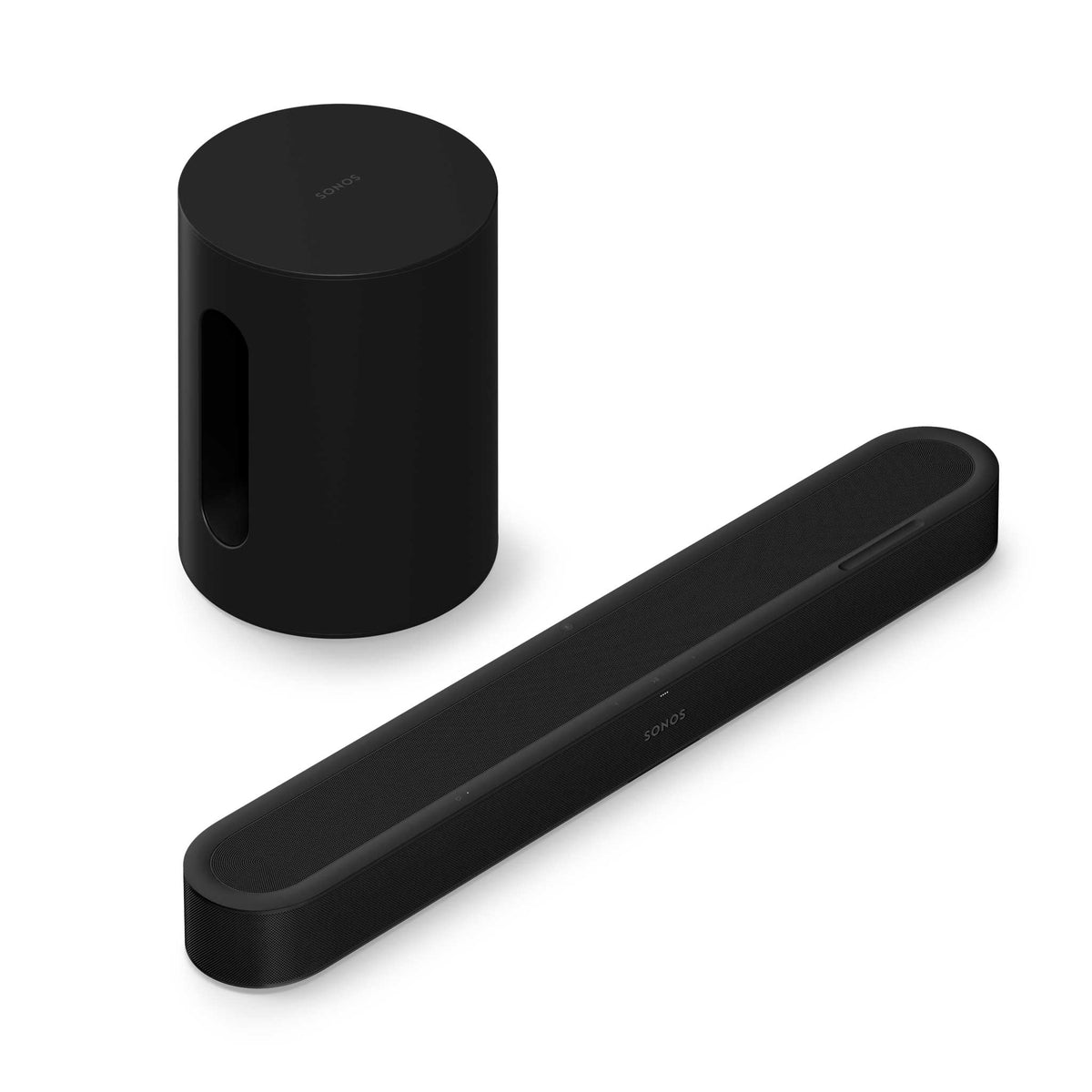

Sonos Beam Ultra Entertainment Set With Sub Mini
The Sonos Beam Ultra with Sub Mini Bundle is a compact home-cinema system designed to deliver immersive Dolby Atmos sound, clearer dialogue and deeper bass without filling the room with large speakers and cables.
Beam Ultra provides the main TV and music performance, using nine Class-D amplifiers, dedicated upward-firing drivers and advanced processing to create an expansive 7.1.2 Dolby Atmos presentation from a compact soundbar. Sub Mini adds the low-frequency impact, extending bass response down to around 25Hz while remaining discreet enough for smaller and medium-sized rooms.
Together, they form a simple and highly effective upgrade for TV, films, gaming and music.
Compact Dolby Atmos Home Cinema
Beam Ultra is designed to produce a much larger soundstage than its compact dimensions might suggest. Its acoustic system combines five tweeters and four low-profile woofers, including dedicated side-firing and upward-firing drivers, allowing Dolby Atmos soundtracks to create a greater sense of width, height and movement around the room.
Add Sub Mini and the soundbar is freed from having to reproduce the deepest bass itself, helping the whole system sound cleaner, more dynamic and more effortless.
Deeper Bass with Sub Mini
Sub Mini uses dual inward-facing 6-inch woofers in a sealed cabinet. The opposing driver arrangement creates a force-cancelling effect, reducing unwanted cabinet vibration while producing deep, controlled bass. With response extending down to approximately 25Hz, Sub Mini adds extra weight to explosions, film soundtracks and music without the size of a full-scale subwoofer. Because it connects wirelessly to Beam Ultra, placement is flexible and only a mains cable is required.
Clearer Dialogue
Beam Ultra includes AI Speech Enhancement, designed to improve dialogue clarity when voices might otherwise become lost beneath music, effects or background noise. Four levels of Speech Enhancement can be selected in the Sonos app, making it easy to tailor vocal clarity to the programme and room.
For evening viewing, Night Sound reduces the impact of loud effects while bringing quieter details forward.
HDMI eARC Connection
Beam Ultra connects directly to a compatible television via HDMI eARC or ARC using the supplied HDMI cable. Once connected, your existing TV remote can normally continue to control the volume, keeping everyday operation straightforward.
HDMI eARC also enables support for higher-bandwidth formats including Dolby TrueHD and Dolby Atmos where available from compatible sources and televisions.
Trueplay Room Tuning
Sonos Trueplay measures the acoustics of the listening room and adjusts the system accordingly. Beam Ultra supports Trueplay tuning with compatible iOS and Android devices, while Sub Mini is automatically integrated into the system so that its bass output remains balanced with the soundbar. Bass, treble and loudness can also be adjusted manually through the Sonos app.
Wireless Music Streaming
Away from television duties, Beam Ultra also works as a versatile wireless music system. You can play music using the Sonos app or compatible services, while Apple AirPlay 2 allows direct streaming from Apple devices. Beam Ultra also includes Bluetooth 5.3, providing another convenient way to play music directly from compatible smartphones and tablets.
Easy Sonos App Control
The Sonos app provides access to system setup, EQ, Speech Enhancement, Night Sound, room grouping and streaming services. Sub Mini is added to Beam Ultra through the same app and then operates automatically as part of the home-cinema system.
Expand the System Later
The Beam Ultra and Sub Mini package can also form the starting point for a larger Sonos surround system. Compatible Sonos speakers can be added later as rear surrounds, allowing the system to develop into a more immersive home-cinema setup without replacing the existing soundbar or subwoofer.
Key Features:
- True 7.1.2 Dolby Atmos presentation
- Nine Class-D amplifiers / Five tweeters/ Four low-profile woofers
- Dedicated upward-firing Dolby Atmos drivers
- AI Speech Enhancement
- Trueplay room tuning
- Bluetooth 5.3 / Apple AirPlay 2
- Dual 6-inch Sub Mini woofers
- Expandable with compatible Sonos surround speakers
- Available in Black or White
Big Home-Cinema Sound Without the Clutter
The Sonos Beam Ultra with Sub Mini Bundle is ideal for anyone who wants a more immersive TV experience without installing a large traditional surround system.
Beam Ultra provides the width, height and dialogue clarity, while Sub Mini adds the deep bass and cinematic impact that a compact soundbar alone cannot fully reproduce.
For smaller and medium-sized living rooms, it offers an excellent balance of performance, simplicity and discreet design, with the added benefit of easy expansion within the wider Sonos ecosystem.
What's Included:
- Sonos Beam Ultra
- Sonos Sub Mini
- Beam Ultra power cable
- Sub Mini power cable
- HDMI cable
- Set-up documentation
Specifications
Specifications
|
Sonos Beam Ultra Specifications |
|
|
Audio |
|
|
Amplifiers |
Nine Class-D digital amplifiers tuned to the soundbar’s acoustic architecture. |
|
Tweeters |
Five tweeters faithfully reproduce high and mid-range frequencies. The forward-firing mid tweeter provides a smooth centre image. Two side-firing horn-loaded mid tweeters create stereo separation. Two upward-firing tweeters loaded into a directional horn support spatial audio with Dolby Atmos. |
|
Woofers |
Four low-profile woofers deliver powerful bass. |
|
Microphones |
Far-field microphone array uses beamforming and multichannel echo cancellation for voice control, Trueplay tuning, and connecting Sonos Play or Move 2 surrounds. Toggle off the mic switch to disconnect. |
|
Adjustable EQ |
Use the Sonos app to adjust bass, treble, and loudness. |
|
Trueplay |
Measures the acoustics of the room and fine-tunes the EQ. Compatible with iOS and Android devices. |
|
AI Speech Enhancement |
AI detects human voices to improve dialogue clarity. Choose from four levels of Speech Enhancement in the Sonos app. |
|
Night Sound |
Reduces the intensity of loud sounds and enhances quieter sounds. Enable in the Sonos app. |
|
Home Cinema Audio Formats |
Dolby Atmos,* Dolby Atmos via Dolby Digital Plus, Stereo PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD,* Dolby Atmos via Dolby TrueHD,* Multichannel PCM,* Dolby Multichannel PCM* and DTS Digital Surround.** |
|
Dolby Atmos Music |
Dedicated upward-firing drivers support Dolby Atmos Music for spatial audio playback. |
|
TV Audio Swap |
Swap TV audio between the soundbar and Sonos headphones. |
|
Simulated Overhead Sound |
Optimises overhead sound effects for when the top of the product is obstructed. Select your setup in the Sonos app. |
|
Details & Dimensions |
|
|
Dimensions |
Height: 65 mm |
|
Weight |
2.88 kg |
|
Colours |
Black, White |
|
LEDs |
Lights on the product indicate connection, microphone activity, and mute status. |
|
Controls |
|
|
Touch |
Use the capacitive touch controls to play, pause, skip, replay, adjust the volume, turn off voice assistant, and group or ungroup Sonos products. |
|
Bluetooth Button |
Press to pair a Bluetooth device. |
|
Mic Switch |
Toggle off the switch on the back of the product to disconnect power to the microphones. |
|
Power & Connectivity |
|
|
Wireless Networking Interface |
Compatible with WiFi 6. Connect to Wi-Fi with any 802.11a/b/g/n/ac/ax 2.4 GHz/5 GHz broadcast-capable router. |
|
HDMI eARC |
Connect to your TV's HDMI eARC/ARC port with the included HDMI cable. Optical adapter sold separately. |
|
Bluetooth |
Bluetooth 5.3 supports audio streaming from any Bluetooth-enabled device. |
|
Voltage |
100-240V 50/60Hz internal power supply |
|
CPU |
Quad Core |
|
Voice |
Works with Sonos Voice Control. |
|
Apple AirPlay 2 |
Works with AirPlay 2 on Apple devices iOS 11.4 and higher. |
|
USB-C |
Connect an audio source using a 3.5 mm auxiliary cable and the Sonos Line-In Adapter. Connect your router with an Ethernet cable and the Sonos Combo Adapter (all accessories sold separately). |
|
Box Contents |
Sonos Beam Ultra, 2m Power Cable, 1.5m HDMI cable, Set-up guide, legal/warranty info |
|
Requirements |
|
|
Wi-Fi |
Internet connection |
|
Power source |
Nearby electrical outlet |
|
Sonos App |
The latest generation of the Sonos app running on a compatible device |
|
Sonos Beam Mini Specifications |
|
|
Audio |
|
|
Amplifiers |
Both Class-D digital amplifiers have been perfectly tuned to the unique acoustic architecture. |
|
Woofers |
Dual 6" woofers face inwards for a force-cancelling effect. |
|
Architecture |
Sealed cabinet neutralises distortion and enhances bass response. |
|
Frequency Response |
As low as 25 Hz |
|
EQ |
Audio settings automatically equalise to balance Sub Mini and the paired Sonos product(s). Use the Sonos app to adjust bass, treble, and loudness. |
|
Trueplay |
This software measures the acoustics of the room then fine-tunes your Sonos system. Supported iOS device required. |
|
Details + Dimensions |
|
|
Dimensions |
Height: 12.01 in (305 mm) |
|
Weight |
6.35kg |
|
Colours |
Black, White |
|
Join Button |
Press once to add Sub Mini to your system during setup. |
|
Power + Connectivity |
|
|
WiFi |
Connect to WiFi with any 802.11a/b/g/n 2.4 or 5 GHz broadcast-capable router. |
|
Ethernet |
10/100 port for hardwiring to your router |
|
Voltage |
100-240V 50/60Hz internal power supply |
|
Operating Temperature |
32°F to 104°F |
|
Box Contents |
|
|
Sonos Sub Mini |
|
|
Power Cable |
Length: 6 ft (2 m) |
|
Documentation |
Set-up guide and legal/warranty information |
|
Requirements |
|
|
WiFi |
Internet connection |
|
Power Source |
Nearby electrical outlet |
|
Sonos app |
The latest generation of the Sonos app running on a compatible device |
|
Sonos Product |
At least one amplified non-portable product, such as Era 100 or Beam |
