Sonos

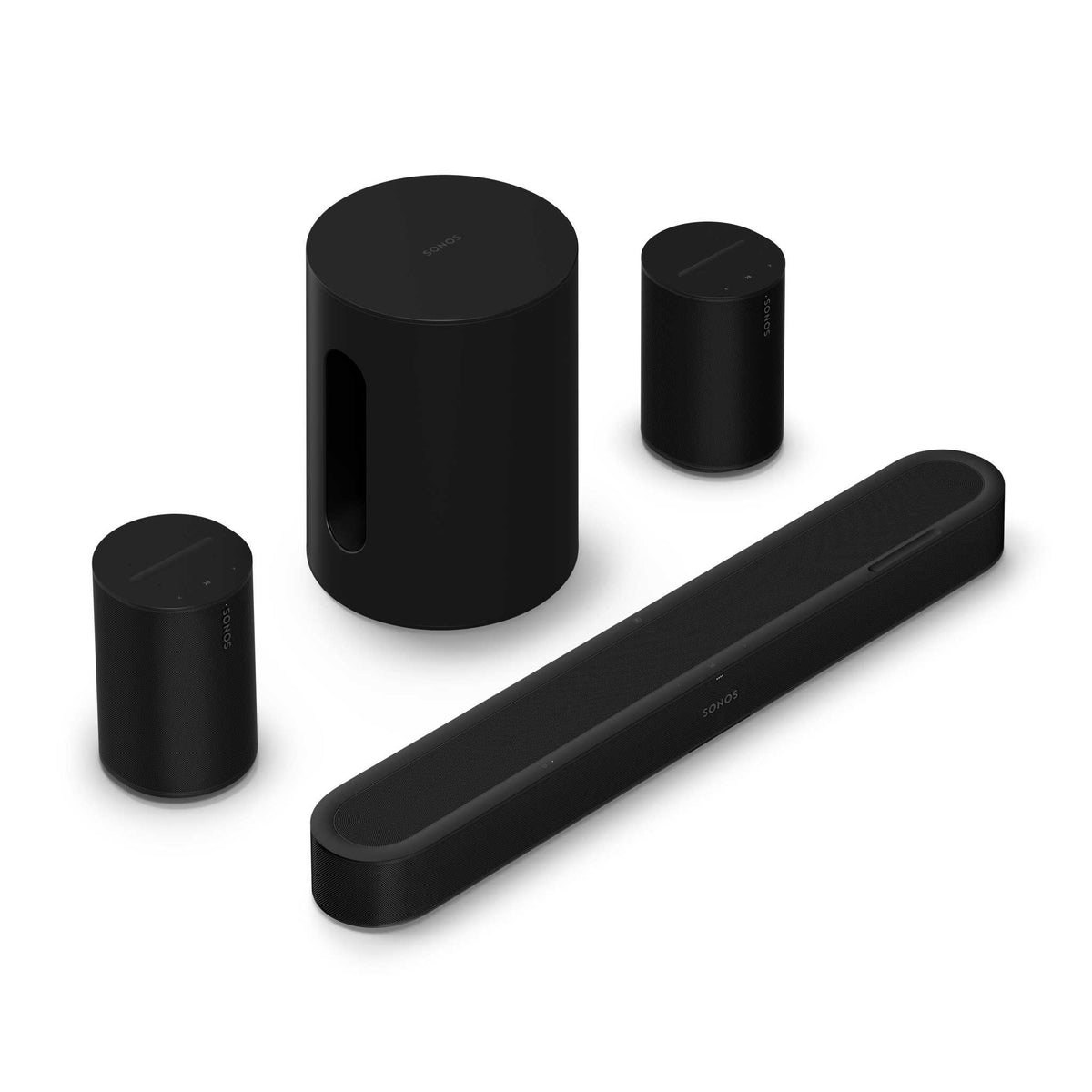

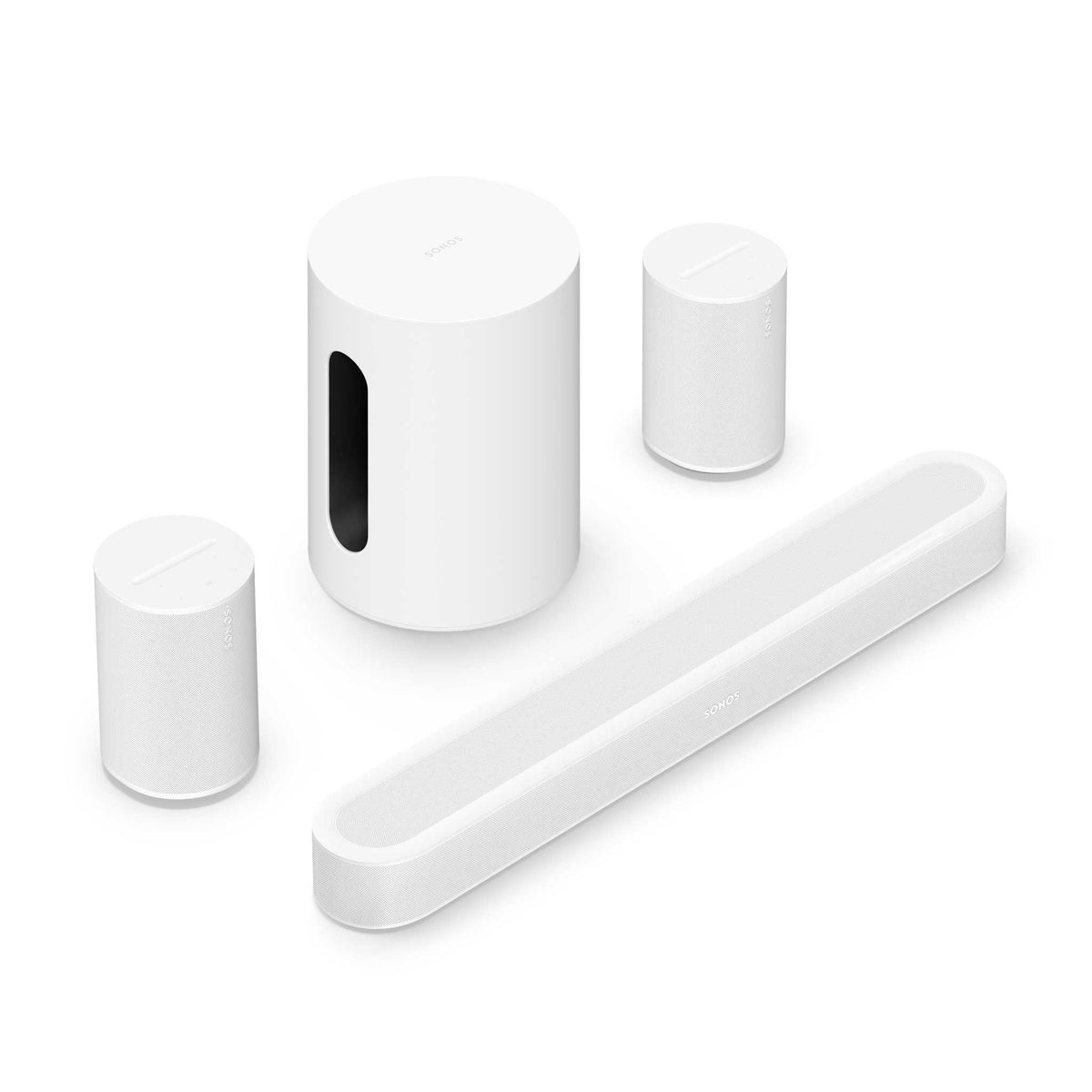

Sonos Beam Ultra Immersive Set

Sonos Beam Ultra Immersive Set

Regular price £1,387.00
Regular price £1,466.00 Sale price £1,387.00
-5% Sold out
Shipping calculated at checkout.
2 in stock
  • FreeNext Day Delivery

View full details

Details

Description

Sonos Beam Ultra Immersive Set With Sub Mini & 2 x Era 100 SL

The Sonos Beam Ultra Immersive Set is a complete compact home-cinema system combining Beam Ultra, Sub Mini and two Era 100 SL speakers to deliver immersive Dolby Atmos sound, deeper bass and dedicated rear surround effects.

Beam Ultra handles the front soundstage and dialogue, Sub Mini adds powerful low-frequency impact, while the pair of Era 100 SL speakers work as wireless surrounds to bring films, TV and games to life with sound from behind the listening position.

The result is a discreet and easy-to-use surround system that is particularly well suited to smaller and medium-sized living rooms.

Complete Wireless Surround Sound

At the heart of the Beam Ultra Immersive Set is Sonos Beam Ultra, a compact Dolby Atmos soundbar designed to create a wide and immersive front soundstage.

Adding two Era 100 SL speakers as dedicated rear surrounds creates a much more enveloping home-cinema experience, with effects able to move around the listening area rather than remaining concentrated at the front of the room.

Sub Mini completes the system by taking care of the deepest bass, adding greater impact to film soundtracks, gaming and music.

Sonos Beam Ultra

Beam Ultra uses nine Class-D amplifiers, dedicated upward-firing drivers and advanced processing to produce a spacious Dolby Atmos presentation from a compact cabinet. AI Speech Enhancement helps make dialogue easier to follow, with multiple levels available through the Sonos app, while Night Sound reduces the impact of louder effects during late-night viewing.

Connection to your television is simple via HDMI eARC or ARC, and Beam Ultra also supports Bluetooth 5.3, Apple AirPlay 2 and Wi-Fi 6.

Sonos Sub Mini

Sub Mini adds the low-frequency performance that gives home cinema its sense of scale and impact. Its two inward-facing 6-inch woofers operate in a force-cancelling configuration to reduce unwanted vibration while delivering bass down to approximately 25Hz. Because Sub Mini connects wirelessly to the Sonos system, it can be positioned flexibly within the room with only a mains cable required.

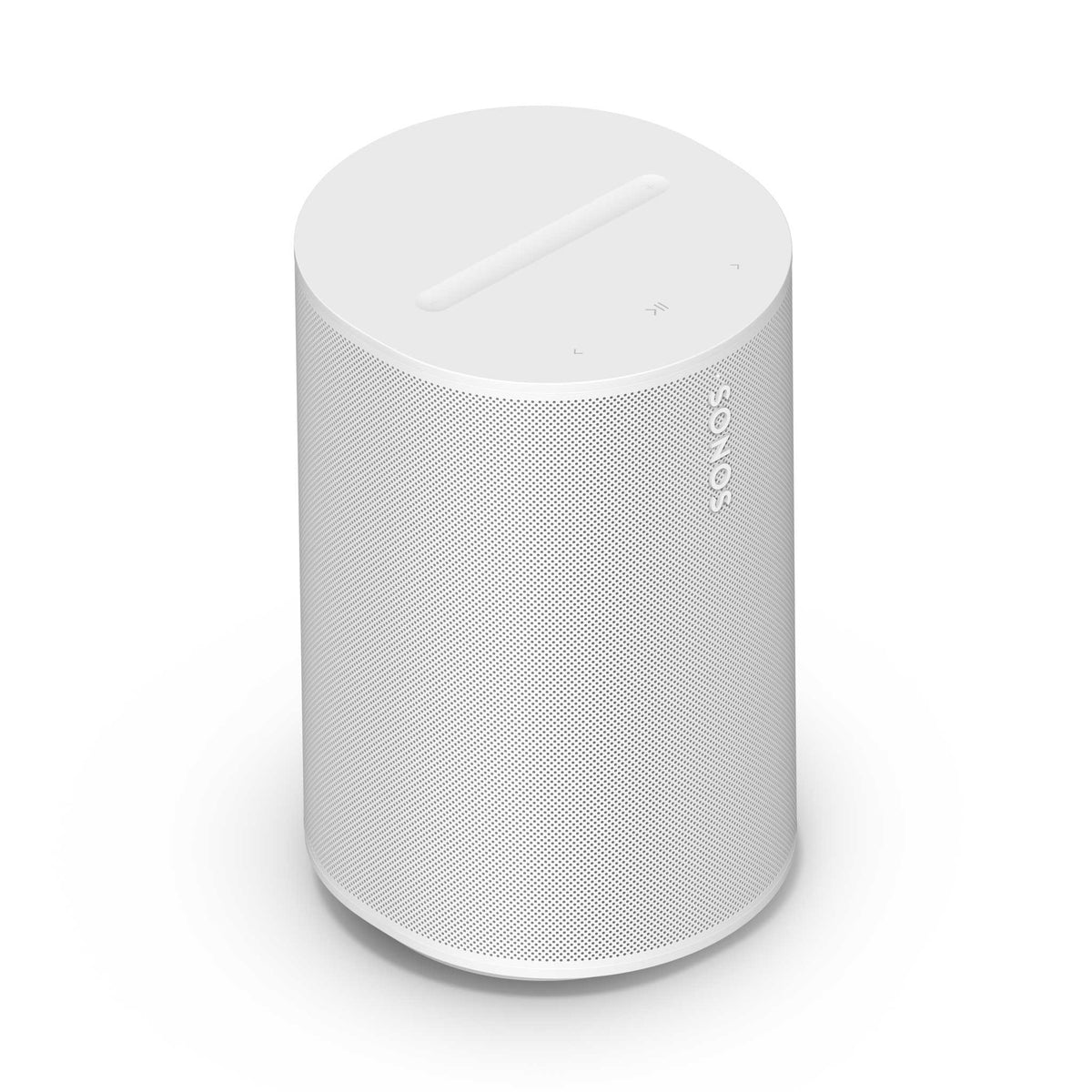

2 x Sonos Era 100 SL Rear Surround Speakers

The two Era 100 SL speakers are used as dedicated rear surrounds within the Beam Ultra Immersive Set. Each speaker features three Class-D amplifiers, two angled tweeters and a mid-woofer, helping create spacious and detailed surround effects while maintaining compact proportions that make them easy to position behind or beside the listening area.

Trueplay Room Tuning

Sonos Trueplay tuning measures the acoustics of the room and adjusts the system to suit the listening environment. This helps balance Beam Ultra, Sub Mini and the Era 100 SL surround speakers so that the complete system works together as one coherent setup. Bass, treble, surround levels and other settings can also be adjusted through the Sonos app.

Clearer Dialogue and Night Listening

Beam Ultra includes AI Speech Enhancement, designed to make voices clearer when dialogue is difficult to hear beneath music and effects. For evening viewing, Night Sound reduces sudden increases in volume while making quieter details easier to hear.

These features make the Beam Ultra Immersive Set equally suitable for everyday television and more immersive film viewing.

Wireless Music Playback

The Beam Ultra Immersive Set is not limited to TV and films, it can also form part of a wider Sonos multi-room music system, with support for music streaming through the Sonos app, Apple AirPlay 2 and compatible services. Bluetooth 5.3 also provides convenient direct playback from compatible devices.

Easy App-Based Setup

All four components are added and configured through the Sonos app. Once set up, the Beam Ultra Immersive Set behaves as a single home-cinema zone, with Sub Mini and the two Era 100 SL speakers automatically working alongside Beam Ultra. Volume can normally be controlled using your existing TV remote, while more detailed settings are available through the Sonos app.

Key Features:

  • True Dolby Atmos with dedicated upward-firing drivers
  • Nine Class-D digital amplifiers
  • Five tweeters, Four low-profile woofers
  • Side-firing horn-loaded tweeters for wider stereo sound
  • AI Speech Enhancement with four levels
  • Trueplay room tuning
  • Apple AirPlay 2, Bluetooth 5.3, Wi-Fi 6
  • Available in Black or White

Immersive Sonos Home Cinema Without the Clutter

The Sonos Beam Ultra Immersive Set is ideal for anyone who wants genuine surround sound without installing a conventional AV receiver and wired speaker system.

Beam Ultra creates the front soundstage and Dolby Atmos height effects, Sub Mini delivers the low-frequency impact, and the two Era 100 SL speakers provide dedicated surround sound from behind the listening position.

For smaller and medium-sized living rooms, it offers an elegant and straightforward route to a complete Sonos home-cinema experience.

What's Included:

  • Sonos Beam Ultra
  • Sonos Sub Mini
  • 2 x Sonos Era 100 SL
  • Beam Ultra power cable
  • Sub Mini power cable
  • 2 x Era 100 SL power cables
  • HDMI cable
  • Set-up documentation

Specifications

Specifications

Sonos Beam Ultra Specifications

Audio

Amplifiers

Nine Class-D digital amplifiers tuned to the soundbar’s acoustic architecture.

Tweeters

Five tweeters faithfully reproduce high and mid-range frequencies. The forward-firing mid tweeter provides a smooth centre image. Two side-firing horn-loaded mid tweeters create stereo separation. Two upward-firing tweeters loaded into a directional horn support spatial audio with Dolby Atmos.

Woofers

Four low-profile woofers deliver powerful bass.

Microphones

Far-field microphone array uses beamforming and multichannel echo cancellation for voice control, Trueplay tuning, and connecting Sonos Play or Move 2 surrounds. Toggle off the mic switch to disconnect.

Adjustable EQ

Use the Sonos app to adjust bass, treble, and loudness.

Trueplay

Measures the acoustics of the room and fine-tunes the EQ. Compatible with iOS and Android devices.

AI Speech Enhancement

AI detects human voices to improve dialogue clarity. Choose from four levels of Speech Enhancement in the Sonos app.

Night Sound

Reduces the intensity of loud sounds and enhances quieter sounds. Enable in the Sonos app.

Home Cinema Audio Formats

Dolby Atmos,* Dolby Atmos via Dolby Digital Plus, Stereo PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD,* Dolby Atmos via Dolby TrueHD,* Multichannel PCM,* Dolby Multichannel PCM* and DTS Digital Surround.**

Dolby Atmos Music

Dedicated upward-firing drivers support Dolby Atmos Music for spatial audio playback.

TV Audio Swap

Swap TV audio between the soundbar and Sonos headphones.

Simulated Overhead Sound

Optimises overhead sound effects for when the top of the product is obstructed. Select your setup in the Sonos app.

Details & Dimensions

Dimensions

Height: 65 mm
Width: 750 mm
Depth: 105 mm

Weight

2.88 kg

Colours

Black, White

LEDs

Lights on the product indicate connection, microphone activity, and mute status.

Controls

Touch

Use the capacitive touch controls to play, pause, skip, replay, adjust the volume, turn off voice assistant, and group or ungroup Sonos products.

Bluetooth Button

Press to pair a Bluetooth device.

Mic Switch

Toggle off the switch on the back of the product to disconnect power to the microphones.

Power & Connectivity

Wireless Networking Interface

Compatible with WiFi 6. Connect to Wi-Fi with any 802.11a/b/g/n/ac/ax 2.4 GHz/5 GHz broadcast-capable router.

HDMI eARC

Connect to your TV's HDMI eARC/ARC port with the included HDMI cable. Optical adapter sold separately.

Bluetooth

Bluetooth 5.3 supports audio streaming from any Bluetooth-enabled device.

Voltage

100-240V 50/60Hz internal power supply

CPU

Quad Core
4xA55 1.9GHz

Voice

Works with Sonos Voice Control.

Apple AirPlay 2

Works with AirPlay 2 on Apple devices iOS 11.4 and higher.

USB-C

Connect an audio source using a 3.5 mm auxiliary cable and the Sonos Line-In Adapter. Connect your router with an Ethernet cable and the Sonos Combo Adapter (all accessories sold separately).

Box Contents

Sonos Beam Ultra, 2m Power Cable, 1.5m HDMI cable, Set-up guide, legal/warranty info

Requirements

Wi-Fi

Internet connection

Power source

Nearby electrical outlet

Sonos App

The latest generation of the Sonos app running on a compatible device



Sonos Beam Mini Specifications

Audio



Amplifiers

Both Class-D digital amplifiers have been perfectly tuned to the unique acoustic architecture.

Woofers

Dual 6" woofers face inwards for a force-cancelling effect.

Architecture

Sealed cabinet neutralises distortion and enhances bass response.

Frequency Response

As low as 25 Hz

EQ

Audio settings automatically equalise to balance Sub Mini and the paired Sonos product(s). Use the Sonos app to adjust bass, treble, and loudness.

Trueplay

This software measures the acoustics of the room then fine-tunes your Sonos system. Supported iOS device required.

Details + Dimensions



Dimensions

Height: 12.01 in (305 mm)
Width: 9.06 in (230 mm)
Depth: 9.06 in (230 mm)

Weight

6.35kg

Colours

Black, White

Join Button

Press once to add Sub Mini to your system during setup.

Power + Connectivity



WiFi

Connect to WiFi with any 802.11a/b/g/n 2.4 or 5 GHz broadcast-capable router.

Ethernet

10/100 port for hardwiring to your router

Voltage

100-240V 50/60Hz internal power supply

Operating Temperature

32°F to 104°F
(0°C to 40°C)

Box Contents



Sonos Sub Mini



Power Cable

Length: 6 ft (2 m)

Documentation

Set-up guide and legal/warranty information

Requirements



WiFi

Internet connection

Power Source

Nearby electrical outlet

Sonos app

The latest generation of the Sonos app running on a compatible device

Sonos Product

At least one amplified non-portable product, such as Era 100 or Beam
