Arcam
Arcam A5+ with KEF Q3 Meta + Cables
Arcam A5+ with KEF Q3 Meta + Cables
Couldn't load pickup availability
- 5 year Warranty
- free deliveryin 3-5 days
- free qed xt25pre-terminated speaker cables
Share
Details
Description

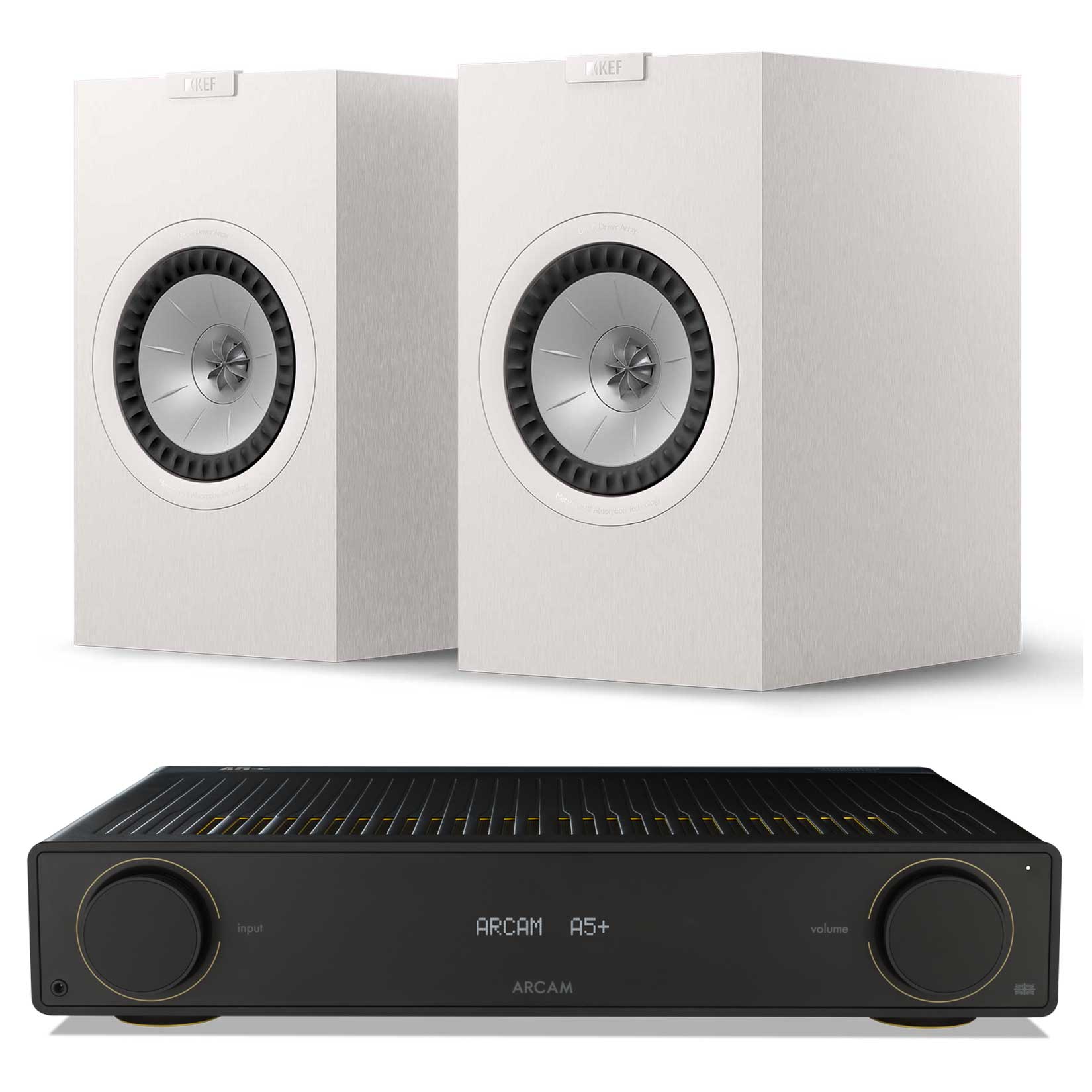

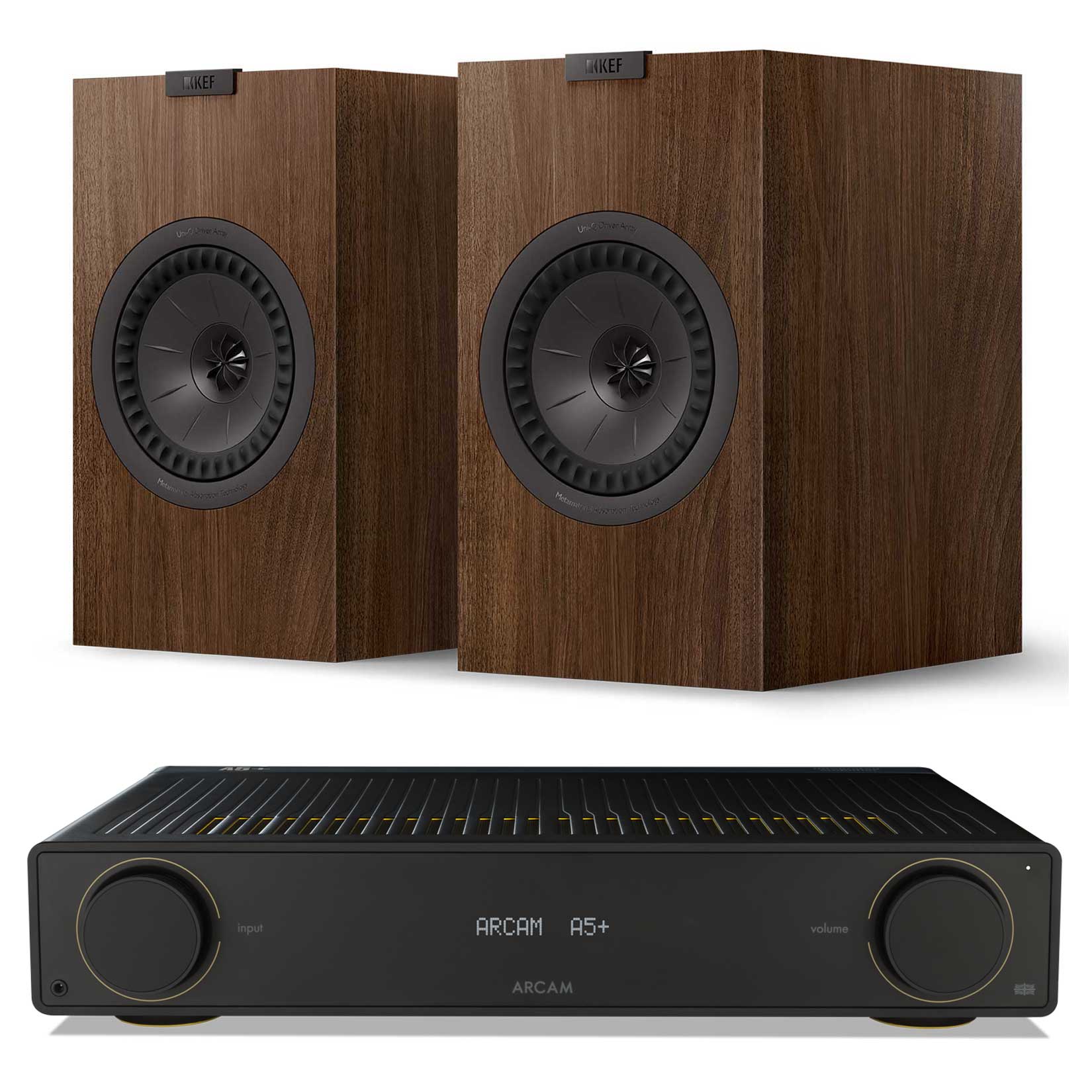

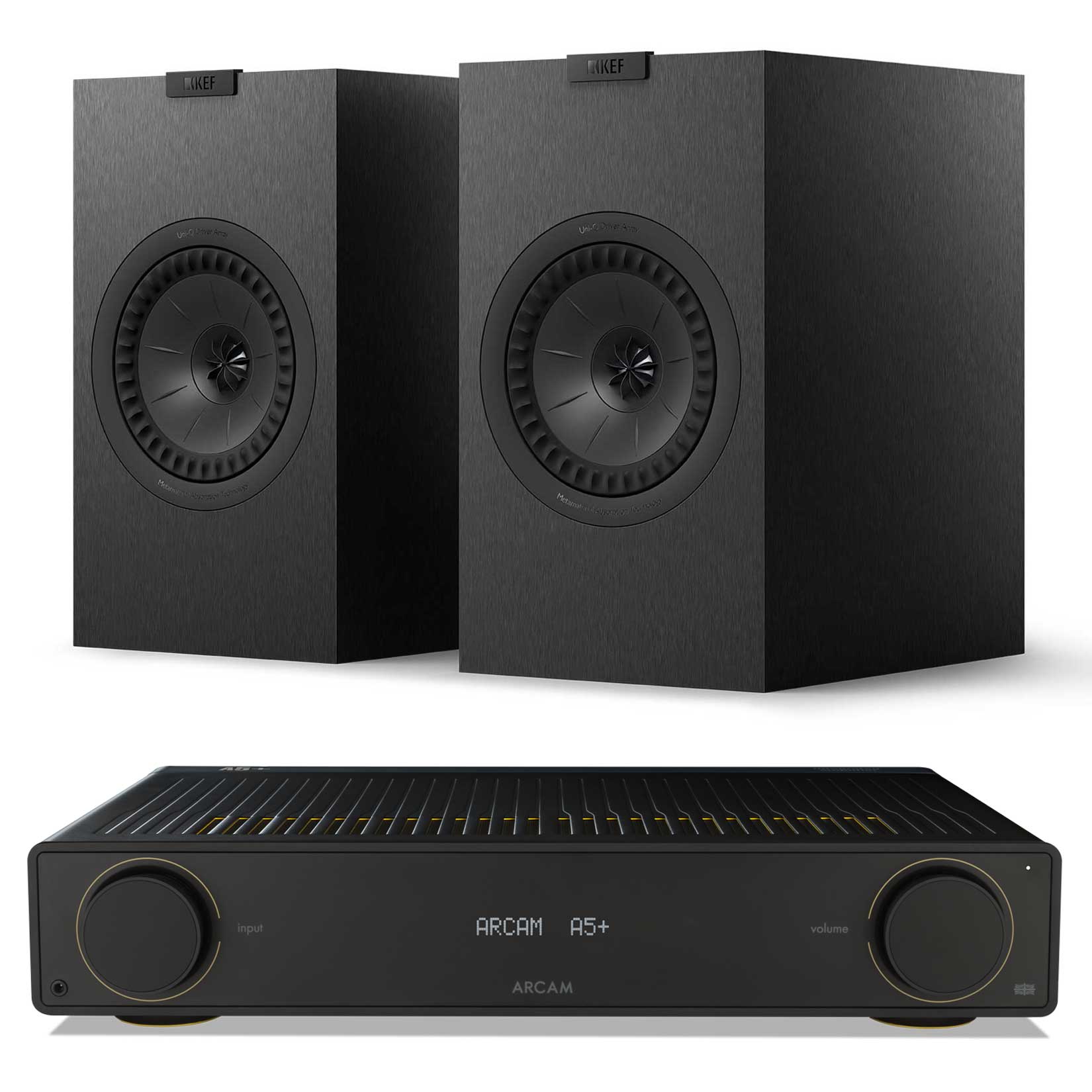

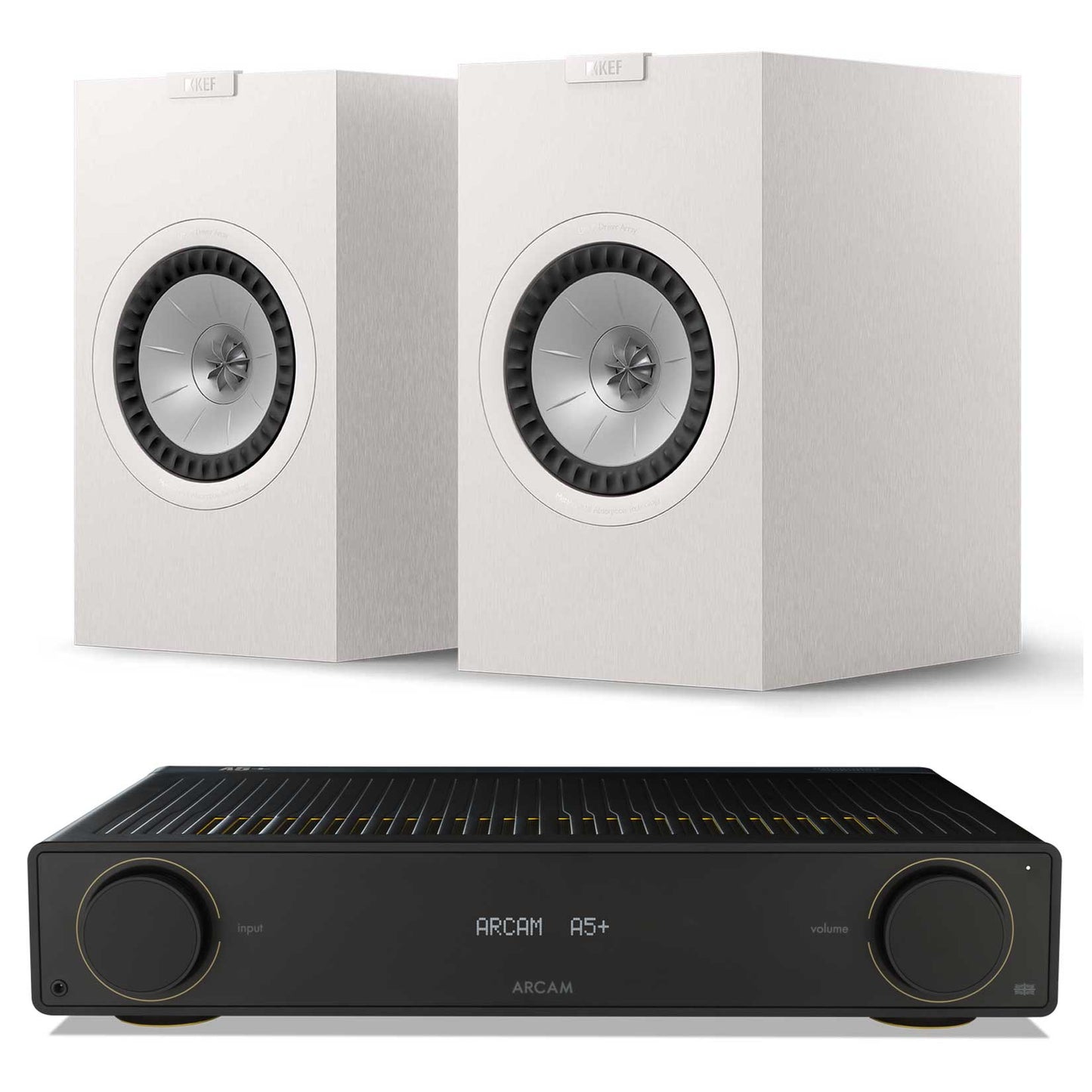

Arcam A5+ with KEF Q3 Meta + QED XT25 Cables
The Arcam A5+ brings classic British hi-fi engineering into the modern age, combining the warmth and musicality of Class-AB amplification with the flexibility of today’s streaming and digital sources. Delivering 50 watts per channel into 8 ohms (75W into 4 ohms), it offers effortless power and control for a wide range of loudspeakers.
Inside, a high-quality ESS ES9018 DAC supports high-resolution audio up to 24-bit / 192 kHz, ensuring every detail and nuance is preserved. Vinyl enthusiasts are equally well catered for with a refined moving-magnet phono stage, while multiple digital and analogue inputs allow seamless integration into any system.
Wireless connectivity is cutting-edge, with Bluetooth 5.4 featuring Snapdragon Sound and Auracast broadcast technology, offering low-latency, lossless streaming and easy multi-device listening.
Combining premium materials, thoughtful engineering, and modern convenience, the Arcam A5+ delivers authentic hi-fi performance for music lovers who expect more.
KEF Q3 Meta Bookshelf Speakers
The KEF Q3 Meta speakers represent the mid-sized bookshelf option in KEF's latest Q Series range. Featuring the 12th generation of KEF's signature Uni-Q driver array, these speakers place the tweeter at the centre of the midrange cone. This design ensures that high and mid frequencies emanate from a single, cohesive point, creating a broader "sweet spot" and evenly distributing sound across your room to deliver an immersive listening experience. Choose from three finishes including satin black, satin white and walnut.
High Quality Speaker Cables Included
This bundle includes a 2m pair of QED XT25 pre-terminated speaker cables worth £79.95 free of charge. (please contact us if you need longer cables)
Specifications
Specifications
|
Arcam A5+ Specifications |
|
|---|---|
|
Continuous power output (0.5% THD) |
|
|
2 channels driven, 8Ω, 20Hz—20kHz |
50W |
|
2 channels driven, 1kHz, 4Ω |
75W |
|
Harmonic distortion, 80% power, 8Ω at 1kHz |
0.003% |
|
Phono (MM) Input |
|
|
Input impedance |
47kΩ + 100pF |
|
Frequency response (ref. RIAA curve) |
20Hz – 20kHz ± 1dB |
|
Line Inputs |
|
|
Number of inputs |
3 |
|
Signal/Noise ratio (A-wtd) 50W, ref. 1V input |
106dB |
|
Frequency response |
20Hz – 20kHz ± 0.2dB |
|
Digital Inputs |
|
|
DAC |
ESS ES9018 |
|
Frequency response |
20Hz - 20kHz ± 0.2dB |
|
Signal/Noise ratio (A-wtd, ref. 50W, 0dBFS) |
109dB |
|
Supported Sample Rates |
192, 176.4, 96, 88.2, 48, 44.1 |
|
Bit depths |
16-bit – 24-bit |
|
Headphone output |
|
|
Maximum output level (RMS) into 32Ω/300Ω |
2.5/5Vrms |
|
Output impedance |
1Ω |
|
Load range |
16Ω – 2kΩ |
|
Wireless Specification |
|
|
Bluetooth Version |
5.4; A2DP Sink/Source, AVRCP, BLE, Snapdragon Sound, AAC, LE Audio, Auracast |
|
Bluetooth Transmitter Frequency and Power |
2,400 MHz to 2,483.5 MHz: <20dBm |
|
General |
|
|
Mains voltage |
110–120V or 220–240V, 50–60Hz |
|
Maximum power consumption |
350W |
|
Power consumption (standby) |
<0.5w |
|
Dimensions W x H x D (including feet and speaker terminals) |
431 x 83 x 344mm |
|
Weight (net) |
8.14kg |
|
Weight (gross) |
11.36kg |
|
Supplied accessories |
Mains leads, Remote control, 2 x AAA batteries, quick-start guide |
|
KEF Q3 Meta Specifications |
|
|
Design |
Two-way bass reflex |
|
Drive Units |
Uni-Q Driver Array: |
|
Crossover Frequency |
2,0 kHz |
|
Frequency Range (-6db) |
42 Hz - 20 kHz |
|
Frequency Response (±3db) |
49 Hz - 20 kHz |
|
Maximum Output |
109 dB |
|
Amplifier Power (Recommended) |
15-150 W |
|
Impedance |
4 Ω (min. 3,2 Ω) |
|
Sensitivity (2.83V/1m) |
87dB |
|
Weight |
8.2 kg (each) |
|
Dimension (H X W X D) With Terminal* |
357 x 210 x 305 mm |
