WiiM Amp Ultra with Wharfedale EVO 5.1 Speakers
WiiM Amp Ultra with Wharfedale EVO 5.1 Speakers
Couldn't load pickup availability
- free qed xt25pre-terminated speaker cables
- free delivery2-3 days
Share
Details
Description

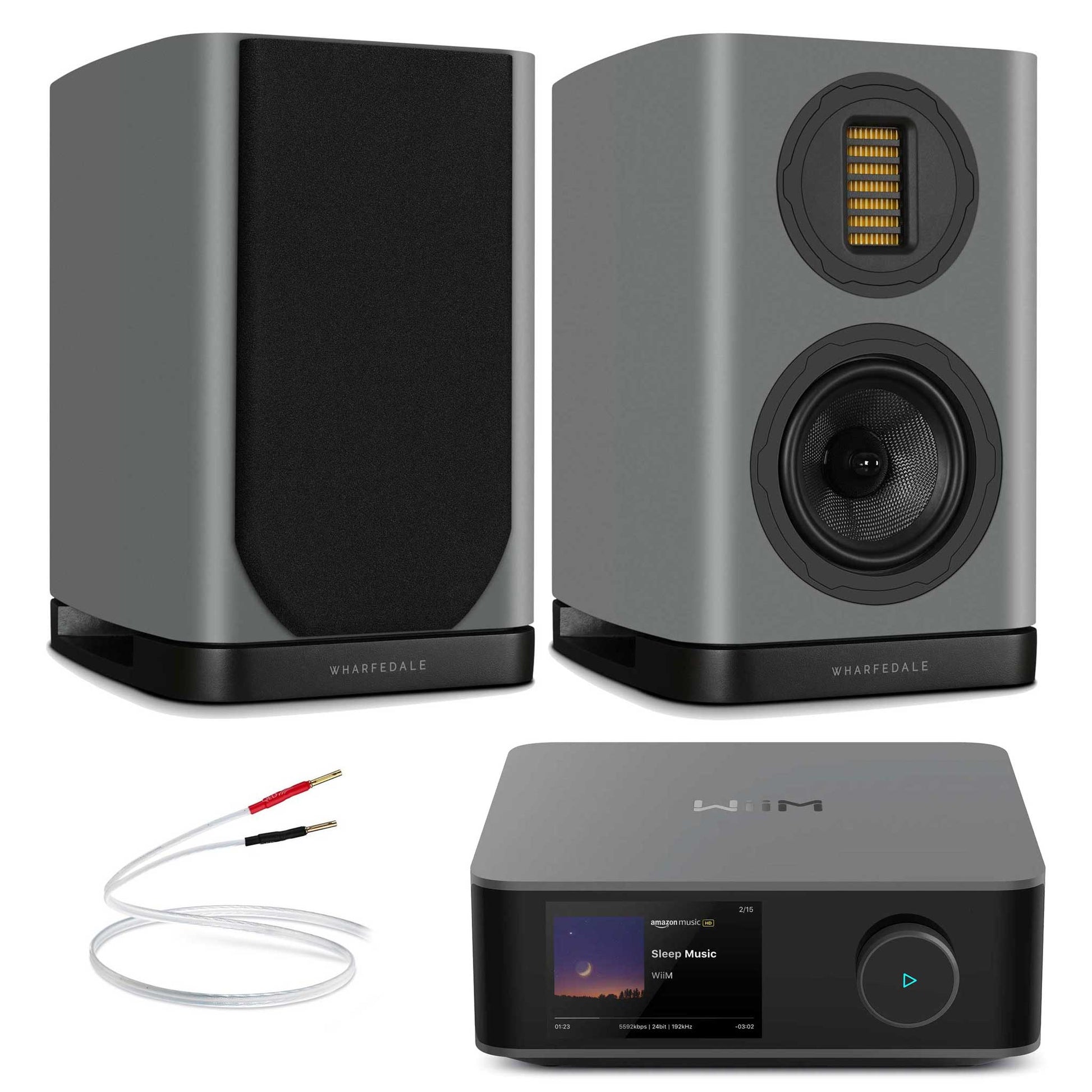

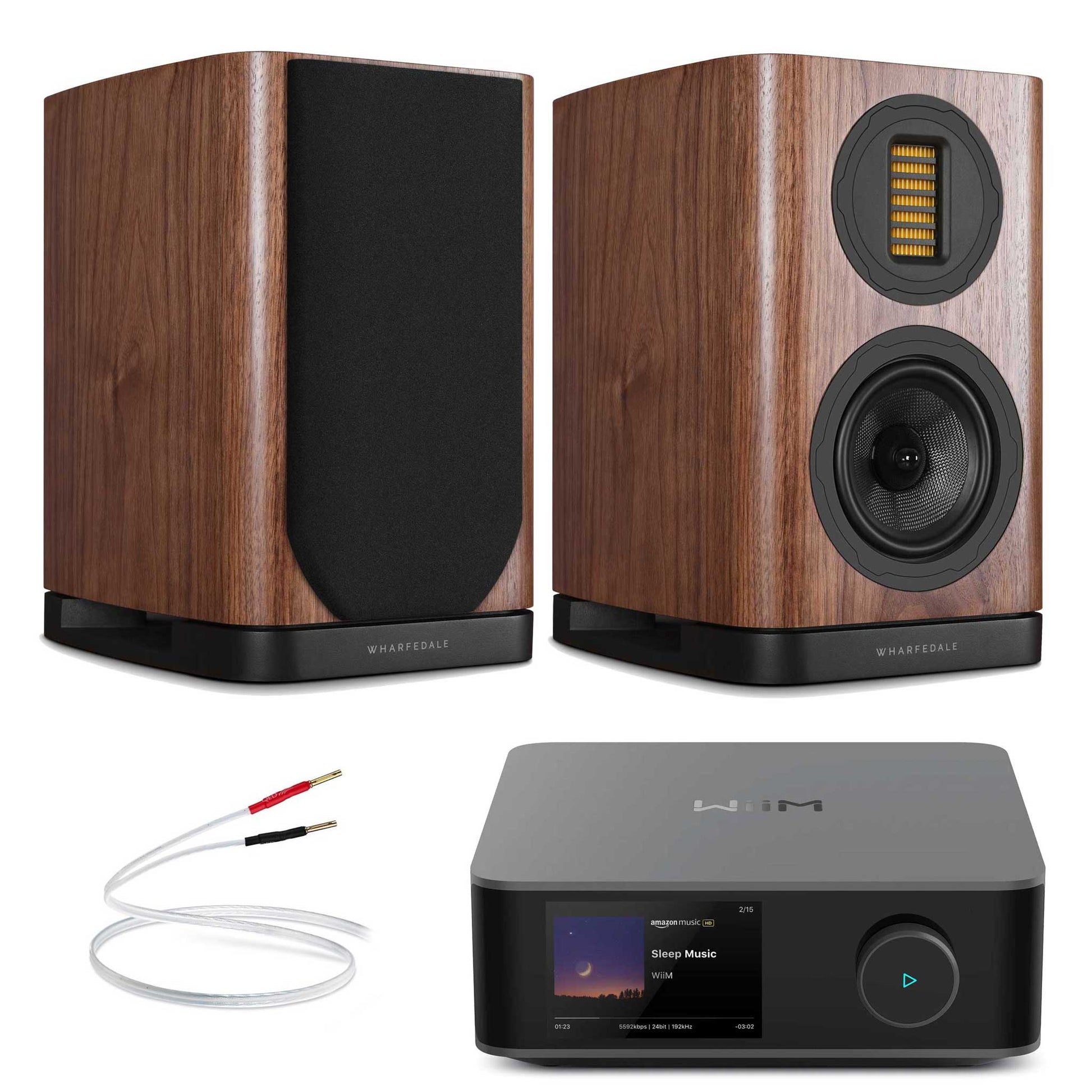

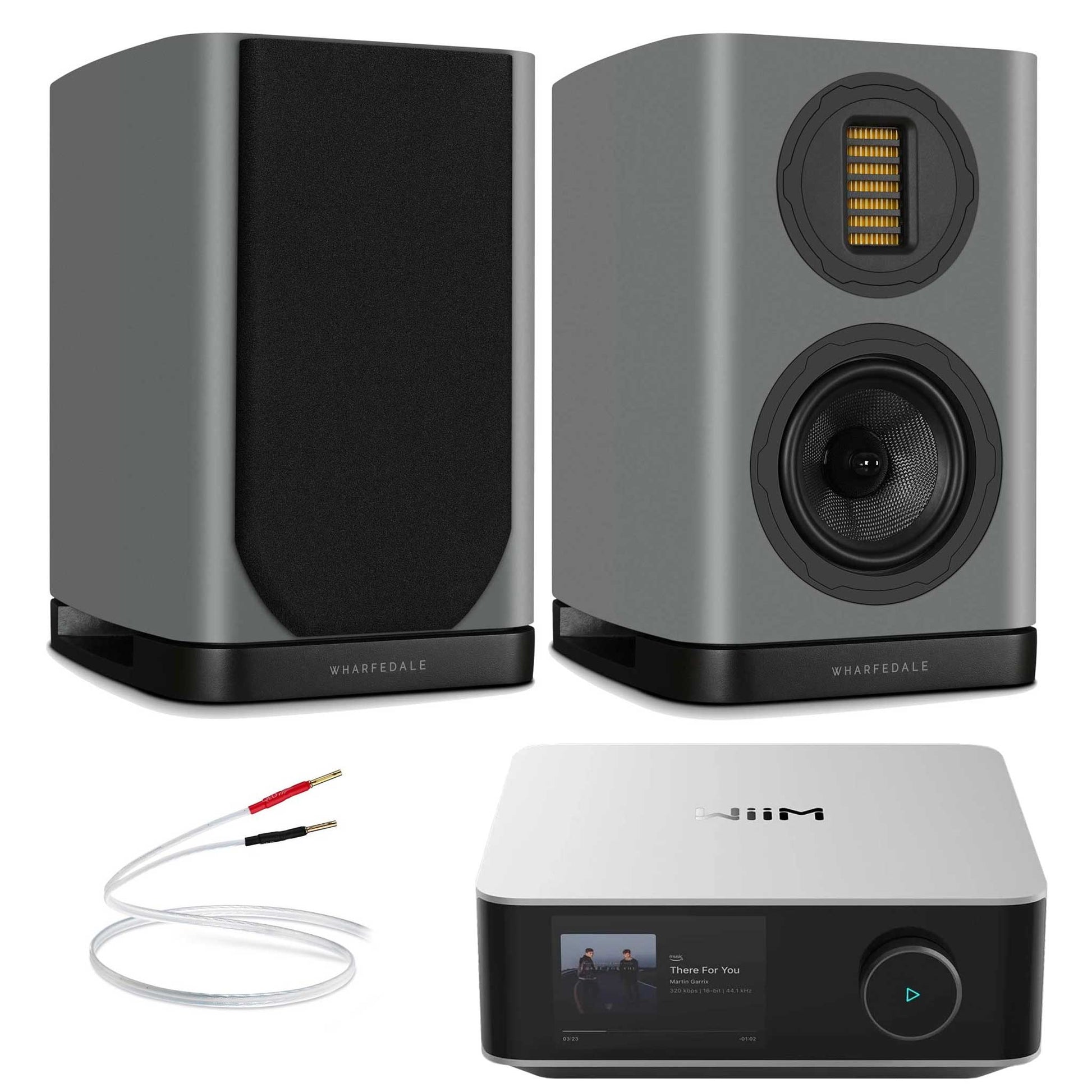

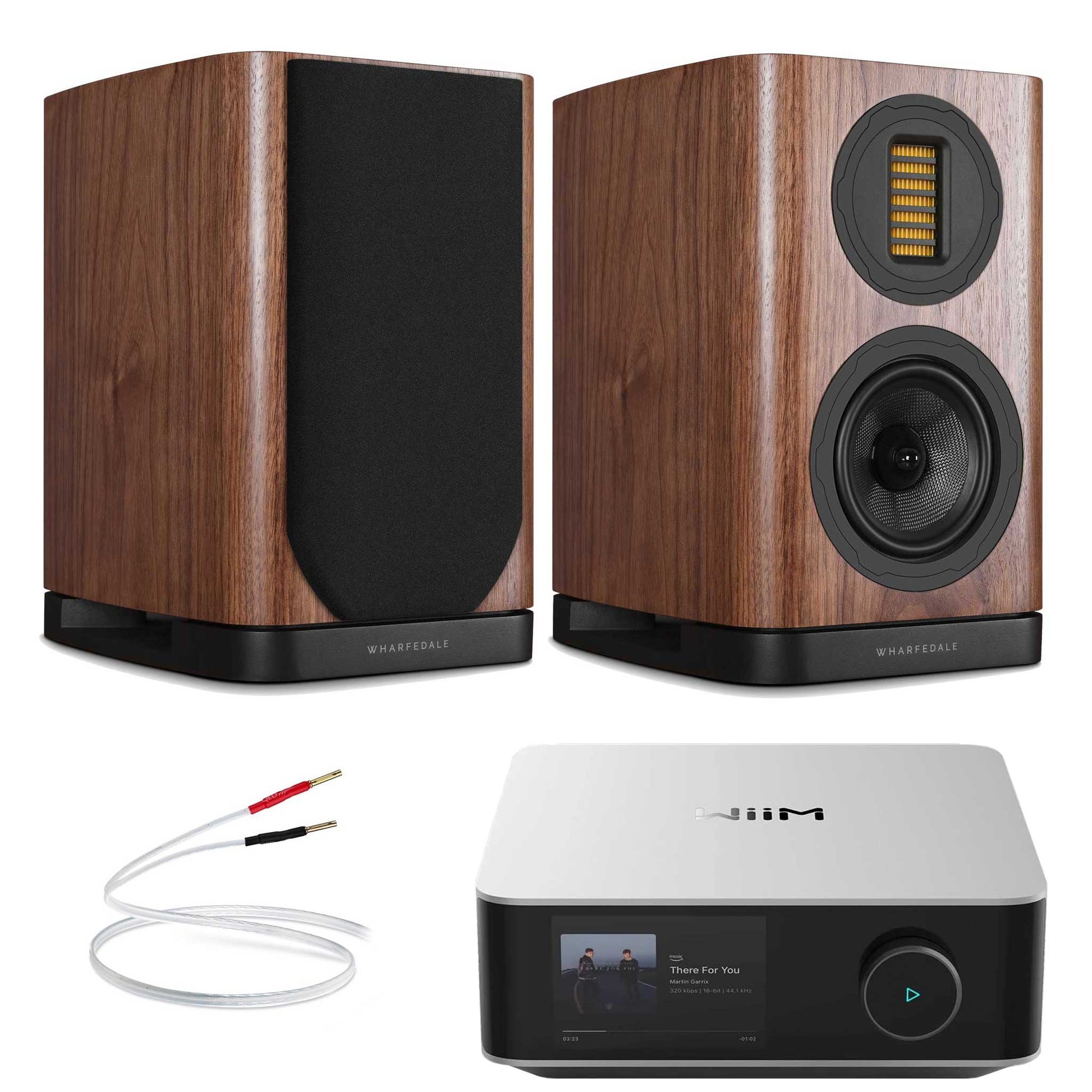

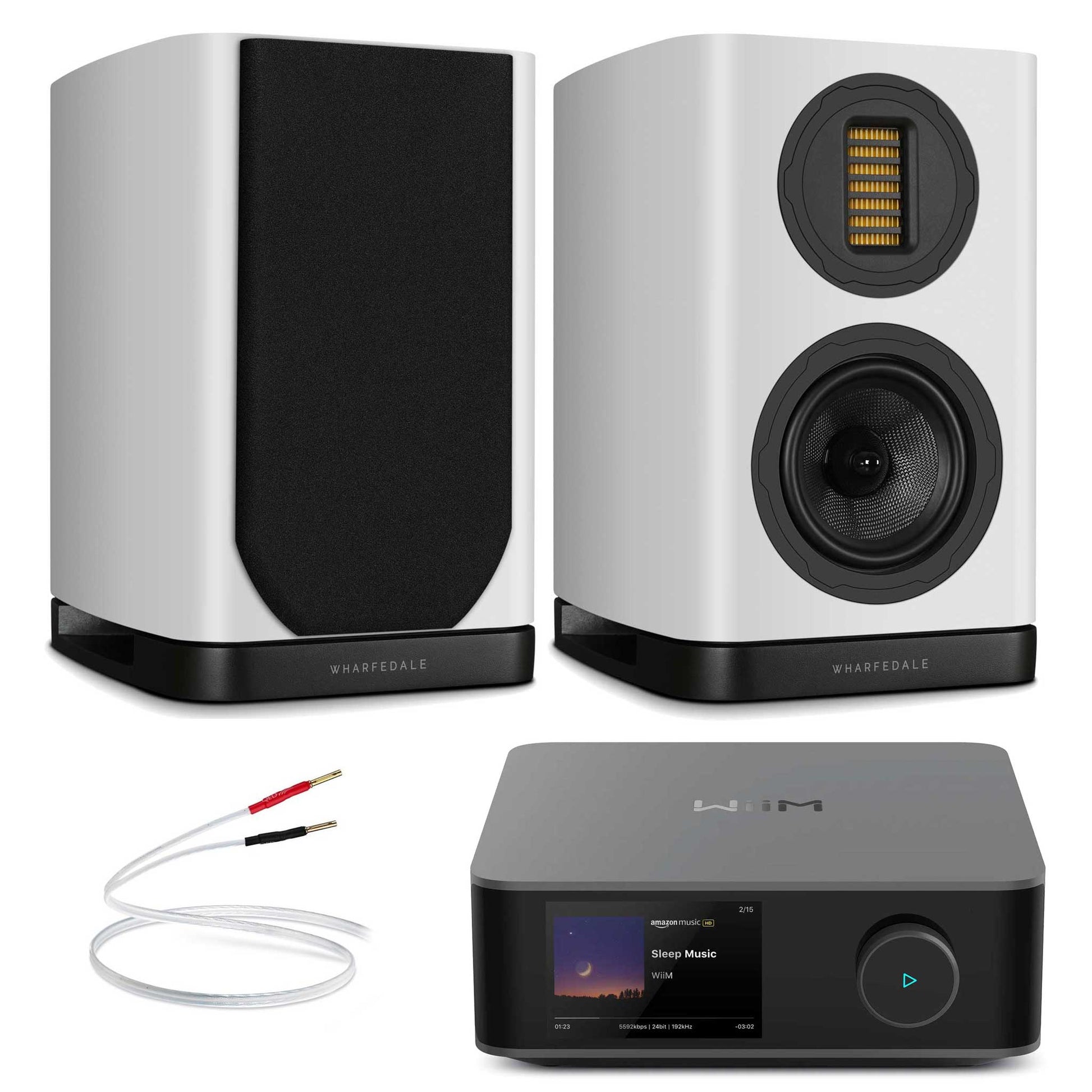

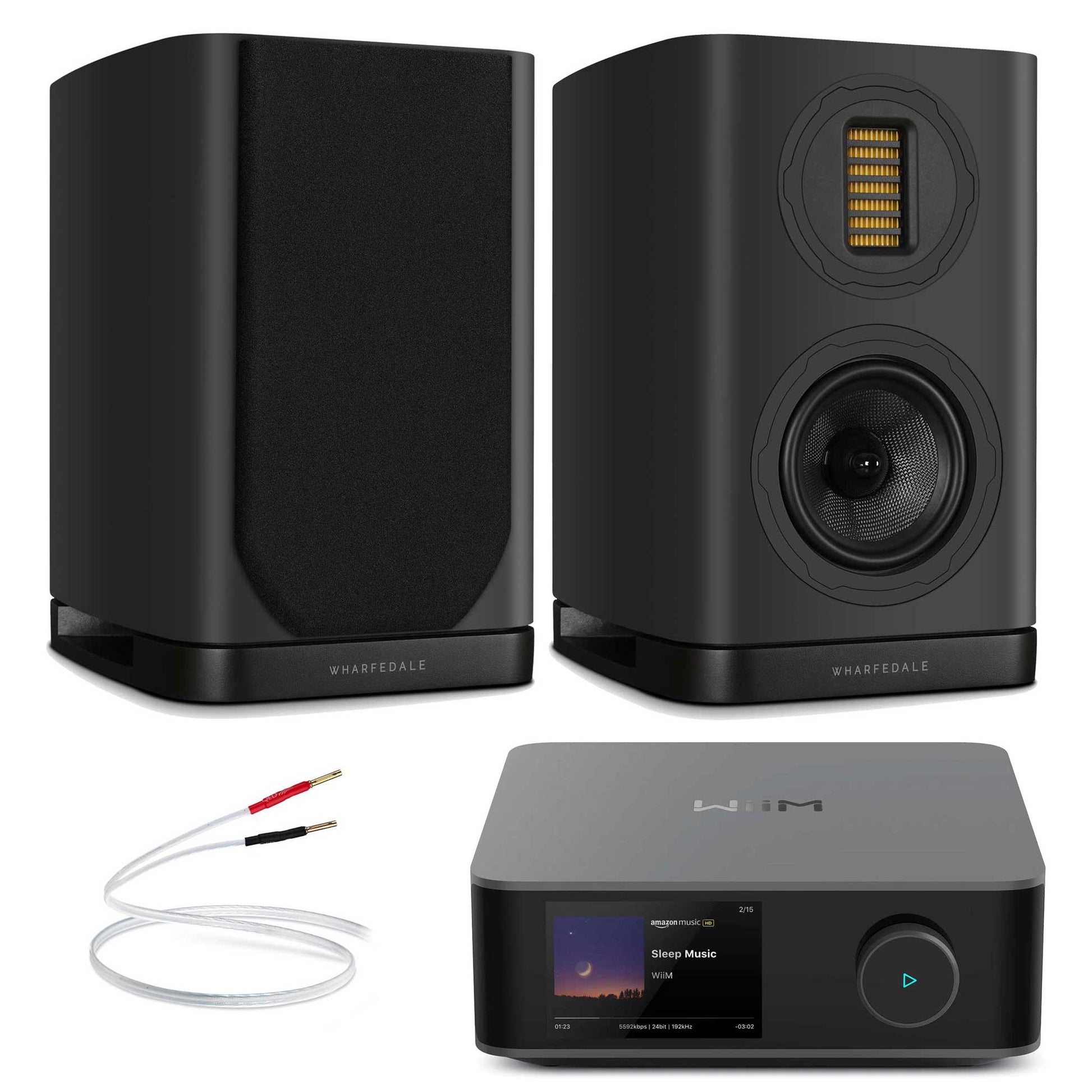

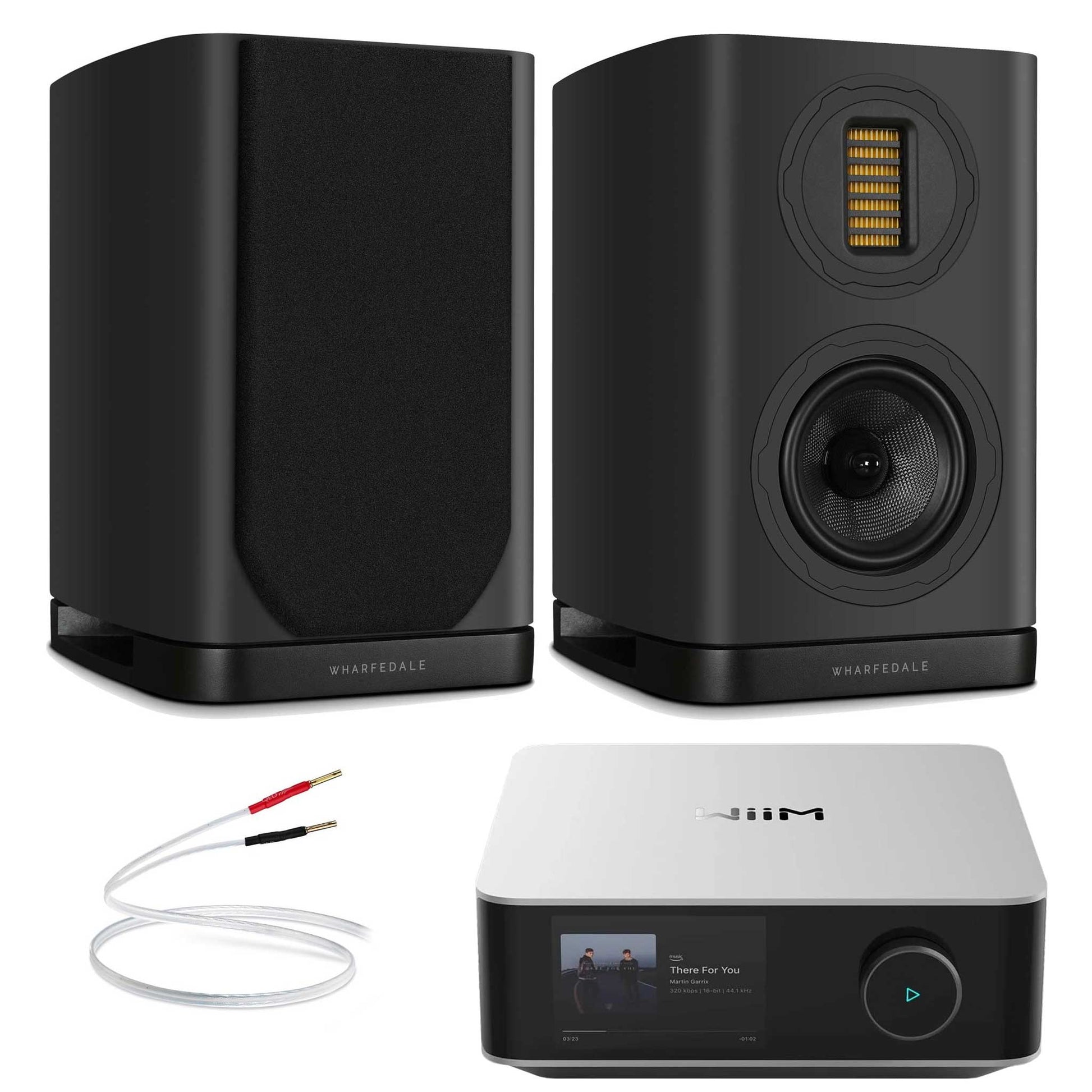

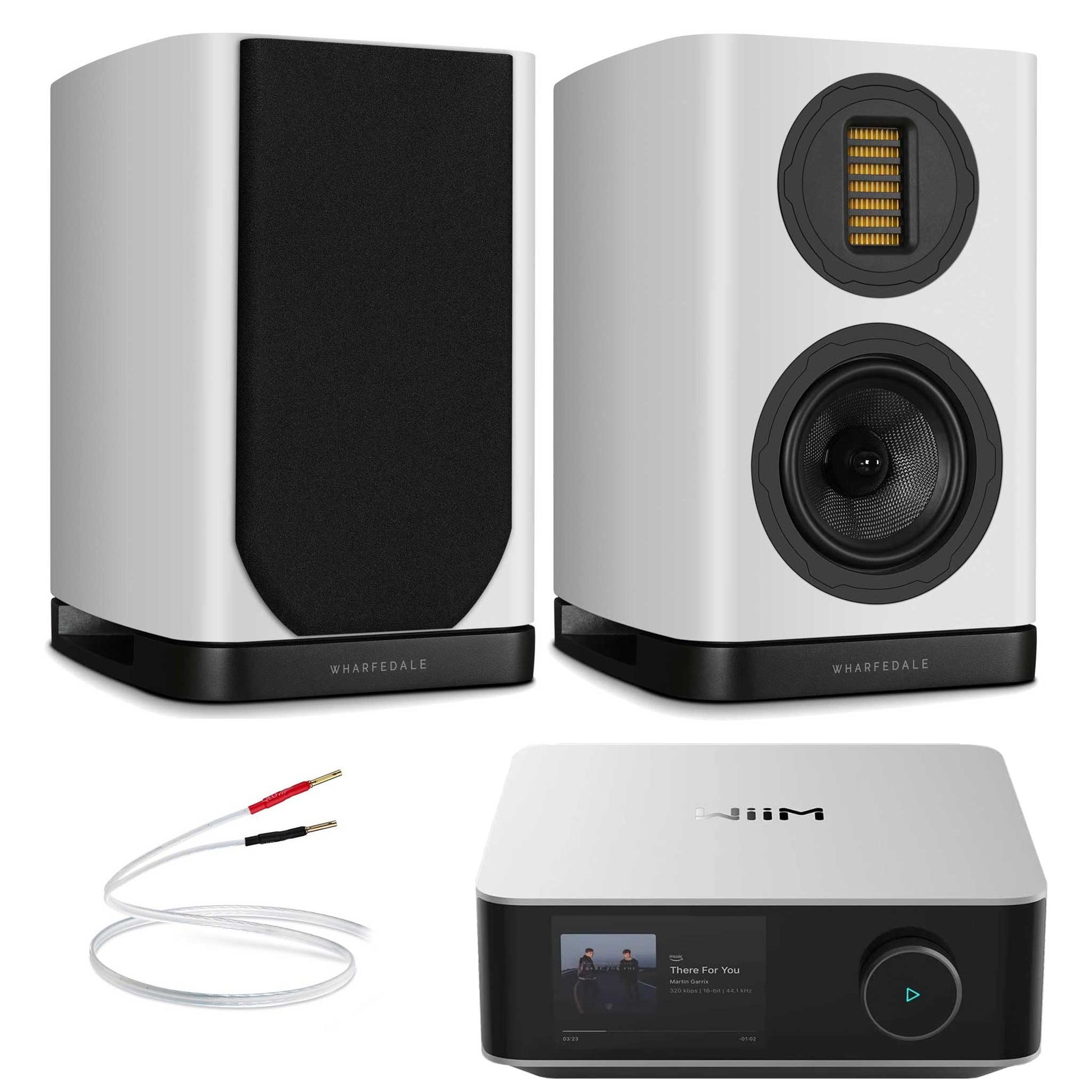

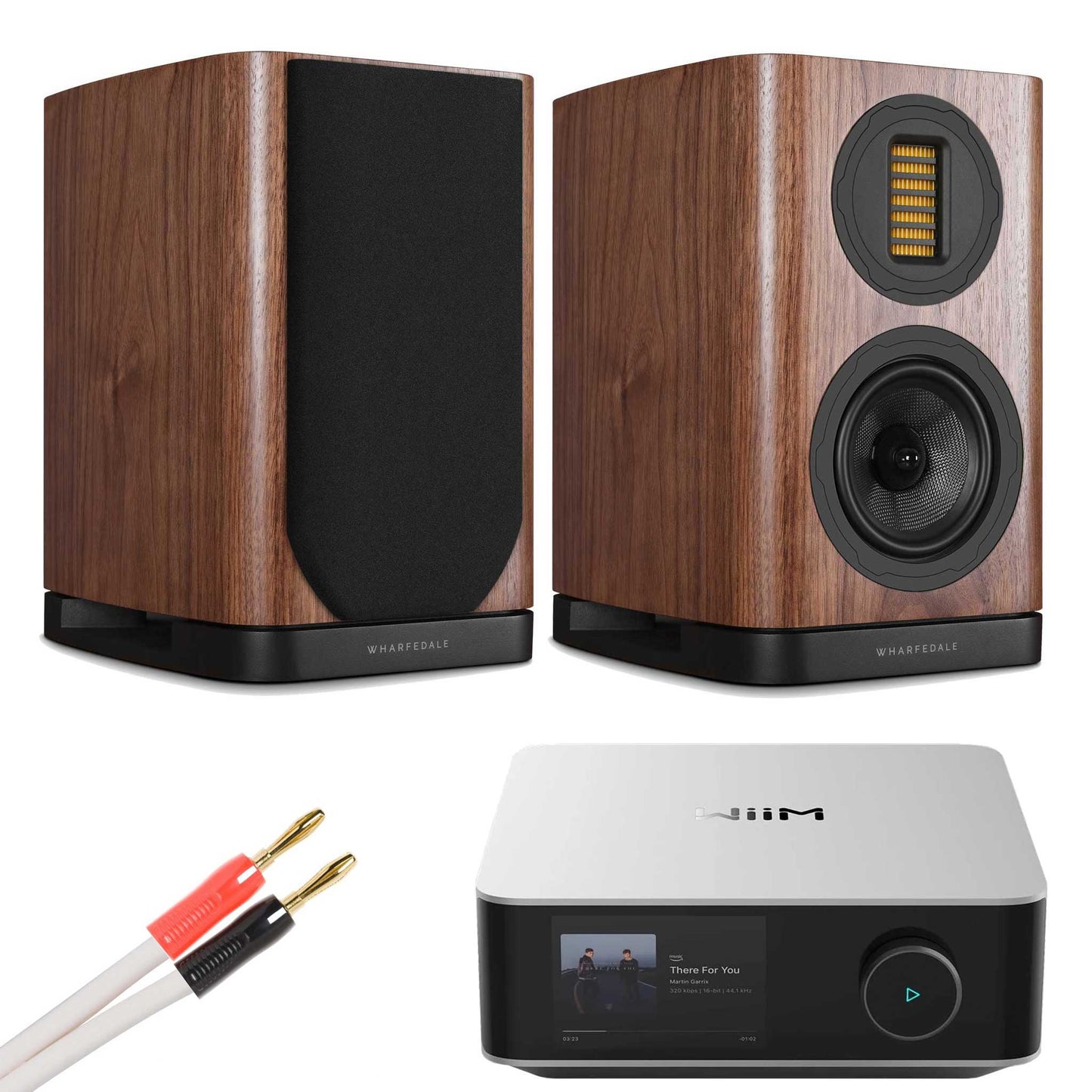

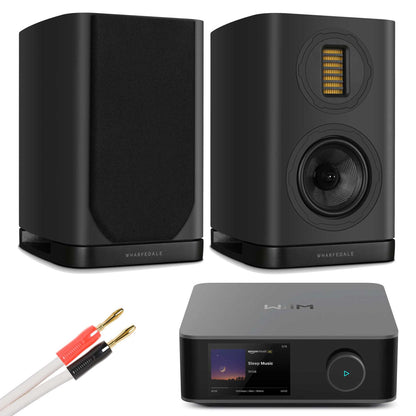

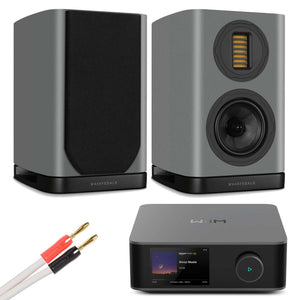

WiiM Amp Ultra with Wharfedale EVO 5.1 Bookshelf Speakers + QED Cables
The WiiM Amp Ultra is a sleek, all-in-one streaming amplifier that delivers up to 100W per channel into 8Ω (200W into 4Ω), making it powerful enough to drive a wide range of loudspeakers. Inside, a high-efficiency Class-D amplifier, ESS Sabre DAC, and Post-Filter Feedback (PFFB) technology ensure low distortion, wide dynamics, and consistent sound across different loads.
Designed for both performance and elegance, the Ultra features a solid aluminium body with a 3.5-inch colour touchscreen for intuitive control. Connectivity is extensive: HDMI ARC, optical, line-in, subwoofer out, USB, plus Wi-Fi and Bluetooth 5.3 with LE Audio for high-quality streaming.
The WiiM Home app adds room correction, 10-band EQ, and seamless access to major streaming services. It also supports multi-room audio, voice control via Alexa, Google, and Siri, and Roon Ready certification for advanced users.
Compact, stylish, and remarkably versatile, the WiiM Amp Ultra is the perfect hub for modern hi-fi, blending streaming convenience with serious amplification.
Wharfedale EVO 5.1 - Compact Bookshelf Speakers, Big Sound
The Wharfedale EVO 5.1 delivers big, detailed sound from a compact bookshelf design. This impressive little speaker combines a 5″ Kevlar bass driver with an advanced AMT tweeter helping it to deliver rich, detailed sound from a compact form. With elegant cabinet finishes and a clever bass-reflex design for flexible placement, they deliver high-end performance for smaller spaces.
High Quality Speaker Cables Included
This bundle includes a 2m pair of QED XT25 pre-terminated speaker cables worth £79.95 free of charge. (please contact us if you need longer cables)
Specifications
Specifications
|
WiiM Amp Ultra Specifications |
|
|
Chassis Design |
Precision-machined unibody aluminum for durability & heat dissipation |
|
Controls |
Multifunctional rotary knob (Volume, Play/Pause), 3.5” glass-covered capacitive touchscreen |
|
LED |
Status, Volume |
|
Power Output |
100 W per channel @ 8Ω, 200 W per channel @ 4Ω |
|
Total Harmonic Distortion (THD+N) |
≤0.005%, -106 dB (A-weighted) |
|
Signal-to-Noise Ratio (SNR) |
≥120dB |
|
Damping Factor |
94 |
|
Premium components |
ESS 9039Q2M high-performance DAC, Dual TI TPA3255 Amps, TI OPA1612 op-amps for ultra-low distortion and rich, detailed sound. |
|
Analogue audio inputs |
1x RCA Stereo: Connects to external audio sources like CD players or PCs |
|
Digital audio inputs |
1x Optical (TOSLINK) – Up to 192kHz/24-bit, HDMI ARC: Receives audio from TVs, PCM up to 192kHz/24-bit, and Dolby Digital 5.1 formats
|
|
Audio Output |
Passive Speaker Terminal, Subwoofer Output, USB Audio Out |
|
Wireless & Network Connectivity |
Bluetooth 5.3: Supports A2DP receiver and transmitter, AVRCP, HID, and works with the WiiM voice remote. Wi-Fi 6 (Upgradeable to Wi-Fi 6E): Ensures stable and high-speed wireless streaming. Ethernet (100Mbps): Standard RJ45 port |
|
Audio Format |
MP3, AAC, ALAC, APE, FLAC, AIFF, WAV, WMA, OGG |
|
EQ & Sound Customisation |
Independent settings for Wi-Fi, HDMI ARC, Optical, Bluetooth, Line-In. 24 Preset EQ Profiles, 10-Band Graphic & Parametric EQ, Built-in Room Correction with mic-guided acoustic tuning
|
|
Streaming & Smart Features |
WiiM Home App, Chromecast Audio, Spotify Connect, TIDAL Connect, DLNA, LMS , Roon Ready (Certification Pending)
|
|
Multi Room Audio |
Compatible with WiiM, Google Home, and Alexa multi-room systems
|
|
Power Supply |
100-240V 50/60Hz AC Power |
|
Dimensions (W x H x D) |
200 x 75 x 200 mm |
|
Weight |
2.45kg |
|
Package Contents |
User Guide, Power Cable, RCA Cable, Optical Cable , HDMI Cable, Remote, Banana Plugs x 4 |
|
Wharfedale EVO 5.1 Specifications |
|
|
Enclosure Type |
Bass reflex |
|
Transducer Complement |
2-way |
|
Bass Driver |
5"(130mm) black woven Kevlar cone |
|
Midrange Driver |
2" (50mm) soft dome |
|
Treble Driver |
35x70mm AMT |
|
AV Shield |
No |
|
Sensitivity (2.83V @ 1M) |
87dB |
|
Recommended Amplifier Power |
25-100W |
|
Peak SPL |
98dB |
|
Nominal Impedance |
4Ω (8Ω compatible) |
|
Minimum Impedance |
3.4Ω |
|
Frequency Response (+/-3dB) |
56Hz ~ 24kHz |
|
Bass Extension (-6dB) |
46Hz |
|
Crossover Frequency |
2.7kHz |
|
Dimensions (HxWxD) |
340 x 220 x 285+40mm (with grille and terminals) |
|
Net Weight |
8.0kg/pcs |
